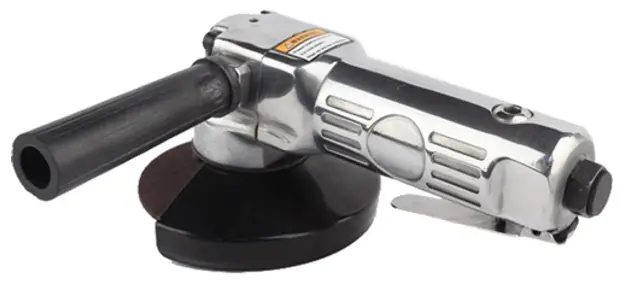

BAT1005 Grinder
BAT1005 AEPOTPOXOE
Owner,s manual
Technical Data
Diameter : 125mm
No load speed: 10000 rpm
Air pressure: 90PSI
Air Consumption: 169L/MIN
5” ANGLE GRINDER
| PARTS NO. | DESCRIPTION | QIY |
| JHSO4-0 1 | DISC NLT | 2 |
| JHSO4-02 | DISC WHEEL | 1 |
| JHSO4-03 | SCREW | 4 |
| JHSO4-04 | SPRING WASHER | 8 |
| JFISO4 -05 | DISC COVER | 1 |
| 1HSO4-06 | GEAR SHARE | 1 |
| JHSO4-07 | KEY | 1 |
| JHSO4-0S | BALL BEARING | l |
| JHSO4-09 | BEVEL GEAR | 1 |
| MSO440 | RETAINING RING | 1 |
| JHSO4- 11 | BALL BEARING | 4 |
| JHSO4- 12 | SPACER | 1 |
| JHSO4-13 | ANGLE HOUSING | 1 |
| JHSO4- 14 | SCREW | 1 |
| JHSO4- 15 | SCREW | 4 |
| JHSO4- 16 | PACKING | 1 |
| JHSO4. ; 17 | PINION GEAR | 1 |
| JHSO4- 18 | FRONT PLATE | 1 |
| PARTS NO. | DESCRIPTION | QIY |
| JHSO4-19 | BEARING SPACER | 1 |
| JHSO4-20 | ROTOR | 1 |
| JHSO4-21 | ROTOR BLADE | 4 |
| 111504-22 | CYLINDER | 1 |
| JHSO4-23 | STEEL BALL | 1 |
| JHSO4-24 | BEAR PLATE | 1 |
| JHSO4-25 | HOUSING | 1 |
| JHSO4-26 | AIR INLET | 1 |
| JHSO4-27 | SCREW | 1 |
| JHSO4-28 | SPRING | 1 |
| JHSO4-29 | VALVE STEM BUSIENG | 1 |
| JHSO4-30 | VALVE STEM | 1 |
| JHSO-31 | LEVER | 1 |
| JHSO4-32 | SPRING PIN | 1 |
| JHSO4-33 | STOP SPANNER | 4 |
| JHSO4-34 | DISC SPANNER | 1 |
| JHSO4-35 | HANDLE | 1 |
