Technik

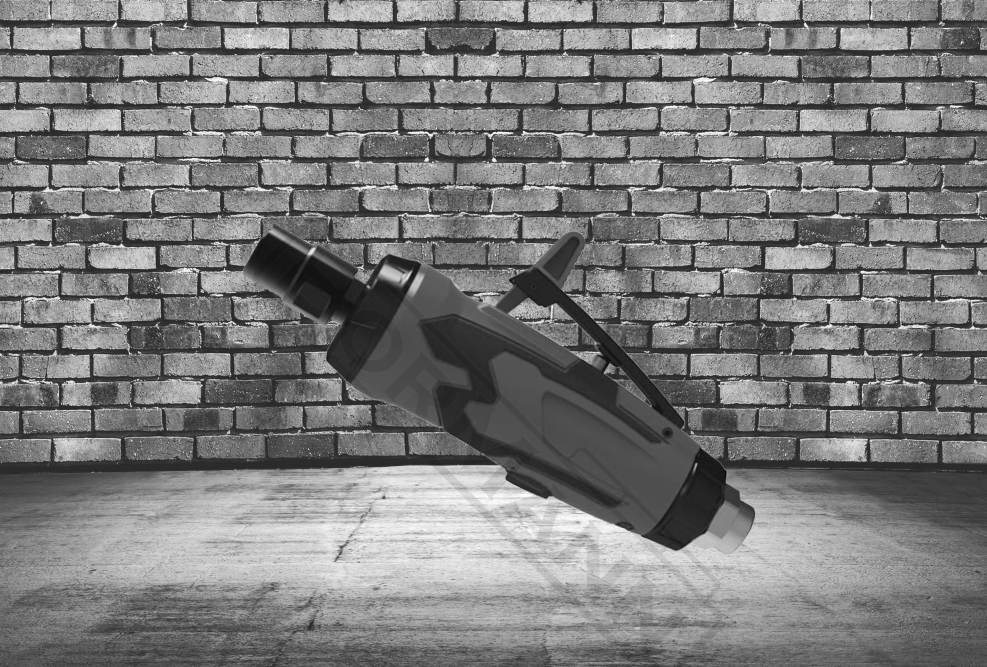

BAT 1006
Owner’s manual
Specifications
Speed: 25000rpm
Weight: 0.35Kg
Collet Size: 1/8”, 1/4”, 3mm, 6mm
Air Inlet: 1/4”

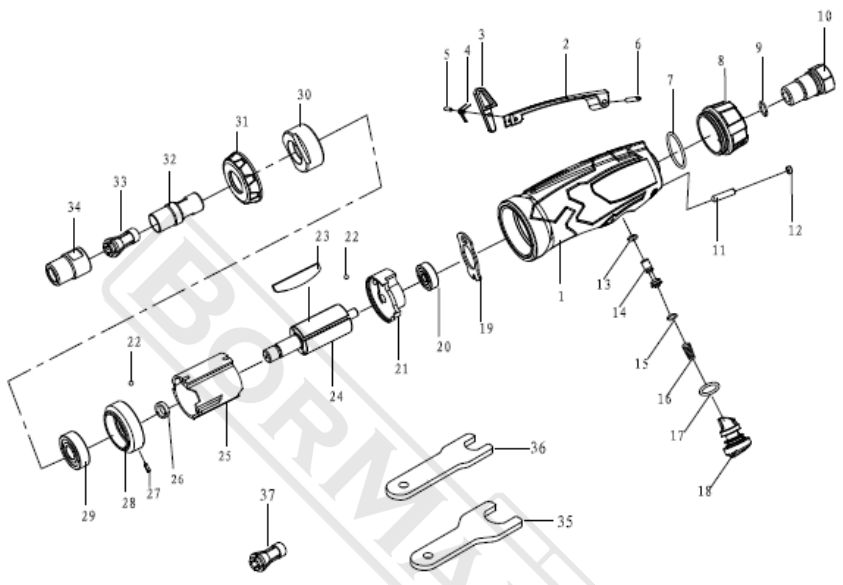

| Ref. | Part# | Description | Q’TY |
| I | WFG- 3210- 01 | Housing | 1 |
| 2 | WFG- 3210- 02 | Trigger | 1 |
| 3 | WFG- 3210- 03 | Insurance Block | 1 |
| 4 | WFG- 3210- 04 | Relief Spring | 1 |
| 5 | GB/T879.2- 2000 2•15 | Straight Pin | 1 |
| 6 | GB/T879.4- 2000 3•20 | Straight Pin | 1 |
| 7 | JB/T6658- 1993 18•1.5 | O- Ring | 1 |
| 8 | WFC- 3210- 05 | Muffle Cover | 1 |
| 9 | GB/T3452. 1- 1992 11.2•1.8 | O- Ring | 1 |
| 10 | WFG- 3210- 06 | Air Inlet Connector | 1 |
| 11 | WFI- 1070- 25 | Pin | 1 |
| 12 | GB/T77- 2000 M5•6 | Screw | 1 |
| 13 | JB/T6658- 1993 3•1 | O- Ring | 1 |
| 14 | WFG- 3210- 07 | Pin | 1 |
| 15 | 0 Ring 4•2 | O- Ring | 1 |
| 16 | WFG- 3210- 07 | Taper Spring | 1 |
| 17 | JB/T6658- 1993 8•1.8 | O- Ring | 1 |
| 18 | WFG- 3210- 09 | Adjusting Knob | 1 |
| 19 | WFG- 3210- 10 | Sealing Gasket | 1 |
| 20 | GB/T276- 1994 625- 2Z | Bearing | 1 |
| 21 | WFG- 3210- 11 | Back Cylinder Head | 1 |
| 22 | GB/T 308- 2002- 2.5 | Steel Ball | 2 |
| 23 | WFG- 1210- 11 | Blade | 4 |
| 24 | WFG- 1010- 05 | Rotor | 1 |
| 25 | WFG- 1210- 13 | Cylinder | 1 |
| 26 | WFG-1210 -14 | Washer | 1 |
| 27 | GB/T119- 1-2000 1.5 •5 | Pin | 1 |
| 28 | WFG- 3210- 12 | Front cylinder Bead | 1 |
| 29 | GB/T276- 1994 608- 2Z | Bearing | 1 |
| 30 | WFG- 3210-12 | Locking Ring | 1 |
| 3l | WFG- 3210-14 | Locking Front Cylinder Head | 1 |
| 32 | WFG- 1210-16 | Collet Holder | 1 |
| 33 | BQD4- 01- 01 | 1/4″ Collet | 1 |
| 34 | WFG- 1210 -19 | Collet Nut | 1 |
| 35 | WFG- 1210 -20 | Big Spanner | 1 |
| ,6 | WFG- 1210-21 | Small Spanner | 1 |
| 37 | BQD4- 01- 03 | 1/8″Collet | 1 |
