BAT3000Air Lock Set
Owner’s Manual
Technical Data
| Free speed: | 9000RPM |
| Max. torque: | 610N.M |
| Air pressure: | 6.2BAR |
| Air inlet: | 1/4″ |
| Bolt capacity: | 1/2″ |

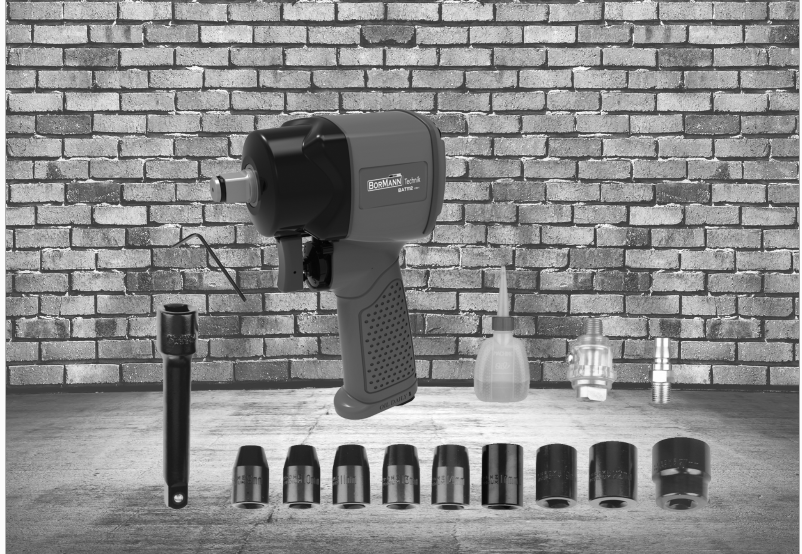

Items included:
10pcs impact sockets:9,10,11,13,14,17,19,22,24,27mm
1pc 1/2″dr*5″ extension bar
1pc nipple 1pc hex key wrench
1pc oil pot 1pc mini oiler
1pc blow mold case
| Ref. | Part# | Description | QTY |
| 1 | WFI-3270-01 | Houshing | 1 |
| 2 | WFI-3370-01 | Clutch Housing | 1 |
| 3 | WFI-3370-02 | Hammer Case Bushing | 1 |
| 4 | WFI-1070-12 | Socket Retainer | 1 |
| JB/T6659-1993 6*1.8 | 0-Ring | 1 | |
| 0 | WF1-3370-03 | Anvil | 1 |
| 7 | WFI-3370-04 | Hammer Pin Set | 1 |
| 8 | WFI-3370-05 | Hammer | 2 |
| 9 | WFI-3370-06 | Hammer Frame | 1 |
| 10 | WFI-3270-08 | Front Gasket | 1 |
| 11 | GB/T 70.1-2000 M4*12 | Bolt Assy | 6 |
| 12 | Bearing R8 | Bearing | 1 |
| 13 | WFI-3270-09 | Front Bearing Plate | 1 |
| 14 | WFI-3270-10 | Fornt cover wear plate | 1 |
| 13 | WFI-3270-11 | Rotor | 1 |
| 10 | WFI-3270-12 | Rotor Blade | 6 |
| 17 | WFI-3270-13 | Cylinder | 1 |
| 18 | GB/T3452.1-92 16*1.5 | 0-Ring | 1 |
| 19 | WFI-3270-14 | Rear cover wear plate | 1 |
| 20 | WFI-3270-15 | Rear End Plate | 1 |
| 21 | Bearing R6 | Bearing | 1 |
| 22 | WFI-3270-16 | Rear Gasket | 1 |
| 23 | 613/T2672 M4*66 | Screw | 4 |
| 24 | GB/T2672 M4*35 | Screw | 1 |
| Ref. | Part# | Description | QTY |
| 25 | WFI-3270-17 | Trigger | 1 |
| 26 | GB/T 879.1-2000 1.5.14 | Spring Pin | 1 |
| 27 | GB/T 959.1-86 8 | Retaining Ring | 1 |
| 28 | W81-3270-18 | Regulator Dial | 1 |
| 29 | GO / T 308-2002 2. 5 | Steel Bal 1 | 2 |
| 30 | WF1-3270-19 | Spring | 2 |
| 31 | WFI-3270-20 | Reverse Lever | 1 |
| 32 | W81-3270-21 | Regulator Valve | 1 |
| 33 | W81-3270-22 | Reverse Valve | 1 |
| 34 | GB/T 879.1-2000 2.18 | Spring Pin | 1 |
| 35 | GB/T3452. 1-92 13. 2.1. 5 | 0-Ring | 1 |
| 36 | GB/T3452. 1-92 7.1. 5 | 0-Ring | 1 |
| 37 | W81-3270-23 | Trigger Tip | 1 |
| 38 | GB/T3452.1-92 2.5*1 | 0-Ring | 1 |
| 39 | GB/T 879.1-2000 3*20 | Straight pi, | 1 |
| 40 | W81-3071-04 | Seal | 1 |
| 41 | W81-3270-24 | Valve pole | 1 |
| 42 | W81-3071-06 | Valve | 1 |
| 43 | W81-3071-07 | Spring | 1 |
| 44 | W81-3270-25 | lixhuast Deflector | 1 |
| 45 | GB 846 ST2.2*6 | Top Bolt | 1 |
| 46 | G51-2 12*2 | 0-ring | 2 |
| 47 | WFI-3270-26 | 1 Air Inl, | 1 |
