Thehnik

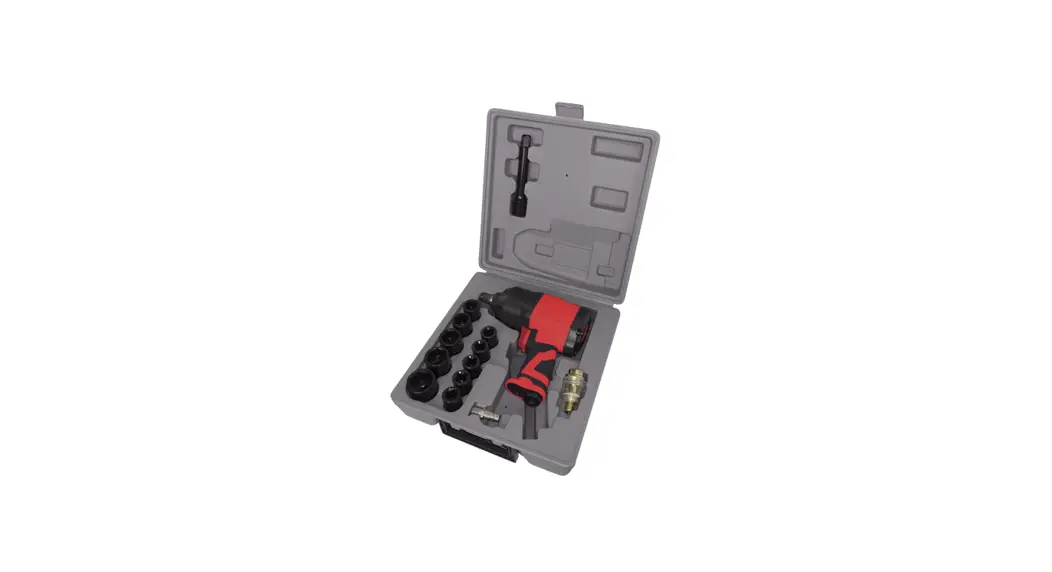

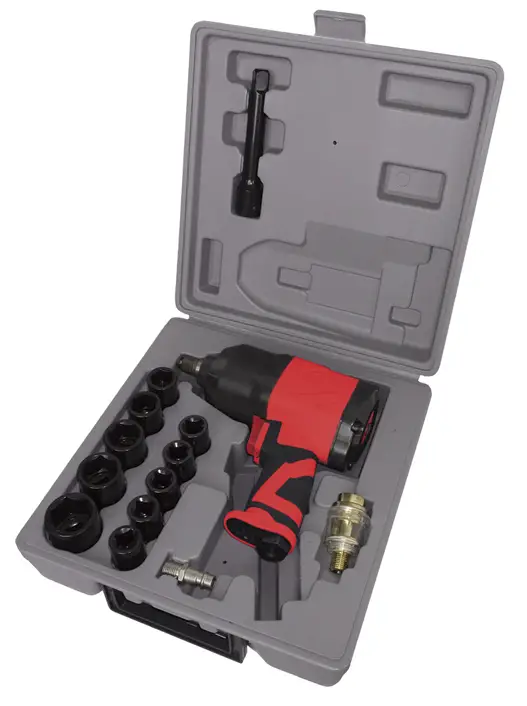

BAT1112 Air wrench with nuts
Owner’s Manual
Technical Data
Bolt Capacity: 1/2″ (68mm)
Speed: 7500rpm
Max Torque: 340Nm
Air Inlet: 1/4″
Working Pressure: 90Psi

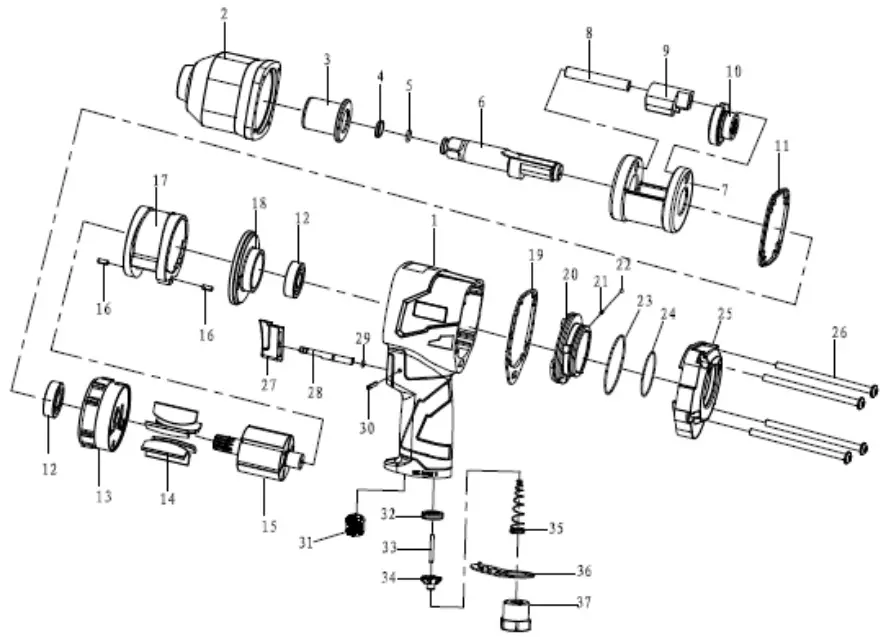

| Ref. | Part# | Description | QTY |
| 1 | WFI-1170-01 | HOUSING | 1 |
| 2 | WFI-1170-02 | Front Housing | 1 |
| 3 | WFI-1070-11 | Oily Bushing | 1 |
| 4 | WFI-1070-12 | Anti-off Circle | 1 |
| 5 | GB/T3452. j-1992 | O-Ring | 1 |
| 6 | WF I-1070-13 | Driving Shaft | 1 |
| 7 | WFI-1070-14 | Hammer Cage | 1 |
| 8 | WFI-1070-15 | Pin | 1 |
| 9 | WFI-1070-16 | Hammer Dog | 1 |
| 10 | WFI-1070-17 | Cam | 1 |
| 11 | WF I-1170-03 | Front Casket | 1 |
| 12 | GB/T276-1994 6001-22 | Bearing | 2 |
| 13 | WF1I-1170-04 | Front Cylinder Read | 1 |
| 14 | WFI-1070-19 | Blade | 6 |
| 15 | WFI-1070-20 | Rotor | 1 |
| 16 | Ga/T879. 2-2000 | Straight pin | 2 |
| 17 | WFI-1170-05 | Cylinder | 1 |
| 18 | WFI-1170-06 | Back Cylinder Head | 1 |
| 19 | WF I-1170-07 | Rear Gasket | 1 |
| 20 | WFI-1170-08 | Adjustment Knob | 1 |
| 21 | WFI-1170-11 | spring | 1 |
| 22 | GB/T 308-2002_3. 0 | Steel Ball | 1 |
| 23 | GB/T 3453. f-1992 | O-Ring | 1 |
| 24 | GB/T3452. \-4992 35, Sel. | O-Ring | 1 |
| 25 | WFI-1170-09 | Cap | 1 |
| 26 | WFI-1170-12 | Screw | 4 |
| 27 | WFI-1170-10 | Trigger | 1 |
| 28 | WF I-5070-03 | Pin | 1 |
| 29 | JB/T659-1993 8/7879. 2-2000 | O-Ring | 1 |
| 30 | GB/T879. 2-2000 2. 5024 | Straight pin | 1 |
| 31 | WFS—1038A-24 | muffle cotton | 1 |
| 32 | WFI-3071-04 | Eye ring | 1 |
| 33 | WFI-5070-08 | Valve pole | 1 |
| 34 | WFI-3071-06 | Valve | 1 |
| 35 | WFI-3071-07 | Spring | 1 |
| 36 | WF1-2070-10 | Muffle Cover | 1 |
| 37 | WFI-3071-08 | Air inlet connector | 1 |
