Williams Sonoma Tgc0p4368d00 Classic Fraser Fir-12-led Color Changing Instruction Manual

TGC0P4368D00 Classic Fraser Fir-12-LED Color Changing

Product Information: Christmas Tree with Pre-lit Dual Color
Lights

This Christmas tree is a pre-lit artificial tree that comes with
dual-color lights. The tree has a stand and is made up of several
sections that need to be assembled before use. The tree has
electrical ratings for indoor use, and the assembly instructions
need to be followed carefully to ensure proper setup and use.

Assembly Instructions:

1. Find a level surface near an electrical outlet and assemble the
   tree stand as shown in Fig. A.
2. Identify all sections before assembling.
3. Assemble the tree from the bottom to the top. Insert the pole
   of Section 1 into the assembled stand. Make sure the pole is firmly
   inserted and secured into the stand.
4. Follow the direction of the arrow marked on the adapter to
   insert. Ensure that all poles are firmly secure. Continue this step
   until the entire tree is set up. Be sure that all wires are free of
   branch hinges.
5. Plug the adapter into the wall outlet. Your tree should now be
   lit. If some bulbs do not light or flicker, search for any loose
   plugs and/or broken, loose, or missing bulbs. Connect the plugs or
   replace the bad bulbs promptly in order to maintain the performance
   and life expectancy of your pre-lit tree.
6. Begin to shape the branches and tips in the bottom section
   inserted into the tree stand. Start with the tips closest to the
   middle of the tree; pull the individual tips alternately upward and
   outward working your way to the tip of the branches (See Fig. C).
   Work row by row to the upper part of the tree section leaving no
   tip untouched. Continue to shape each branch as described above as
   you set up each tree section.

Storage Instructions:

1. Unplug cord from the wall outlet first and then remove all
   ornaments and decorations.
2. Disassemble the tree from the top to the bottom. Start with the
   tree top and gently lift straight up to remove from section below
   and fold all branches toward the pole.
3. Continue by gently lifting straight up each section(s) from the
   section below and fold all branches toward the pole until the
   bottom section is removed from the tree stand.
4. Carefully place all tree sections into shipping box and tape it
   shut.
5. When not in use, please store your tree in a cool, dry place
   away from sunlight. Exposing your tree to excessive heat or
   humidity may damage your tree.

How to Use the Dual Color Light Controller:

The dual-color light controller has a selector button that can
be used to choose among four different options:

1. CLEAR-MULTI: FADING
2. CLEAR: FADING
3. CLEAR-MULTI: ALTERNATING
4. CLEAR: STEADY

ASSEMBLY INSTRUCTIONS

LIGHT ASSEMBLY DIAGRAM 26.1 Watts
Thank you for purchasing your Christmas tree. The instructions below will help you quickly and easily set up your new tree.
1. Find a level surface near an electrical outlet and assemble the tree stand as shown in Fig. A.

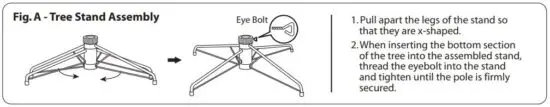

Fig. A – Tree Stand Assembly

Eye Bolt

1. Pull apart the legs of the stand so that they are x-shaped.
2. When inserting the bottom section of the tree into the assembled stand, thread the eyebolt into the stand and tighten until the pole is firmly secured.

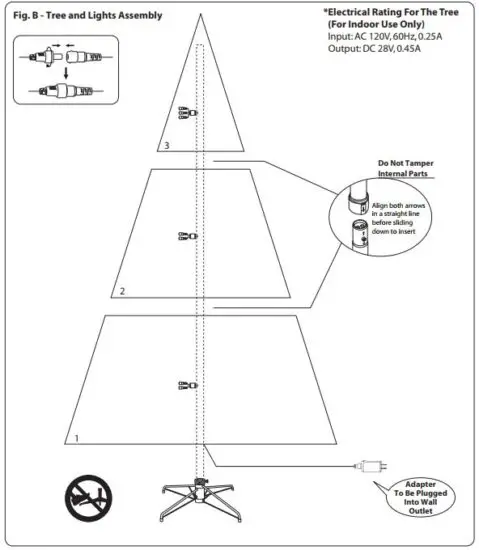

Fig. B – Tree and Lights Assembly 7

*Electrical Rating For The Tree (For Indoor Use Only) Input: AC 120V, 60Hz, 0.45A Output: DC 29V, 0.9A Controller : 0.9A

6 5 4

Do Not Tamper Internal Parts
Align both arrows in a straight line before sliding down to insert

3

2

1

Control box

Adapter To Be Plugged
Into Wall Outlet

2. Each tree section is numbered with a tag. Identify all sections before assembling.
3. Assemble the tree from the bottom to the top. Insert the pole of Section 1 into the assembled stand. Make sure the pole is firmly inserted and secured into the stand. Note: Do not step on the tree legs during the setup. This may deform the tree stand and may result in an unbalanced tree.

ITEM #: TGC0P4368D00

1

MADE IN CHINA

ASSEMBLY INSTRUCTIONS

4. Follow the direction of the arrow marked on the adapter to insert. Ensure that all poles are firmly secure. Continue this step until the entire tree is set up. Be sure that all wires are free of branch hinges.
5. Plug the adapter into the wall outlet (See Fig. B). Your tree should now be lit. If some bulbs do not light or flicker, search for any loose plugs and/or broken, loose or missing bulbs. Connect the plugs or replace the bad bulbs promptly in order to maintain the performance and life expectancy of your pre-lit tree.
6. Begin to shape the branches and tips in the bottom section inserted into the tree stand. Start with the tips closest to the middle of the tree; pull the individual tips alternately upward and outward working your way to the tip of the branches (See Fig. C). Work row by row to the upper part of the tree section leaving no tip untouched. Continue to shape each branch as described above as you set up each tree section.

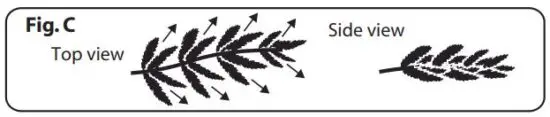

Fig. C
Top view

Side view

STORAGE INSTRUCTIONS
1. Unplug cord from the wall outlet first and then remove all ornaments and decorations.
2. Disassemble the tree from the top to the bottom. Start with the tree top and gently lift straight up to remove from section below and fold all branches toward the pole.
3. Continue by gently lifting straight up each section(s) from the section below and fold all branches toward the pole until the bottom section is removed from the tree stand.
4. Carefully place all tree sections into shipping box and tape it shut.
5. When not in use, please store your tree in a cool, dry place away from sunlight. Exposing your tree to excessive heat or humidity may damage your tree.

HOW TO USE THE DUAL COLOR LIGHT CONTROLLER:

Press the selector button on the “Dual Color Light Controller” to select among: (1) CLEAR-MULTI: FADING (2) CLEAR: FADING (3) CLEAR-MULTI: ALTERNATING (4) CLEAR: STEADY

Selector Button

(5) CLEAR-MULTI: SLOW FADING (6) MULTI: STEADY

(7) MULTI: FADING (8) COMBINATION

TROUBLESHOOTING TIPS
For pre-lit trees, if the tree does not illuminate:

Light Controller

1. Check to make sure that all plugs and adapter are properly connected as indicated in Fig. B. (If the tree comes with a foot pedal, try stepping on the on/off button).

2. Turn the poles gently to make sure pole-to-pole connection is secured.

3. Check for loose, broken or missing bulbs, and replace as needed.

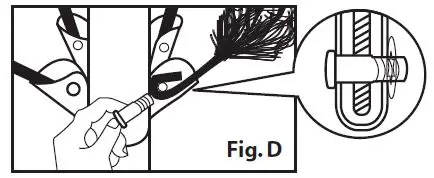

Loose Branches 1. Extra hinge pins are included for repairing the hinges of
the branches. Place the branch into the slot of the bracket.
2. Insert a new hinge pin through the hole and secure using the retainer washer. (See Fig. D)

Fig. D

SPARE PARTS
This tree includes spare hinge pins, washers and bulbs.

CAUTION
1. To reduce the risk of fire and electric shock: a) Use only the power supply that was provided with this product. Using a different adapter will damage the lights and may cause fire, or electrical shock hazards. b) Do not install on trees having needles, leaves or branch coverings of metal or materials which look like metal. c) Do not mount or support strings in a manner that can cut or damage wire insulation.
2. The controller and remote controller (if included) can only be used with this product.

2

MADE IN CHINA
