Introduction
The document describes how to control your BenQ projector via RS232 from a computer. Follow the procedures to complete the connection and settings first, and refer to the command table for RS232 commands.
Available functions and commands vary by model. Check the specifications and user manual of the purchased projector for product functions.
Wire arrangement
| Wire Arrangement | ||
| P1 | Color | P2 |
| 1 | Black | 1 |
| 2 | Brown | 3 |
| 3 | Red | 2 |
| 4 | Orange | 4 |
| 5 | Yellow | 5 |
| 6 | Green | 6 |
| 7 | Blue | 7 |
| 8 | Purple | 8 |
| 9 | Gray | 9 |
| Case | Drain wire | Case |
RS232 pin assignment
| Pin | Description | Pin | Description |
| 1 | NC | 2 | RXD |
| 3 | TXD | 4 | NC |
| 5 | GND | 6 | NC |
| 7 | RTS | 8 | CTS |
| 9 | NC |
Connections and communication settings
Choose one of the connections and set up properly before RS232 control.

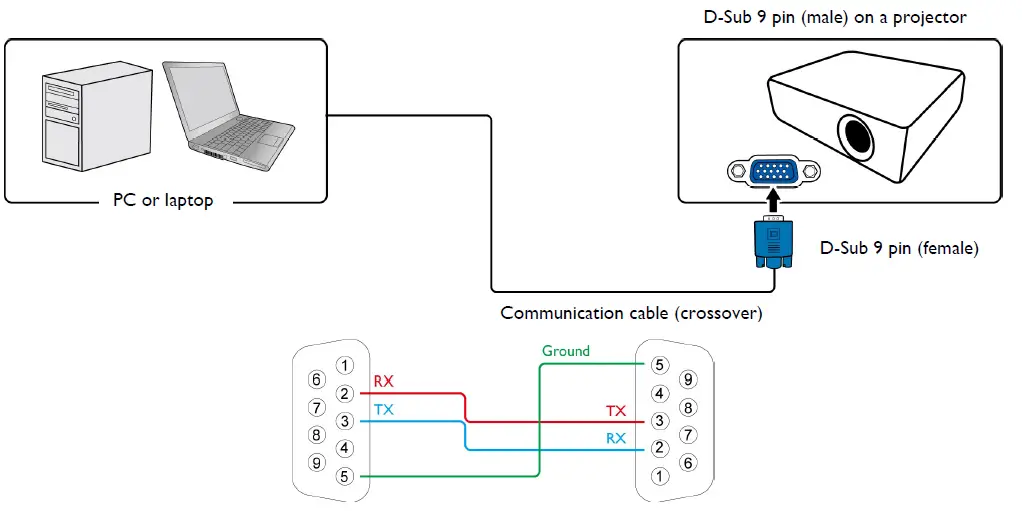

RS232 serial port with a crossover cable
Settings
The on-screen images in this document are for reference only. The screens may vary depending on your Operating System, I/O ports used for connection, and the specifications of the connected projector.

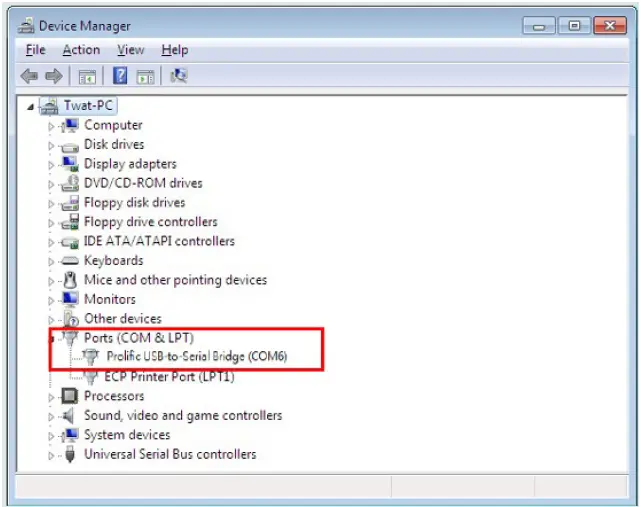

- Determine the COM Port name used for the RS232 communications in Device Manager.

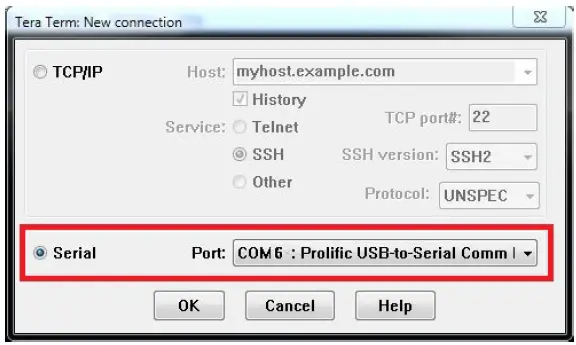

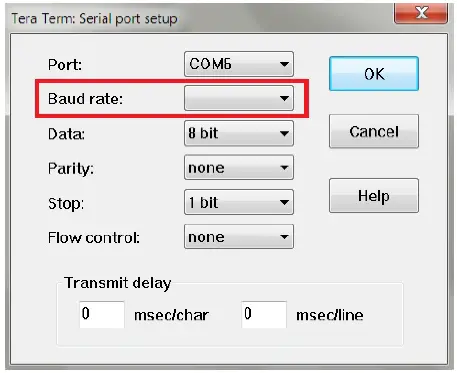

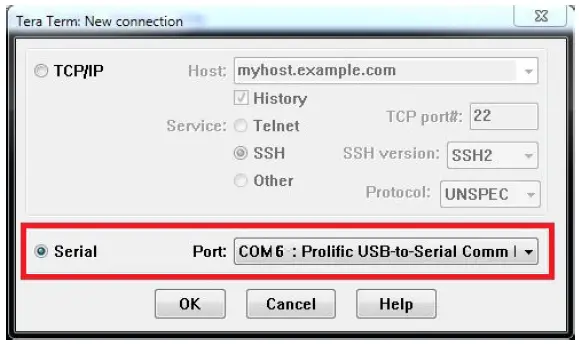

- Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected.
- Finish Serial port setup.
Baud rate 9600 bps Data length 8 bit Parity check None Stop bit 1 bit Flow control None
RJ45 port on a projector
Settings
- Find the Wired LAN IP address of the connected projector from the OSD menu and make sure the projector and the computer are within the same network.

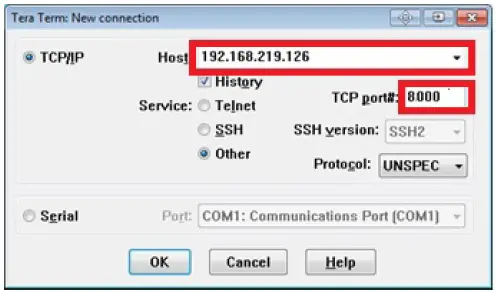

- Input 8000 in the TCP port # field.

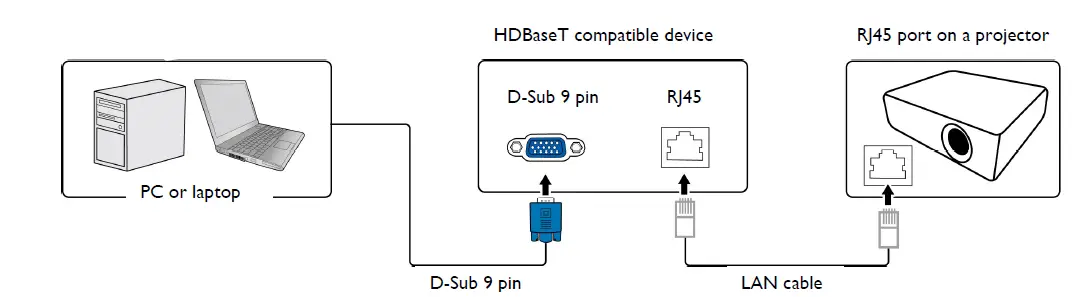

RS232 via HDBaseT
Settings
- Determine the COM Port name used for the RS232 communications in Device Manager.

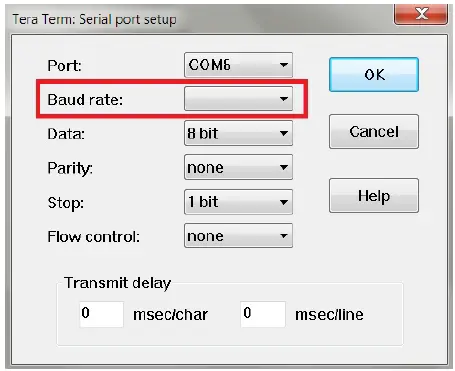

- Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected.
- Finish Serial port setup.
| Baud rate | 9600 bps |
| Data length | 8 bit |
| Parity check | None |
| Stop bit | 1 bit |
| Flow control | None |
Command table
- Available features differ by projector specification, input sources, settings, etc..
- Commands are working if the standby power is 0.5W or a supported baud rate of the projector is set.
- Uppercase, lowercase, and a mixture of both types of characters are accepted for a command.
- If a command format is illegal, it will echo the Illegal format.
- If a command with the correct format is not valid for the projector model, it will echo the Unsupported item.
- If a command with the correct format cannot be executed under certain conditions, it will echo the Block item.
- If RS232 control is performed via LAN, a command works whether it starts and ends with <CR>. All the commands and behaviors are identical to the control through a serial port.
| Function | Type | Operation | ASCII | Support |
| Power | Write | Power On | <CR>*pow=on#<CR> | YES |
| Write | Power off | <CR>*pow=off#<CR> | YES | |
| Read | Power Status | <CR>*pow=?#<CR> | YES | |
|
Source Selection | Write | COMPUTER/YPbPr | <CR>*sour=RGB#<CR> | NO |
| Write | COMPUTER 2/YPbPr2 | <CR>*sour=RGB2#<CR> | NO | |
| Write | COMPUTER 3/YPbPr3 | <CR>*sour=RGB3#<CR> | NO | |
| Write | Component | <CR>*sour=ypbr#<CR> | NO | |
| Write | Component2 | <CR>*sour=ypbr2#<CR> | NO | |
| Write | DVI-A | <CR>*sour=dviA#<CR> | NO | |
| Write | DVI-D | <CR>*sour=dvid#<CR> | NO | |
| Write | HDMI(MHL) | <CR>*sour=hdmi#<CR> | YES | |
| Write | HDMI 2(MHL2) | <CR>*sour=hdmi2#<CR> | YES | |
| Write | Composite | <CR>*sour=vid#<CR> | NO | |
| Write | S-Video | <CR>*sour=svid#<CR> | NO | |
| Write | Network | <CR>*sour=network#<CR> | NO | |
| Write | USB Display | <CR>*sour=usbdisplay#<CR> | NO | |
| Write | USB Reader | <CR>*sour=usbreader#<CR> | YES | |
| Write | HDbaseT | <CR>*sour=hdbaset#<CR> | NO | |
| Write | DisplayPort | <CR>*sour=dp#<CR> | NO | |
| Write | 3G-SDI | <CR>*sour=sdi#<CR> | NO | |
| Read | Current source | <CR>*sour=?#<CR> | YES | |
|
Audio Control | Write | Mute On | <CR>*mute=on#<CR> | YES |
| Write | Mute Off | <CR>*mute=off#<CR> | YES | |
| Read | Mute Status | <CR>*mute=?#<CR> | YES | |
| Write | Volume + | <CR>*vol=+#<CR> | YES | |
| Write | Volume – | <CR>*vol=-#<CR> | YES |
| Write | Volume level for customer | <CR>*vol=value#<CR> | YES | |
| Read | Volume Status | <CR>*vol=?#<CR> | YES | |
| Write | Mic.Volume + | <CR>*micvol=+#<CR> | NO | |
| Write | Mic.Volume – | <CR>*micvol=-#<CR> | NO | |
| Read | Mic.Volume Status | <CR>*micvol=?#<CR> | NO | |
|
Audio source select | Write | Audio pass Through off | <CR>*audiosour=off#<CR> | NO |
| Write | Audio-Computer1 | <CR>*audiosour=RGB#<CR> | NO | |
| Write | Audio-Computer2 | <CR>*audiosour=RGB2#<CR> | NO | |
| Write | Audio-Video/S-Video | <CR>*audiosour=vid#<CR> | NO | |
| Write | Audio-Component | <CR>*audiosour=ypbr#<CR> | NO | |
| Write | Audio-HDMI | <CR>*audiosour=hdmi#<CR> | NO | |
| Write | Audio-HDMI2 | <CR>*audiosour=hdmi2#<CR> | NO | |
| Read | Audio pass Status | <CR>*audiosour=?#<CR> | NO | |
| Write | Bright | <CR>*appmod=bright#<CR> | YES | |
| Read | Silence mode | <CR>*appmod=silence#<CR> | YES | |
| Write | Vivid | <CR>*appmod=vivid#<CR> | Yes | |
| Write | User1 | <CR>*appmod=user1#<CR> | YES | |
| Read | ISF Day | <CR>*appmod=isfday#<CR> | Yes | |
| Read | ISF Night | <CR>*appmod=isfnight#<CR> | Yes | |
| Read | 3D | <CR>*appmod=threed#<CR> | Yes | |
| Write | Cinema (Rec. 709) | <CR>*appmod=cine#<CR> | YES | |
| Write | D. Cinema | <CR>*appmod=d.cinema#<CR> | YES | |
| Read | HDR10 | <CR>*appmod=hdr10<CR> | YES | |
| Read | HLG | <CR>*appmod=hlg<CR> | YES | |
| Write | Picture Mode | <CR>*appmod=?#<CR> | YES | |
|
Picture Setting | Write | Contrast + | <CR>*con=+#<CR> | YES |
| Write | Contrast – | <CR>*con=-#<CR> | YES | |
| Write | Set Contrast value | <CR>*con=value#<CR> | YES | |
| Read | Contrast value | <CR>*con=?#<CR> | YES | |
| Write | Brightness + | <CR>*bri=+#<CR> | YES | |
| Write | Brightness – | <CR>*bri=-#<CR> | YES | |
| Write | Set Brightness value | <CR>*bri=value#<CR> | YES | |
| Read | Brightness value | <CR>*bri=?#<CR> | YES | |
| Write | Color + | <CR>*color=+#<CR> | YES | |
| Write | Color – | <CR>*color=-#<CR> | YES | |
| Write | Set Color value | <CR>*color=value#<CR> | YES | |
| Read | Color value | <CR>*color=?#<CR> | YES | |
| Write | Tint + | <CR>*tint=+#<CR> | YES |
| Write | Tint – | <CR>*tint=-#<CR> | YES | |
| Write | Set Tint value | <CR>*tint=value#<CR> | YES | |
| Read | Get Tint value | <CR>*tint=?#<CR> | YES | |
| Write | Sharpness + | <CR>*sharp=+#<CR> | YES | |
| Write | Sharpness – | <CR>*sharp=-#<CR> | YES | |
| Write | Set Sharpness value | <CR>*sharp=value#<CR> | YES | |
| Read | Sharpness value | <CR>*sharp=?#<CR> | YES | |
| Write | Flesh Tone + | <CR>*fleshtone=+#<CR> | NO | |
| Write | Flesh Tone – | <CR>*fleshtone=-#<CR> | NO | |
| Read | Flesh Tone value | <CR>*fleshtone=?#<CR> | NO | |
| Write | Color Temperature-Warmer | <CR>*ct=warmer#<CR> | NO | |
| Write | Color Temperature-Warm | <CR>*ct=warm#<CR> | YES | |
| Write | Color Temperature-Normal | <CR>*ct=normal#<CR> | YES | |
| Write | Color Temperature-Cool | <CR>*ct=cool#<CR> | YES | |
| Write | Color Temperature-Cooler | <CR>*ct=cooler#<CR> | NO | |
| Write | Color Temperature-lamp native | <CR>*ct=native#<CR> | YES | |
| Read | Color Temperature Status | <CR>*ct=?#<CR> | YES | |
| Write | Aspect 4:3 | <CR>*asp=4:3#<CR> | YES | |
| Write | Aspect 16:6 | <CR>*asp=16:6#<CR> | NO | |
| Write | Aspect 16:9 | <CR>*asp=16:9#<CR> | YES | |
| Write | Aspect 16:10 | <CR>*asp=16:10#<CR> | NO | |
| Write | Aspect Auto | <CR>*asp=AUTO#<CR> | YES | |
| Write | Aspect Real | <CR>*asp=REAL#<CR> | YES | |
| Write | Aspect Letterbox | <CR>*asp=LBOX#<CR> | NO | |
| Write | Aspect Wide | <CR>*asp=WIDE#<CR> | NO | |
| Write | Aspect Anamorphic | <CR>*asp=ANAM#<CR> | NO | |
| Write | Aspect Anamorphic 2.35 | <CR>*asp=ANAM2.35#<CR> | NO | |
| Write | Aspect Anamorphic 16:9 | <CR>*asp=ANAM16:9#<CR> | NO | |
| Read | Aspect Status | <CR>*asp=?#<CR> | YES | |
| Write | Digital Zoom In | <CR>*zoomI#<CR> | NO | |
| Write | Digital Zoom out | <CR>*zoomO#<CR> | NO | |
| Write | Auto | <CR>*auto#<CR> | NO | |
| Write | Brilliant color on | <CR>*BC=on#<CR> | YES | |
| Write | Brilliant color off | <CR>*BC=off#<CR> | YES | |
| Write | Reset current picture settings | <CR>*rstcurpicsetting#<CR> | YES | |
| Write | Reset all picture settings | <CR>*rstallpicsetting#<CR> | NO |
| Read | Brilliant color status | <CR>*BC=?#<CR> | YES | |
|
Operation Settings | Write | Projector Position-Front Table | <CR>*pp=FT#<CR> | YES |
| Write | Projector Position-Rear Table | <CR>*pp=RE#<CR> | YES | |
| Write | Projector Position-Rear Ceiling | <CR>*pp=RC#<CR> | YES | |
| Write | Projector Position-Front Ceiling | <CR>*pp=FC#<CR> | YES | |
| Write | Quick cooling on | <CR>*qcool=on<CR> | NO | |
| Write | Quick cooling off | <CR>*qcool=off<CR> | NO | |
| Read | Quick cooling status | <CR>*qcool=?<CR> | NO | |
| Write | Quick auto search | <CR>*QAS=on#<CR> | NO | |
| Write | Quick auto search | <CR>*QAS=off#<CR> | NO | |
| Read | Quick auto search status | <CR>*QAS=?#<CR> | NO | |
| Read | Projector Position Status | <CR>*pp=?#<CR> | YES | |
| Write | Direct Power On-on | <CR>*directpower=on#<CR> | YES | |
| Write | Direct Power On-off | <CR>*directpower=off#<CR> | YES | |
| Read | Direct Power On-Status | <CR>*directpower=?#<CR> | YES | |
| Write | Signal Power On-on | <CR>*autopower=on#<CR> | NO | |
| Write | Signal Power On-off | <CR>*autopower=off#<CR> | NO | |
| Read | Signal Power On-Status | <CR>*autopower=?#<CR> | NO | |
| Write | Standby Settings-Network on | <CR>*standbynet=on#<CR> | NO | |
| Write | Standby Settings-Network off | <CR>*standbynet=off#<CR> | NO | |
| Read | Standby Settings-Network Status | <CR>*standbynet=?#<CR> | NO | |
| Write | Standby Settings-Microphone on | <CR>*standbymic=on#<CR> | NO | |
| Write | Standby Settings-Microphone off | <CR>*standbymic=off#<CR> | NO | |
| Read | Standby Settings-Microphone Status | <CR>*standbymic=?#<CR> | NO | |
| Write | Standby Settings-Monitor Out on | <CR>*standbymnt=on#<CR> | NO | |
| Write | Standby Settings-Monitor Out off | <CR>*standbymnt=off#<CR> | NO |
| Read | Standby Settings-Monitor Out Status | <CR>*standbymnt=?#<CR> | NO | |
|
Baud Rate | Write | 2400 | <CR>*baud=2400#<CR> | NO |
| Write | 4800 | <CR>*baud=4800#<CR> | NO | |
| Write | 9600 | <CR>*baud=9600#<CR> | NO | |
| Write | 14400 | <CR>*baud=14400#<CR> | NO | |
| Write | 19200 | <CR>*baud=19200#<CR> | NO | |
| Write | 38400 | <CR>*baud=38400#<CR> | NO | |
| Write | 57600 | <CR>*baud=57600#<CR> | NO | |
| Write | 115200 | <CR>*baud=115200#<CR> | NO | |
| Read | Current Baud Rate | <CR>*baud=?#<CR> | NO | |
|
Lamp Control | Read | Lamp Hour | <CR>*ltim=?#<CR> | YES |
| Read | Lamp2 Hour | <CR>*ltim2=?#<CR> | NO | |
| Write | Normal mode | <CR>*lampm=lnor#<CR> | YES | |
| Write | Eco mode | <CR>*lampm=eco#<CR> | YES | |
| Write | SmartEco mode | <CR>*lampm=seco#<CR> | YES | |
| Write | SmartEco mode 2 | <CR>*lampm= seco2#<CR> | NO | |
| Write | SmartEco mode 3 | <CR>*lampm= seco3#<CR> | NO | |
| Write | Dimming mode | <CR>*lampm=dimming#<CR> | NO | |
| Write | Custom mode | <CR>*lampm=custom#<CR> | NO | |
| Write | Light level for custom mode | <CR>*lampcustom=value#<CR> | NO | |
| Read | Light level status for custom mode | <CR>*lampcustom=?#<CR> | NO | |
| Write(dual lamp) | Dual Brightest | <CR>* lampm =dualbr#<CR> | NO | |
| Write(dual lamp) | Dual Reliable | <CR>* lampm =dualre#<CR> | NO | |
| Write(dual lamp) | Single Alternative | <CR>* lampm =single#<CR> | NO | |
| Write(dual lamp) | Single Alternative Eco | <CR>* lampm =singleeco#<CR> | NO | |
| Read | Lamp Mode Status | <CR>*lampm=?#<CR> | YES | |
|
Miscellaneous | Read | Model Name | <CR>*modelname=?#<CR> | YES |
| Write | Blank On | <CR>*blank=on#<CR> | YES | |
| Write | Blank Off | <CR>*blank=off#<CR> | YES | |
| Read | Blank Status | <CR>*blank=?#<CR> | YES | |
| Write | Freeze On | <CR>*freeze=on#<CR> | Yes | |
| Write | Freeze Off | <CR>*freeze=off#<CR> | YES |
| Read | Freeze Status | <CR>*freeze=?#<CR> | YES | |
| Write | Menu On | <CR>*menu=on#<CR> | YES | |
| Write | Menu Off | <CR>*menu=off#<CR> | YES | |
| Write | Up | <CR>*up#<CR> | YES | |
| Write | Down | <CR>*down#<CR> | YES | |
| Write | Right | <CR>*right#<CR> | YES | |
| Write | Left | <CR>*left#<CR> | YES | |
| Write | Enter | <CR>*enter#<CR> | YES | |
| Write | 3D Sync Off | <CR>*3d=off#<CR> | NO | |
| Write | 3D Auto | <CR>*3d=auto#<CR> | YES | |
| Write | 3D Sync Top Bottom | <CR>*3d=tb#<CR> | YES | |
| Write | 3D Sync Frame Sequential | <CR>*3d=fs#<CR> | NO | |
| Write | 3D Frame packing | <CR>*3d=fp#<CR> | YES | |
| Write | 3D Side by side | <CR>*3d=sbs#<CR> | YES | |
| Write | 3D inverter disable | <CR>*3d=da#<CR> | NO | |
| Write | 3D inverter | <CR>*3d=iv#<CR> | YES | |
| Write | 2D to 3D | <CR>*3d=2d3d#<CR> | NO | |
| Write | 3D nVIDIA | <CR>*3d=nvidia#<CR> | NO | |
| Read | 3D Sync Status | <CR>*3d=?#<CR> | YES | |
| Write | Remote Receiver-front+rear | <CR>*rr=fr#<CR> | NO | |
| Write | Remote Receiver-front | <CR>*rr=f#<CR> | NO | |
| Write | Remote Receiver-rear | <CR>*rr=r#<CR> | NO | |
| Write | Remote Receiver-top | <CR>*rr=t#<CR> | NO | |
| Write | Remote Receiver-top+front | <CR>*rr=tf#<CR> | NO | |
| Write | Remote Receiver-top+rear | <CR>*rr=tr#<CR> | NO | |
| Read | Remote Receiver Status | <CR>*rr=?#<CR> | NO | |
| Write | Instant On-on | <CR>*ins=on#<CR> | NO | |
| Write | Instant On-off | <CR>*ins=off#<CR> | NO | |
| Read | Instant On Status | <CR>*ins=?#<CR> | NO | |
| Write | Lamp Saver Mode-on | <CR>*lpsaver=on#<CR> | NO | |
| Write | Lamp Saver Mode-off | <CR>*lpsaver=off#<CR> | NO | |
| Read | Lamp Saver Mode Status | <CR>*lpsaver=?#<CR> | NO | |
| Write | Projection Log In Code on | <CR>*prjlogincode=on#<CR> | NO | |
| Write | Projection Log In Code off | <CR>*prjlogincode=off#<CR> | NO | |
| Read | Projection Log In Code Status | <CR>*prjlogincode=?#<CR> | NO | |
| Write | Broadcasting on | <CR>*broadcasting=on#<CR> | NO | |
| Write | Broadcasting off | <CR>*broadcasting=off#<CR> | NO |
| Read | Broadcasting Status | <CR>*broadcasting=?<CR> | NO | |
| Write | AMX Device Discovery-on | <CR>*amxdd=on#<CR> | NO | |
| Write | AMX Device Discovery-off | <CR>*amxdd=off#<CR> | NO | |
| Read | AMX Device Discovery Status | <CR>*amxdd=?#<CR> | NO | |
| Read | Mac Address | <CR>*macaddr=?#<CR> | NO | |
| Write | High Altitude mode on | <CR>*Highaltitude=on#<CR> | YES | |
| Write | High Altitude mode off | <CR>*Highaltitude=off#<CR> | YES | |
| Read | High Altitude mode status | <CR>*Highaltitude=?#<CR> | YES | |
| Installation | Write | Load Lens memory 1 | <CR>*lensload=m1#<CR> | NO |
| Write | Load Lens memory 2 | <CR>*lensload=m2#<CR> | NO | |
| Write | Load Lens memory 3 | <CR>*lensload=m3#<CR> | NO | |
| Write | Load Lens memory 4 | <CR>*lensload=m4#<CR> | NO | |
| Write | Load Lens memory 5 | <CR>*lensload=m5#<CR> | NO | |
| Write | Load Lens memory 6 | <CR>*lensload=m6#<CR> | NO | |
| Write | Load Lens memory 7 | <CR>*lensload=m7#<CR> | NO | |
| Write | Load Lens memory 8 | <CR>*lensload=m8#<CR> | NO | |
| Write | Load Lens memory 9 | <CR>*lensload=m9#<CR> | NO | |
| Write | Load Lens memory 10 | <CR>*lensload=m10#<CR> | NO | |
| Read | Read Lens memory status | <CR>*lensload=?#<CR> | NO | |
| Write | save Lens memory 1 | <CR>*lenssave=m1#<CR> | NO | |
| Write | save Lens memory 2 | <CR>*lenssave=m2#<CR> | NO | |
| Write | save Lens memory 3 | <CR>*lenssave=m3#<CR> | NO | |
| Write | save Lens memory 4 | <CR>*lenssave=m4#<CR> | NO | |
| Write | save Lens memory 5 | <CR>*lenssave=m5#<CR> | NO | |
| Write | save Lens memory 6 | <CR>*lenssave=m6#<CR> | NO | |
| Write | save Lens memory 7 | <CR>*lenssave=m7#<CR> | NO | |
| Write | save Lens memory 8 | <CR>*lenssave=m8#<CR> | NO | |
| Write | save Lens memory 9 | <CR>*lenssave=m9#<CR> | NO | |
| Write | save Lens memory 10 | <CR>*lenssave=m10#<CR> | NO | |
| Write | Reset Lens to center | <CR>*lensreset=center#<CR> | NO | |
| Only for service | ||||
| Service | Write | Service mode enable for error report | <CR>*error=enable#<CR> | YES |
| Read | Error code report | <CR>*error=report#<CR> | YES | |
| Read | FAN 1 speed | <CR>*fan1=?#<CR> | YES | |
| Read | FAN 2 speed | <CR>*fan2=?#<CR> | YES | |
| Read | FAN 3 speed | <CR>*fan3=?#<CR> | YES |
| Read | Temperature 1 | <CR>*tmp1=?#<CR> | YES | |
| Read | FAN 1 speed | <CR>*fan1=?#<CR> | YES | |
| Read | Temperature 2 | <CR>*tmp2=?#<CR> | NO | |
| Read | Temperature 3 | <CR>*tmp3=?#<CR> | NO | |
| Read | FAN 2 speed | <CR>*fan2=?#<CR> | YES | |
| Read | FAN 3 speed | <CR>*fan3=?#<CR> | YES | |
| Read | Temperature 1 | <CR>*tmp1=?#<CR> | YES | |
| Read | Temperature 2 | <CR>*tmp2=?#<CR> | YES | |
| Color Calibration | Write | Tint + | <CR>*tint=+#<CR> | YES |
| Write | Tint – | <CR>*tint=-#<CR> | YES | |
| Write | Set Tint value | <CR>*tint=value#<CR> | YES | |
| Read | Get Tint value | <CR>*tint=?#<CR> | YES | |
| Write | Set BenQ gamma value | <CR>*gamma=value#<CR> | YES | |
| Read | Gamma value status | <CR>*gamma=?#<CR> | YES | |
| Write | Set HDR Brightness value | <CR>*hdrbri=value#<CR> | YES | |
| Read | Get HDR Brightness value | <CR>*hdibri=?#<CR> | YES | |
| Write | Red Gain + | <CR>*RGain=+#<CR> | YES | |
| Write | Red Gain – | <CR>*RGain=-#<CR> | YES | |
| Write | Set Red Gain value | <CR>*RGain=value#<CR> | YES | |
| Read | Get Red Gain value | <CR>*RGain=?#<CR> | YES | |
| Write | Green Gain + | <CR>*GGain=+#<CR> | YES | |
| Write | Green Gain – | <CR>*GGain=-#<CR> | YES | |
| Write | Set Green Gain value | <CR>*GGain=value#<CR> | YES | |
| Read | Get Green Gain value | <CR>*GGain=?#<CR> | YES | |
| Write | Blue Gain + | <CR>*BGain=+#<CR> | YES | |
| Write | Blue Gain – | <CR>*BGain=-#<CR> | YES | |
| Write | Set Blue Gain value | <CR>*BGain=value#<CR> | YES | |
| Read | Get Blue Gain value | <CR>*BGain=?#<CR> | YES | |
| Write | Red Offset + | <CR>*ROffset=+#<CR> | YES | |
| Write | Red Offset – | <CR>*ROffset=-#<CR> | YES | |
| Write | Set Red Offset value | <CR>*ROffset=value#<CR> | YES | |
| Read | Get Red Offset value | <CR>*ROffset=?#<CR> | YES | |
| Write | Green Offset + | <CR>*GOffset=+#<CR> | YES | |
| Write | Green Offset – | <CR>*GOffset=-#<CR> | YES | |
| Write | Set Green Offset value | <CR>*GOffset=value#<CR> | YES | |
| Read | Get Green Offset value | <CR>*GOffset=?#<CR> | YES | |
| Write | Blue Offset + | <CR>*BOffset=+#<CR> | YES | |
| Write | Blue Offset – | <CR>*BOffset=-#<CR> | YES |
| Write | Set Blue Offset value | <CR>*BOffset=value#<CR> | YES | |
| Read | Get Blue Offset value | <CR>*BOffset=?#<CR> | YES | |
| Write | Primary Color | <CR>*primcr=value#<CR> | YES | |
| Read | Primary Color Status | <CR>*primcr=?#<CR> | YES | |
| Write | Hue + | <CR>*hue=+#<CR> | YES | |
| Write | Hue – | <CR>*hue=-#<CR> | YES | |
| Write | Set Hue value | <CR>*hue=value#<CR> | YES | |
| Read | Get Hue value | <CR>*hue=?#<CR> | YES | |
| Write | Saturation + | <CR>*saturation =+#<CR> | YES | |
| Write | Saturation – | <CR>*saturation =-#<CR> | YES | |
| Write | Set Saturation value | <CR>*saturation =value#<CR> | YES | |
| Read | Get Saturation value | <CR>*saturation =?#<CR> | YES | |
| Write | Gain + | <CR>*gain=+#<CR> | YES | |
| Write | Gain – | <CR>*gain=-#<CR> | YES | |
| Write | Set Gain value | <CR>*gain=value#<CR> | YES | |
| Read | Get Gain value | <CR>*gain=?#<CR> | YES | |
| Write | Color Gamut Auto | <CR>*cgamut=auto#<CR> | NO | |
| Write | Color Gamut BT.709 | <CR>*cgamut=bt.709#<CR> | NO | |
| Write | Color Gamut BT.2020 | <CR>*cgamut=bt.2020#<CR> | NO | |
| Write | Color Gamut DCI-P3 | <CR>*cgamut=dci-p3#<CR> | NO | |
| Read | Color Gamut Value | <CR>*cgamut=?#<CR> | NO | |
| Write | Dynamic Iris ON | <CR>*diris=on#<CR> | YES | |
| Write | Dynamic Iris OFF | <CR>*diris=off#<CR> | YES | |
| Read | Dynamic Iris status | <CR>*diris=?#<CR> | YES | |
| Write | Set White Red Gain value | <CR>*WRGain=value#<CR> | YES | |
| Write | Set White Green Gain value | <CR>*WGGain=value#<CR> | YES | |
| Write | Set White Blue Gain value | <CR>*WBGain=value#<CR> | YES | |
| Read | Get White Red Gain value | <CR>*WRGain=?#<CR> | YES | |
| Read | Get White Green Gain value | <CR>*WGGain=?#<CR> | YES | |
| Read | Get White Blue Gain value | <CR>*WBGain=?#<CR> | YES |
© 2018 BenQ Corporation
All rights reserved. Rights of modification reserved.
Version: 1.01-C.
BenQ.com
