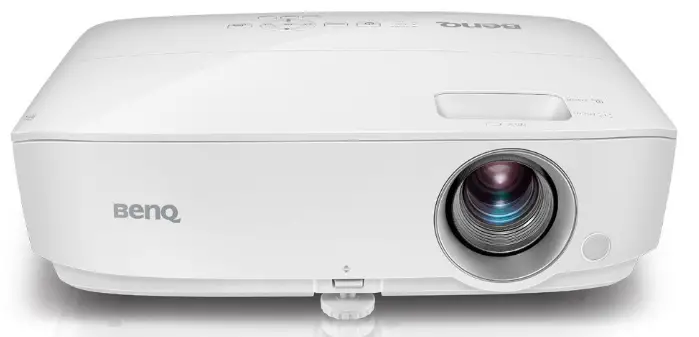

BenQ W1050 Home Cinema Digital Projector

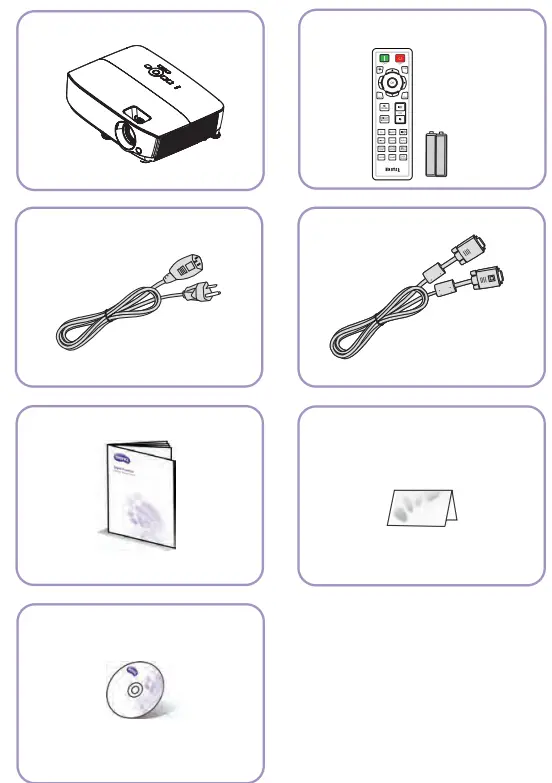

WHAT IS IN THE BOX
WARNING
REMOTE CONTROL

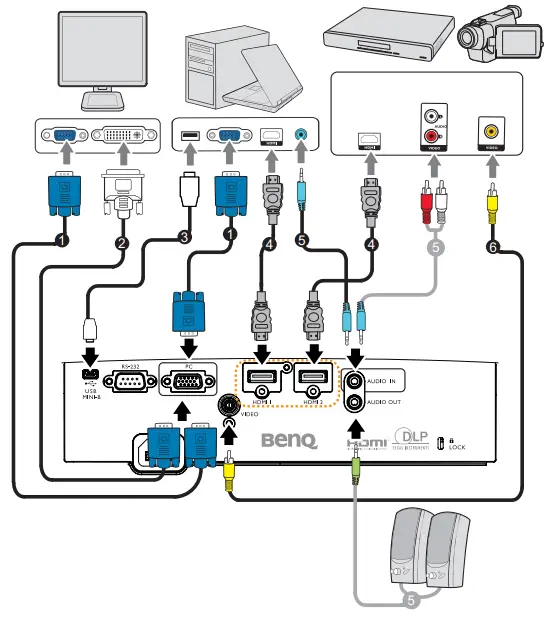

HOW TO ATTACH
PROJECTOR DIMENSIONS
CEILING MOUNT SCREW

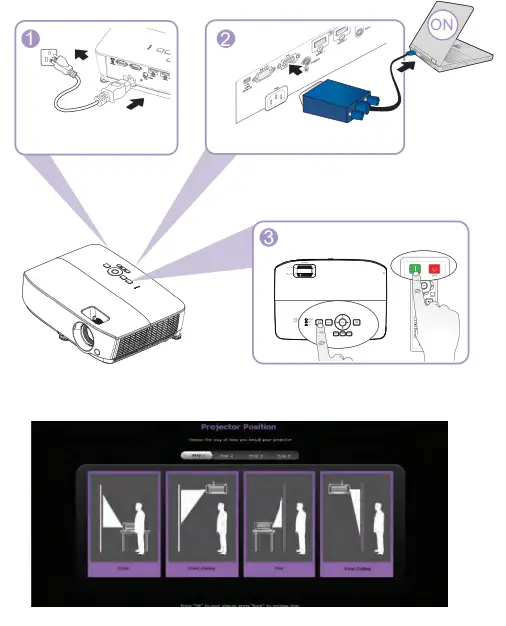

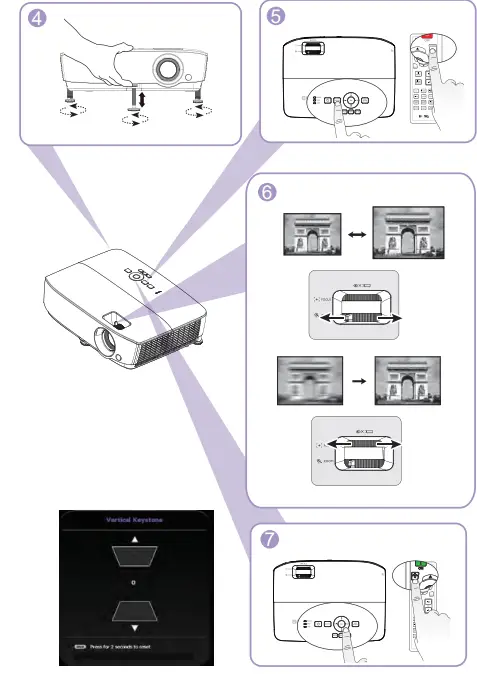

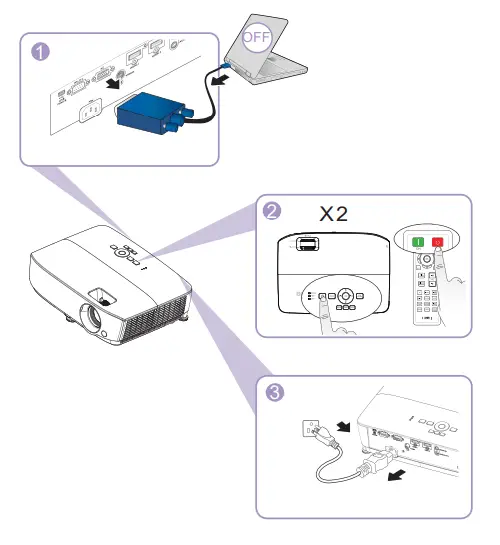

HOW TO USE
SPECIFICATION
All specifications are subject to change without notice.
Optical
- Resolution
- 1920 x 1080 1080p
- Display system
- 1-CHIP DMD
- Lens F/Number
- F = 2.42 to 2.62
- f = 19.0 to 22.65 mm
- Offset
- 107±5%
- Zoom ratio
- 1.2X
- Lamp
- 210 W lamp
Electrical
- Power supply
- AC100–240V, 2.60 A,
- 50-60 Hz (Automatic)
- Power consumption
- 260 W (Max); < 0.5 W (Standby)
Mechanical
- Weight
- 2.56 kg (5.64 lbs)
Output terminals
- Speaker
- (Stereo) 2-watt x 1
- Audio signal output
- PC audio jack x 1
Control
- RS-232 serial control
- 9 pin x 1
- IR receiver x 1
- USB mini-B x 1
Input terminals
- Computer input
- RGB input
- D-Sub 15-pin (female) x 1
- Video signal input
- RCA jack x 1
- Digital signal input
- HDMI x 2
- Audio signal input
- Audio in
- PC audio jack x 1
Environmental Requirements
- Temperature
- Operating: 0°C-40°C at sea level
- Storage: -20°C-60°C at sea level
- Relative humidity
- Operating: 10%-90% (without condensation)
- Storage: 10%-90% (without condensation)
- Altitude
- Operating: 0-1499 m at 0°C-35°C; 1500-
- 3000 m at 0°C-30°C (with High Altitude
- Mode on)
- Storage: 0-12200 m at 30°C
- Transporting
- Original packing or equivalent is recommended.
- Repairing
- Please visit the below website and choose your country to find your service contact window.
- http://www.benq.com/welcome
Lamp life results will vary depending on environmental conditions and usage
