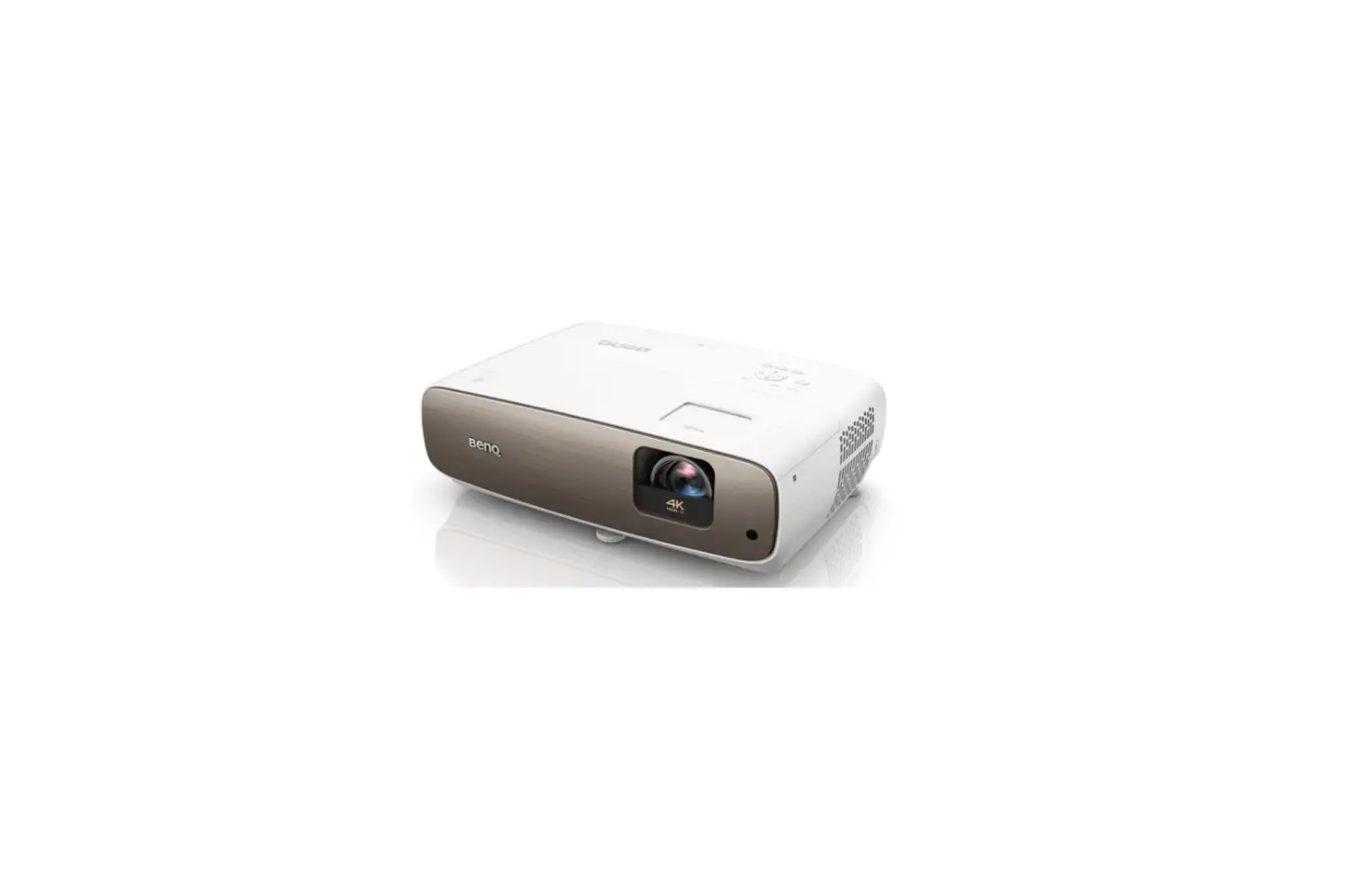

Benq W2710 Cineprime Series Digital Projector User Guide

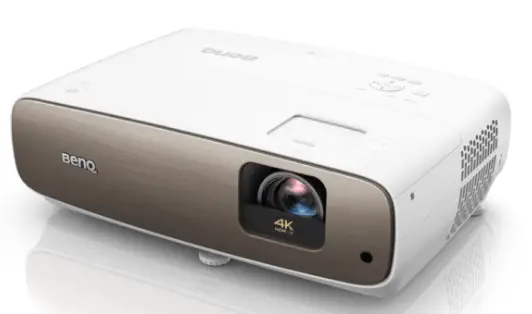

BenQ W2710 CinePrime Series Digital Projector

Product information

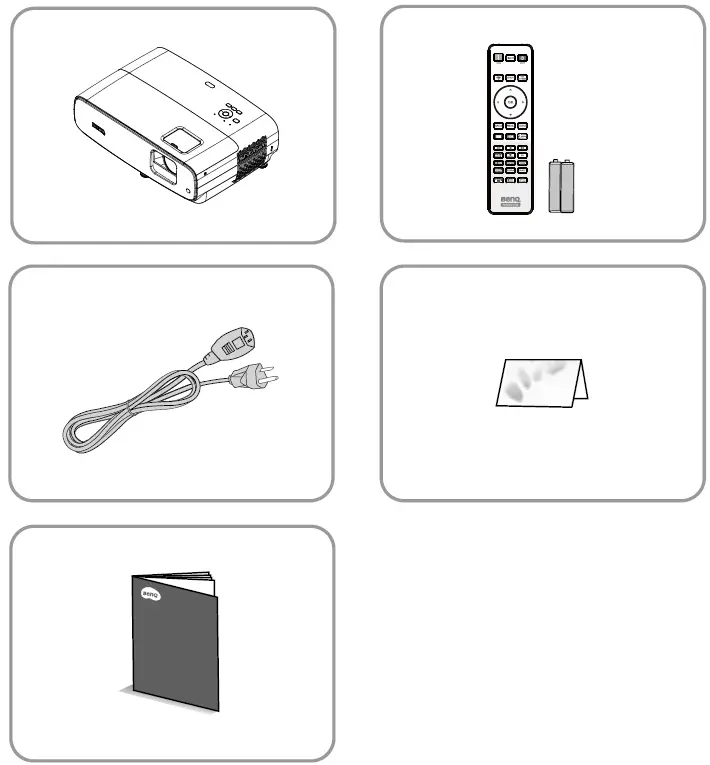

Shipping contents

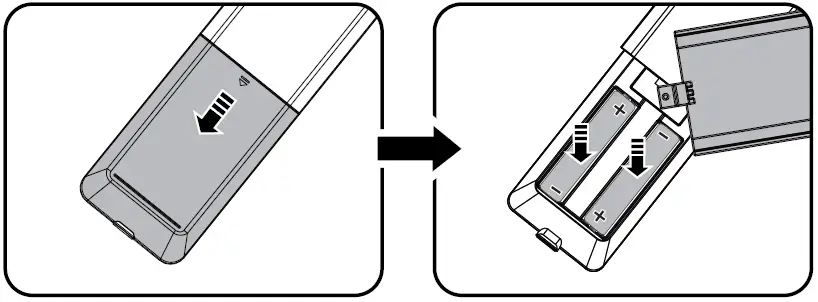

Remote control

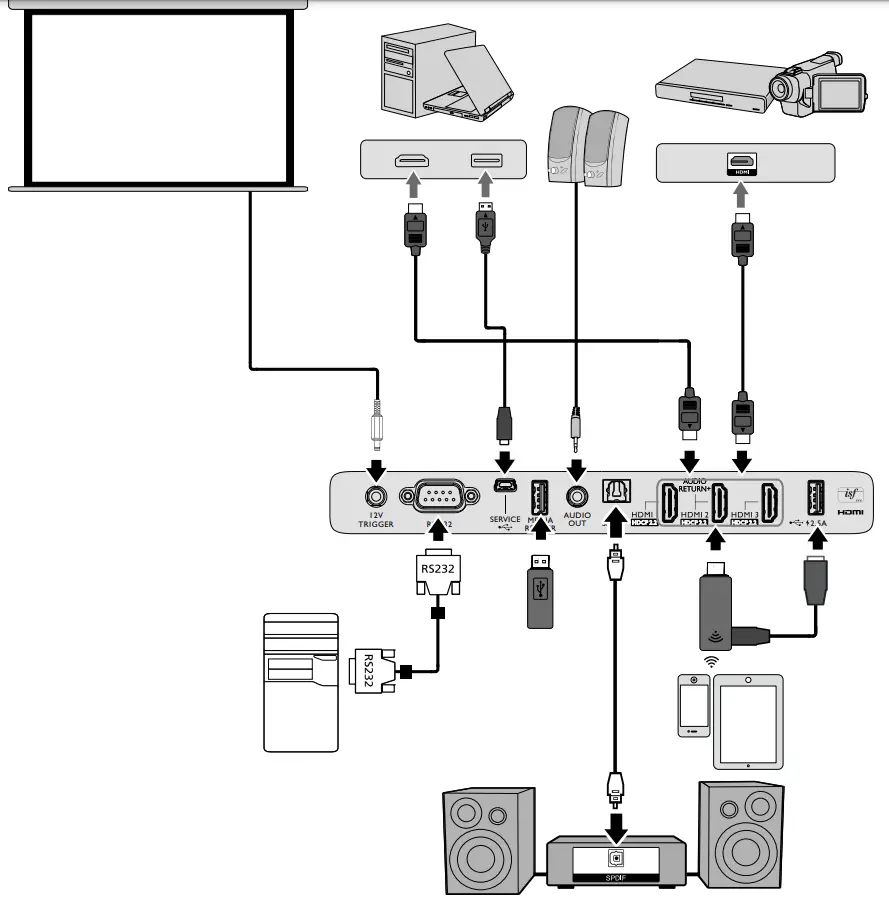

Control terminals

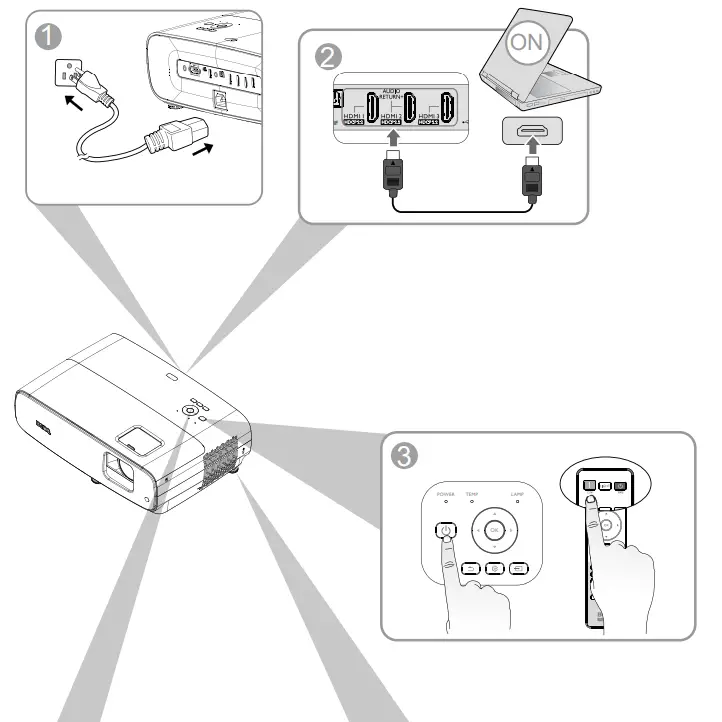

Installation

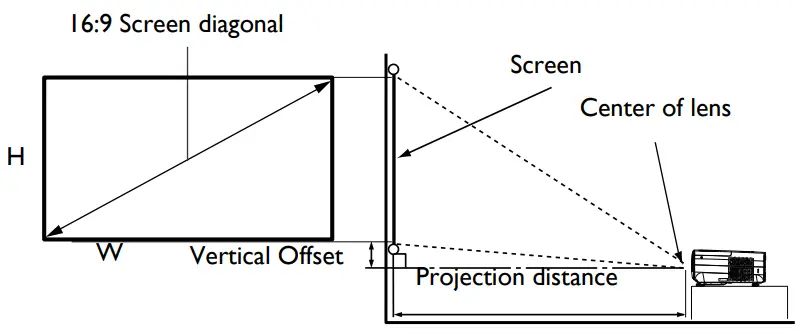

Projection dimensions

The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio

• All measurements are approximate and may vary from the actual sizes.
• BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector’s optical characteristics.
  This will help you determine the exact mounting position so that it best suits your installation location.
• To optimize your projection quality, we suggest doing the projection by following the values in the non-gray cells.
• The values in the gray cells are for reference only.

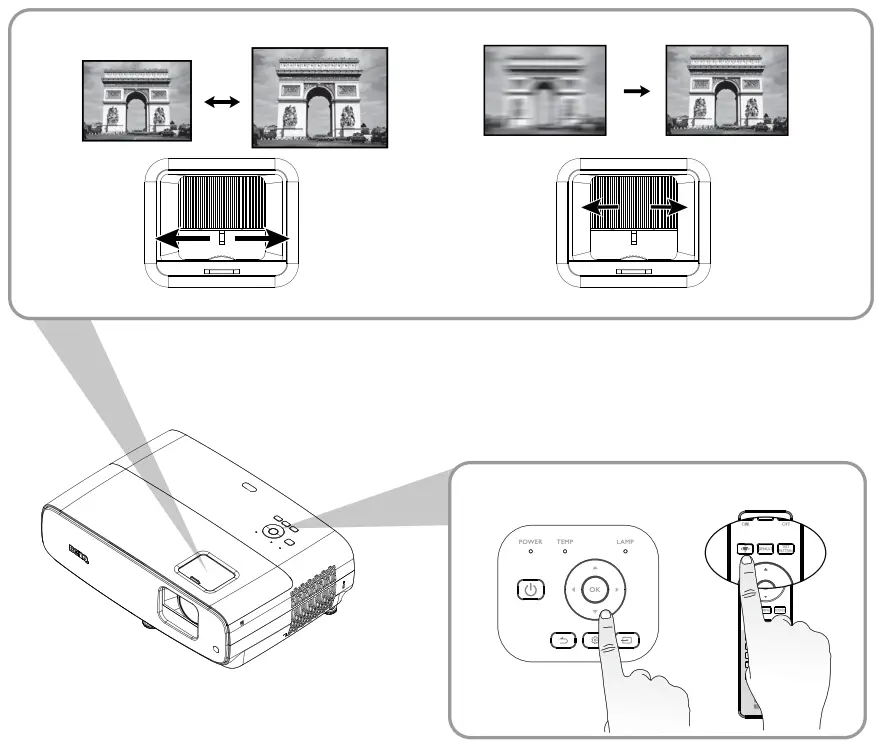

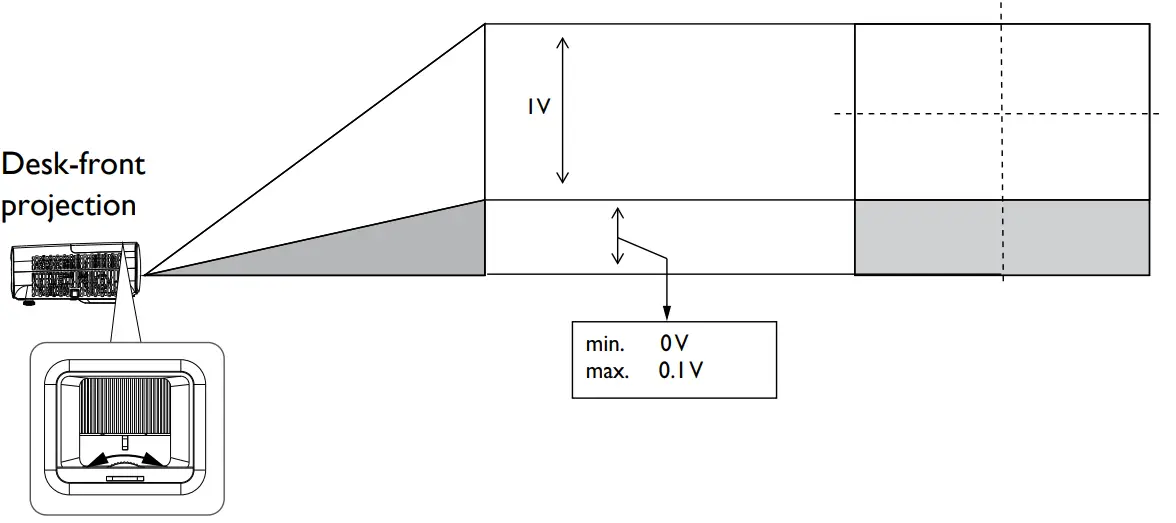

Shifting the projection lens

Dimensions

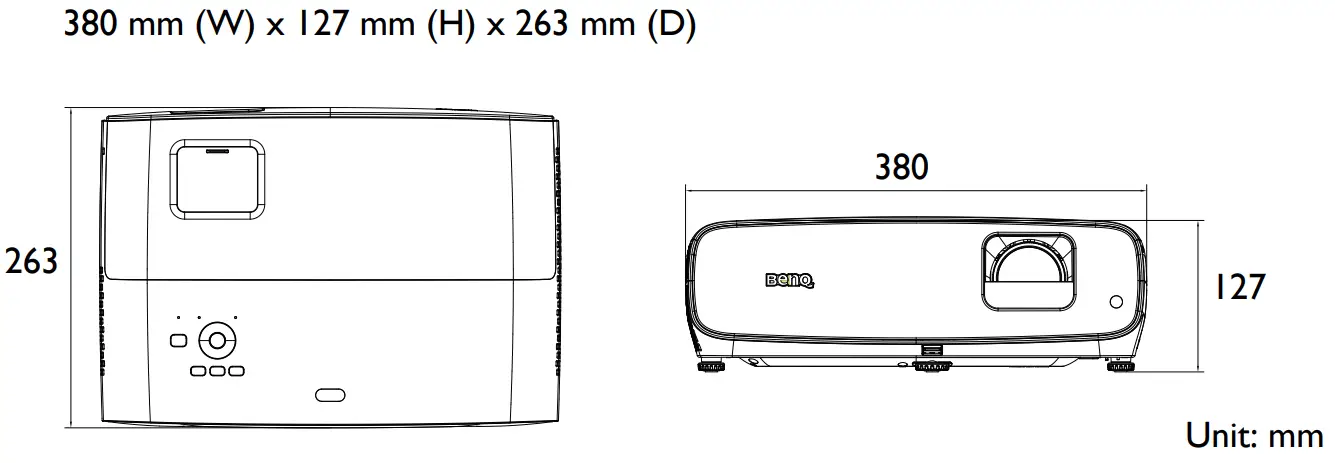

Projector dimensions

Ceiling/Wall mount installation diagram

Ceiling/Wall mount screw: M4
(Max L = 25 mm; Min L = 20 mm)

Specifications

All specifications are subject to change without notice.

Optical

• Resolution
  • 3840 x 2160 with XPR
  • 1920 x 1080 without XPR
• Display system
  • 1-CHIP DMD
• Lens
  • F = 1.84 ~ 2, f = 12 ~ 15.6 mm
• Clear focus range
  • 1.2m ~ 5.1m @ Wide,
  • 1.3m ~ 4.9m @ Tele
• Light source
  • 240W±3% @ Normal Mode
• Zoom ratio
  • 1.3x ±2%

Electrical

• Power supply
  • AC100–240V, 3.40 A, 50/60 Hz (Automatic)
• Power consumption
  • Max.: 350 W; Standby: 0.5W Max. at 100 ~240VAC

Mechanical

• Weight
  • 4.2 Kg + 200 g (9.3 lbs + 0.44 lbs)

Output terminals

• Speaker
  • 5 watt x 2
  • Audio signal output
  • PC audio jack x 1
  • SPDIF to optical x 1

Control

• USB
  • Type-A x 1: Media reader/drive, Firmware
  • download (1.5A)
  • Type-A x 1: Power supply (2.5A)
  • Mini-B x 1
  • 12V DC x 1: Trigger for screen control
    RS-232 serial control
    9 pin x 1
    IR receiver x 2

Input terminals
Video signal input
HDMI (HDCP 2.2) x 3

Environmental Requirements

• Operating temperature
  • 0°C–40°C at sea level
• Operating relative humidity
  • 10%–90% (without condensation)
• Operating altitude
  • 0–1499 m at 0°C–35°C
  • 1500–3000 m at 0°C–30°C (with
  • High Altitude Mode on)
• Storage temperature
  • -20°C–60°C at sea level
• Storage humidity
  • 10%–90% RH (without condensation)
• Storage altitude
  • 30°C@ 0~12,200m above sea level
• Transporting
  • Original packing or equivalent is recommended
• Repairing
  Please visit below website and choose your country to find your service contact window.
  http://www.benq.com/welcome

For further information, please download User Manual on official website:
http://www.benq.com/

© 2022 BenQ Corporation.
All rights reserved. Rights of modification reserved.
PWZ39-4000-00
P/N: 4J.JPY01.001
