Benq Digital Projector User Guide

Digital Projector

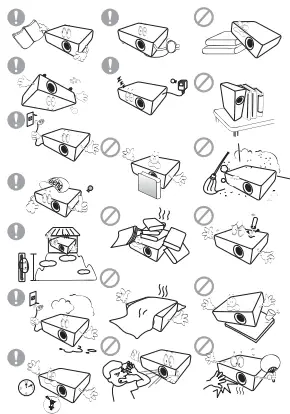

Quick Start Guide
CinePrime Series l W2700 / HT3550

Product information
Shipping contents

Remote controlControl terminals

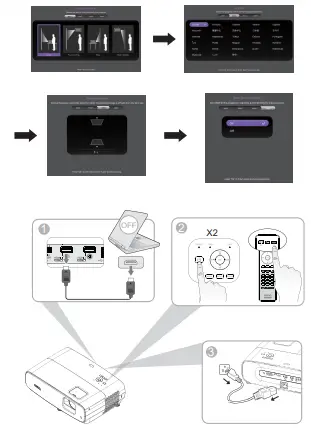

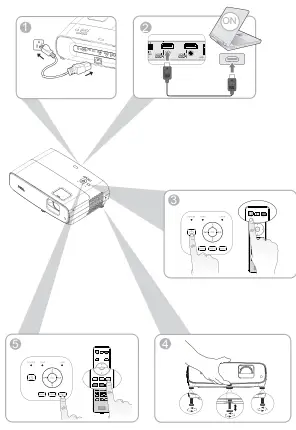

Installation

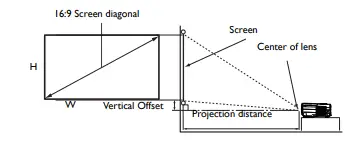

Projection dimensions

The screen aspect ratio is 4:3 and the projected picture is in a 4:3 aspect ratio

• All measurements are approximate and may vary from the actual sizes.
•  BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector’s optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.
•  To optimize your projection quality, we suggest doing the projection by following the values in the non-gray cells.
•  The values in the gray cells are for reference only.

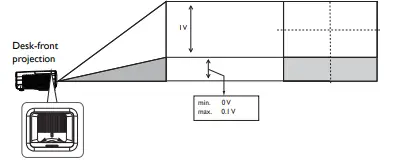

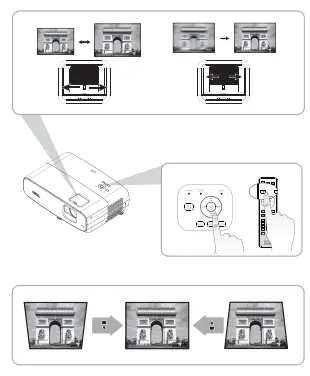

Shifting the projection lens

Dimensions
Projector dimensions

380 mm (W) x 127 mm (H) x 263 mm (D)

Ceiling/Wall mount installation diagram

Ceiling/Wall mount screw: M4
(Max L = 25 mm; Min L = 20 mm)

Specifications

All specifications are subject to change without notice.

Optical
Resolution
3840 x 2160 with XPR
1920 x 1080 without XPR
Display system
1-CHIP DMD
Lens
F = 1.9 ~ 2.47, f = 12 ~ 15.6 mm
Clear focus range
1.2m ~ 5.1m @ Wide,
1.3m ~ 4.9m @ Tele
Lamp 245 W lamp
Zoom ratio 1.3X
Electrical
Power supply AC100–240V, 3.4 A, 50–60 Hz (Automatic)
Power consumption 350 W (Max); 0.5 W (Standby)
Mechanical
Weight
4.2 Kg + 100 g (9.3 lbs + 0.22 lbs)
Output terminals
Speaker
5-watt x 2
Audio signal output
PC audio jack x 1
SPDIF to optical x 1
Control
USB
Type-A (USB 3.0) x 1: Media reader/drive,
Firmware download (5V 1.5A)
Type-A (USB 2.0) x 1: Power supply (5V, 2.5A)
Mini-B x 1
12V DC x 1: Trigger for screen control
RS-232 serial control
9 pin x 1
IR receiver x 2
Input terminals
Video signal input
HDMI (2.0b, HDCP 2.2) x 2
Environmental Requirements
Operating temperature
0°C–40°C at sea level
Operating relative humidity
10%–90% (without condensation)
Operating altitude 0–1499 m at 0°C–35°C 1500–3000 m at 0°C–30°C (with  High Altitude Mode on)
Storage temperature
-20°C–60°C at sea level
Storage humidity
10%–90% RH (without condensation)
Storage altitude
30°C@ 0~12,200m above sea level
Transporting
Original packing or equivalent is recommended
Repairing
Please visit the below website and choose your country to
find your service contact window.
http://www.benq.com/welcome

For further information, please download User Manual on the official website: http://www.benq.com/

BenQ.com
© 2018 BenQ Corporation.
All rights reserved. Rights of modification reserved.
PPF39-4000-02
P/N: 4J.JKC01.001
