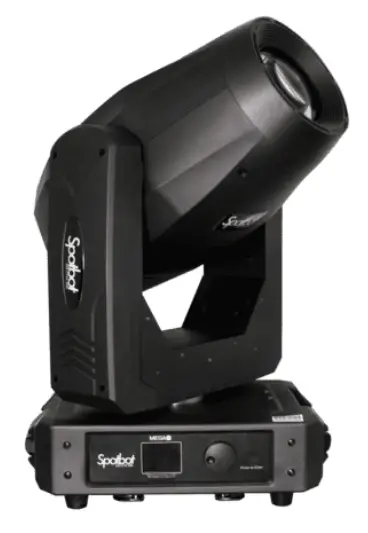

Spotbot LED CYM 300

USER MANUAL

Check that the unit has not been damaged during transport

Read all cautions and warnings prior to operation of this equipment

Protection Against Fire

1. Maintain a minimum of one(1) foot distance from any type of flame.
2. Replace fuse only with the specified type and rating.
3. Do Not Install the unit too close to a heat source.
4. Make sure cables are properly secured away from the union movement.
5. Maximum surface operating temperature 104º.

Protection Against Electrical Damage

1. Disconnect power before lamp replacement or servicing.
2. For connection to the main power supply, proceed to page 6.
3. This unit must be earthed. (electronically grounded)
4. Do not expose the unit to rain or moisture.
5. The unit must not be left on for a long period of time.

Protection Against Mechanical Hazards

1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning the unit.
3. Do not open the unit – the risk of electrical shock.

Specifications

Part Numbers

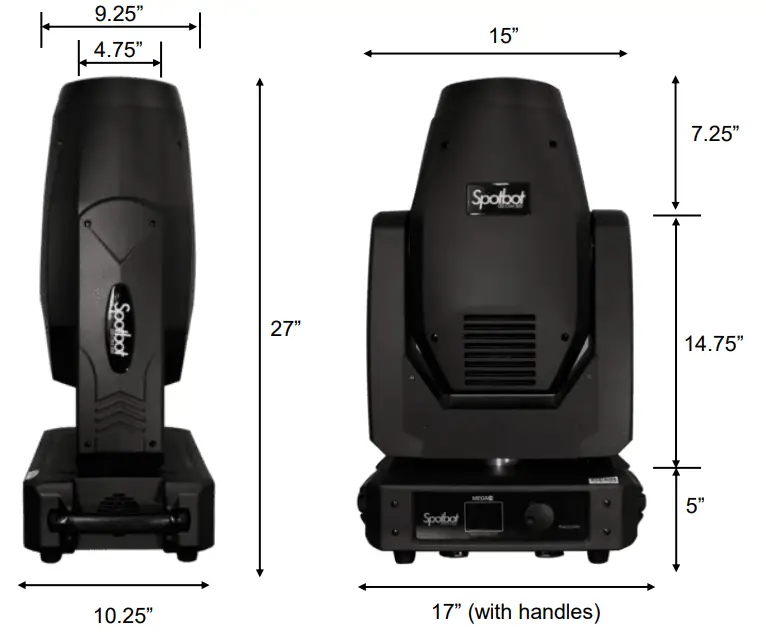

Mechanical Specifications

Pan: 540° 8/16 Bit
Tilt: 270° 8/16 Bit
DMX Connectors: 3 and 5-pin XLR connectors
Power Connectors: Power-Con Type
Thermal: Maximum ambient temperature 110° F
Maximum surface temperature 140° F
Fastening System: 2 Quick Release Clamp Mounts

Electrical Specifications

Electromechanical Effects

Prisms: 8-Facet overlaid prism rotating in both directions at different speeds
Dimmer: Electronic dimming
Shutter: Electronic Shutter strobe 18 flashes per second
Iris: Adjustable Iris
Frost: Mechanical Frost Effect
Focus: Mechanical Focus
Gobo: Static 10+Open
Gobo 2: Rotating 7+Open bi-directional rotation

Color:

Color Mix: C,Y,M
Communication: RDM
Zoom Ranges: 7°-31º Zoom Range

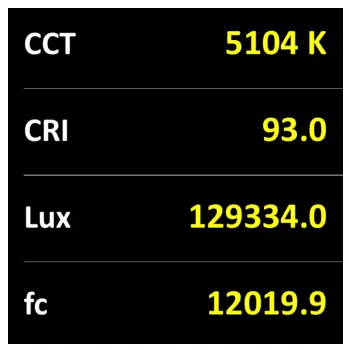

Photometric at 1 Meter:

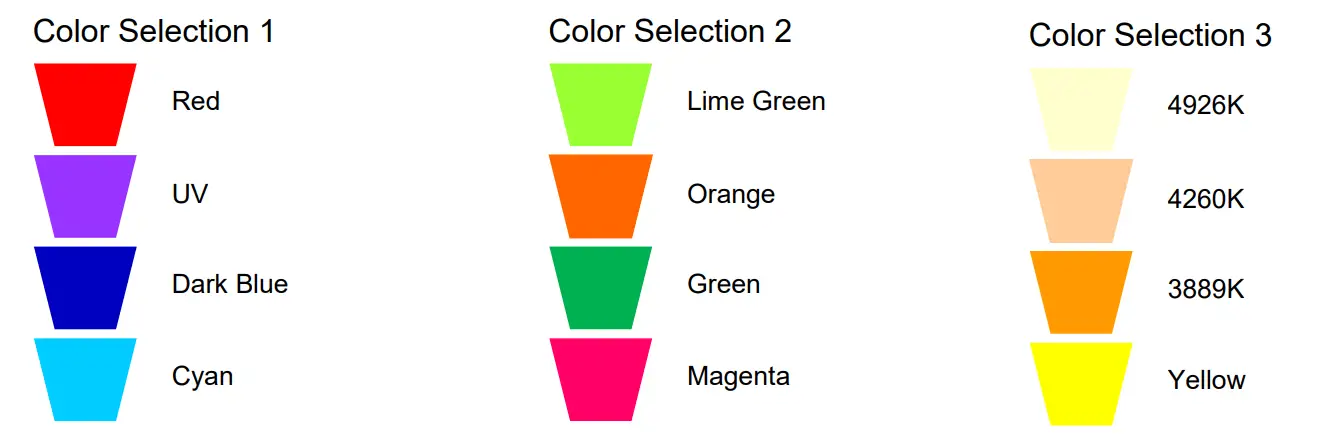

Colors

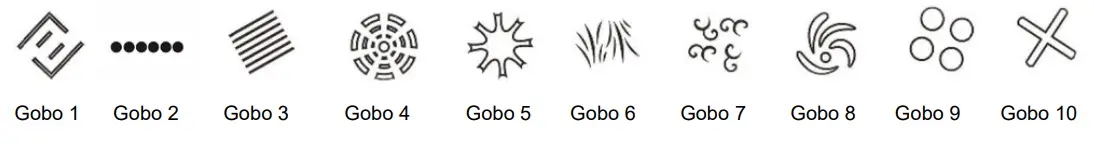

Static Gobos

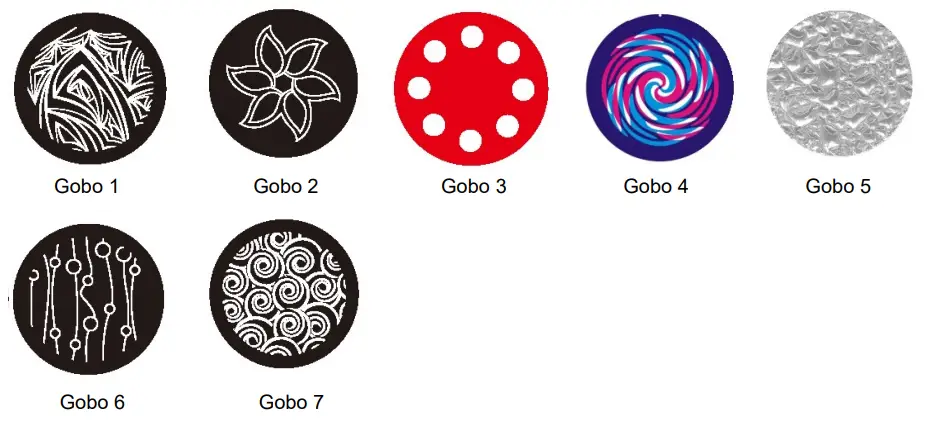

Rotating Gobos

Rotating Gobo size 23mm Diameter, 20mm Image, 1mm Thick

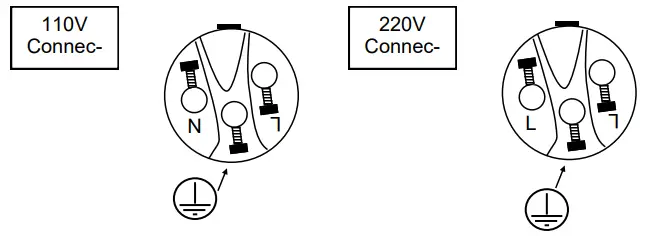

Main Power Connection

Caution!

1. Do not connect the fixture to a dimmer system.
2. This unit must be earthed. (electronically grounded)
3. Replace fuse only with the specified type and rating.
4. Power link maximum 4 units at 110V.

This device is equipped with an auto-switching power supply that will allow you to work from 100V-240V 50/60Hz.

The occupation of the connection cable is as follows:

Cable (USA)	Cable (EU)	Pin	110V	220V
Black	Brown	Live	L	L
White	Light Blue	Neutral	N	L
Green	Yellow/Green	Ground

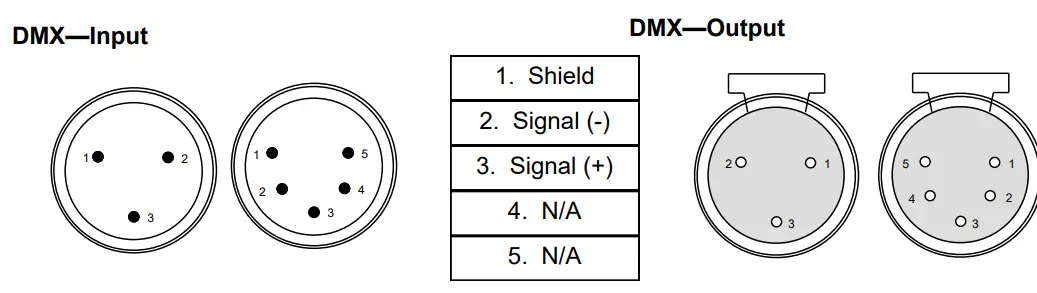

DMX-512 Connection

The fixture is equipped with 3 and 5 pin XLR sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3 or 5 pin XLR plugs and connectors in order to connect the controller with the fixture or the fixture with another.

Caution!
At the last fixture, the DMX signal needs to be terminated with a terminator. Solder a 120 Ohm resistor between the (-) and the (+) signal into a 5 pin XLR plug and plug it into the last fixture on the signal run. Pre-manufactured terminator plugs are available for purchase from your MEGA-LITE dealer (P-DMX-T).

Display Control

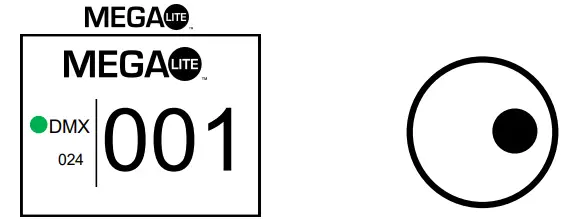

Main Control

The control board on the fixture base is your interface to access and control all the functions on the unit. Its LCD display gives you a code view of the options and functions. The following will explain each function and its options.

	Press the knob to enter. Turn knob to select DMX start channel from 001 to 512. Press enter to confirm the setting.

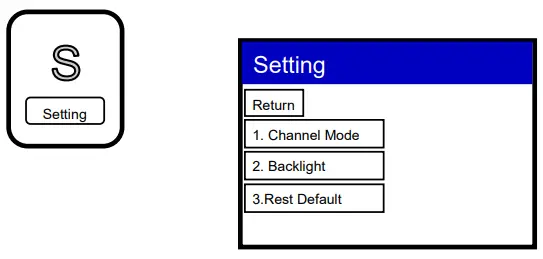

	1. Channel Mode: Select from DMX operating mode 26 Channel or 21 Channel. 2. Backlight: Auto will turn off display after 30 seconds. Keep on will keep display on. 3. Reset Default: Will reset display function to original factory settings.

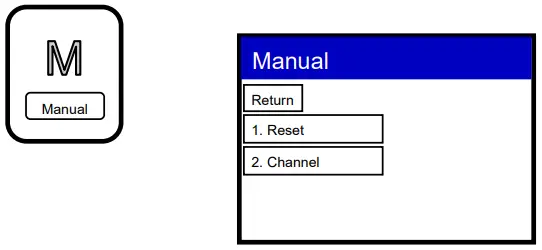

	1. Reset: A. Head Reset will reset all heads motors functions. B. Pan/Tilt will reset pan and tilt motor functions. C. All Reset will reset all motor functions. 2. Channel: Will give you manual control of each of the 19 control functions.

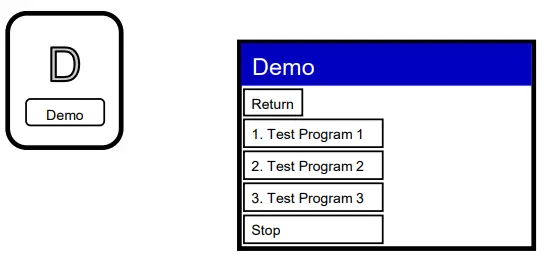

	Demo pre-programmed chases

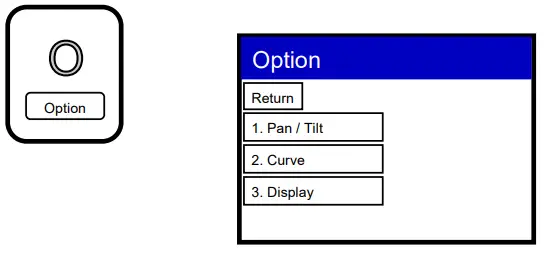

	1. Pan / Tilt: Pan and Tilt invert control direction 2. Curve: LED Intensity dimming curve option 3. Display: Invert display direction
	Display Language Options: English or Chinese

Rigging the fixture

Caution!

1. The installations must be carried out by an authorized dealer or trained professional.
2. The unit may cause severe injuries if you have doubts concerning the safety do not install it.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high-quality installation equipment to hang the unit.

When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experience including but not limited to calculating working loads, material being used, and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.

When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector has got to be built in a way that it can hold 10 times the weight for 1 hour without any harm. Installation should be checked at least one time a year by a skilled person.

DMX Profile

Spotbot 26Ch Mode

Spotbot 21 Ch Mode

Cleaning and Maintenance

Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years.

The following points have to be considered during the inspection:

1. All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2. There must not be any deformations on the housing, fixation, and installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts like axles and others must not show any traces of wearing and must not rotate with unbalances.
4. The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables), or sediments.
   Further instructions depending on the installation spot and usage have to be adhered to by a skilled installer and any safety problems have to be removed.

Disconnect from mains before starting maintenance operation!

Caution: Danger to life!

We recommend frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or solvents!

1. The objective lens will require periodic cleaning on usage and environment. An environment with foggers will require more periodic cleaning as fog fluid tends to build up residues, reducing the light output.
2. The cooling fans should be cleaned monthly. DO NOT blow high-pressure air into fans as the incorrect rotation can damage the operation of the fan.
3.  The gobos, dichroic color filters, and internal lenses may be cleaned with a soft brush using soapy water.
4. The interior of the fixture should be cleaned using a vacuum.
5. We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid oil runouts when the motor wheel rotates

Note: There are no serviceable parts inside the device except for the fuse. Maintenance and service operations are to be carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized dealers only.

Should you have further questions, please contact your dealer.

Parts List

Warranty Information

Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one-year parts and labor limited warranty.
-LEDs are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase date, and reseller or distributor. If the purchase date cannot be provided, the date of manufacture will be used to determine the warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of the original invoice.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical means of shipment
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS INC. makes no warranties, express or implied, with respect to any product and Mega Systems specifically disclaims any warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci­dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by a product defect or the partial or total failure of any product regardless of the form of action, whether in contract, tort (including negligence), strict liability or otherwise, and whether or not such damage was foreseen or unforeseen.

– Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Customer Support

MEGA-LITE has a customer support line to provide set-up help and to answer any question should you encounter a problem. Please visit our website for any other related technical documents. For service-related issues, please contact our service dept

Monday—Friday 9 am to 6 pm CST Voice: 210-684-2600
E-mail: [email protected]

Specifications in this manual are subject to change.
