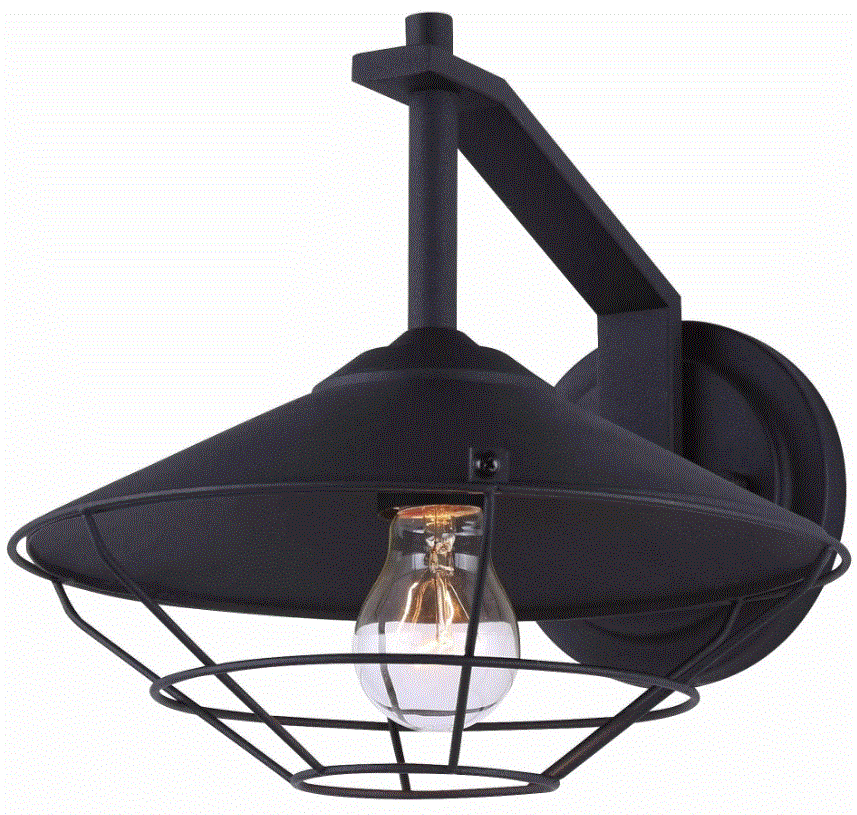

CANARM IOL582BK Briggs Outdoor Light
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS READ ALL INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
SAFETY PRECAUTIONS
- TURN OFF ELECTRICAL POWER BEFORE STARTING THE INSTALLATION OF THE LIGHT FIXTURE.
- WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
- TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A CLEAN, SOFT CLOTH.
NOTE: The product may not look exactly as shown in the figures.
SAVE THESE INSTRUCTIONS
INSTALLATION

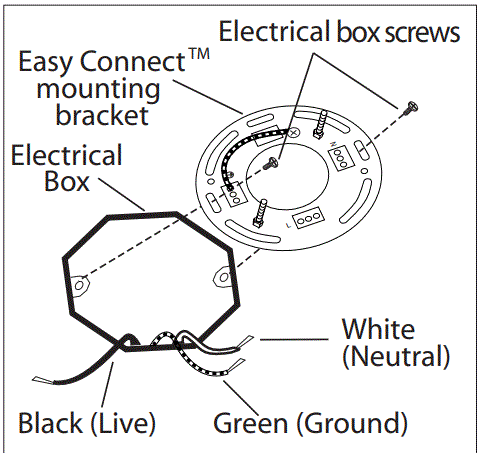

- Attach the Easy Connect™ mounting bracket to the electrical box with electrical box screws (not included).

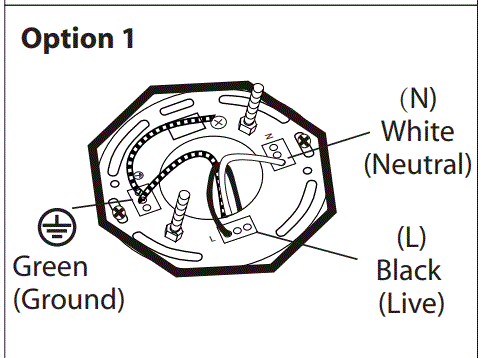

- Option 1: Connect (push) electrical wires from the electric box (house wiring) into the correct inserts.

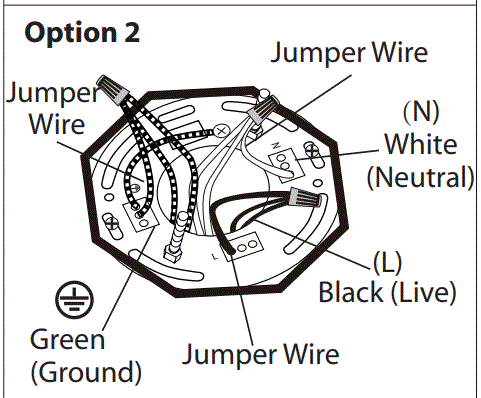

Option 2: For multiple green (ground), black (live), and white (neutral) wires joined in the electrical box (house wiring), attach a single “green”, “black” and “white” jumper wire before connecting. Strip 7mm from the 6” jumper wires supplied. Then connect (push) wires into the correct inserts.

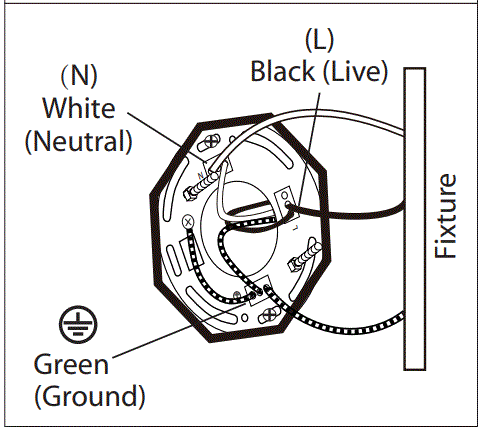

- Connect (push) electrical wires from fixture into correct inserts.

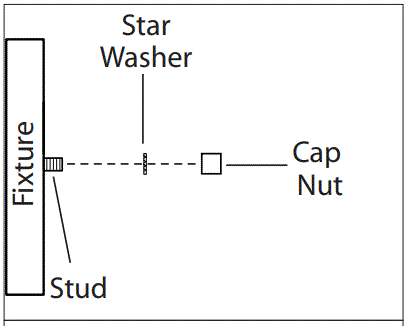

- Tuck electrical wires into the electrical box and position fixture over studs on mounting bracket assembly. A secure fixture in place with star washers and cap nuts.

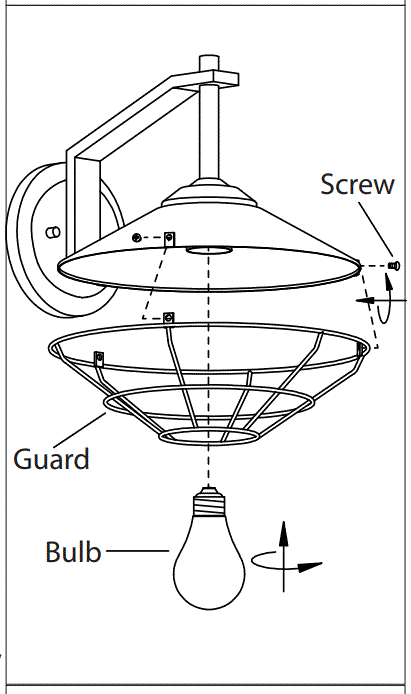

- Position the guard in place and secure it with the screws.
- Install specified bulb type and wattage (not included).

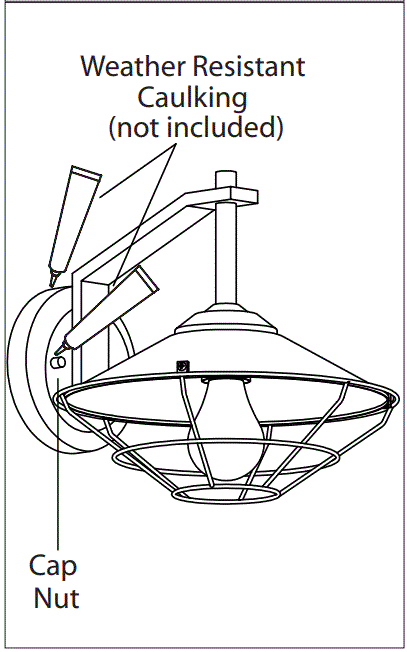

- After installation, seal around the top and side perimeter between the fixture and the wall surface with weather-resistant caulking. The bottom should be left un-caulked to prevent moisture build-up. Apply a small amount of weather-resistant caulking around the side perimeter between the cap nut and mounting plate.
