Sistemamt SILENT12IP Outdoor Light

Unpacking
The following items are included in the box:

• 1 x SILENT12IP fixture

Safety Instructions

Warning!
To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions:

• This product is suitable for indoor use only.
• Always turn off, unplug power and allow fixture to cool before servicing.
• Ensure that fixture is properly grounded.
• Please keep this User Guide for future consultation.
• Always make sure that you are connecting to the proper voltage and that the line voltage you are connecting to is not higher than that stated on decal or rear panel of the fixture.
• Always disconnect from power before servicing or replacing fuse.
• Make sure power cord is never crimped or damaged.
• Do not look into the beam from a distance of less than 40 cm (16 inches).
• Do not stare into the beam for extended periods at a short distance.

Features

• Flicker free operation
• Smooth color mixing by RGBWA 5in1 LEDs
• 5 working modes: DMX, Auto, Sound, Manual, Master/Slave
• DMX channels: 9/6 ch.
• Linear dimmer 0-100%
• Strobe 1-25 flash per second
• 4-button LED display
• IP65 for indoor and outdoor use only

SETUP

Mounting
This controller can be mounted in any SAFE position provided there is enough room for ventilation.

IMPORTANT!
Safety cables must always be used. The safety cable must be capable of holding 10 times the weight of the fixture.

Fixture Linking
To run your light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures in master/slave operating mode, you need DMX cables to link the units from DMX IN to DMX OUT.

AC Power
The fixture is designed to work on AC 100V – 240V 50-60Hz. All units must be powered directly from a switched circuit.

Warning!
All fixtures must be connected to circuits with a suitable Earth Ground.

Product Usage Instruction

OPERATION INSTRUCTIONS

Control Panel
Use the following buttons to navigate the control panel:

• MENU: To scroll over main menu
• UP: To increase the value
• DOWN: To decrease the value
• ENTER: To confirm setting

The control panel functions are as follows:

• Menu A001-512: 9 DMX channel mode, set address 001-512
• Menu d001-512: 6 DMX channel mode, set address 001-512
• Menu CC00-99: Color step changing from slow to fast
• Menu CP00-99: Color cross fade from slow to fast
• Menu dE00-99: Color pulse changing from slow to fast
• Menu dEdF -on- / -oFF: Color changing to sound
• Menu r000-255: Set display backlight on/off
• Menu G000-255: Manual control of Red
• Menu b000-255: Manual control of Green
• Menu o000-255: Manual control of Blue
• Menu Y000-255: Manual control of White
• Menu o000-255: Manual control of Amber

DMX Mode
The DMX mode has 9 channels with the following functions:

• Channel 1: Master dimmer 0 – 100%
• Channel 2: Red Intensity 0 – 100%
• Channel 3: Green Intensity 0 – 100%
• Channel 4: Blue Intensity 0 – 100%
• Channel 5: White Intensity 0 – 100%
• Channel 6: Amber Intensity 0 – 100%
• Channel 7: Strobe from slow to fast
• Channel 8: Strobe to sound
• Channel 9: Static color selection or Macro speed from slow to fast

Unpacking

The following items are included in the box:

• 1 x Silent12
• 1 x Power cable
• 1 x Mounting bracket
• 1 x User Manual

Safety Instructions

Warning!
To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions:

• This product is suitable for indoor use only.
• Always turn off, unplug power and allow fixture to cool before servicing.
• Ensure that fixture is properly grounded.
• Please keep this User Guide for future consultation.
• Always make sure that you are connecting to the proper voltage and that the line voltage you are connecting to is not higher than that stated on decal or rear panel of the fixture.
• Always disconnect from power before servicing or replacing fuse.
• Make sure power cord is never crimped or damaged.
• Do not look into the beam from a distance of less than 40 cm (16 inches).
• Do not stare into the beam for extended periods at a short distance.

Caution!
Avaid looking directly into the LED light beam at a close distance!

Features

• Flicker free operation
• Smooth color mixing by RGBWA 5in1 LEDs
• 5 working modes: DMX, Auto, Sound, Manual, Master/Slave
• DMX channels: 9/6 ch.
• Linear dimmer 0-100%
• Strobe 1-25 flash per second
• 4-button LED display
• IP65 for indoor and outdoor use only

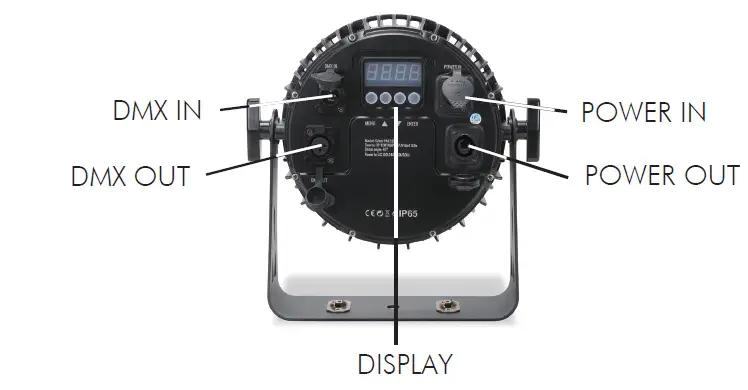

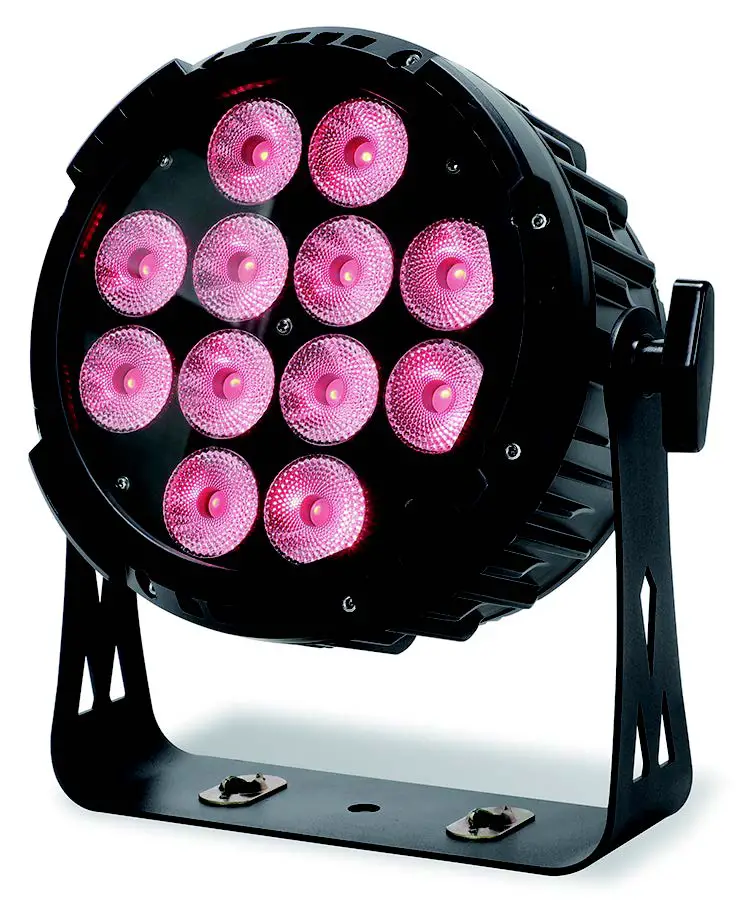

Product Overview

SETUP

Mounting
This controller can be mounted in any SAFE position provided there is enough room for ventilation.

IMPORTANT!
Safety cables must always be used. The safety cable must be capable of holding 10 times the weight of the fixture.

Fixture Linking
To run your light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures in master/slave operating mode, you need DMX cables to link the units from DMX IN to DMX OUT.

AC Power
The fixture is designed to work on AC 100V – 240V 50-60Hz. All units must be powered directly from a switched circuit.

Warning!
All fixtures must be connected to circuits with a suitable Earth Ground.

OPERATION INSTRUCTIONS

Control Panel

• MENU: To scroll over main menu
• UP: To increase the value.
• DOWN: To decrease the value.
• ENTER: To confirm setting

DMX Mode

9 DMX Channels

6 DMX Channels

Specifications

• Light source: 12 x 10W RGBWA 5-in-1 LEDs
• Optical lens: 40˚
• Power input: AC 100-240V 50-60Hz
• Size: 235*120*275 mm
• Weight: 5 kg
