EASY CONNECT™
INSTALLATION INSTRUCTIONS
IOL572
10/21
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS READ ALL INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
SAFETY PRECAUTIONS:
- TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
- WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
- TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
INSTALLATION:

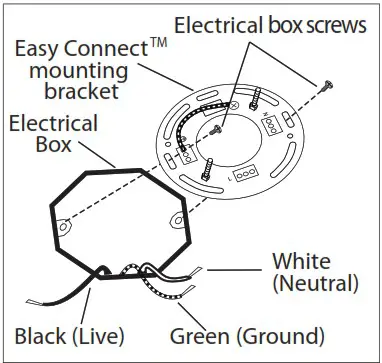

 | 1. Attach Easy Connect™ mounting bracket to electrical box with electrical box screws (not included). |

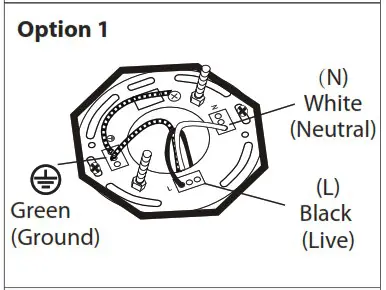

 | 2. Option 1: Connect (push) electrical wires from electric box (house wiring) into correct inserts. |

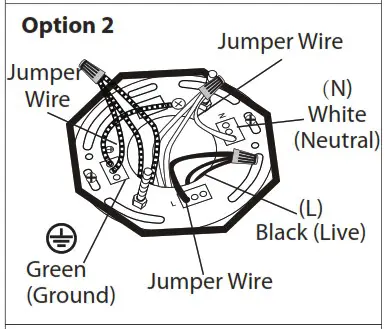

 | Option 2: For multiple green (ground), black (live) and white (neutral) wires joined in the electrical box (house wiring), attach a single “green”, “black” and “white” jumper wire before connecting. Strip 7mm from the 6” jumper wires supplied. Then connect (push) wires into the correct inserts. |

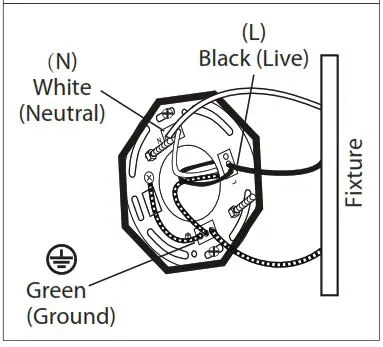

 | 3. Connect (push) electrical wires from fixture into correct inserts. |

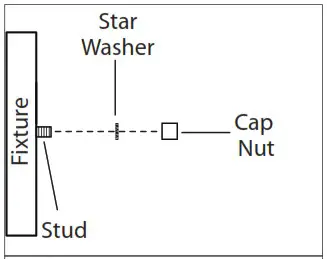

 | 4. Tuck electrical wires into electrical box and position fixture over studs on mounting bracket assembly. Secure fixture in place with star washers and cap nuts. |

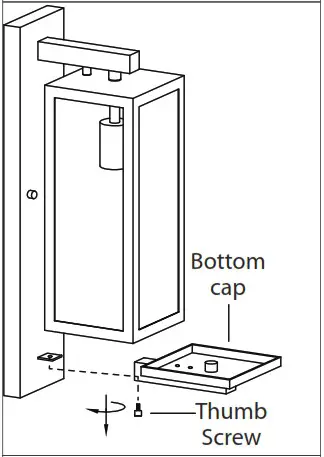

 | 5. Unscrew the thumb screw to remove the bottom cap from the fixture. |

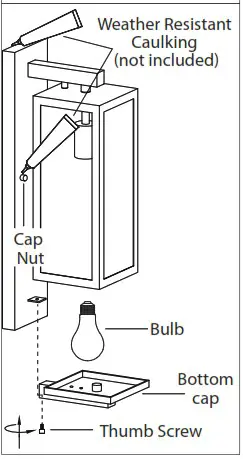

 | 6. Install specified bulb type and wattage (not included). 7. Re-install the bottom cap to the fixture. 8. After installation, seal around the top and side perimeter between the fixture and the wall surface with weather-resistant caulking. The bottom should be left un-caulked to prevent moisture build-up. Apply a small amount of weather-resistant caulking around the side perimeter between the cap nut and mounting plate. |
NEED HELP?
Call or Email us first
Our service team is ready to answer your questions…
1-800-265-1833 (English) / 1-800-567-2513 (French)
IN CANADA – [email protected] – IN USA- [email protected]
Monday – Friday
8 AM-5 PM E.S.T
Tel: (613) 342-5424, Fax: (800) 263-4598
