Camera Mount Series | DH-PFA162
DH-PFA162

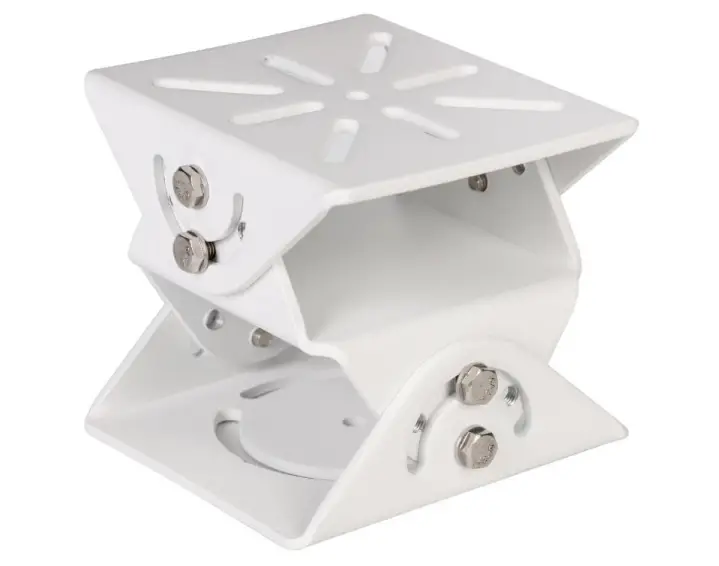

Universal Joint
Features
- Aesthetic design
- Material: aluminum
- Housing bracket
- Support three-axis rotation for housing installation
Technical Specifications
| Model | DH-PFA162 |
| General | |
| Material | Aluminum |
| Dimension (WxHxD) | 115mmx115mmx98.8mm (4.53″x4.53″x3.89″) |
| Weight | 0.5kg(1.1Ib) |
| Load Bearing | 6.0kg(13.231b) |
| Color | White |
| Operating Temperature | -40t—t6Ot (-40°F — +140°F) |
| Humidity | 0-90% RH |
| Applicable Model | PFH610N/V/A series housing |
Order Information
| Type | Part Number | Description |
| Camera Mount | DH-PFA162 | Housing bracket |
| PFA162 | Housing bracket |

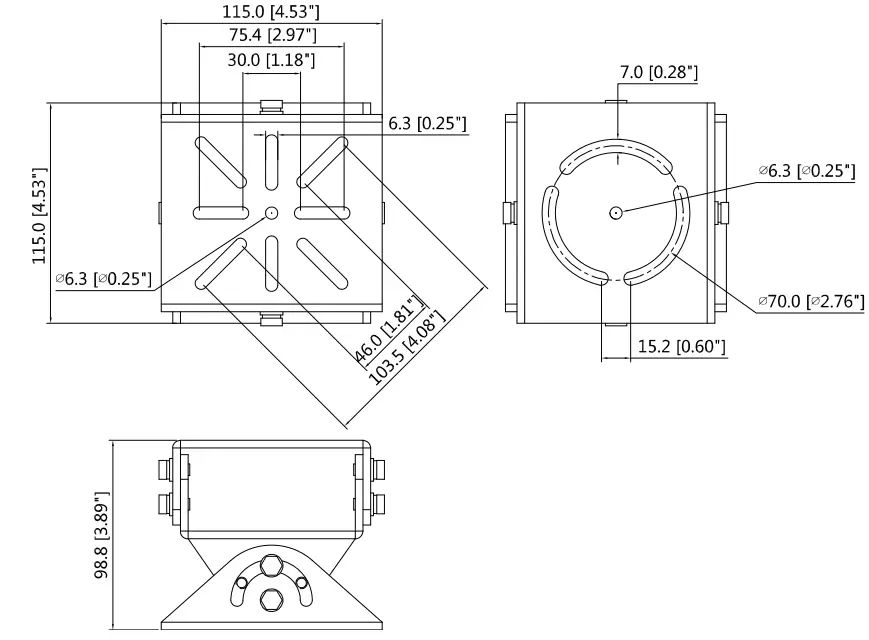

Dimensions (mm/inch)

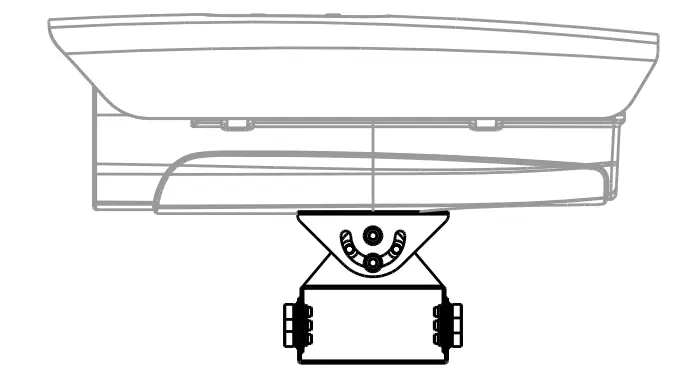

Application
Package Information
- Housing bracket *1
- M6x14 screw *2
- 1/4-20x12UNC screw *2
- Wrench *1
