INNR IM OSL 130 C-17 Smart Lighting
Instruction Manual
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using outdoor use portable luminaires, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:
- Read All Instructions
- Use only three-wire outdoor extension cords that have three-prong grounding plugs and grounding receptacles that accept the appliance’s plug.
- Ground Fault Circuit Interrupter (GFCI) protection is to be provided on the circuit(s) or outlet(s) to be used for the wet location portable luminaire. Receptacles are available having built-in GFCI protection and are able to be used for this measure of safety.
- Use only with an extension cord for outdoor use, such as an extension cord of cord type SW, SW-A, SOW, SOW-A, STW, STW-A, STOW, STOW-A, SJW, SJW-A, SJOW, SJOW-A, SJTW, SJTW-A, or SJTOW, SJTOW-A.
- CAUTION: RISK OF ELECTRIC SHOCK, do not use with extension cord near water or where water may accumulate. Keep lamp at least 16 feet from pools and spas. Keep plugs and receptacles dry.
- For use only on GFCI protected circuits.
- SAVE THESE INSTRUCTIONS.
CAUTIONS and OPERATING INSTRUCTIONS:
- Risk of electric shock- do not use when directly exposed to water.
- This device is not intended for use with emergency exit fixtures or emergency lights.
- Only install in operating environments between -4 F – 104°F / -20°C – +40°C.
- Before replacing, turn off power and let the device cool down to avoid burn.
- Suitable for outdoor use.
- Suitable for wet locations, do not submerge.
- Do not disassemble the product; if any part is damaged, the product should not be used.
- For cleaning, use a damp cloth, never a strong cleaning agent.
- Do not clean the device when it is on and connected to the power supply.
- This device is not a toy, designed to be played with by children.
- Do not place this device on hot surfaces.
- For safety reasons, do not open this device, which will also void the warranty.
- Dispose of this device in accordance with disposal laws in your area.
- Keep these instructions for future use.
FCC Certification:
FCC ID: 2AWZINNRZBM11
Supplier’s Declaration of Conformity
OSL 130C
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Supplier’s name: Opened Box Returns LLC
Supplier’s address (USA): 1790 Swarthmore Ave., Unit 6,
Lakewood NJ 08701 USA
Supplier’s phone number and/ or internet contact information: [email protected]
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
Note: This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
IC Certification:
IC: 25992-INNRZBM11
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) . Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
This Class B digital apparatus complies with Canadian ICES-005. This digital apparatus does not exceed the class B limits for radionoise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
LIMITED WARRANTY:
lnnr warrants that this device will be free from defects in material and workmanship and will operate for 2 years based on up to 3 hours average usage per day/7 days per week, when used as directed. If this device does not conform to the warranty, lnnr will send you, at its election, a replacement device or refund your original purchase price upon receipt of the returned device, register receipt and proof of purchase.
Please send an email to [email protected] to find out how to return the device. This limited warranty does not coverdevices subject to accident, neglect, abuse, misuse or acts of God. REPLACEMENT OR REFUND IS YOUR SOLE REMEDY. EXCEPT TO THE EXTENTPROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IS HEREBY EXPRESSLY EXCLUDED. Some states and provinces do not allow exclusion of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province.

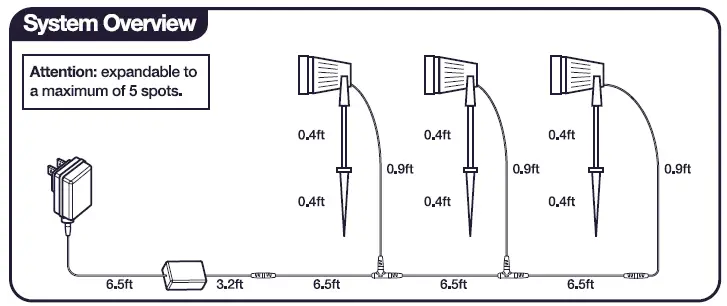

System Overview
Wireless specification:
Wireless RF mode frequency band: 2400-2483.5 MHz
Wireless communications protocol: IEEE 802.15.4
Operating channels: channels 11 – 26
Environmental specification:
Temperature (operation): -4°F – 104°F Temperature (storage): -13°F – 140°F Relative humidity: 5 – 95 % non condensing Standby power: < 0.2W
Installation

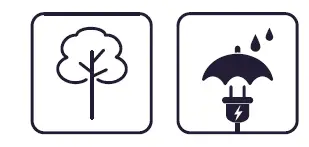

Connection
To connect the lamp to the bridge, follow the instructions in the mobile app.

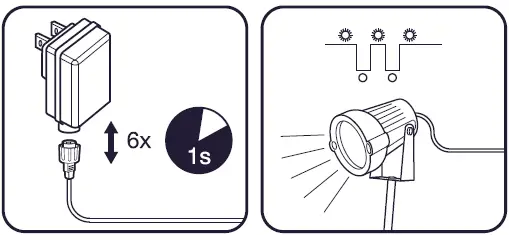

Factory reset
© lnnr Lighting 8.\/. 2020
