INSTRUCTION MANUAL

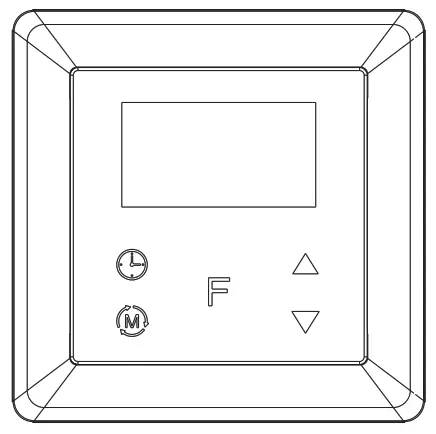

NAMRON THERMOSTAT
TOUCH Z-WAVE 16A

INSTRUCTION MANUAL

Namron termostat touch Z-Wave 16A

Technical data

Installation

a.Installation must be done by a qualified electrician.
b.The power supply must be turned off during installation.

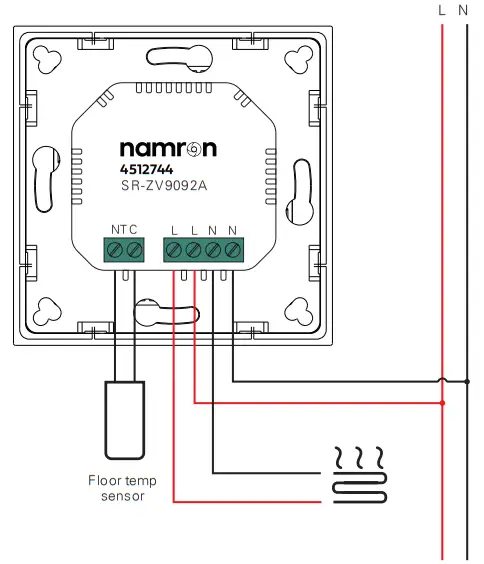

(1) Wiring diagram

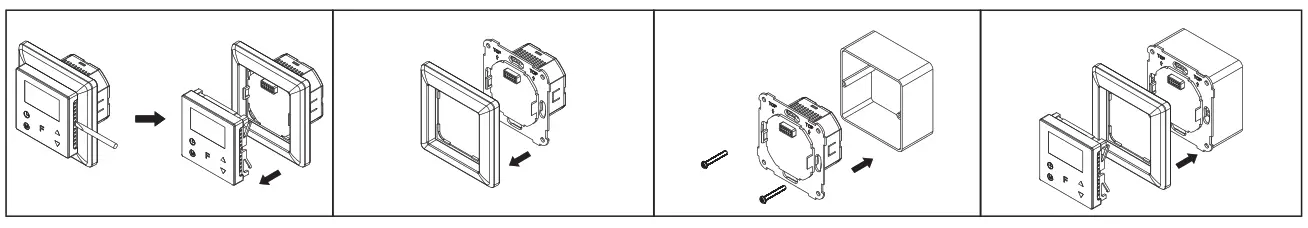

(2) Mounting
a.Remove the display unit and front cover by using a small screwdriver.
b.Insert the wires to the correct terminals as presented in the wiring diagram above. The suggested wire-stripping length is 8-10mm.
c.Fix the thermostat into the connection box by tightening the screws. Make sure that the thermostat is fixed without deformation. Suggested torque is 0.2-0.4Nm (2.0-4.1kgf.cm).

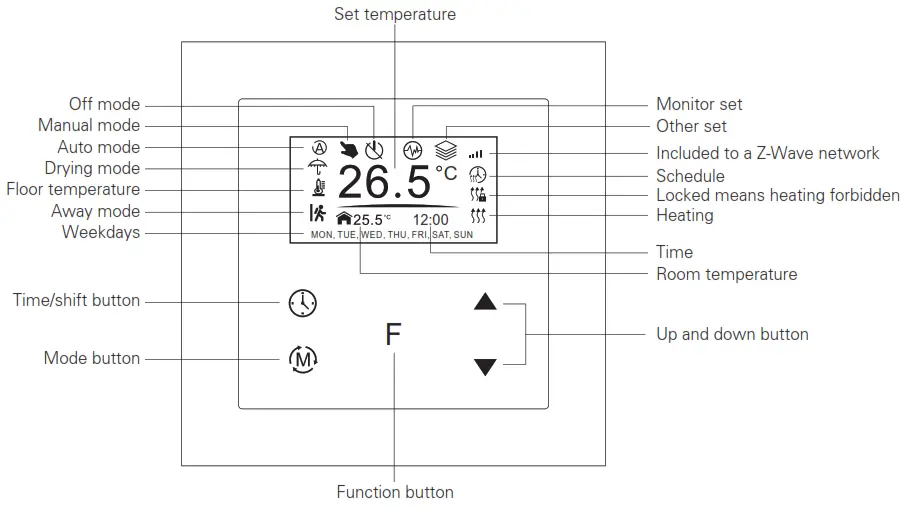

Symbol overview

Settings Menu

Select TIME/DATE on Home Interface to enter into TIME/DATE SET interface as follow:
Enter settings menu (needs to be added)

1. Under Home Interface, meanwhile, the device is at OFF mode (Off icon), press and hold up and down buttons at the same time for over 5 seconds to enter Settings Menu.
2. Short press moves up and down button to select a settings item, then short press button F to enter selected item.
3. Settings menu include Preview menu, Z-Wave settings, Schedule, Monitor settings, Time/Date settings, Other settings

Time Setting

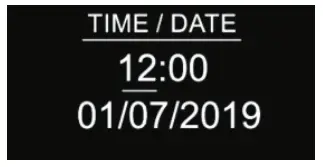

Select TIME/DATE on Home Interface to enter into TIME/DATE SET interface as follow:

Short press button to select the item you would like to modify, then short press up and down buttons to modify the value of the selected item, then short press button F to save and quit, the short pressing button only quits without saving.

2. Preview interface
On Home Interface, the user can enter into PREVIEW interface, the interface will display some basic configurations, energy consumption, date, floor temperature, etc.

Control Mode

Short press button on Home Interface to switch operation modes: the icons of Away, Auto, Manual, Drying, Off modes will be displayed alternatively for 3 seconds and last displayed mode will be selected, or just short press F button to select the desired mode when the modes’ icon displayed alternatively. Press and hold the button on the Home interface for over 3 seconds to select Away mode directly, then press and hold the button for 3 seconds to quit Away mode.

1. Away Mode: the device will control the heating system according to the set temperature within the set period.
Users can set time to leave home and time to go home according to their requirements of, and set how the
the device will control the temperature during this period.
1.1. If away mode has already been activated, the end time for away mode is valid, the device will execute Away Mode
Temperature Schedule before the end time.
1.2. If away mode has already been activated, the values of the end time for away mode are set as 0, the device will always
execute the current set temperature with no time limitation. The device will consider the mode as anti-freeze mode, the
recommended temperature setting is 4-10°C.

2. Auto Mode: the device will control the heating system according to the configured time schedule or Z-Wave protocol
Energy_Save_Heating Setpoint.
2.1. When configuration parameter 8 value is set as 1, the device will control the temperature of energy save mode according to the temperature set by Command Class Energy_Save_Heating Setpoint or set by using the move up and down buttons, the following mentioned schedule will be invalid.
2.2. When configuration parameter 8 value set as 0, the temperature set by Command Class Energy_Save_HeatingSetpoint and set by using the move up and move down buttons will both be invalid, Energy Save Mode will control the temperature according to the following user schedule.
For instance, if the user would like to keep the room temperature at 18C during 18:00-23:00 on every Monday, and keep the room temperature at 20C after 22:30 on every Monday, then the user can set the schedule by himself.

Schedule setting method 1: user can enter into the schedule on Z-Wave Set Interface, the schedule interface is as follows:

Short press button to select “Auto F Schedule”, then short press button Schedule weekly setting interface.

Schedule setting method 2: on Home Interface, meanwhile the device is under Auto Mode, short press button to enter into Auto Mode Schedule weekly setting interface quickly:
On Auto Mode Schedule weekly setting interface, use buttons and F to enter into schedule setting of a certain week as
follows:
On Auto Day Schedule interface, short press button to select the time or temperature that you would like to modify, then short press move up and down buttons to modify the value, then short press button F to save and quit, the short pressing button only quits without saving.

For each schedule, the latter time should be later than the former time, otherwise saving will fail with the error remind “Time setting error!!!”. The default time schedules are as follows:

3. Manual Mode: the device will control the heating system according to the current set temperature. The temperature can be
set by a move up and move down button on the Home interface, or configured by Z-Wave gateway.

4. Drying Mode: The device will judge the set temperature for heating within a short period of time.
I.e.: in order to dry the water in the bathroom in a short time, the device could be set to quickly heat to dry the floor. Enter  the configuration interface is as follow:
Duration: set how long the dry mode should last
After Mode: set the mode after the drying mode ends
Remain: shows the remaining time of the drying mode

For configuration method and modification, please refer to Automatic Mode (Energy Save Mode) Schedule:

5. Off Mode: this mode only enables the device to turn on the heating system when the anti-freezing mode is enabled and the device meets all required conditions, otherwise, the device will not work, meanwhile, the standby interface will only show
room temperature.

Monitor Set		The function of the monitor set is a real-time monitor of over current, overheat, and freezing. On Home Interface, short press  MONITOR SET to enter into monitor set interface as follows: Short press buttonto select the item would like to modify, then short press moves up and down buttons to modify the value of the selected item, then short press F button to save and quit, the short pressing buttononly quits without saving.
Over-current Alarm		If the current is over the set value, the relay will be forced off by the device, and the state will be reported to the gateway. The over-current alarm function can be disabled, which can be set directly through the device. Or can be configured through Advance Config parameter 2 by setting the value as 0 to disable the function, please refer to the part “Advance Config”.
Over-heat Alarm		If room temperature or floor temperature is over the set value, the relay will be forced off by the device, and an overheat alarm will be reported to the associated devices, meanwhile, the buzzer or vibrator will beep 3 times every 10 seconds. The overheat alarm function can be disabled, which can be set directly through the device. Or can be configured through Advance Config parameter 6 by setting the value as 0 to disable the function, please refer to the part “Advance Config”. Overheat alarm interface is as follow: Note: to cancel over the current alarm or overheat the alarm, just press and hold the buttonfor over 3 seconds or reset the power of the device. After canceling manually, the relay will show the heating forbidden icon within120 seconds, but other operations are allowed.
Hysteresis		To prevent the undulation of sensor temperature when the sensor temperature is approaching the set temperature, which will cause that the controller may keep switching on/off the relay. Here hysteresis enables the controller to control the relay only when the sensor temperature is a bit lower than the set temperature, this value can be set. This hysteresis is only valid when the control type is a single sensor, please refer to the part Control Type. For instance, when hysteresis is set as 0.5 degrees, then only when the current sensor temperature is 0.5 degrees lower than the set temperature, will the controller heat, if the sensor temperature >= set temperature, the controller will not heat.
Key Vibration Set		Set the level of the vibration sensor under the buttons or buzzer level. OFF: vibration or buzzer off Low Level, High Level: low vibration or buzzer level, high vibration or buzzer level. The level can also be configured through Advance Config parameter 03.
Display Brightness Set		The OLED displays brightness when operating the device. High Level, Mid Level, Low Level. This parameter can also be configured through the Advance Config parameter [22].
Display Temperature Set		This parameter defines which sensor temperature will be displayed on the Home page. Floor Temp: floor temperature (external sensor). Home Temp: indoor air temperature. This parameter can also be configured through the Advance Config parameter [23].
Other Set		SelectOTHER SET on Home Interface to enter into another SET interface as follow: Short press buttonto select the item you would like to modify, then short press moves up and down buttons to modify the value of the selected item, then short press button F to save and quit, the short pressing button only quits without saving.
Temperature Compensation		The displayed temperature may have big tolerance caused by the sensor or other factors, so it is necessary to do temp compensation to the room sensor and floor sensor. The compensation range is -5 ~ +5°C, stepping is 0.5°C. This parameter can also be configured through Advance Config parameters [11] and [12].
Re-power Status		Device state after reset power of the device. If set as “last status”, the device will go to the status before power failure after power on again. If set as “default”, the device will go to default mode after power on again. This parameter can also be configured through the Advance Config parameter [4].
Internal Over Heat Protection		To ensure the safety of the device, if the internal temperature of the device (not displayed on the interface) is over a certain value during the heating process, the device will execute a short temporary action to turn off the relay, and the icon will appear on the interface, after the temperature decreases to a certain value, the device will recover to work.

Z-Wave Set Introduction

1. Z-Wave Network Management

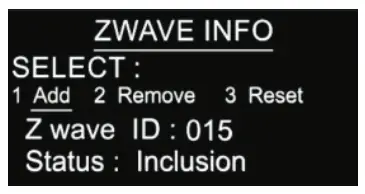

SelectZWAVE INFO on Home Interface to enter into Z-Wave network management interface as follow:

Adding to a Z -Wave Network ( Inclusion)
Method 1: Select “Add”, then short press button F, the device will send out inclusion request, “Status” will show “Inclusion…”. If
there is no response from a gateway within 30 seconds, or inclusion failed, “Status” will show “Fail”. If included successfully,
“Status” will show “Inclusion OK” and device ID.
Method 2: Operate the gateway into inclusion mode, make sure the device is already removed from the previous network, reset
power of the device, the device will be included in the gateway automatically.

Removing from a Z-Wave Network (Exclusion)
Select “Remove”, then short press button, the device will send out exclusion request, “Status” will show “Exclusion…”. If
there is no response from a gateway within 30 seconds, or exclusion failed, “Status” will show “Fail”. If excluded successfully,
“Status” will show “Exclusion OK” and device ID will be shown as 0.
Factory Reset (Reset)
Factory resetting will reset all Advance Config parameters to the default value, and the device will be removed from the Z-Wave
network.
Select “Reset”, then short press button F , the device will start reset, “Status” will show “Reset…”. If there is no response from
a gateway within 6 seconds, or exclusion failed, “Status” will show “Fail”. If reset successfully, “Status” will show “Reset OK”.
Note 1: if the device is excluded or reset successfully, the Auto Mode Schedule will be reset to the default value.
Note 2: the sent frame of inclusion and exclusion is the INFO frame.

2. Basic set command class
Set the device operation mode as Comfort Mode (Manual Mode) by sending command class basic set = 0XFF. Set the device
operation mode as OFF mode by sending command class basic set = 0x00

Z-Wave Technical Specifications
1. Supported Notification Report and Sensor Type

2. Technical Specifications

Thermostat Related Specifications

3. Supported Command Class
Root Device

Note: the EndPoint01 mirrors equivalent effect root endpoint.
EndPoint1 command list:

EndPoint2 (floor temperature sensor) command list:

5. Association
Root device

EndPoint01 :

Note: the EndPoint01 has an equivalent effect of the root function. EndPoint02

6. Advance Config Parameters
