Bike43 Wheel Guard Installation Guide

BIKE43 Wheel Guard Installation Guide

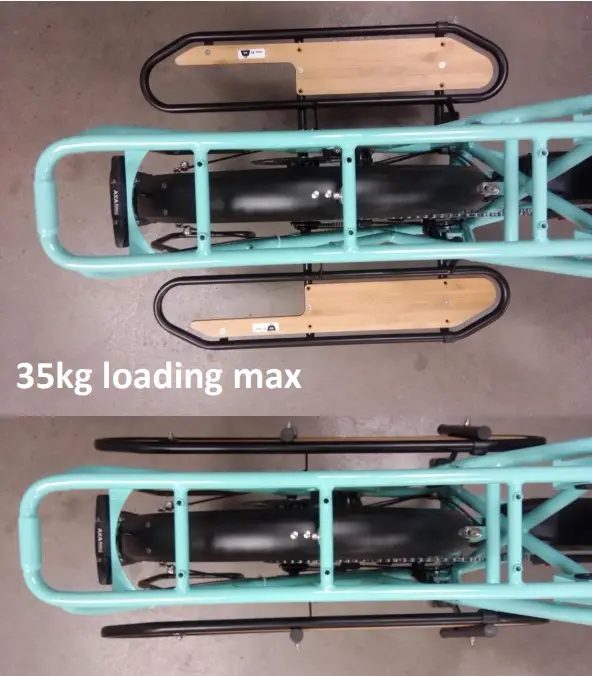

Step In- Installation

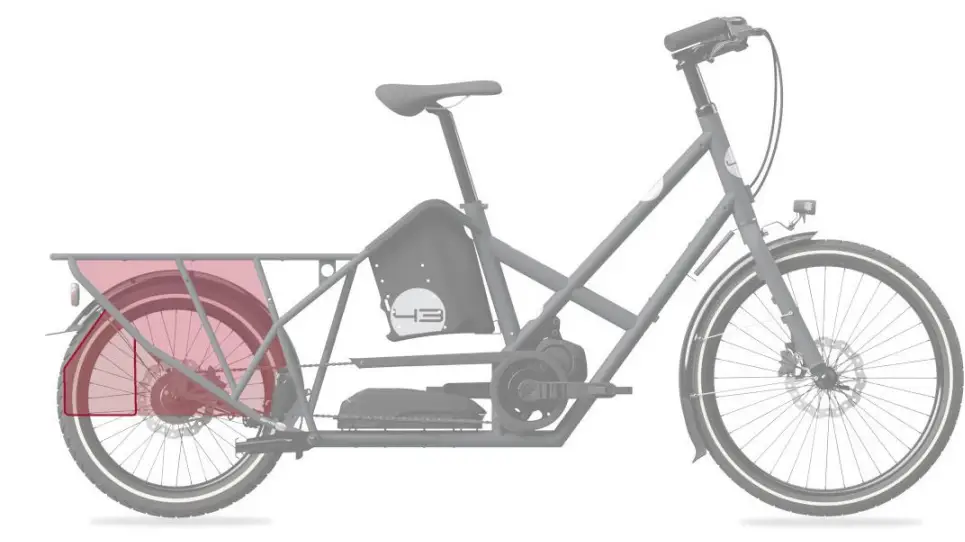

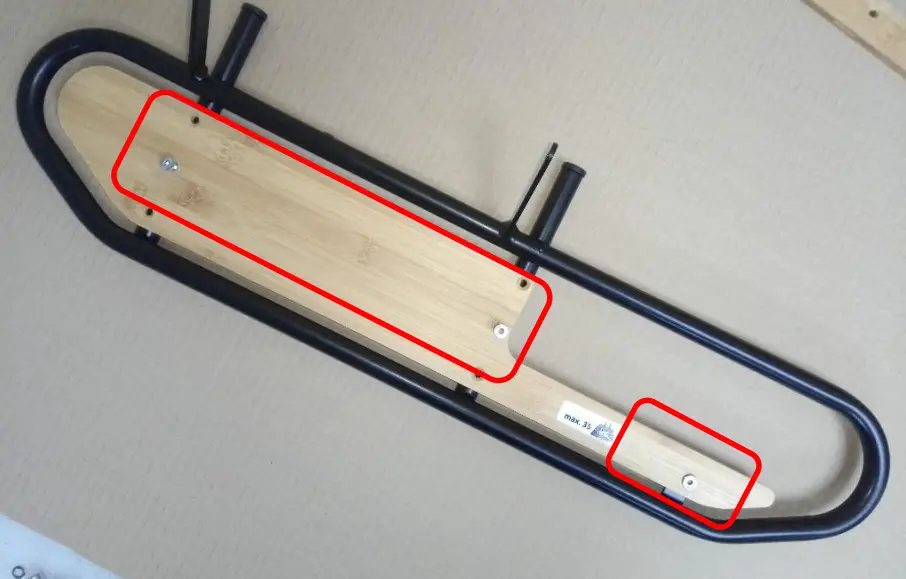

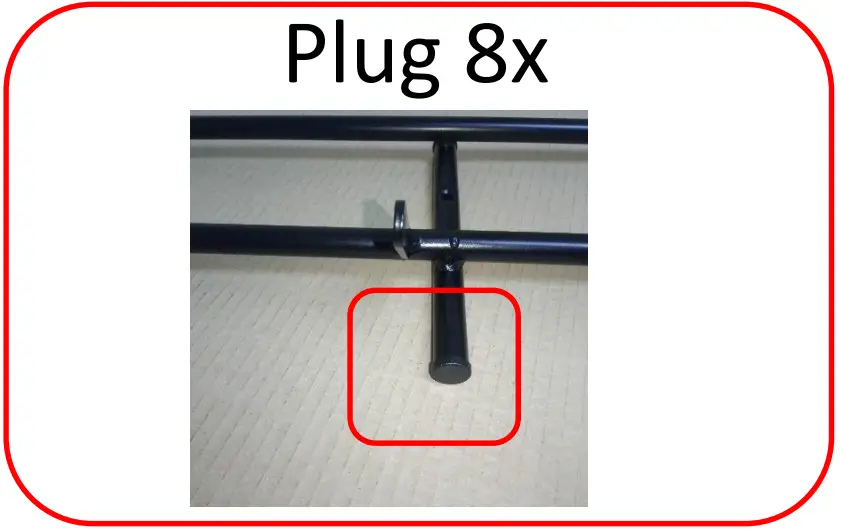

Wheel Guard

• Make sure to fit the Wheel Guard


1x
Short screw M5, 2 washers, 1 nut

2x
Long screw tapered head M5, 1 washer 1 nut

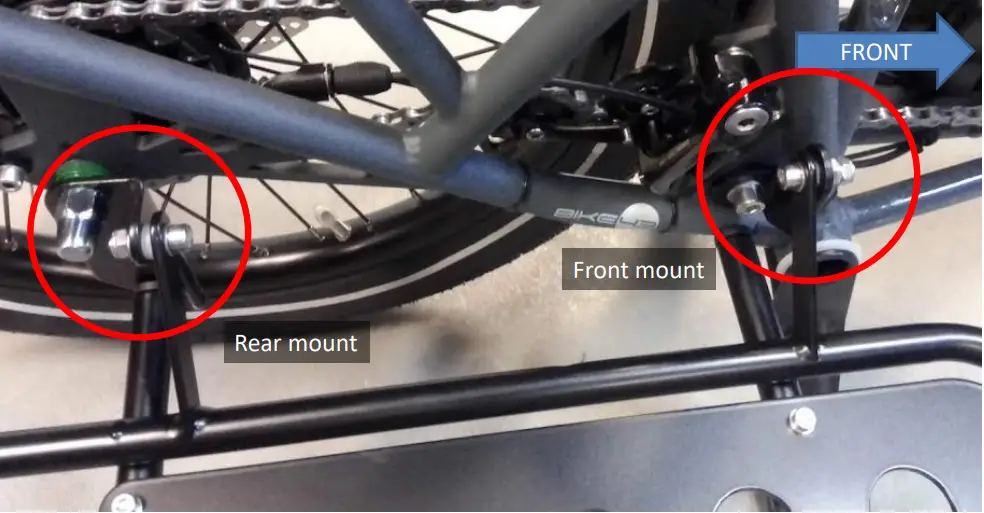

RH side

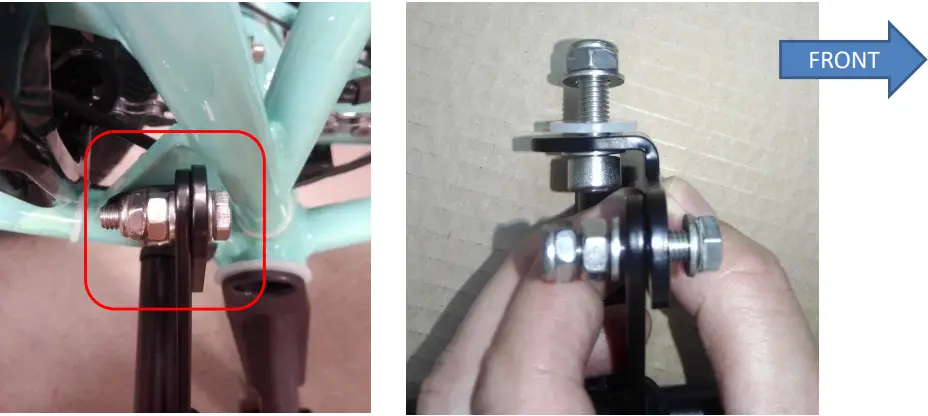

Front mount

1. M8 in the frame
2. M6 for the joint
3. washer/ nut / counter nut
   • Use 2 spanners size 10
   • Wind off the first nut against the exterior one to lock them strongly to each other

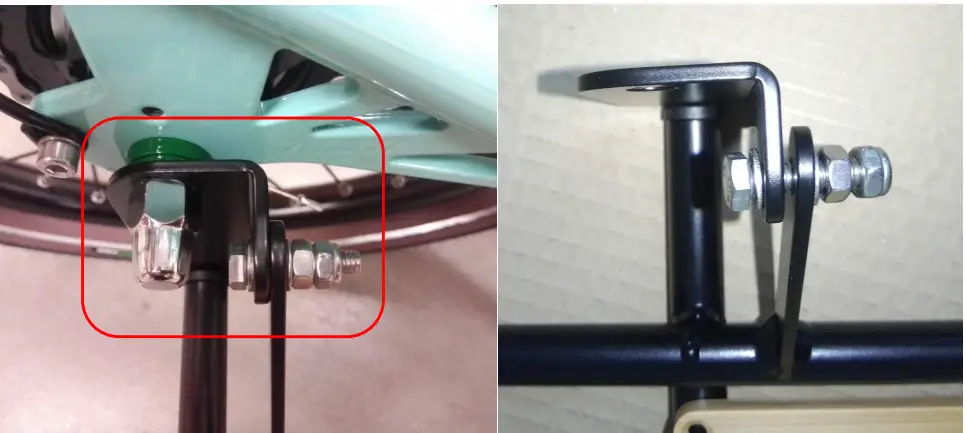

Rear mount

1. M6 for the joint
2. washer/ nut / counter nut
   • Use 2 spanners size 10
   • Wind off the first nut against the exterior one to lock them strongly to each other

Frame protection
