INSTALLATION MANUAL
TRALLING ARM GUARDS
POLARIS RZR PR0 R 2022
SKI124-C

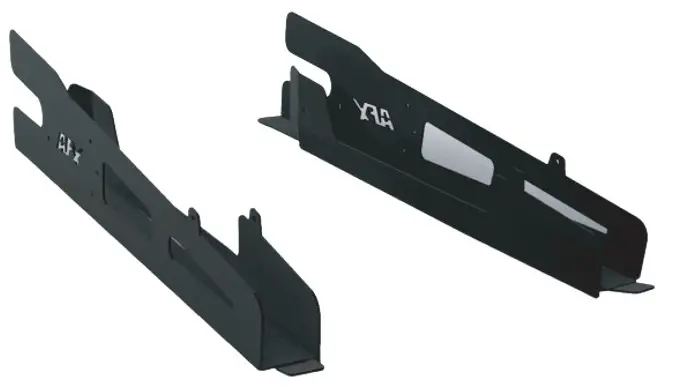

SKI124-C Tralling Arm Guards
THANK YOU!
FOR PURCHASING AT AFX MOTORSPORTS
TRALLING ARM GUARDS
FOR POLARIS RZR PRO R 2022
HOW TO INSTALL

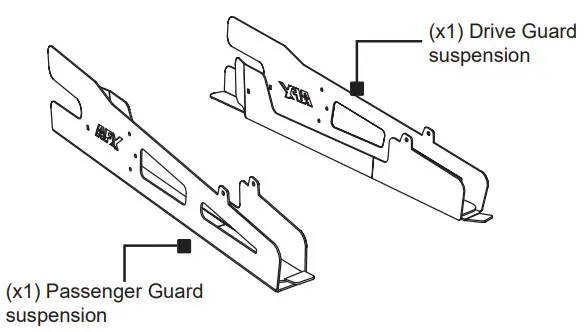

Pieces included:
Hardware:
(2x) 1/4” x 3” Button screw
(2x) 5/16” Nut
(2x) 5/16” x 3-1/2” Carriage Screws
(2x) 1/4” Security Nut
(2x) 5/16” Pressure Washer
Tools needed (Not included):
Allen Key.
Combination Wrench.
Liability Statement
AFX Motorsports products are designed to best fit user’s ATV/UTV under stock conditions. Adding, modifying, or fabricating any factory or aftermarket parts will void any warranty provided by AFX Motorsports and is not recommended. AFX Motorsports products could interfere with other aftermarket accessories. If user has aftermarket products on machine, contact AFX Motorsports to verify that they will work together. Although AFX Motorsports has thousands of satisfied customers, user should be aware that installing bumpers, rock sliders, spare tire carriers, etc. will change the ride of machine and may increase maintenance and part wear. Operating any off-road machine while, or after, consuming alcohol and/or drugs increases risk of bodily harm or death. No warranty or representation is made as to this product’s ability to protect user from severe injury or death. AFX Motorsports urges operators and occupants to wear a helmet and appropriate riding gear at all times. By purchasing and installing AFX Motorsports products, user agrees that should damages occur, AFX Motorsports will not be held responsible for loss of time, use, labor fees, replacement parts, or freight charges. AFX Motorsports, nor any 3rd party, will not be held responsible for any direct, indirect, incidental, special, or consequential damages that result from any product purchased from AFX Motorsports. The total liability of seller to user for all damages, losses, and causes of action, if any, shall not exceed the total purchase price paid for the product that gave rise to the claim. AFX Motorsports will warranty only parts provided by AFX Motorsports. Any damage or problems with OEM housings, bearings, seals, or other manufacturers’ products will not be covered by AFX Motorsports. AFX Motorsports parts and products are not warrantied if item was not installed properly, misused, or modified.

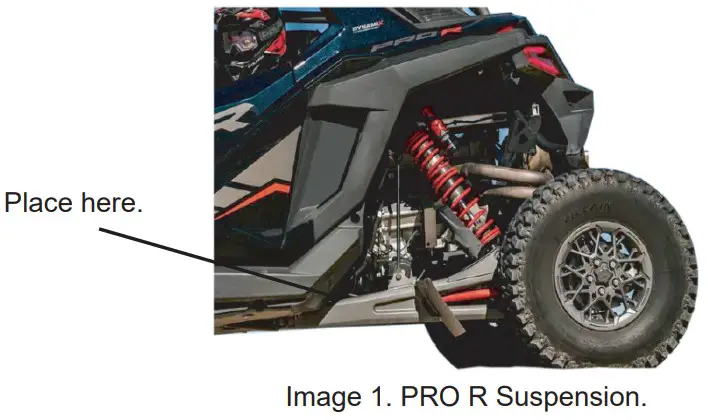

- Place the rear suspensions on the rear side of the vehicle.
- Check if your suspensions have mud flaps if they do, remove them.

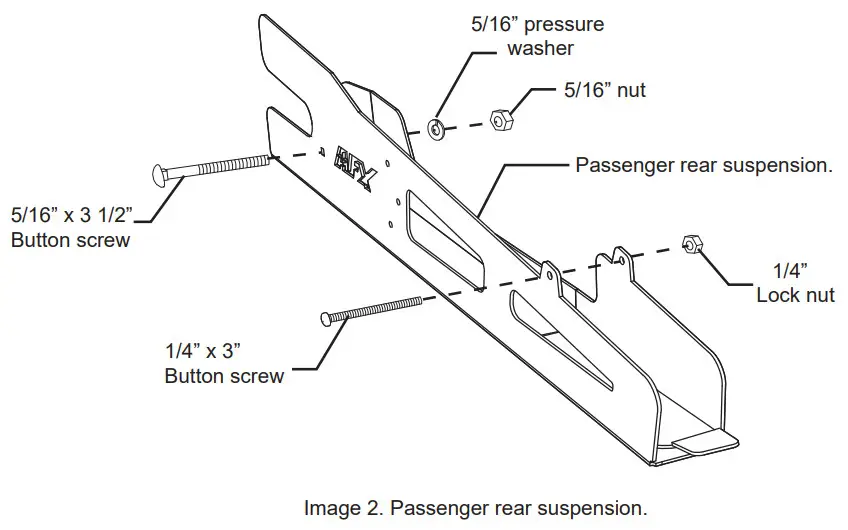

- Attach the arm guard using 5/16” x 3-1/2″ carriage screws on the back of the rear suspensions.
- Secure with 1/4” x 3” Button screw on the front of the rear suspensions.
- Repeat the process on the driver´s side.
For technical support , please write us to:
[email protected] or call us at:
Ph. 956-242-6521
HAVE FUN AND A SAFE RIDE!www.afxmotorsports.com
4610 Modern Lane, Laredo, TX 78041 Ph. 956-242-6521
THIS PRODUCT IS FOR OFF ROAD USE ONLY
