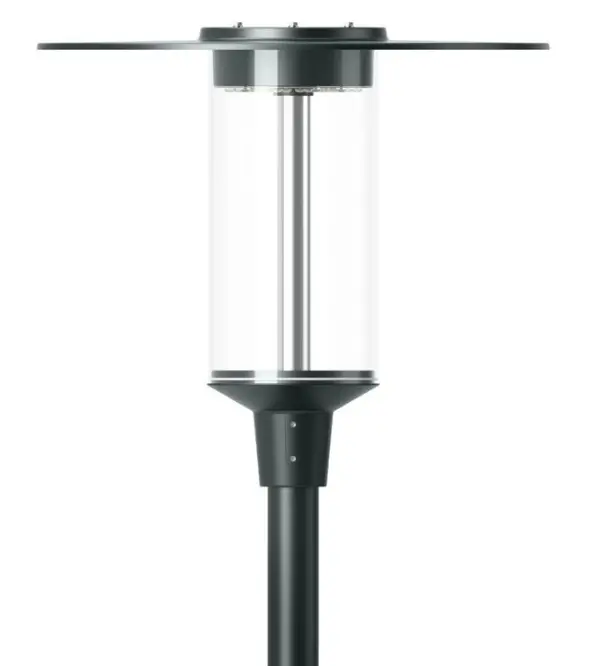

AIRAM 4546502 Atlas Pole Mount

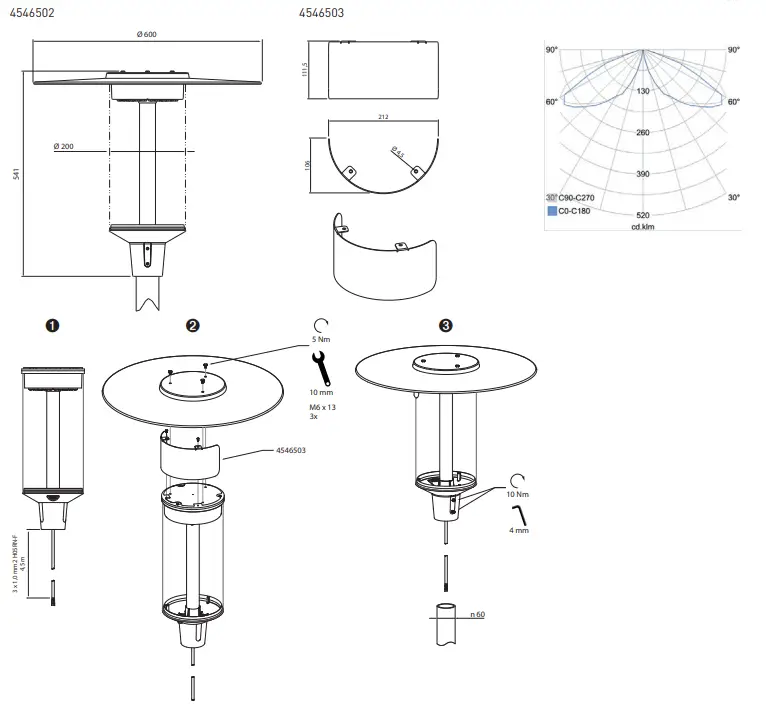

MOUNTING INSTRUCTIONS
This product contains a light source of energy efficiency class D. Only a professional electrician is allowed to do the installation. Use only rated voltage and frequency as marked in the fixture/driver. Switch off the current before installation or service. This mounting instruction must be kept available during installation and for future maintenance. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person
Airam Electric Oy Ab, Sementtitehtaankatu 6, FI-04260 Kerava, Finland, www.airam.fi

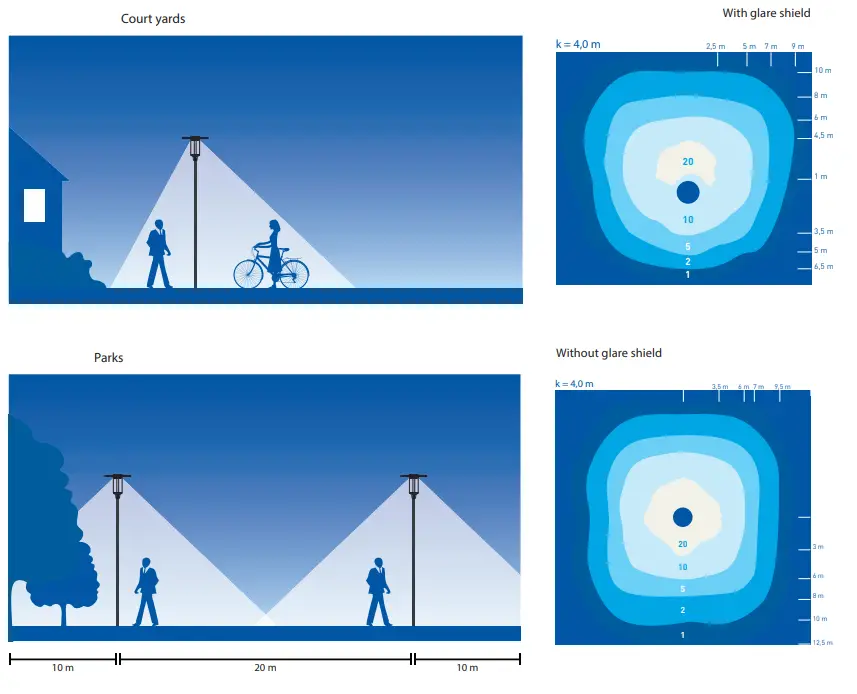

PARK LUMINAIRE

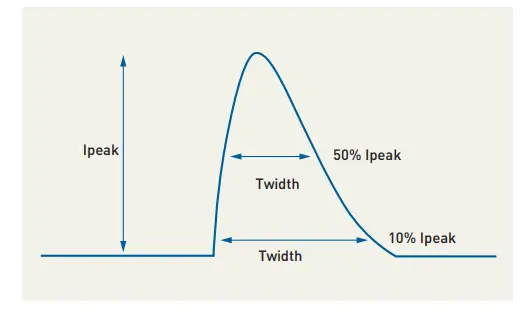

| VIN | Ipeak | T (@10% of Ipeak | T (@50% of Ipeak |
| 120Vac | 30A | 300uS | |
| 220Vac | 40A | 200uS | |
| 277Vac | 50A | 350uS |
| MCB | Rating | Quantity |
| B | 10A | 8 |
| B | 16A | 14 |
| C | 10A | 14 |
| C | 16A | 23 |
