Novus Nvb-6050pa-7043 Pole Mount Adapter User Manual

NVB-6050PA-7043 Pole Mount Adapter

User’s manualNVB-6050PA
version 1.2

Introduction

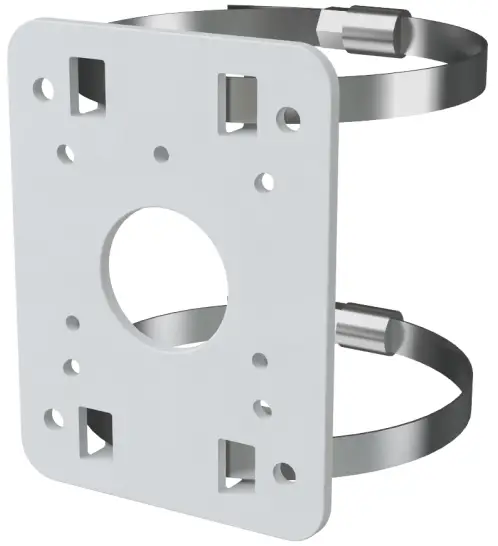

Pole adapter is made of aluminium powder coated in white. Pole adapter is designed to be mounted with 6000 IP series cameras and other NOVUS products. A detailed list of compatible products is available as a file to download in section “Downloadable Files” on http://www.novuscctv.com/en.

Package contents

• Pole adaptor 1 pc
• Mounting rings 2 pcs
• Accessories bag 1 pc
• User’s manual 1 pc

If any of this elements has been damaged during transport, pack all the elements back into the original box and contact your supplier for further assistance.

Technical specification

Installation manual

Adapter should be attached to structures or surfaces being able to safely lift the mass both of the adapter and device attached. Attach adapter to the desired mast or pole by unscrewing screw located on the rings, up to their full unlock, put the rings through slits visible on adaptor’s surface, put the rings around pole and then screw them again. Next line up positions of the holes on the adapter and the camera or other product, then screw them together.
Minimum pole diameter: 80mm
Maximum pole diameter: 140mm

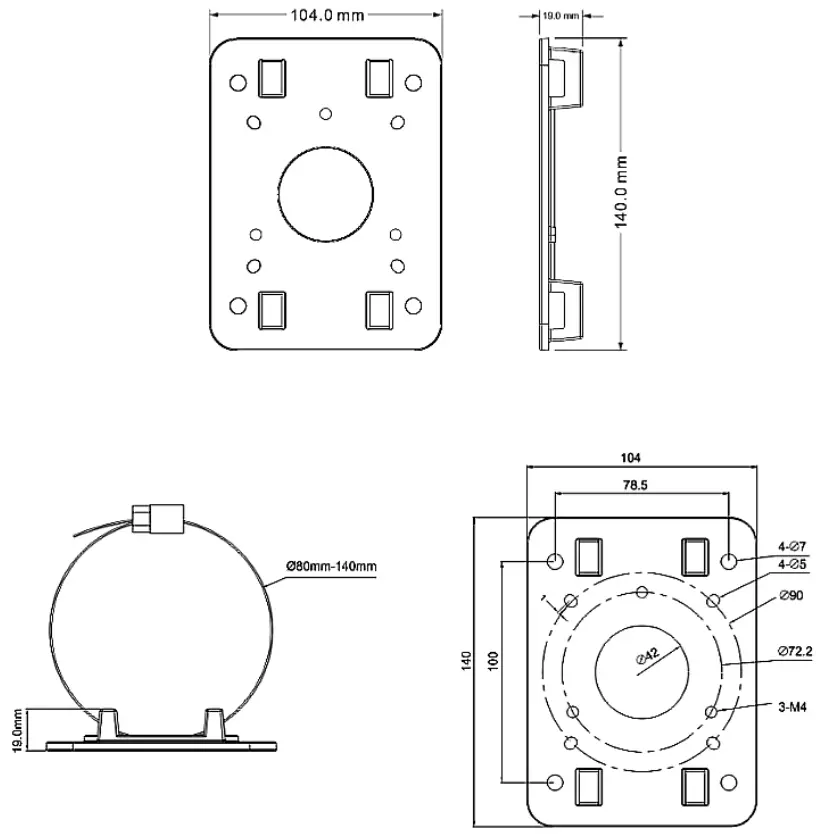

External dimensions (in millimeters)
