DURATECH PLP100-RGB Adagio Pro RGB Light User Manual

Technical specifications

For operation only with a safety isolation transformer
IEC Protection Class III

Minimum input voltage: 10 VAC 50 Hz
(at lamp terminals)
Nominal input voltage: 12 VAC 50 Hz
(at lamp terminals)
Maximum input voltage: 14 VAC 50 Hz
(at lamp terminals)
Power factor: > 0,90
Operation on DC voltages is NOT allowed
Maximum water temperature: +40°C Lamps have to be kept out of ice zones
Ingress protection rate: IP68 measured at 3m max depth = 3m

Remarks

Water conditions

Prevent damage to your pool lamps and wires due to unstable water conditions.
Your local government may have enacted guidelines for your pool water conditions to apply by. If not we strongly advise the following parameter specifications to be applied:

pH level: 6,8 – 7,6
Free Chlorine: max. 3ppm
Combined chlorine: max. 1 ppm
Water temperature: max +40°C and lamps need to be kept out of ice zones

Always adhere to the instructions provided by your chemical brand/supplier for the correct use and application of pool chemicals.
Salt water pools, or pools fitted with a salt water chlorine generator contain salt in the pool water. Salt is a corrosive material. Overdosage and/or consistent levels of salt increase the possibility of deterioration of your pool lamps and cables. As a rule of thumb, a concentration of 35gr/l salt can be accepted when pH values are between 7,2-7,4.
In any case, we urge proper use, care and maintenance of your installation, in order to minimize the effect of corrosion and deterioration.
Please be aware that pool lamps and cables with defects caused due to abnormalities in the water condition are not covered by our factory warranty

Installation/maintenance

The luminaire is maintenance free
If the luminaire needs to be replaced, it needs to be completely removed from the water

If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid hazard

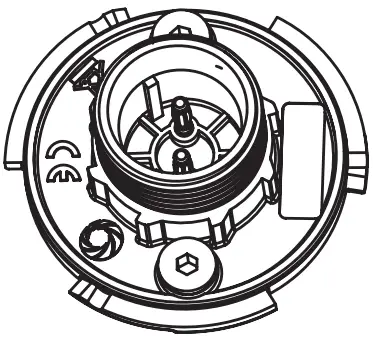

Box contents

ADAGIOPRO Lamp (50,100 or 170 mm)

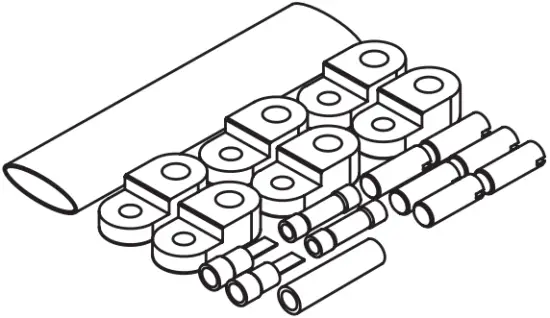

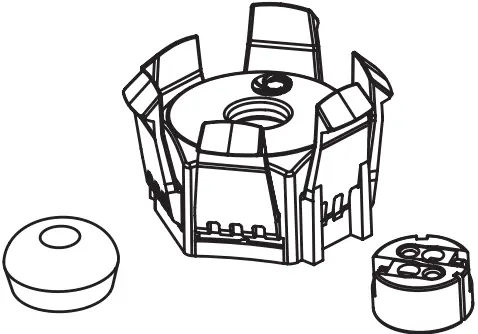

Connection Kit ADAGIOPRO ( 513-0152 or 513-0219 )

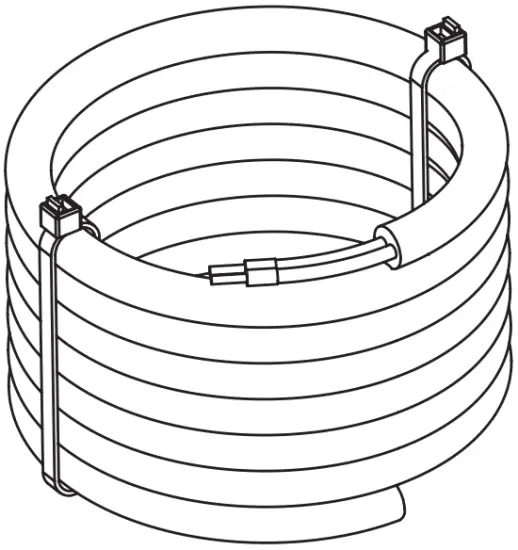

4m Cable

Manual

Retrofit Kit (only for 170mm models)

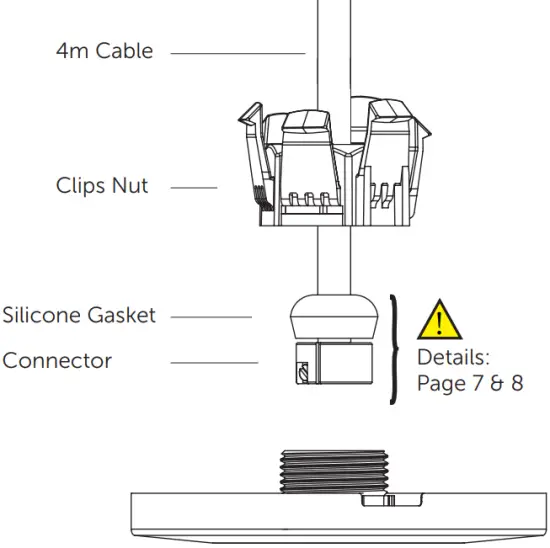

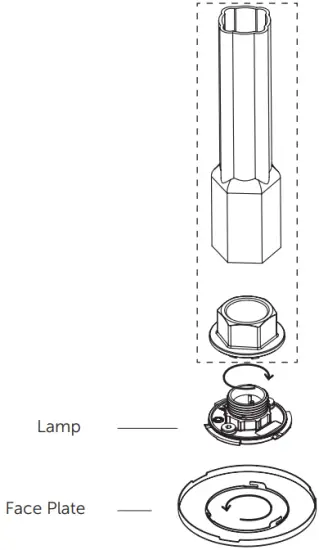

Installation instructions

mounting face plate

mounting the connector

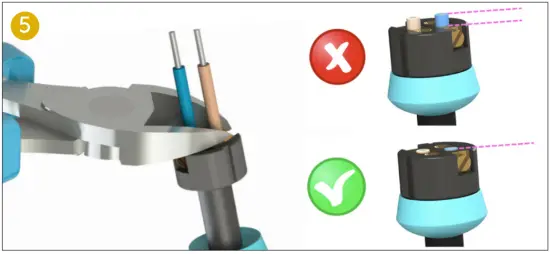

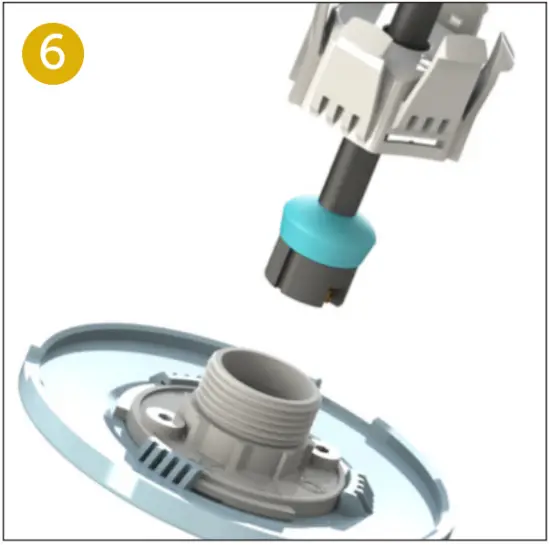

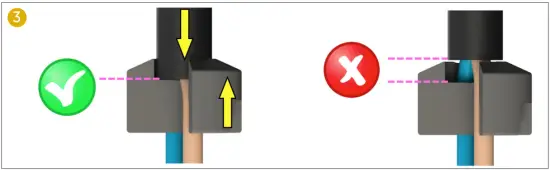

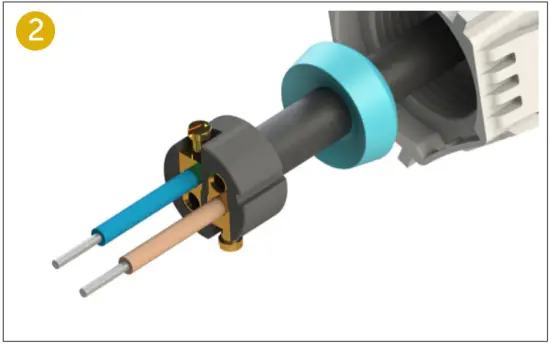

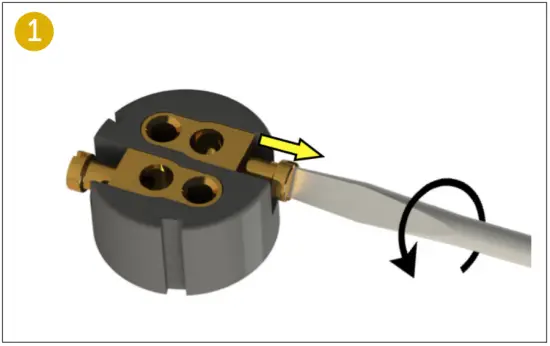

Connector installation

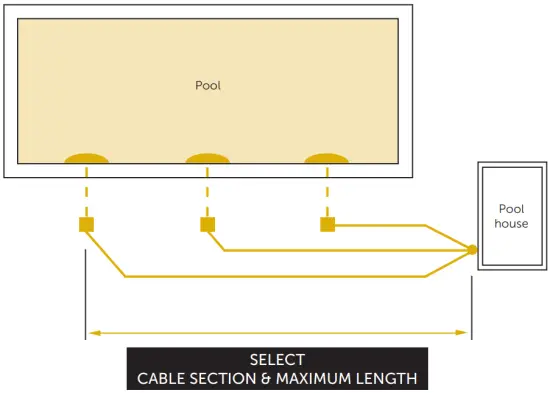

Wiring instructions Setup 1

For new installations
Each lamp is connected to the transformer by a separate cable

4m cable included in lamp package Separate cable ( not included )

Always use a toroïdal transformer
We recommend using 2 CORE cables for all Adagio Pro lights

SELECT CABLE SECTION & MAXIMUM LENGTH

	LAMP TYPE	1,5mm2	2,5mm2	4,0mm2	6,0mm2	10mm2		VA TRANSFORMER (12VAC)*
	PLP050-WH PLP050-WW PLP050-BL PLP050-RGB / TW	95m 55m	160m 90m	250m 145m	350m 200m	600m 350m		10 VA 18 VA
	PLP100-WH PLP100-WW PLP100-BL PLP100-RGB / TW	30m 20m	50m 40m	80m 65m	120m 95m	200m 165m		33 VA 40 VA
	PLP170-WH PLP170-WW PLP170-BL PLP170-RGB / TW	12m 10m	20m 15m	35m 25m	50m 40m	90m 70m		74 VA 91 VA

STABLE OPERATION OF THE POOL LIGHTS IS ONLY GUARANTEED WHEN THE INSTALLED CABLE CROSS SECTION MATCHES OR EXCEEDS THE ADVISED VALUES IN THE ABOVE TABLE

• * The transformer VA rating must be greater or equal to the sum of VA ratings of all connected lamps.
  These cable lenghts are calculated with worst case voltage drops in the electrical wiring.

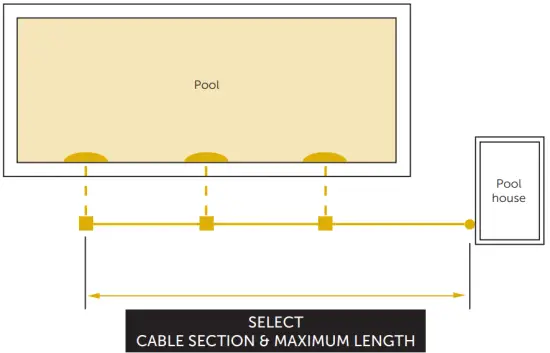

Wiring instructions Setup 2

For existing or other installations

All lamps are connected to the transformer via 1 cable

4m cable included in lamp package Separate cable ( not included )

We recommend using 2 CORE cables for all Adagio Pro lights
This setup is not preferred for installations where DURALINK connected* products are used
*) PLP-REM, PLP-REM-300/350, LinkTouch, DLM-450, DLM-600

SELECT CABLE SECTION & MAXIMUM LENGTH

		ILAMP TYPE	QTY	2,5mm2	4,0mm2	6,0mm2	10mm2	VA TRANSFORMER (12VAC)
		PLP050-WH PLP050-WW PLP050-BL	1	160m	250m	350m	600m	10
			2	80m	125m	175m	300m	20
			3	53m	83m	117m	200m	30
			4	40m	63m	88m	100m	40
		PLP050-RGB / TW	1	90m	145m	200m	350m	18
			2	45m	73m	100m	175m	36
			3	30m	48m	67m	117m	54
			4	23m	36m	50m	88m	72
		PLP100-WH PLP100-WW PLP100-BL	1	50m	80m	120m	200m	33
			2	25m	40m	60m	100m	66
			3	17m	27m	40m	67m	99
			4	13m	20m	30m	50m	132
		PLP100-RGB / TW	1	40m	65m	95m	165m	40
			2	20m	33m	48m	83m	80
			3	13m	22m	32m	55m	120
			4	10m	16m	24m	41m	160
		PLP170-WH PLP170-WW PLP170-BL	1	20m	35m	50m	90m	74
			2	10m	18m	25m	45m	148
			3	7m	12m	17m	30m	222
			4	5m	9m	13m	23m	296
		PLP170-RGB / TW	1	15m	25m	40m	70 m	91
			2	8m	13m	20m	35m	182
			3	5m	8m	13m	23m	273
			4	4m	6m	10m	18m	364

STABLE OPERATION OF THE POOL LIGHTS IS ONLY GUARANTEED WHEN THE INSTALLED CABLE CROSS SECTION MATCHES OR EXCEEDS THE ADVISED VALUES IN THE ABOVE TABLE

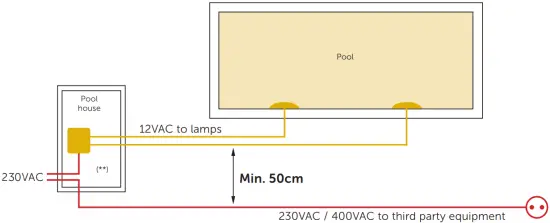

Wiring remarks

For installations with DURALINK* products

1. Third party equipment such as frequency inverters and electric motors can generate excessive noise on the 230VAC / 400VAC power line.
   This noise might be injected into the adjacent 12VAC power line and disturb the power line communication towards the AdagioPro RGB lights.
   Keep 230VAC / 400VAC power line cables at least 50cm separated over their full length from the 12VAC power line towards any RGB lights
   Do not mix 12VAC and 230VAC / 400VAC power line cables into the same ! cable trays
2. Floating cores in a multi-core cable are not allowed because it disturbs PLC communication.
    We recommend using 2 CORE cables for all Adagio Pro lights to avoid PLC communication issues

(**) Do not mix 12VAC and 230VAC / 400VAC power line cables into the same cable trays

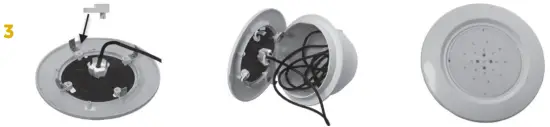

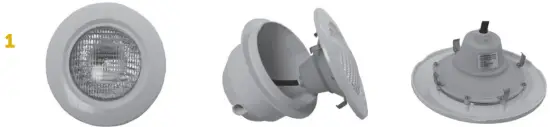

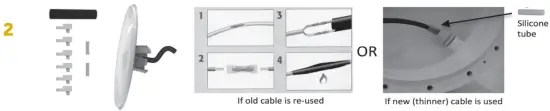

Retrofit in PAR56 niche (only PLP170)

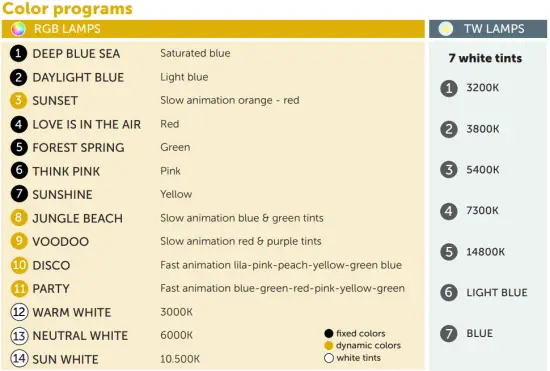

Color programs

RGB LAMPS

1. DEEP BLUE SEA: Saturated blue
2. DAYLIGHT BLUE: Light blue
3. SUNSET: Slow animation orange – red
4. LOVE IS IN THE AIR: Red
5. FOREST SPRING: Green
6. THINK PINK: Pink
7. SUNSHINE: Yellow
8. JUNGLE BEACH: Slow animation blue & green tints
9. VOODOO: Slow animation red & purple tints
10. DISCO: Fast animation lila-pink-peach-yellow-green blue
11. PARTY: Fast animation blue-green-red-pink-yellow-green
12. WARM WHITE: 3000K
13. NEUTRAL WHITE: 6000K
14. SUN WHITE: 10.500K
    fixed colors
    dynamic colors
    white tints

TW LAMPS

7 white tints

1. 3200K
2. 3800K
3. 5400K
4. 7300K
5. 14800K
6. LIGHT BLUE
7. BLUE

* all color programs are dimmable if PLP-REM,PLP-REM-350, LinkTouch, DLM 450 or DLM-600 are used (in PLC mode)

Synchronizing & color changing (for RGB and TW lamps only)

Manual synchronization

1. Switch ON the 12 VAC line voltage and make sure that all lamps light up.
2. Switch OFF the 12 VAC line voltage and wait for at least 20 sec.
3. Switch ON and switch OFF
4. Switch ON and switch OFF
5. Switch ON
6. The lamps should now all be on color program 1
   for RGB lamps: fixed blue light (Deep blue Sea)
   for TW lamps: 3200K

Changing colors

Quickly turn the lamps OFF and back ON
The lamp will jump to the next color program ( 1 –> 14 )

Memorizing the last color
Turn the lamp OFF for MINIMUM 20 seconds
The last chosen color has now been memorized

The use of PLP-REM, PLP-REM-350, LinkTouch, DLM-450 & DLM-600 control units enables extended features like automatic synchronisation, dimming and DMX / RS485 control
