Manual
PLS300B
PLW300B
PLS700B
PLW700B
PLS400B
PLW400B

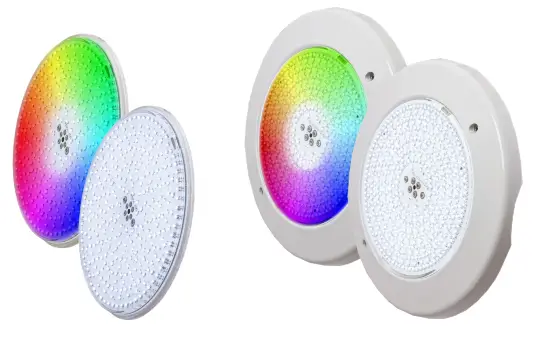

VISION Moonlight
Technical specifications
| Reference | Description | Color | Light output | Power | Nominal CCT |
| PLS300B | Bulb only | RGB | 800 lm | 13 W | All colors |
| PLS400B | Bulb only | RGB | 1550 lm | 23 W | All colors |
| PLS700B | Bulb only | RGB | 2200 lm | 33 W | All colors |
| PLW300B | Bulb only | White | 1350 lm | 14 W | 9000K |
| PLW400B | Bulb only | White | 2400 lm | 23 W | 9000K |
| PLW700B | Bulb only | White | 3500 lm | 35 W | 9000K |
| Beam Angle Diameter Optic Nominal Input Voltage Lifetime hrs Power factor | 120° 170 mm 12 VAC > 25.000 h > 0,73 |
For operation only with a safety isolation transformer
General specifications
4m non-detachable rubber cable included
Maximum water temperature
+35°C (Lamps have to be kept out of ice zones)
Ingress Protection Rate
IP68 (measured at 1m)
Moonlight Pool lamps must be completely submerged into the water during operation. Not doing so, will void the warranty.
Optional: Stainless steel faceplate PZM170-RV-SS

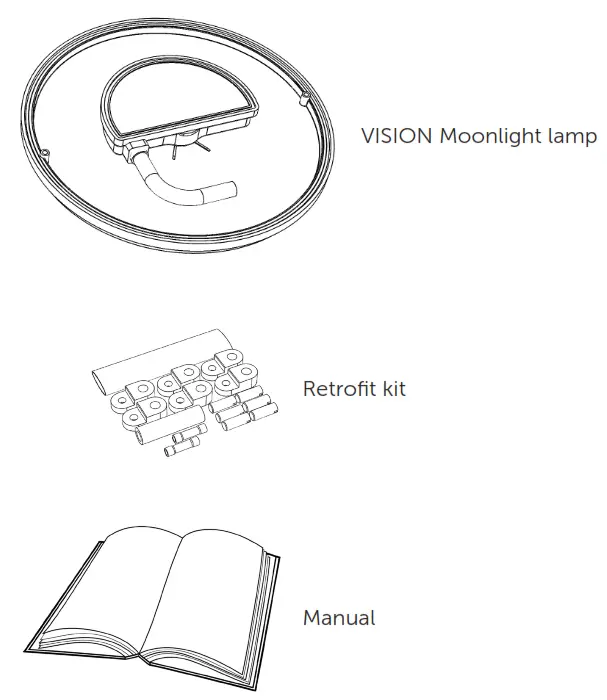

Box contents

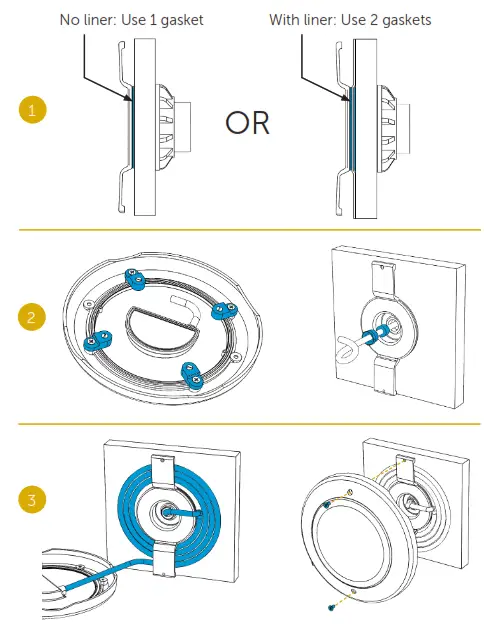

Installation instructions

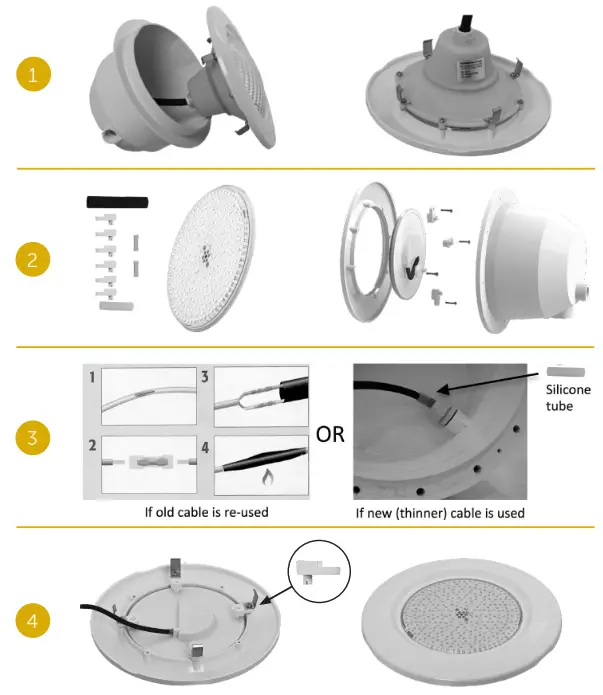

Retrofit with PAR56 niche
16 Color programs (only for RGB lamps)
| 1 | SUN WHITE | warm white |
| 2 | RED | fixed color red |
| 3 | GREEN | fixed color green |
| 4 | BLUE | fixed color blue |
| 5 | GREEN-BLUE | fixed color green-blue |
| 6 | RED-GREEN | fixed color red-green |
| 7 | BLUE-RED | fixed color blue-red |
| 8 | EVENING SEA | slow animation red-blue |
| 9 | EVENING RIVER | slow animation red-green |
| 10 | RIVIERA | slow animation green-blue |
| 11 | NEUTRAL WHITE | cold white |
| 12 | RAINBOW | slow animation blue-red-green |
| 13 | RIVER OF COLORS | program 12, followed by program 15 |
| 14 | DISCO | fast animation |
| 15 | FOUR SEASONS | slow animation red-blue-green-violet |
| 16 | PARTY | fast animation |
Operation
Synchronizing multiple lamps:
- All lamps need to be connected to the same transformer
- Turn the lamps ON for a few seconds
- Turn them OFF for MINIMUM 12 seconds, then switch back ON
- Change the color 2 times. Now they are synchronized
Changing colors:
Turn the lamps OFF and quickly back ON (max 10 sec OFF)
Or use our optional remote controllers PL-REM(-60, -200).
Memorizing the last color:
- Select the desired color
- Turn the lamps OFF for MINIMUM 12 seconds
- The chosen color has now been memorized

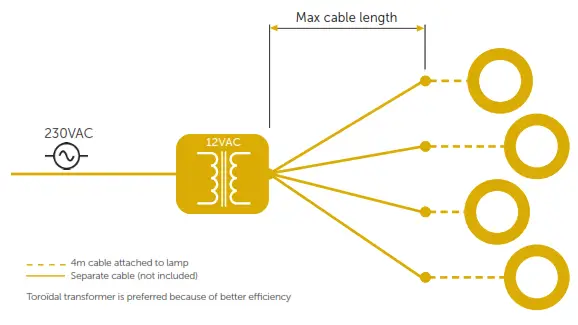

Wiring instructions Setup 1
Each lamp is connected to the transformer by a separate cable (Preferred for new installations)
MAX CABLE LENGTH BY CABLE SECTION
| LAMP TYPE | 1,5 mm2 | 2,5 mm2 | 4,0 mm2 | 6,0 mm2 | 10,0 mm2 | VA |
| PLS300B | 55m | 95m | 155m | 200m | 350m | 17 |
| PLS400B | 30m | 55m | 85m | 130m | 200m | 30 |
| PLS700B | 20m | 35m | 60m | 90m | 155m | 43 |
| PLW300B | 55m | 90m | 145m | 200m | 350m | 18 |
| PLW400B | 30m | 55m | 85m | 130m | 200m | 30 |
| PLW700B | 20m | 35m | 55m | 85m | 145m | 46 |
* The transformer VA rating must be greater or equal to the sum of VA ratings of all connected lamps.
These cable lengths are calculated with worst-case voltage drops in the electrical wiring.

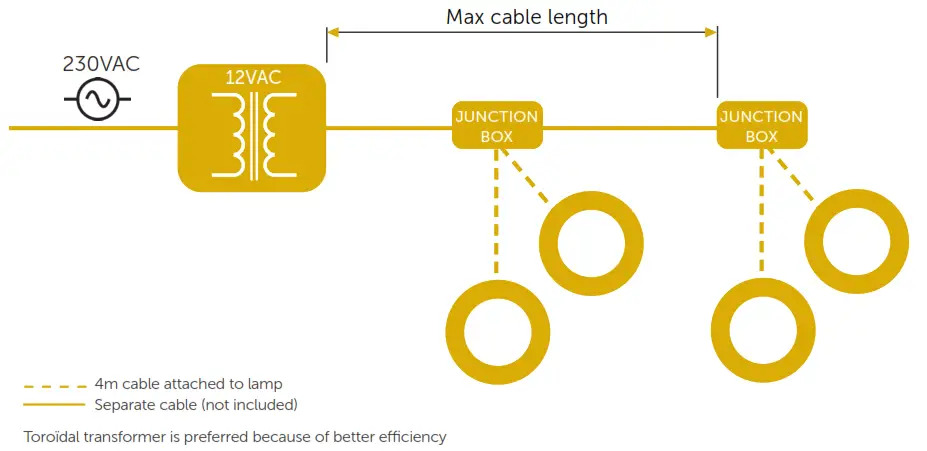

Wiring instructions Setup 2
All lamps are connected to the transformer via 1 cable
MAX CABLE LENGTH BY CABLE SECTION
| MP TYPE LAMPS QTY 2,5 mm2 4,0 mm2 6,0 mm2 10,0 mm | VA | |||||
| PLS300B PLW300B | 1 2 3 4 | 95m 48m 32m 24m | 155m 78m 52m 39m | 200m 100m 67m 50m | 350m 175m 117m 88m | 17 34 51 68 |
| PLS400B PLW400B | 1 2 3 4 | 55m 28m 18m 14m | 85m 43m 28m 21m | 130m 65m 43m 33m | 200m 100m 67m 50m | 30 60 90 120 |
| PLS700B PLW700B | 1 2 3 4 | 35m 18m 12m 9m | 60m 30m 20m 15m | 90m 45m 30m 23m | 155m 78m 52m 39m | 43 86 129 172 |
* The transformer VA rating must be greater or equal to the sum of VA ratings of all connected lamps.
These cable lengths are calculated with worst-case voltage drops in the electrical wiring.
Troubleshooting
PROBLEM | SOLUTION |
| The Pool light is flickering or lights up faint |
|
| Several pool lights in the pool show different color programs | Make sure that all lamps are connected to the same 12VAC power line. Execute the synchronization procedure as explained on page 7. |
Declaration of Conformity
Declarations of conformity covering this product are available for download from the House of Duratech website: www.duratech.be
Contact details
Propulsion Systems bv
Dooren 72
1785 Merchtem, Belgium
Tel +32 2 461 02 53
www.duratech.be
[email protected]
http://www.propulsionsystems.be
We reserve the right to change all or part of the contents of this document without prior notice
402-0023-1
