Recon TL200 Rear Light
User Manual
Recon TL200 Rear Light
! WARNING/CAUTION
- This light emits an extremely powerful beam equivalent to automo-bile headlight so it may cause a hazardous situation depending on the beam angle used.
- Be sure to direct the light beam downward so the driver approaching does not get dazzled.
- Do not use high mode on public roads.
- Before your trip, please make sure the light is firmly mounted to the bracket, it lights up, and the light is not blocked by baggage, etc.
- Do not stare at the light when it is illuminating. Otherwise it may damage your eyesight.
- Do not place it within children’s reach.
- In preparation for unexpected battery shutoff, we recommend you carry a spare light.
- This product is water-resistant under normal daily use and can be used in the rain. However, do not intentionally submerge it in water.
- If the light unit or parts become dirty with mud, etc., clean with a soft cloth which is moistened with mild soap. Never apply paint thinner, benzine or alcohol; damage will result. • This unit is shipped with a small charge to check the light. Be sure to charge it before use, according to the instructions “HOW TO CHARGE”.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- This appliance contains batteries that are only replaceable by skilled persons.
- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 2.5 m is not expected.
- Do not stare at the operating light source.
- When the product is abandoned or not in use, do not throw it away in the garbage can,it should be put in the waste battery treatment point.

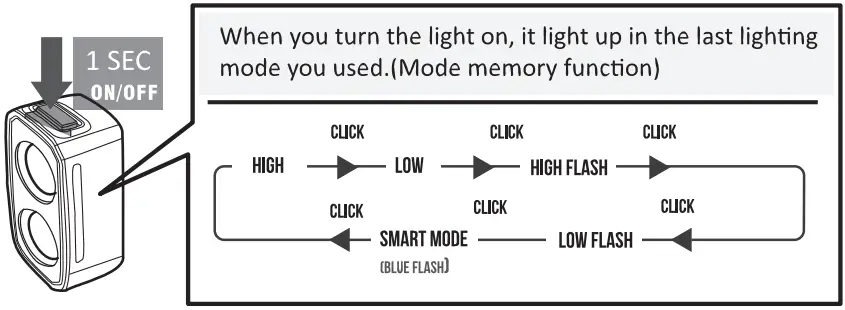

SWITCHING THE LIGHTING MODE
LUMENS/RUNTIME
RECON HL 200
| ANSI | HIGH | LOW | HIGH FLASH | LOW FLASH | SMART(DAY) | SMART(NIGHT) |
 | 200 LUMENS | 50 LUMENS | 150 LUMENS | 10 LUMENS | 100 LUMENS | 100 LUMENS |
 | 03:00 h:min | 07:00 h:min | 15:00 h:min | 30:00 h:min | 06:00 h:min | 06:00 h:min |
RECON TL 200
| ANSI | HIGH | LOW | HIGH FLASH | LOW FLASH | SMART(DAY) | SMART(NIGHT) |
| 100 LUMENS | 50 LUMENS | 200 LUMENS | 10 LUMENS | 200 LUMENS | 30 LUMENS |
| 02:30 h:min | 05:00 h:min | 06:00 h:min | 25:00 h:min | 06:00 h:min | 10:00 h:min |
BATTERY INDICATOR
GREENSTEADY: 100% 70%
ORANGESTEADY: 70% 40%
REDSTEADY: 40% 20%
RED FLASH: 20%<
HOW TO CHARGING
Always charge the product before use.
Standard charging time
Approx. 2-4 hrs

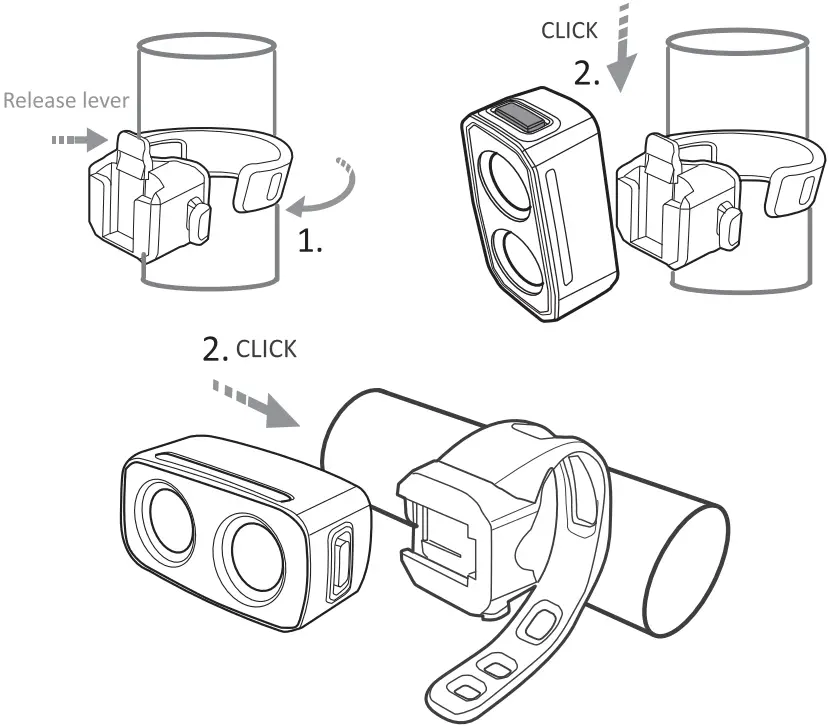

HOW TO INSTALL

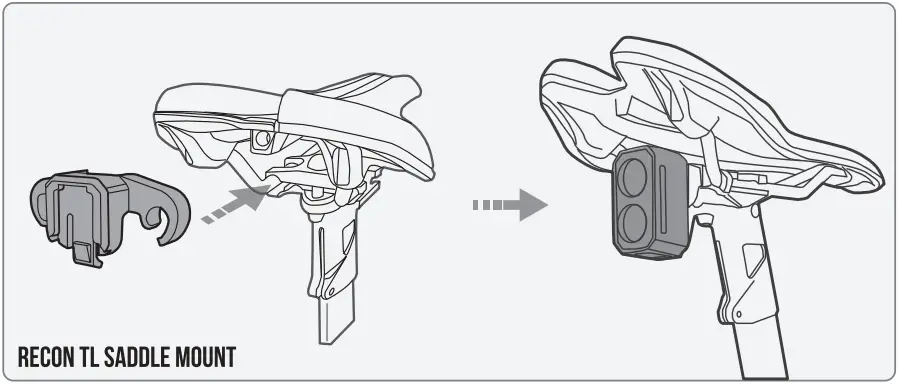

HOW TO MOUNT
The mounting buckle and/or thumb screw, depending on the mount you are using.
SPARE/OPTIONAL PARTS
 |  |  |  |  |
| RUBBER STRAP HL MOUNT SKU:400000180 | RUBBER STRAP TL MOUNT SKU:400000181 | GOPRO MOUNT SKU:400000177 | SADDLE RAIL MOUNT SKU:400000178 | HELMET MOUNT SKU:400000179 |
