Giant Recon HL 1100 Front Light User Manual
!Warning/Caution
- This light emits an extremely powerful beam equivalent to automo-bile headlight, so it may cause a hazardous situation depending on the beam angle used.
- Be sure to direct the light beam download so the driver approaching does not get dazzled.
- Do not use high mode on public roads.
- Before your trip, please make sure the light is firmly mounted to the bracket, it lights up, and the light is not blocked by baggage, etc.
- Do not stare at the light when it is illuminating. Otherwise it may damage your eyesight.
- Do not place it within children’s reach.
- In preparation for expected battery shutoff, we recommended you carry a spare light.
- This product is water-resistant under normal daily use and can be used in the rain. However, do not intentionally submerge it in water.
- If the light unit or parts become dirty with mud, etc, clean with a soft cloth which is moistened with mild soap. Never apply pain thinner, benzine or alcohol; damage will result.
- This unit is shipped with a small charge to check the light. Be sure to charge it before use, according to the instructions “How to Charge”.
- Handlebar mount (31.8-35mm)
- 3mm Hex
- 25.4mm
- Aero Shape Compatible
- Mico USB Cable
- Adjustable GoPro Mount

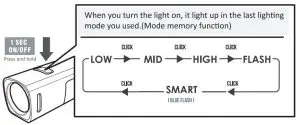

Switching the Lighting Mode
Lumens/Run Time
ANSI | HIGH | MID | LOW | SMART (DAY) | SMART (NIGHT) | FLASH |
 | 1100 LUMENS | 500 LUMENS | 250 LUMENS | 250/100 LUMENS | 500 LUMENS | 100 LUMENS |
 | 01:30 h:min | 03:30 h:min | 07:00 h:min | 36:00 h:min | 03:30 h:min | 35:00 h:min |
Smart Mode
Battery Indicator
| Green | 100 ~ 70% |
| Orange | 70 ~ 40% |
| Red | 40 ~ 20% |
| Red Flash | 20 ~ 0% |
How to Charging
Always charge the Product before use.
Green Flashes
Charging
Green Illuminates
Fully Charging
Approx: 4 Hrs (2A)

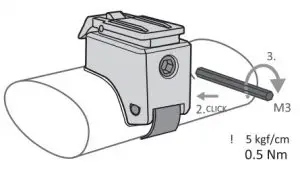

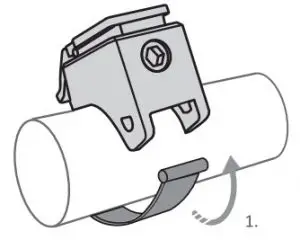

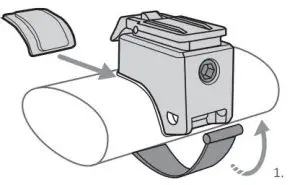

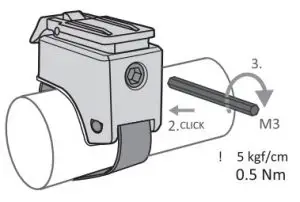

How to Install
31.8 – 35mm

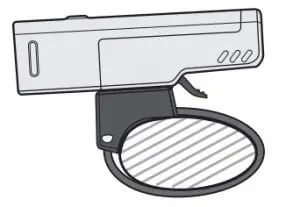

Aero shape compatible

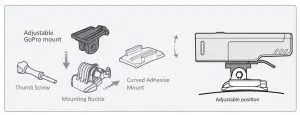

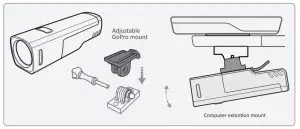

How to Mount to a Helmet/Computer Extension Mount
The mounting buckle and/or thumb screw, depending on the mount you are using.
Spare/Optional Parts
- Under Stem mount
SKU: 40000153
- Handlebar mount
SKU: 40000154
- Rubber strap mount
SKU: 40000155
- Adjustable GoPro mount
SKU: 40000157
Statements of Regulatory Compliance
FCC Compliance RECON HL: 1100
FCC ID: 2AP8N-RECONHL1100
This device conforms to FCC Rules and Regulations under Part 15 subpart B requirements. This product herewith complies with the requirements of FCC rules and regulations as list below:
FCC part 15 subpart B Class B, Measurement Procedure: ANSI C63.4:2016.
European Union Compliance
RECON HL-1100 do not comply with German StvZo regulation RECON HL100, are in compliance with the following European Directions.
- EMC Directive 2014/30/EU
- Low Voltage Directive 2014/35/EU
Industry Canada Compliance
RECON HL: 1100
IC ID: 23735 HL: 1100 CAN ICES 3(8)/NMB-3(8)
This device compiles with industry Canada cense-exempt RSS standards. This class B digital apparatus complies Canadian ICES-003.
Korean Compliance
RECON HL 1100 P/N 400000184 GIANT MFG. Co. Ltd
