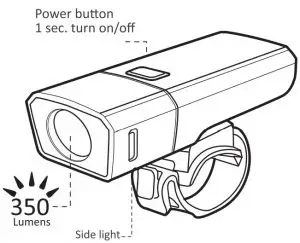

Giant RECON HL 350 User Manual
!Warning/Caution
- This light emits an extremely powerful beam equivalent to automo-bile headlight, so it may cause a hazardous situation depending on the beam angle used.
- Be sure to direct the light beam download so the driver approaching does not get dazzled.
- Do not use high mode on public roads.
- Before your trip, please make sure the light is firmly mounted to the bracket, it lights up, and the light is not blocked by baggage, etc.
- Do not stare at the light when it is illuminating. Otherwise it may damage your eyesight.
- Do not place it within children’s reach.
- In preparation for expected battery shutoff, we recommended you carry a spare light.
- This product is water-resistant under normal daily use and can be used in the rain. However, do not intentionally submerge it in water.
- If the light unit or parts become dirty with mud, etc, clean with a soft cloth which is moistened with mild soap. Never apply pain thinner, benzine or alcohol; damage will result.
- This unit is shipped with a small charge to check the light. Be sure to charge it before use, according to the instructions “How to Charge”.
- Handlebar mount (31.8-35)
- Micro USB Cable
- Adjustable GoPro mount

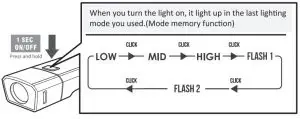

Switching the Lighting Mode
Lumens/Run Time
ANSI | HIGH | MID | LOW | DAY FLASH | FLASH |
 | 350 LUMENS | 200 LUMENS | 100 LUMENS | 100/50 LUMENS | 50 LUMENS |
 | 01:40 h:min | 03:00 h:min | 05:30 h:min | 11:00 h:min | 12:30 h:min |
Battery Indicator
| Green | 100 ~ 70% |
| Orange | 70 ~ 40% |
| Red | 40 ~ 20% |
| Red Flash | 20 ~ 0% |
How to Charging
Always charge the Product before use.
Green Flashes
Charging
Green Illuminates
Fully Charging
Approx: 3.0 Hrs

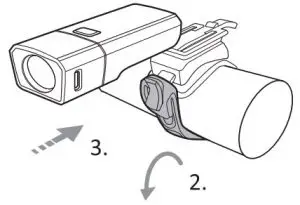

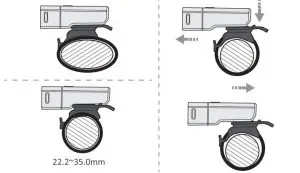

How to Install

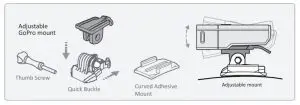

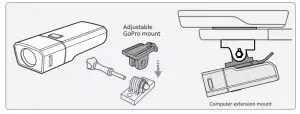

How to mount to a Helmet/Computer Extension Mount.
The mounting buckle and/ or thumb screw depending on the mount you are using.
Spare/Optional Parts
- Under stem mount
SKU: 40000153
- Handlebar mount
SKU: 40000154
- Rubber strap mount
SKU: 40000155
- Adjustable GoPro mount
SKU: 40000157
Statements of Regulatory Compliance
FCC Compliance RECON HL350
FCC ID: 2AP8N-RECON HL350
This device conforms to FCC Rules Regulations under 15 subpart B requirement. This product herewith complies with the requirements of FCC Rules and Regulations as list below.
FCC Part 15 subpart B Class B, Measurement Procedure: ANSI C63.4:2016.
European Union Compliance
RECON HL350 do not comply with German StVZO regulations! RECON HL 900, are in compliance with the following European Directives:
- EMC Directive 2014/30/EU
- Low Voltage Directive 2014/35/EU
Industry Canada Compliance
RECON HL350
IC ID: 23735-RECON HL350 CAN ICES-3(B)/NMB-3(B)
This device complies with industry Canada cense-exempt RSS standards. This class B digital apparatus compiles Canadian ICES-003.
Korean Compliance
RECON HL350 P/N 400000186 GIANT MFG. Co. Ltd.
