H1 USER MANUAL
Thank you for choosing bike light
Please read user manual before use
Product Features:
- Bright CREE LED
- Side lights

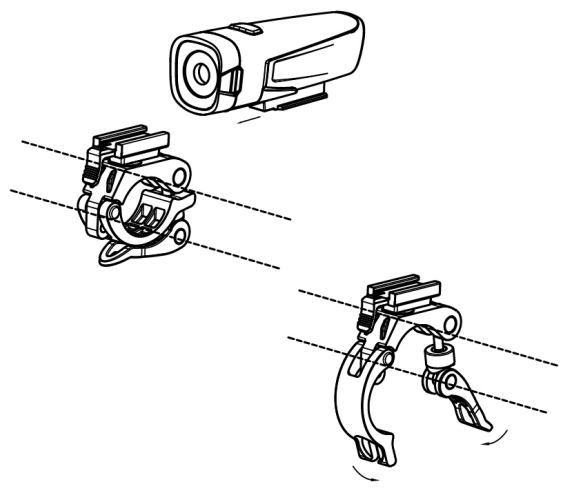

- Easy mounting with supplied bracket

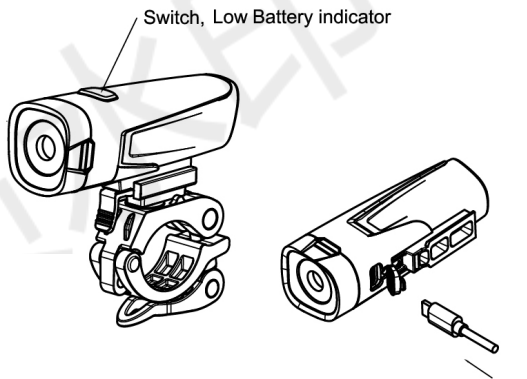

Low Power Indicator
When the button lights are red, it shows that the battery is about to run out. Please recharge it on time.
Warning: Battery can get damaged when stored empty.
Battery Charging
Open USB cover found at the bottom of the light and connect with power supply (power bank) by Type-C USB cable, when the green light stops flashing, it indicates the charging is complete.
Indicator Light Color
| Low power | Charging | Charge completed |
| Red | Green flash | Full green |
Product Specifications
Battery: Premium Li-ion Battery
Function: High/Mid/Low/Flash/Fast flash
Run time: 4hrs(High); 7.5hrs(Mid); 15hrs(Low); 8.5hrs(Flash); 3.5hrs(Fast flash)
Net weight: 85g(including battery)
Material: ABS, PMMA, Aluminum

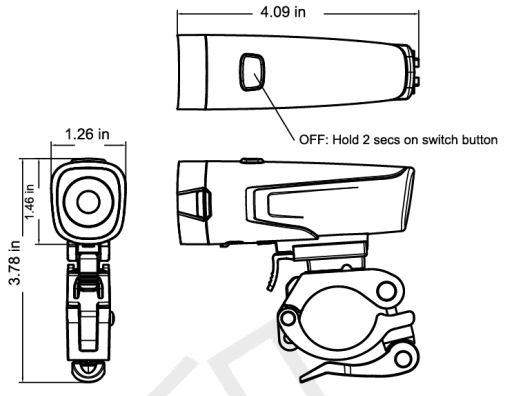

Size: 1.27.1.5.4.01in
Anti-glare: Yes
Voltage: 3.7V
Waterproof: IPX5
T1 USER MANUAL
Thank you for choosing the bike light
Please read the user manual before use
Product Feature
- Bright CREE LED
- Lithium battery, the runtime in constant light mode up to 3.5 hrs

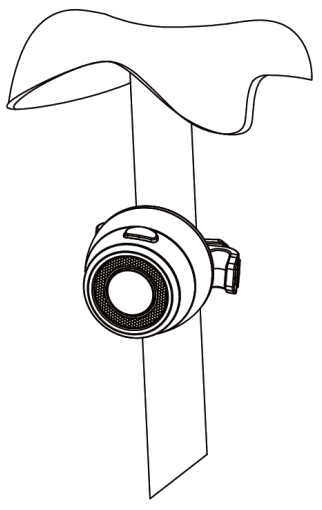

- Special bracket with a rubber band to attach to the seat post, helmet, or bags
Battery Charging
Open USB cover on the rear side of light, using the USB cable connect with a standard USB charger or power bank.
Specification
Battery: LIR2050
Battery capacity: 80mAh
Run time: 3.5h

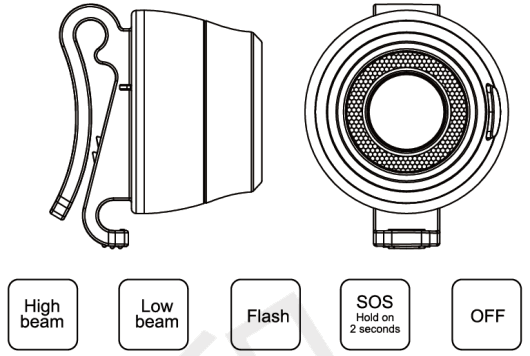

Function: High Beam-Low Beam-Flash-SOS-OFF
LED: CLM2B
Material: PMMA PS
Size: 45.8.38.2.24.6
Weight: 26g
Voltage: 3.6V
Waterproof: IPX4
