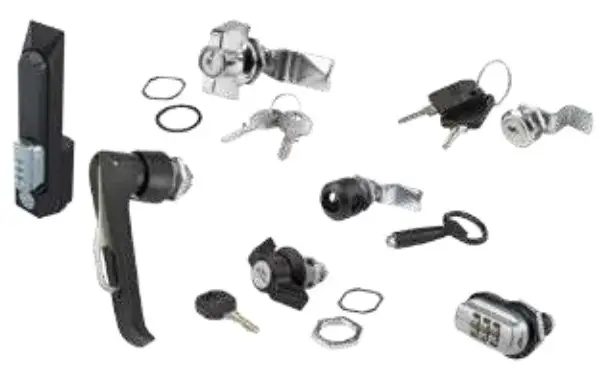

PtlCMB3B Networking Handles Latches And Locks

nVent HOFFMAN offers an array of handles, latches and locks to help make your cabinet application as secure yet easy to use as possible. Maintains cabinet rating Type 3R, 4, 12.

Cabinet	Std. Key Code	Keylocking Wing Knob (DL36, PTL36B,PTWK)	Padlocking L Handle (ELHP)	Padlocking Quarter-Turn Latch (EPL4)	3-Digit Combination Lock a (PTLCMB3B)	Quarter-Turn Lock (PSCLO)	Quarter-Turn Lock (DKL2233)	Combination Lock Handle
ComLine		•	•	•	•
AccessPlus	333	•	•	•	•		• b
D-Box	333	•	•	•	•
L-Box	333	•	•	•	•		• b
ProLine side panels	2233					•
ProTek	333	•	•	•	•
Seismic side panels	2233					•
SOHO side panels	2233					•

a Do not use 3-Digit Combination Lock in severe environments such as corrosive, very wet, salt spray or mist.
b 2233 Key Code

PADLOCKING L HANDLE

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - HANdle

L Handle easily turns to open and close cabinet. Padlock can be added for extra security. Handle has a black and silver finish. Install using existing enclosure cam. Maintains cabinet rating Type 3R, 4, 12.
Bulletin: DCOMY

Catalog Number	Description	Use with
elHP	Padlocking L Handle	AccessPlus, L-Box, ComLine, ProTek

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - Catalog Number 1

COMBINATION LOCK HANDLE

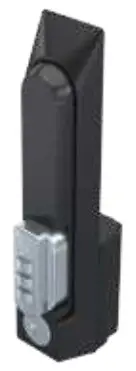

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - lock

Combination Lock Handle fits cabinet doors. The swing handle, 3-digit combination lock with master key override can easily be changed.
Install using existing cam from standard handle.
Bulletin: DCY

Catalog Number	Description	Use With
nClH	Pull-out swing handle with combination locand master key override	All ProLine S1 full doors

PADLOCKING QUARTER- TURN LATCH

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - QuArter

Quarter-Turn Latch requires Allen wrench, included with lock, to open or close cabinet. Padlock can be added for extra security. Install using existing enclosure cam. Maintains cabinet rating Type 3R, 4, 12.
Bulletin: DCOMY

Catalog Number	Description	Use with
EPl4	Padlocking Quarter-Turn Latch	AccessPlus, L-Box, D-Box, ComLine, ProTek

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - Catalog Number

3- DIGIT COMBINATION LOCK

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - combiNAtioN

3-Digit Combination Lock in handle eliminates the need to carry around a key. Combination can easily be changed. A quarter turn of the handle opens and closes the cabinet. Lock has silver and black finish. Install using existing enclosure cam. Maintains cabinet
rating Type 12. do not use in severe environments such as corrosive, very wet, salt spray or mist.
Bulletin: DWS12

Catalog Number	Description	Use with
PtlCMB3B	Combination Lock	AccessPlus, L-Box, D-Box, ComLine, ProTek

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - Catalog

QUARTER-TURN lock

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - QuArter-turN lock

Quarter-turn keylock includes one key. Install using existing enclosure cam on DKL2233.
Bulletin: DACCY, DPC

Catalog Number	Description	Use with	Hole Size	Key Code
PSClO	Quarter-turn keylock	Side panels on ProLine,ProLine S1, SOHO and Seismic cabinets; side panels and keyboard on PC cabinets	B(see dimension drawing)	2233
DKl2233	Quarter-turn keylock	AccessPlus, L-Box, D-Box	A(see dimension drawing)	2233

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - Catalog Numbe 13r

REPLACEMENT KEYS

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - keys

Fits ProLine Network Cabinet and Networking Wall-Mount Cabinet.
Bulletin: DACCY

Catalog Number	Key Code	Includes	Use with
e2233KeY	2233	2 Keys	ProLine, ProLine S1, PC Cabinet, SOHO
e333KeY	333	2 Keys	AccessPlus, L-Box, D-Box

KEYLOCKING WING KNOB

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - keylockiNg

Locking wing nut position shows whether door is locked. Wing nut has silver finish. Includes 2 keys with 333 key code. Install using existing enclosure cam. Maintains cabinet rating Type 12.
Bulletin: A80

Catalog Number	Description	Use with
Dl36	Chrome Keylocking Wing Knob	AccessPlus, L-Box, D-Box, ComLine, ProTek

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - Cataloxg

KEYLOCKING QUARTER-TURN WING KNOB

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - keylockiNg3

Keylocking quarter-turn wing knob latch. Black finish. Includes gasket, mounting nut and one key with 333 key code. Use existing cam for installation; cam is not included with wing knob. Can be locked in open or closed position. Maintains cabinet rating Type 4, 12. Bulletin: DWS12

Catalog Number	Description	Use with
PtWK	Keylocking wing knob, quarter-turn	AccessPlus, L-Box, D-Box, ComLine, ProTek

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - DCOMY

PADLOCKING WING KNOB ,STAINLESS STEEL

nVent HOFFMAN PtlCMB3B Networking Handles Latches And Locks - combiNAtioNx

Padlocking quarter-turn wing knob is made of Type 316 stainless steel.
When the padlock is in place, the wing knob cannot be rotated and the cabinet is secured. The wing knob has a brushed bright finish. Maximum padlock diameter is .31 (8mm). Use existing cam for installation; cam is not included with wing knob. It maintains the cabinet rating Type 3R, 4, 4X, 12. Bulletin: DWS12
