Milleteknik 10 Output Module
ABOUT 10 OUTPUT MODULE

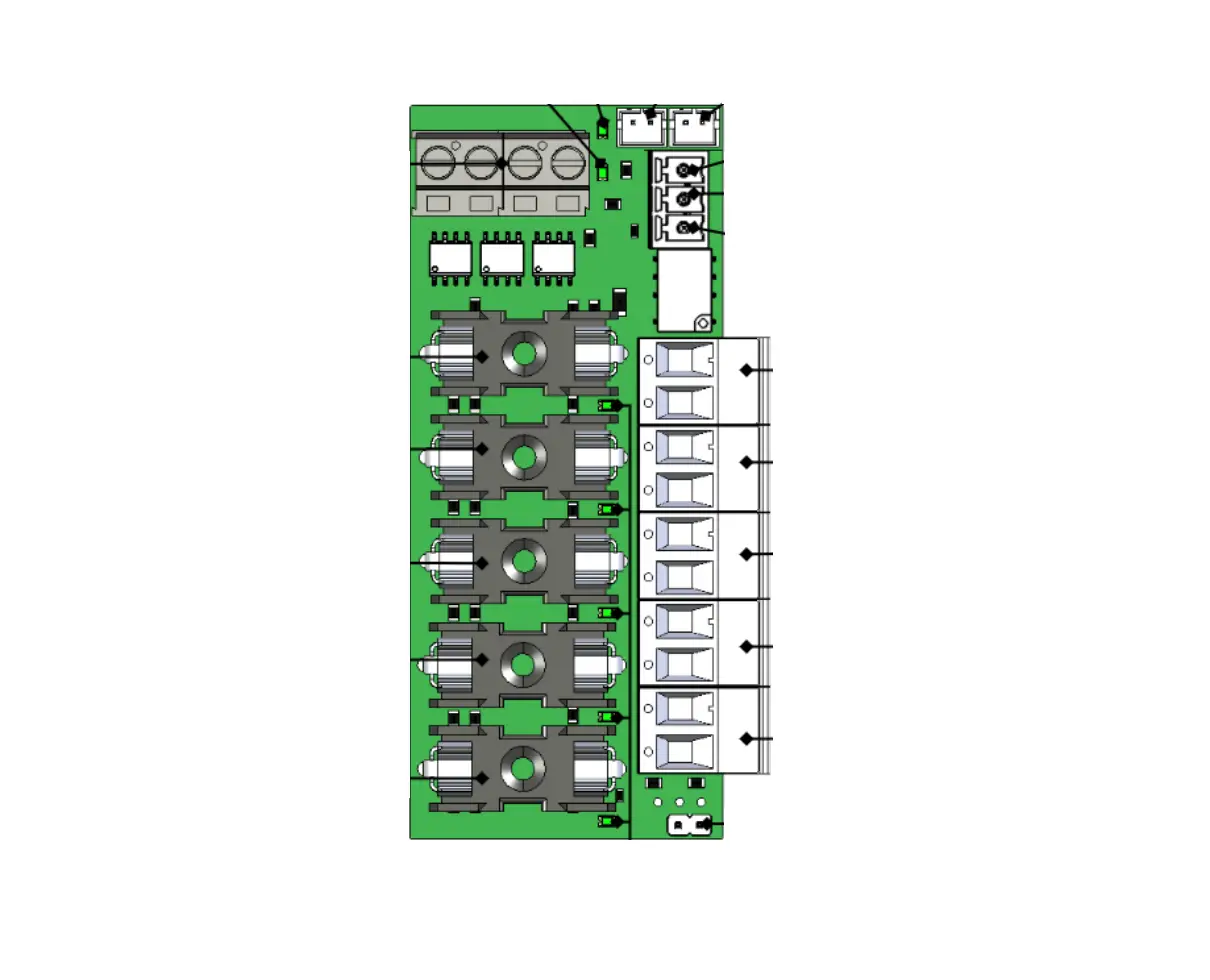

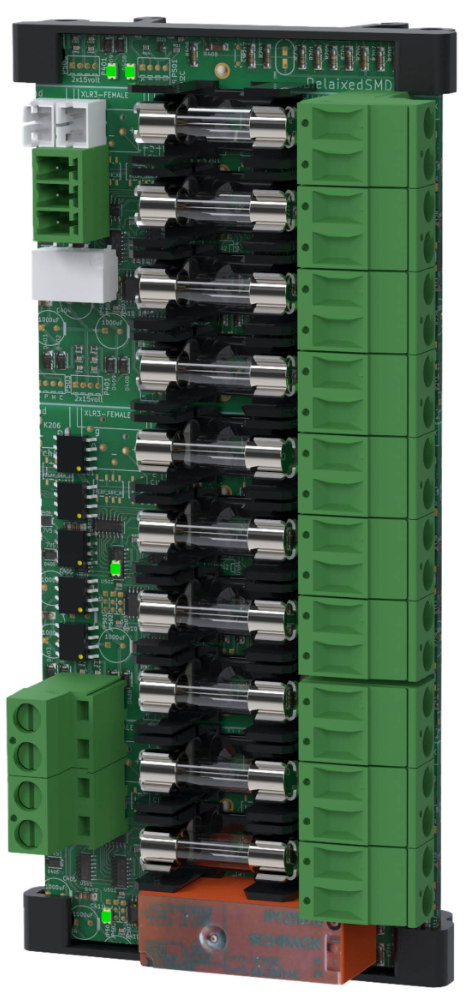

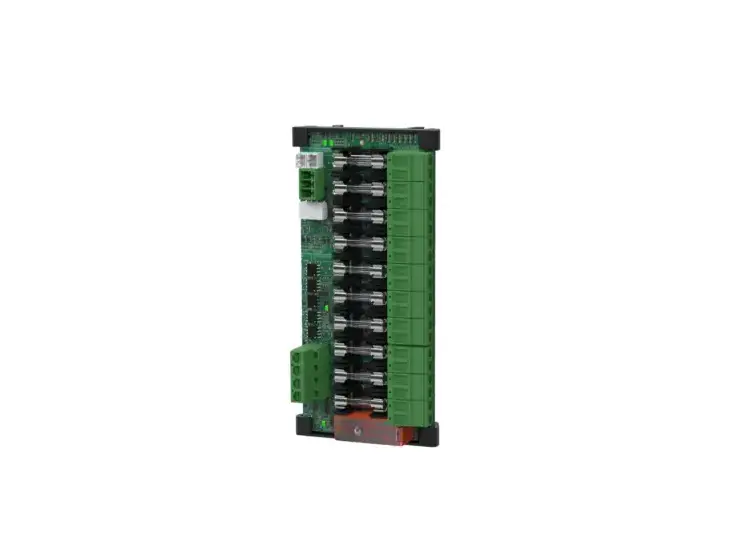

10 Output module is a protection module with 10 fully protected outputs, of which seven are prioritized and three are non-prioritized. The card is mounted on sheet metal in battery backup or via nylon fasteners. When ordering, check that the card fits the battery backup card to be installed in.
TECHNICAL DATA – 10 OUTPUT MODULE
| Info | Explanation |
| Short name: | 10 Output module |
| Product description | 10 Output module is a hedging module with 10 fully secured outputs, of which seven are prioritized and three are non-prioritized. |
| The product fits in | Battery backups with motherboards: PRO1, PRO2, PRO2 V3, PRO3 and NEO3. |
| Measure | 120 x 45 mm |
| Own consumption | 70 mA |
| Tension | 24 V |
| Fuses | F10A |
| Indication | Yes, LED on circuit board |
Outputs
| Info | Explanation |
| Alarm outputs, number | 1 |
| Alarm on alternating relay? (Yes No) | Yes, sum alarm in case of fuse fault |
| Alarm output protocol (communication protocol) | – |
| Load outputs, number | 10 |
| Voltage at load output | 27.3 V DC |
| Voltage limit, upper, on load output | 27.9 V DC |
| Voltage limit, lower, on load output. For battery operation and disconnected mains voltage. | 20 V DC |
| Priority (always voltage) load outputs (Yes / No) | Yes |
| Maximum load, per output | 10 A |
| Maximum load, total, (must not be exceeded). | 16 A |
| Load output plus (+) secured? (Yes No) | Yes |
| Load output minus (-) secured (Yes / No) | No |
| Fuses on output | Yes, see table: Fuses. |
| Connection to buzzer? (Yes No) | No |
Manufactured in Milleteknik’s factory in Partille, Sweden.
This translation is not verified and should be cross referenced with the swedish original before use.
ENCLOSURES – TECHNICAL DATA S
| Info | Explanation |
| Name | B3 |
| Enclosure class | IP 20 |
| Measure | Height: 200, width: 146, depth: 57 mm |
| Mounting | Wall |
| Ambient temperature | + 5 ° C – + 40 ° C. For best battery life: + 15 ° C to + 25 ° C. |
| Environment | Environmental class 1, indoors. 20% ~ 90% relative humidity |
| Material | Powder coated sheet |
| Color | White |
| Cable entries, number | 2 |
| Batteries that fit | 1 pc 12 V 2.3 Ah or |
| Place for fan | No |
ADDRESS AND CONTACT DETAILS
Milleteknik AB
Ögärdesvägen 8 B
S-433 30 Partille
Sweden
+46 31 340 02 30
[email protected]
www.milleteknik.se
