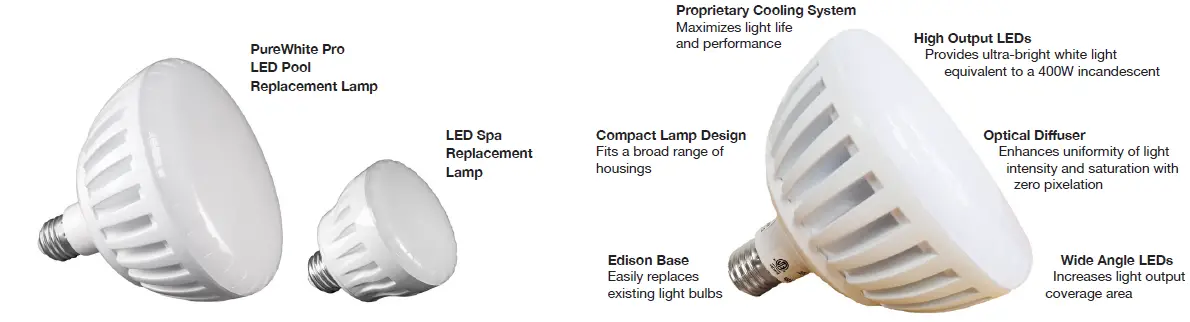

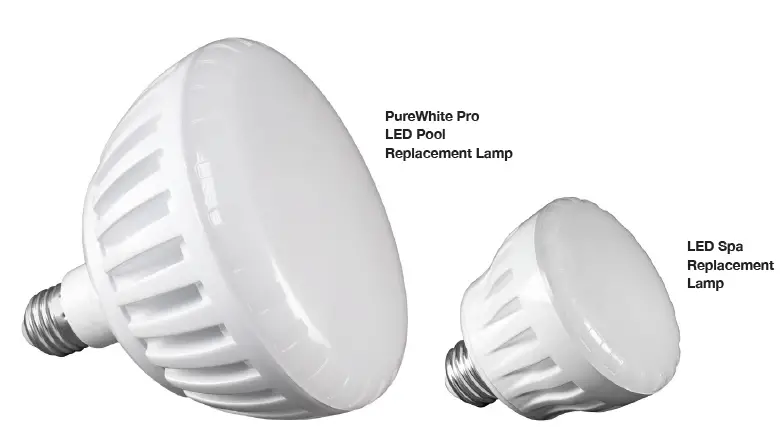

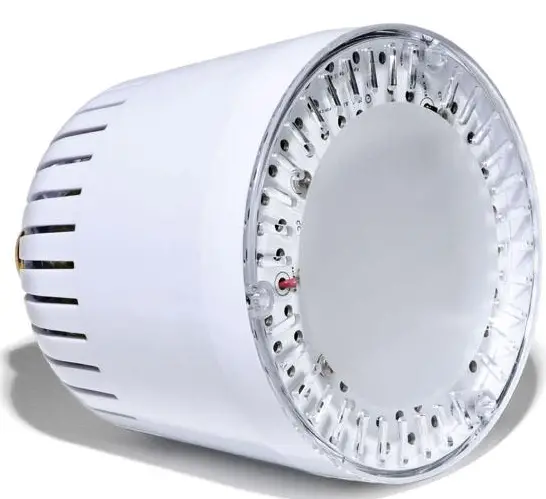

pure WH TE LED Pool and Spa Lamps
J&J Electronic’s PureWhite LED Replacement White In-Ground Pool & Spa Lamps are the brightest, most cost-effective alternative to inefficient incandescent lamps. They immediately and significantly reduce energy consumption and maintenance costs. Plus, PureWhite Lite fits most standard pool light housing and comes with a highly durability, Guardian™ silicone lens gasket made for use with LED lamps.
PureWhite® Pro Advantages
- $2.93 a year to operate; Up to $368/year savings*
- Energy efficient, 21 watts; 300 watt equivalent
- Lasts up to 50,000 hours – 20x longer life*
- Replaces existing light bulb – eliminates the expense of housing replacement
- Enhances pool water appearance – looks clearer and cleaner
- Instant operating expense savings and break even within one year
Compared to incandescent lamps
Specifications and Dimensions
| LPL-PR (Pool) | LPL-M1 (Spa) | |
| Dimensions | ||
| Front Dia. | 5.25” (133.25mm) | 2.94” (75mm) |
| Depth* | 5.35” (135.50mm) | 3.30” (84mm) |
| Lumens | 1500 | 700 |
| Power Consumption | ||
| 120 VAC | 21 Watts | 7 Watts |
| 12 VAC | 21 Watts | 7 Watts |
Recommended pool water temperature 33°F to 97°F (1°C to 36°C). Humidity 0-95% non-condensing. *Measured from lens to beginning of Edison Base **Rated for temperatures up to 104°F (40°C) † Independently tested by a credited laboratory to IESNA light measurement standards
Usage Cost Comparison
| PUREWHITE PRO | INCANDESCENT | |||
| Watts | 21 | 300W | 400W | 500W |
| Life Span (hrs) | 50,000 | 2,500 | 2,500 | 2,500 |
| Annual Energy Cost** | $2.39 | $170 | $226 | $283 |
| Annual Maint Cost*** | $0 | $306 | $306 | $306 |
| Total Annual Usage Cost | $2.39 | $476 | $532 | $589 |
| Annual Savings | $368 | $507 | $563 | |
*Based on 12 hours of usage per day, 365 days per year. **Based on electricity cost of $0.127 per KWh. ***Based on replacing bulb and gasket 1.75 times at $50 per replacement and one hour of labor per replacement at $75/hr.
Ordering Information
| PureWhite® Pro Pool Lamp | ||
| Part Numbers | Descriptions | Fixture Compatibility |
| LPL-PR-WHT-120 | Pool light for use in 120V installations | Hayward® Astrolite™ SP058 Series; Jacuzzi® Full Moon™; Jandy® Pro Series White Pentair® Amerlite™ 784 Series; Sta-Rite® Swim Quip™ |
| LPL-PR-WHT-12 | Pool light for use in 12V installations | |
| PureWhite® Spa Lamp | ||
| Part Numbers | Descriptions | Fixture Compatibility |
| LPL-M1-WHT-120 | Spa light for use in 120V installations | Hayward® Astrolite™ SP059 Series; Pentair SpaBrite™ Series; Jandy® Pro Series White |
| LPL-M1-WHT-12 | Spa light for use in 12V installations | |
4820 Schaefer Ave., Chino, CA 91710 • 800.735.4553 • 949.334.8700 • www.jandjpoolspa.com
© 2019 J&J ElectronicsLLC. All rights reserved. All registered and trademarked brands and names are the property of their respective companies. Information provided subject to change without notice. Re-order #1809 – 08-26-19
