j j Transforming Pool, Spa and Fountain Lighting through LED Technology

What makes J&J Electronics So Different?

J&J Electronics is an innovative and dynamic company that was founded in 1982 as a technology company. It has evolved into one of the leading LED Pool and Spa Lighting companies providing high-quality, competitively priced LED lighting to the commercial and residential pool markets. In-house design, engineering, and manufacturing have allowed J&J Electronics to develop cutting edge products that offer uncompromising quality and unparalleled, feature-driven performance. ColorSplash® multi-color Pool & Spa Lamps and Fixtures along with PureWhite® Pool & Spa Lamps and Fixtures have grown to become industry-leading, trusted brands in both the residential and commercial pool marketplace nationwide.

Multi-Color Plus White In-Ground LED Pool and Spa Lighting Fixtures

J&J Electronics’ Color Splash® Series of in-ground pool and spa fixtures and lamps offer a variety of lighting colors and shows. With five solid color and seven lights shows, instantly transform any pool or spa into a custom illuminated paradise. Color Splash® Series fixtures and lamps operate with a standard pool light switch, J&J Electronics’ XG Controller or can be integrated into most Pentair® and Jandy® automation systems; enabling a “one touch” color show selection. Our VU 1.5” nicheless pool and spa fixtures are also available as part of the ColorSplash® fixture series. These versatile fixtures easily retrofit into most 1.5” wall fittings.

ColorSplash Fixture Advantages:

RGB and RGB-W models available
Operates with most manufacturers automation systems
Zero Pixelation Lens provides fuller, richer color*
Heavy Duty 316 Stainless Steel Construction*
Advanced processor delivers seamless color transitions
Industry leading 3-year limited warranty
Designed, engineered and assembled in the USA

ColorSplash Lamp Advantages:

RGB and RGB-W models available
Operates with most pool automation systems
Preset with 5 solid colors and 7 light shows
Zero Pixelation Lens provides fuller, richer color*
Compatible with most manufacturers fixtures
Industry leading 3-year limited warranty
Designed, engineered and assembled in the USA

COLORSPLASH POOL & SPA LIGHT FIXTURES

ColorSplash-XGW LED F1CW Model Pool Light Fixture

Voltage	120VAC or 12VAC
Wattage	33W (Max.)
LED Color	White(6500K)
Lumen Output	1500 lm (max.)
Equivalent	300W Incandescent
Housing	316 Stainless Steel
Lens	Zero Pixelation Glass
Cord Type	120V – 16/3 STWA 12V – 12/3 SJTW
Cord Lengths	30′ 50′ 100′ 150′ (200′ 300′ – 120V only)

ColorSplash-XGW LED F2CW Model Pool Light Fixture

Voltage	120VAC or 12VAC
Wattage	58W (max.)
LED Color	White(6500K)
Lumen Output	4270 lm (max.)
Equivalent	500W Incandescent
Housing	316 Stainless Steel
Lens	Zero Pixelation Glass
Cord Type	120V – 16/3 STWA 12V – 12/3 SJTW
Cord Lengths	30′ 50′ 100′ 150′ (200′ 300′ – 120V only)

ColorSplash-XGW LED S2CW Model Spa Light Fixture

Voltage	120VAC or 12VAC
Wattage	4W (Max.)
LED Color	White(6500K)
Lumen Output	265 lm (max.)
Equivalent	< 100W Incandescent
Housing	316 Stainless Steel
Lens	Zero Pixelation Glass
Cord Type	120V – 16/3 STWA 12V – 12/3 SJTW
Cord Lengths	30′ 50′ 100′ 150′ (200′ 300′ – 120V only)

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LPL-F2CW-120-50-P LED Pool/Spa Light Fixture, 500W Equiv., RGB-W, RGB, 120V, 50′ Cord, Polished Faceplate
PREFIX		MODEL #		VOLTAGE		CORD LENGTH	FACEPLATE
LPL	–		–		–
		insert code into box		insert code into box		insert code into box	insert code into box
		F1CW for F1CW Model RGB-cool white		120 for 120Volt		30’	P for polished (fits Pentair,
		F2CW for F2CW Model RGB-cool white S2CW for S2CW Model RGB-cool white		12 for 12Volt		50’ 100’	Hayward & Jandy Niches) PSQ for polished (fits select
						150’	Sta-Rite Swim-Quip Niches)
						200′ (120V only)
						300′ (120V only)

COLORSPLASH-VU NICHELESS FIXTURES

ColorSplash-VU LED R1CW Model Pool/Spa Fixture

Voltage	12VAC
Wattage	8W
LED Color	RGB-W, Cool White(6500K)
Housing	UV Rated Polycarbonate
Lens	UV Rated Polycarbonate (Clear)
Cord Type	18/2 SJTW
Cord Lengths	30′ 50′ 100′ 150′

ColorSplash-VU LED R2CW Model Pool/Spa Fixture

Voltage	12VAC
Wattage	20W
LED Color	RGB-W, Cool White(6500K)
Housing	UV Rated Polycarbonate
Lens	UV Rated Polycarbonate (Clear)
Cord Type	18/2 SJTW
Cord Lengths	30′ 50′ 100′ 150′

COLORSPLASH POOL & SPA LAMPS

ColorSpash LXG-W Pool/Spa Lamp

Product Code	Voltage (AC)	Input Power (max.)	Color Temperature	Lumens
LPL-P3-RGBW-120	120V	17W	RGB+6500K	1577
LPL-P3-RGBW-12	12V	16W	RGB+6500K	1235
LPL-S3-RGBW-120	120V	7W	RGB+6500K	399
LPL-S3-RGBW-12	12V	6W	RGB+6500K	385

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LPL-P2-RGBW-12 LED Replacement Pool Lamp, RGBW, 12V
PREFIX		SERIES#		MODEL #		VOLTAGE		GASKET TYPE
LPL	–		–		–		–
		P3 for POOL LAMP S3 for SPA LAMP		RGBW for RGBW LAMP		120 for 120Volt 12 for 12Volt		insert code into box Leave box blank for Pentair style SQ for SwimQuip Style H for Hayward Style

The standard in white LED lighting

J&J Electronics PureWhite® LED light fixtures and lamps offer unmatched brightness and energy efficiency for pool and spa lighting. Utilizing high performance Cool White LEDs, the appearance of pool water is improved by producing brilliant, natural looking light; making PureWhite® fixtures and lamps the perfect choice for everything from heavy use commercial application to backyard family pools. Our VU 1.5” nicheless pool and spa fixtures are also available as part of the PureWhite® fixture series. These versatile fixtures easily retrofit into most 1.5” wall fittings.

PureWhite® Fixture Advantages:

100W-500W standard incandescent equivalent
Zero Pixelation Lens*
Heavy Duty 316 Stainless Steel construction*
Industry leading 3-year limited warranty
Designed, engineered and assembled in the USA

PureWhite® Lamp Advantages:

Reduces energy consumption up to 90%
Designed for commercial and residential pool and spa use
Cool white light enhances pool water appearance
Compatible with most manufacturers fixtures

PUREWHITE POOL & SPA LIGHT FIXTURES

PureWhite LED – F1 Model Pool Light Fixture

Voltage	120VAC or 12VAC
Wattage	39W
LED Color	Cool White (6500K) Warm White (2700K)
Lumen Output	Cool White – 2400 lm Warm White – 1840 lm
Equivalent	300W Incandescent
Housing	316 Stainless Steel
Lens	Zero Pixelation Glass
Cord Type	120V – 16/3 STWA 12V – 12/3 SJTW
Cord Lengths	30′ 50′ 100′ 150′ (200′ 300′ – 120V only)

PureWhite LED -F3 Model Pool Light Fixture

Voltage	120VAC or 12VAC
Wattage	58W
LED Color	Cool White (6500K) Warm White (2700K)
Lumen Output	Cool White – 3900 lm Warm White – 2991 lm
Equivalent	500W Incandescent
Housing	316 Stainless Steel
Lens	Zero Pixelation Glass
Cord Type	120V – 16/3 STWA 12V – 12/3 SJTW
Cord Lengths	30′ 50′ 100′ 150′ (200′ 300′ – 120V only)

PureWhite LED – F5 Model Pool Light Fixture

Voltage	120VAC or 12VAC
Wattage	87W
LED Color	Cool White (6500K) Warm White (2700K)
Lumen Output	Cool White – 4500 lm Warm White – 4150 lm
Equivalent	500W+ Incandescent
Housing	316 Stainless Steel
Lens	Zero Pixelation Glass
Cord Type	120V – 16/3 STWA 12V – 12/3 SJTW
Cord Lengths	30′ 50′ 100′ 150′ (200′ 300′ – 120V only)

PureWhite LED – S1 Model Spa Light Fixture

Voltage	120VAC or 12VAC
Wattage	13W
LED Color	Cool White (6500K) Warm White (2700K)
Lumen Output	Cool White – 500 lm Warm White – 400 lm
Equivalent	100W Incandescent
Housing	316 Stainless Steel
Lens	Zero Pixelation Glass
Cord Type	120V – 16/3 STWA 12V – 12/3 SJTW
Cord Lengths	30′ 50′ 100′ 150′ (200′ 300′ – 120V only)

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LPL-F3W-120-50-P LED Pool Light Fixture, 500W Equiv. Cool White, 120V, 50’ Cord, Polished faceplate for Pentair, Hayward and Jandy Niche
PREFIX		MODEL #		VOLTAGE		CORD LENGTH		FACEPLATE
LPL	–		–		–		–
		insert code into box		insert code into box		insert code into box		insert code into box
		F1W for F1 Model Cool White F3W for F3 Model Cool White F5W for F5 Model Cool White S1W for S1 Model Cool White		120 for 120Volt 12 for 12Volt		30′ 50′ 100′ 150′ 200′ (120V only) 300′ (120V only)		P for polished (fits select Pentair, Hayward & Jandy Niches) and Cool White P27 for polished (fits select Pentair, Hayward & Jandy Niches) and Warm White PSQ for polished (fits select Sta-Rite SwimQuip Niches) and Cool White
								PSQ27 for polished (fits select Sta-Rite Swim-Quip Niches) and Warm White
								M for matte (fits select Sta-Rite Swim-Quip Niches) and Cool White
								M27 for matte (fits select Sta-Rite Swim-Quip Niches) and Warm White

PUREWHITE POOL & SPA LAMPS

PureWhite-PRO LED Pool/Spa Lamp

Product Code	Voltage (AC)	Input Power	Color Temperature	Lumens	Incandescent Equiv.	Fixture compatibility
LPL-PR2-CW-120	120V	28W	6500K	3144	300W	J&J Electronics TPL-P Series; Hayward® Astrolite™ SP058 Series; Jacuzzi® Full Moon™; Jandy® Pro Series White Pentair® Amerlite™ 784 Series; Sta-Rite® Swim Quip™
LPL-PR2-WW-120	120V	28W	2700K	2921	300W
LPL-PR2-CW-12	12V	32W	6500K	3295	300W
LPL-PR2-WW-12	12V	32W	2700K	2964	300W
LPL-PRHO-CW-120	120V	37W	6500K	4588	500W
LPL-PRHO-WW-120	120V	37W	2700K	4185	500W
LPL-M2-CW-120	120V	13W	6500K	1202	100W	J&J Electronics TPL-S Series; Hayward® Astrolite™ SP059 Series; Pentair SpaBrite™ Series; Jandy® Pro Series White
LPL-M2-WW-120	120V	13W	2700K	1332	100W
LPL-M2-CW-12	12V	15W	6500K	1545	100W
LPL-M2-WW-12	12V	15W	2700K	1333	100W

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LPL-PR-WHT-120 LED Replacement Pool Lamp, 300W Equiv. Cool White, 120V, Incl. gasket for Pentair Pool Fixtures
PREFIX		SERIES #		COLOR		VOLTAGE		GASKET TYPE
LPL	–		–	WHT	–		–
		insert code into box				insert code into box		insert code into box
		PR2 for PureWhite-PRO Pool Lamp PRHO for PureWhite-PRO High Output Pool Lamp M2 for PureWhite-PRO Spa Lamp				120 for 120Volt 12 for 12Volt		Leave box blank for Pentair style SQ for SwimQuip Style H for Hayward Style

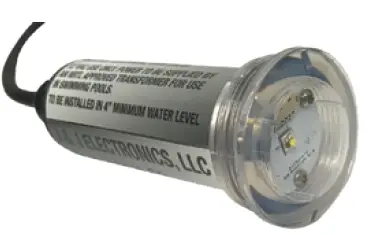

PUREWHITE-VU NICHELESS FIXTURES

PureWhite-VU LED R1W Model Pool/Spa Fixture

Voltage	12VAC
Wattage	8W
LED Color	Cool White (6500K)
Housing	UV Rated Polycarbonate
Lens	UV Rated Polycarbonate (Clear)
Cord Type	18/2 SJTW
Cord Lengths	30′ 50′ 100′ 150′

PureWhite-VU LED R2W Model Pool/Spa Fixture

Voltage	12VAC
Wattage	20W
LED Color	Cool White (6500K)
Housing	UV Rated Polycarbonate
Lens	UV Rated Polycarbonate (Clear)
Cord Type	18/2 SJTW
Cord Lengths	30′ 50′ 100′ 150′

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LPL-R1W-12-50 LED Nicheless Pool/Spa Light Fixture, Cool White, 12V, 50′ Cord
PREFIX		MODEL #		VOLTAGE		CORD LENGTH
LPL	–		–	12	–
		insert code into box				insert code into box
		R1W for R1W Model Cool White R2W for R2W Model Cool White				30’ 50’ 100’ 150’

In-Ground Incandescent Pool & Spa Light Fixture

J&J Electronics® Incandescent Pool Light Fixtures provide an economical and safe pool lighting plus a rugged construction that is unmatched in the industry

Features:

Custom optical lens provides superior light diffusion
Contemporary housing and faceplate styling
1-year limited warranty
Assembled in the USA

PureWhite-TPL Incandescent Pool Light Fixture

Voltage	120VAC or 12VAC
Wattage	400W, 500W 120V only
Lamp Lumen	4150lm/400W 5400lm/500W
Housing	316 Stainless Steel
Lens	Optical Diffusing Glass
Cord Type	120V – 16/3 STWA 12V – 12/3 SJTW
Cord Lengths	30′ 50′ 100′ 150′ (200′ 300′ – 120V only)

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: TPL-P120-500-20 Incandescent Pool Light fixture, 120V, 500W, 50’ Cord
PREFIX		SERIES/VOLTAGE		WATTAGE		CORD LENGTH
TPL	–		–		–
		insert code into box		insert code into box		insert code into box
		P120 for POOL FIXTURE – 120V		500 for 500W		30′
		P12 for POOL FIXTURE – 12V		400 for 400W		50′
						100″
						150′
						200″ (120V only)
						300″ (120V only)

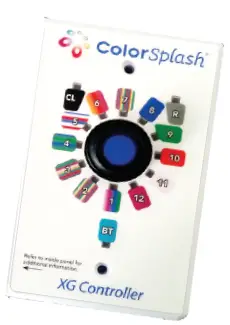

COLORSPLASH XG CONTROLLER
J&J Electronics® XG Controler provides complete control of the ColorSplash pool and spa fixtures right from the palm of your hand.

Features:

BLUETOOTH enabled
Cost effective – no need for expensive automation system
Compact size – replaces an existing light switch
Free XG Controller APP for Apple and Android devices

Voltage	120VAC 60HZ
Max. Load	400W
Environment	Outdoor Rated; Must use supplied gasket and WET LOCATION RATED outlet box
For Use with	ALL COLORSPLASH LED – XG and XG-W Pool and Spa Fixtures – LXG and LXG-W Pool and Spa Lamps – ColorSplash Fountain Fixtures
Order Code	LPL-XG-CTRL-1

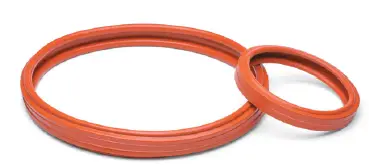

GUARDIAN™ SILICONE REPLACEMENT LENS GASKET
Guardian’s 100% silicone pool and spa lens gaskets provide superior resistance from chlorine, heat and sunlight for a longer lasting seal than rubber based gaskets.

Features:

100% Silicone material; superior chemical and heat resistance
Designed to last the life of J&J’s LED lamps
Multiple models compatible with most pool and spa lights

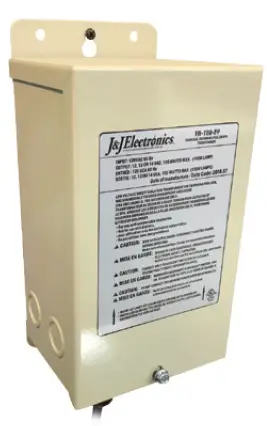

J&J POOL TRANSFORMER
J&J Electronics Pool & Spa Transformers are specifically designed to operate in harsh environments, such as high humidity, combined with heat, and chemicals typically found around pools, spas and fountains.

Features:

Approved to UL Pool Standards
Easy Installations
Removeable Mounting Brackets

Housing	Powder-Coated Steel
Wattage	100W 300W
Input Voltage	120VAC 60 Hz
Output voltages	12VAC 13VAC 14VAC
Certification	UL379 Listed
Order Code 100W Order Code 300W	TR-100-PP TR-300-PP

LED Fountain Luminaires

Brighten up your water features’ appearance with the cleaner and clearer look of our PureWhite® warm whiteor cool white LED fountain lights. Or perhaps create a more custom color-rich appeal with the multiple colors and shows of our Color Splash® color changing LED luminaires. Our LED Underwater and Wet/Dry Fountain Luminaires create the ideal setting for any water feature environment while significantly reducing energy consumption and maintenance costs, compared to traditional light sources.

Advantages:

High Lumen Output
Wet/Dry or Underwater options
Reduces energy usage by 90%
Highly corrosion resistant bronze and 316 stainless
Industry leading 3-year limited warranty
Designed, engineered and assembled in the USA

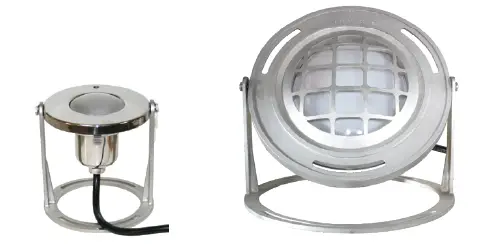

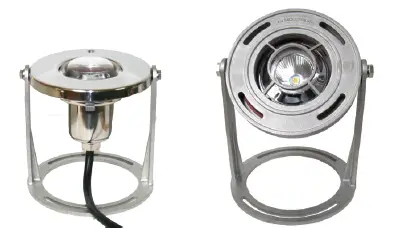

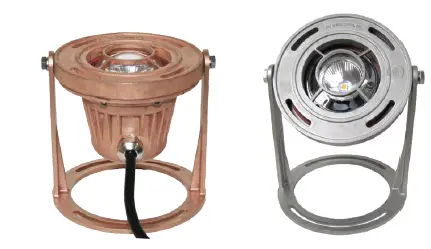

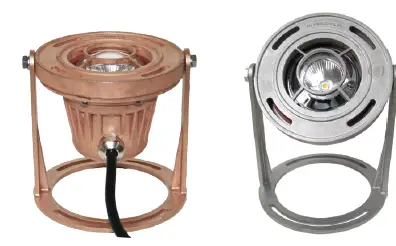

UNDERWATER FOUNTAIN LUMINAIRES

PureWhite LED – FLS STAMPED SERIES

Voltage:	120VAC or 12VAC
Wattage:	Large: F1=39W F3=58W F5=87W Small: S1=13W
Rating:	IP68
Color Temp:	Warm White (2700K) or Cool White (6500K)
Lumen Output:	Warm White: F1L = 1840lm, F3L = 2991lm, F5L= lm, S1L=400lm Cool White: F1W=2400lm, F3W=2991lm, F5W=4500lm, S1W=400lm
Beam Spread:	120º Flood
LED Rating:	50,000 hrs
Dimming:	120V only – Contact J&J for instructions
Material:	316 Stamped Stainless Steel Construction
Faceplate:	No Guard: Stamped, polished finish With Guard: Casted, matte finish
Hardware:	316 Stainless Steel

Cable Strain Relief:	Nickel Plated Brass
Overheat Protection:	Integrated thermal cut-off switch
Lens:	Impact resistant tempered glass (frosted)
Cable Length:	10′ 30′ 50′ 100′ 150′
Cable Type:	120V = 16/3 STW 105ºC 600V Diam: .400″ 12V = 12/3 SJTW 105ºC 300V Diam: .421″
Environment:	MUST BE SUBMERGED 2″ min. 9′ max.
Fixture Rotation:	140º (fixture rotation when base is bolted)
Light Swivel:	180º (when used with base)
Certification:	ETL listed for underwater applications
Warranty:	3 Year Limited Warranty

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LFF-F3W-120-WG-WB-50 LED Fountain Light Fixture, 58W Cool White, 120V, With Rock Guard, With Mounting Base, 50’ Cord
PREFIX		MODEL #		VOLTAGE		FACEPLATE		BASE		CORD LENGTH
LFF	–		–		–		–		–
		insert code into box		insert code into box		insert code into box		insert code into box		insert code into box
		F1L for 39W Warm White Fixture F3L for 58W Warm White Fixture F5L for 87W Warm White Fixture S1L for 13W Warm White Fixture F1W for 39W Cool White Fixture F3W for 58W Cool White Fixture F5W for 87W Cool White Fixture S1W for 13W Cool White Fixture		120 for 120Volt 12 for 12Volt		WG for Rock Guard Option NG for No Guard Option		WB for Base Option NB for No Base Option		10’ 30’ 50’ 100’ 150’

PureWhite LED – FS2 STAMPED SERIES

Voltage:	12VAC
Wattage:	21W
Rating:	IP68
Color Temp:	Warm White (2700K) or Cool White (6500K)
Lumen Output:	Warm White: S2L = 1100lm Cool White: S2W = 1200lm
Beam Spread:	15º 25º 40º 120º flood
LED Rating:	50,000 hrs
Dimming:	Non-Dimming
Material:	316 Stamped Stainless Steel Construction
Hardware:	316 Stainless Steel

Cable Strain Relief:	Nickel Plated Brass
Overheat Protection:	Integrated thermal cut-off switch
Lens:	Impact resistant tempered glass (Clear)
Cable Length:	10′ 30′ 50′ 100′ 150′
Cable Type:	12/3 SJTW 105ºC 300V Diam: .421″
Environment:	MUST BE SUBMERGED 2″ min. 9′ max.
Fixture Rotation:	140º (fixture rotation when base is bolted)
Light Swivel:	180º (when used with base)
Certification:	ETL listed for underwater applications
Warranty:	3 Year Limited Warranty

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LFF-S2L-12-N2-WG-NB-50-SS

LED Fountain Light Fixture, 21W Warm White, 12V, 25º Optic, With Rock Guard, No Mounting Base, 50’ Cord, Stamped Stainless Steel Body

PREFIX

MODEL #

VOLTAGE

BEAM ANGLE

FACEPLATE

BASE

CORD LENGTH

MATERIAL

LFF

–

insert code into box

S2L for Warm White Fixture

S2W for Cool White Fixture

N1 for 15º N2 for 25º N3 for 40º FL for flood

WG for Rock Guard Option

NG for No Guard Option

WB for Base Option

NB for No Base Option

10’

30’

50’

100’

150’

PureWhite LED – FS2 CAST SERIES

Voltage:	120VAC or 12VAC
Wattage:	21W
Rating:	IP68
Color Temp:	Warm White (2700K) or Cool White (6500K)
Lumen Output:	Warm White: S2L = 1100lm Cool White: S2W = 1200lm
Beam Spread:	15º 25º 40º 120º flood
LED Rating:	50,000 hrs
Dimming:	120V only – Contact J&J for instructions
Material:	Cast Bronze or Cast 316 Stainless Steel
Hardware:	316 Stainless Steel

Cable Strain Relief:	Nickel Plated Brass
Overheat Protection:	Integrated thermal cut-off switch
Lens:	Impact resistant tempered glass (Clear)
Cable Length:	10′ 30′ 50′ 100′ 150′
Cable Type:	120V = 16/3 STW 105ºC 600V Diam: .400″ 12V = 12/3 SJTW 105ºC 300V Diam: .421″
Environment:	MUST BE SUBMERGED 2″ min. 9′ max.
Fixture Rotation:	140º (fixture rotation when base is bolted)
Light Swivel:	180º (when used with base)
Certification:	ETL listed for underwater applications
Warranty:	3 Year Limited Warranty

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LFF-S2W-120-N2-WG-WB-50-CB

LED Fountain Light Fixture, 21W Cool White, 120V, 25º Optic, With Rock Guard, With Mounting Base, 50’ Cord, Cast Bronze Body

PREFIX

MODEL #

VOLTAGE

BEAM ANGLE

FACEPLATE

BASE

CORD LENGTH

MATERIAL

LFF

–

insert code into box

insert code

into box

insert code into box

S2L for Warm White Fixture

S2W for Cool White Fixture

120 for 120Volt

12 for 12Volt

N1 for 15º N2 for 25º N3 for 40º FL for 120º

WB for Base Option

NB for No Base Option

10’

30’

50’

100’

150’

CB for Cast Bronze

CS for Cast 316 SS

ColorSplash LED – FLSC STAMPED SERIES RGB

Voltage:	120VAC or 12VAC
Wattage:	Large: F1C = 33W (max) Small: S1C = 7W (max)
Rating:	IP68
Color Temp:	RGB
Lumen Output:	Large : F1C = 847lm (max) Small: S1C = 207lm (max)
Beam Spread:	120º Flood
LED Rating:	50,000 hrs
Dimming:	Non-Dimmable
Material:	316 Stamped Stainless Steel Construction
Faceplate:	No Guard: Stamped, polished finish With Guard: Casted, matte finish
Hardware:	316 Stainless Steel

Cable Strain Relief:	Nickel Plated Brass
Overheat Protection:	Integrated thermal cut-off switch
Lens:	Impact resistant tempered glass (frosted)
Cable Length:	10′ 30′ 50′ 100′ 150′
Cable Type:	120V = 16/3 STW 105oC 600V Diam: .400″ 12V = 12/3 SJTW 105oC 300V Diam: .421″
Environment:	MUST BE SUBMERGED 2″ min. 9′ max.
Fixture Rotation:	140º (fixture rotation when base is bolted)
Light Swivel:	180º (when used with base)
Certification:	ETL listed for underwater applications
Warranty:	3 Year Limited Warranty

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LFF-S1C-12-WG-WB-50 LED Fountain Light Fixture, 7W Small RGB, 12V, With Rock Guard, With Mounting Base, 50’ Cord
PREFIX		MODEL #		VOLTAGE		FACEPLATE		BASE		CORD LENGTH
LFF	–		–		–		–		–
		insert code into box		insert code into box		insert code into box		insert code into box		insert code into box
		F1C for 33W RGB Fixture (Large) S1C for 7W RGB Fixture (Small)		120 for 120Volt 12 for 12Volt		WG for Rock Guard Option NG for No Guard Option		WB for Base Option NB for No Base Option		10’ 30’ 50’ 100’ 150’

ColorSplash LED – FLSCW STAMPED SERIES RGB-W

Voltage:	120VAC or 12VAC
Wattage:	Large: F1CWL & F1CW = 33W (max), Large: F2CWL & F2CW = 58W (max) Small: S2CWL & S2CW = 4W (max)
Rating:	IP68
Color Temp:	RGB-W Warm White = 2700K Cool White = 6500K
Lumen Output:	Large: F1CWL warm white pend. F1CW cool white = 1500lm (max) Large: F2CWL warm white pend. F2CW cool white = 4270lm (max) Small: S2CWL warm white pend. S2CW cool white = 265lm (max)
Beam Spread:	120º Flood
LED Rating:	50,000 hrs
Dimming:	Non-Dimmable
Material:	316 Stamped Stainless Steel Construction
Faceplate:	No Guard: Stamped, polished finish With Guard: Casted, matte finish
Hardware:	316 Stainless Steel

Cable Strain Relief:	Nickel Plated Brass
Overheat Protection:	Integrated thermal cut-off switch
Lens:	Impact resistant tempered glass (frosted)
Cable Length:	10′ 30′ 50′ 100′ 150′
Cable Type:	120V = 16/3 STW 105oC 600V Diam: .400″ 12V = 12/3 SJTW 105oC 300V Diam: .421″
Environment:	MUST BE SUBMERGED 2″ min. 9′ max.
Fixture Rotation:	140º (fixture rotation when base is bolted)
Light Swivel:	180º (when used with base)
Certification:	ETL listed for underwater applications
Warranty:	3 Year Limited Warranty

HOW TO BUILD A PART NUMBER

PART NUMBER EXAMPLE: LFF-F2CW-120-WG-WB-10 LED Fountain Light Fixture, 58W RGB-W Cool White, 120V, With Rock Guard, With Mounting Base, 10’ Cord
PREFIX		MODEL #		VOLTAGE		FACEPLATE		BASE		CORD LENGTH
LFF	–		–		–		–		–
		insert code into box		insert code into box		insert code into box		insert code into box		insert code into box
		FICWL for 33W RGBW Warm		120 for 120Volt		WG for Rock Guard Option		WB for Base Option		10’
		White (large) FICW for 33W RGBW Cool White		12 for 12Volt		NG for No Guard Option		NB for No Base Option		30’ 50’
		(large)								100’
		F2CWL for 58W RGBW Warm								150’
		White (large)
		F2CW for 58W RGBW Cool White
		(large)
		S2CWL for 4W RGBW Warm
		White (small)
		S2CW for 4W RGBW Cool White
		(small)

WET/DRY FOUNTAIN LUMINAIRES

PureWhite LED – FX2 CAST SERIES

Voltage:	120VAC or 12VAC
Wattage:	18W
Rating:	IP68
Color Temp:	Warm White (2700K) or Cool White (6500K)
Lumen Output:	Warm White: X2L = 816lm Cool White: X2W = 874lm
Beam Spread:	15º 25º 40º 120º flood
LED Rating:	50,000 hrs
Dimming:	120V only – Contact J&J for instructions
Material:	Cast Bronze or Cast 316 Stainless Steel
Hardware:	316 Stainless Steel

Cable Strain Relief:	Nickel Plated Brass
Overheat Protection:	Integrated thermal cut-off switch
Lens:	Impact resistant tempered glass (Clear)
Cable Length:	10′ 30′ 50′ 100′ 150′
Cable Type:	120V = 16/3 STW 105ºC 600V Diam: .400″ 12V = 12/3 SJTW 105ºC 300V Diam: .421″
Environment:	Wet / Dry
Fixture Rotation:	140º (fixture rotation when base is bolted)
Light Swivel:	180º (when used with base)
Certification:	ETL listed for underwater applications
Warranty:	3 Year Limited Warranty
