LUSSO REVESTIMIENTOS HTCPSS90 Type A 316l Stainless Steel Led Pool Light
Product Information
- Type: A-316L Stainless Steel LED Pool Light
- Driver: Not included
- Dimensions: Ultra-slim design with a thickness of 7.5mm and a diameter of 96mm
- Model Number: HTCPSS90
- Color: RGB Color (4-wire, requires an external controller)
- Waterproof: IP68 rating
- Advantages: Fully resin-filled for 100% waterproofing, made of 316L stainless steel for marine water, patented 2-in-1 installation methods, and available in 4-wires external/wifi control method
Product Usage Instructions
- Before installation, ensure that the power supply is turned off.
- Select a suitable location for the light fixture in your pool.
- If using the patented 2-in-1 installation method, decide whether to use the external or wifi control method.
- If using the external controller, connect the 4-wires from the light fixture to the controller.
- If using the wifi control method, follow the instructions provided with the wifi controller to connect and configure the light fixture.
- If using a single color (2-wire) option, connect the wires to the power supply according to the wiring diagram provided in the manual.
- Attach the light fixture to the selected location by following the installation instructions provided in the manual.
- Once installed, turn on the power supply and test the light fixture to ensure it is working correctly.

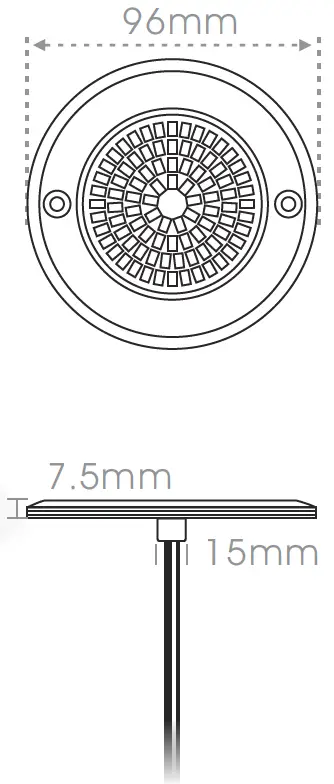

DIMENSIONS

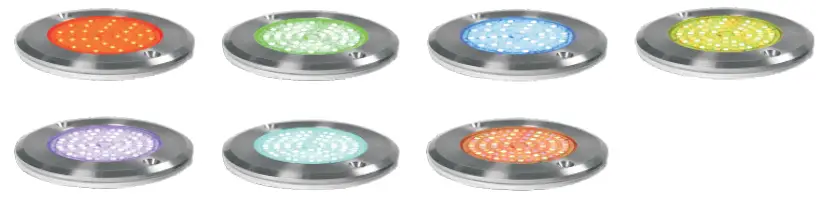

Color
RGB Color(4-wire,need external controller)
Single Color(2-wire)
Advantages
- Fully resin filled,100% waterproof
- 316L Stainless steel for marine water
- Ultra slim design in 7.5mm thickness

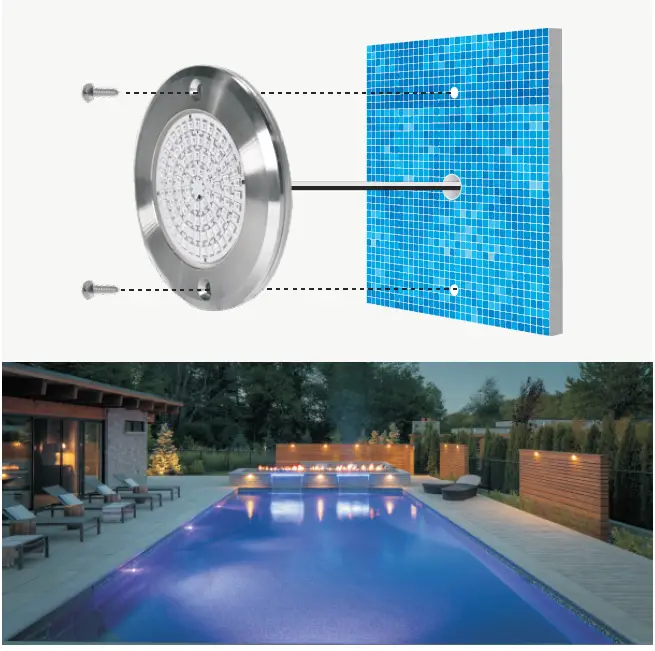

- Patented 2 in 1 installation methods
- 4-wires external/wifi control method
Easy replace

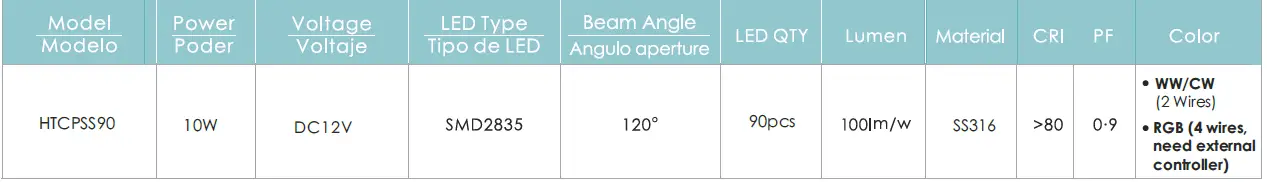

SPECIFICATIONS
