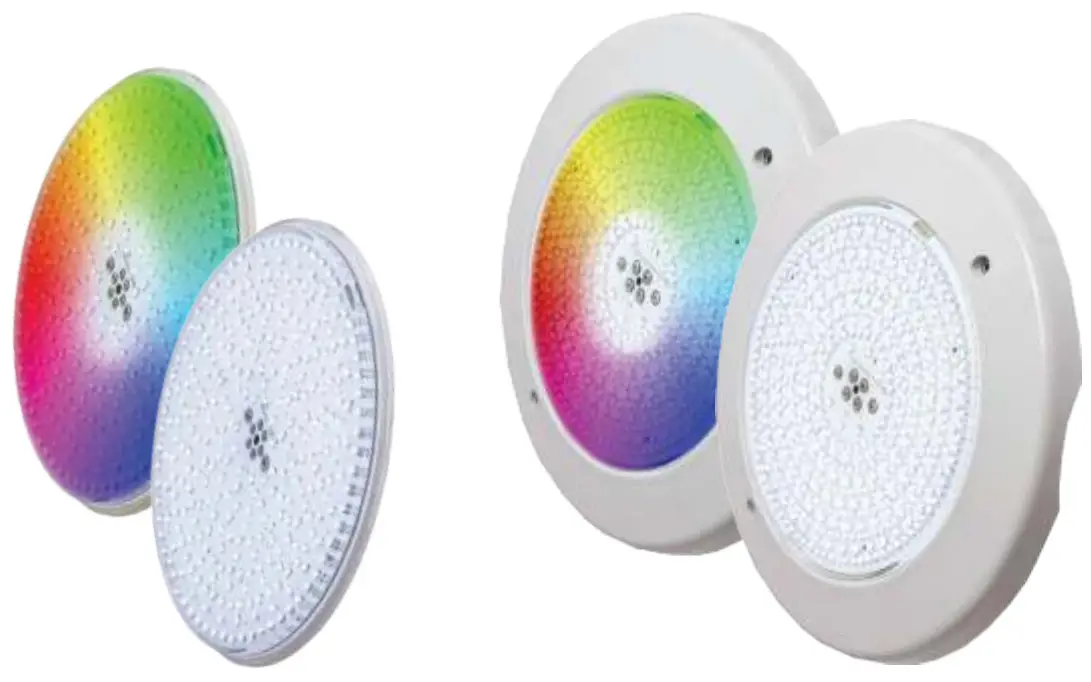

Spectravision D34-121025 Ultra Flat Pool and Spa LED Light

Contents hide

1 Technical specifications

2 General specifications

3 Box contents

3.1 Moonlight complete types:

4 Installation instructions

5 Color programs (only for RGB lamps)

6 Operation

7 Wiring instructions Setup 1

8 Wiring instructions Setup 2

9 Troubleshooting

10 Documents / Resources

11 Related Posts

Technical specifications

Reference	Description	Color	Light output	Power	Nominal CCT
PLS300	Bulb + housing	RGB	575 lm	15W	n.a.
PLS300B	Bulb only	RGB	575 lm	15W	n.a.
PLW300	Bulb + housing	White	1250 lm	16 W	9000K
PLW300B	Bulb only	White	1250 lm	16 W	9000K
PLS700	Bulb + housing	RGB	1450 lm	25W	n.a.
PLS700B	Bulb only	RGB	1450 lm	25W	n.a.
PLW700	Bulb + housing	White	2100 lm	28W	9000K
PLW700B	Bulb only	White	2100 lm	28W	9000K
PLS400B	Bulb only	RGB	925 lm	21W	n.a.
PLW400B	Bulb only	White	1850 lm	19W	9000K
PLW600	Bulb + housing	White	2100 lm	29W	9000K
PLW600B	Bulb only	White	2100 lm	29W	9000K
PLS600	Bulb + housing	RGB	1240 lm	26W	n.a.
PLS600B	Bulb only	RGB	1240 lm	26W	n.a.

Beam Angle 120°
Diameter Optic 170 mm
Nominal input Voltage 12 VAC
Life time hrs > 25.000 h
Power factor > 0,73

For operation only with a safety isolation transformer

General specifications

4m non detachable rubber cable included Maximum water temperature
+35°C (Lamps have to be kept out of ice zones)

Ingress Protection Rate
IP68 (measured at 1m)

Moonlight Pool lamps must be completely submerged into water during operation.
Not doing so, will void warranty.

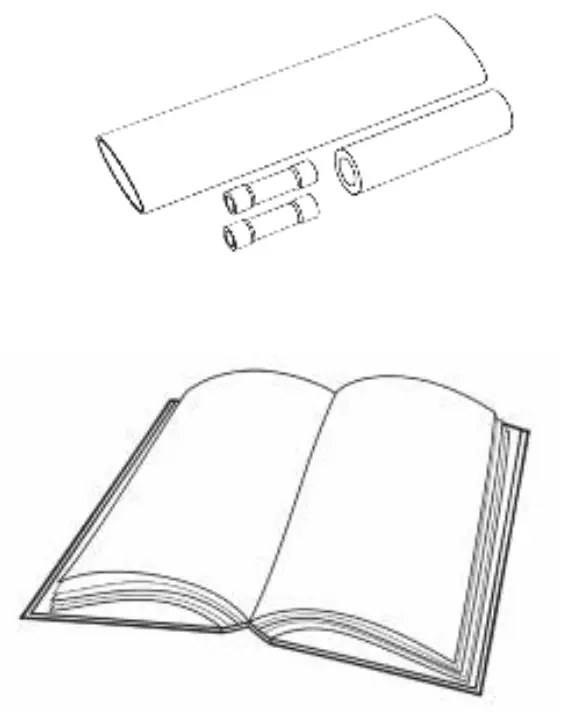

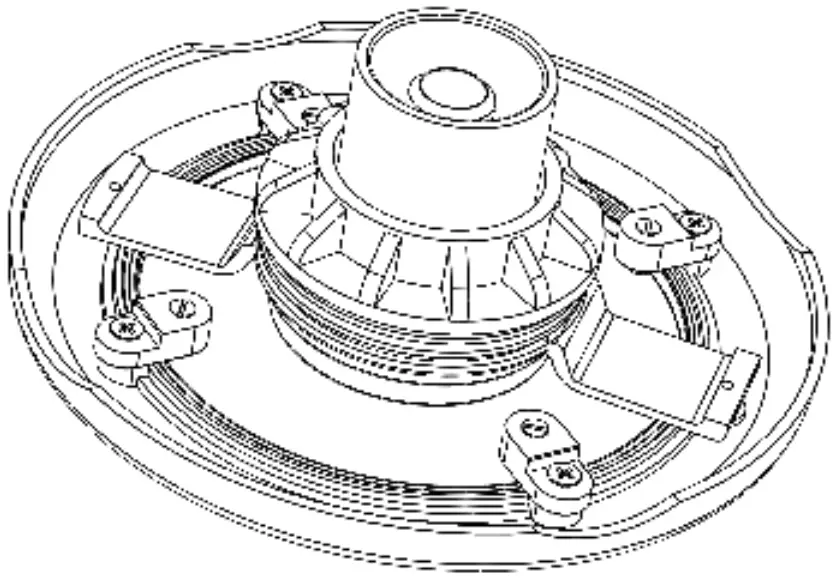

Box contents

Moonlight complete types:

PLS300
PLW300
PLS700
PLW700
PLW600
PLS600

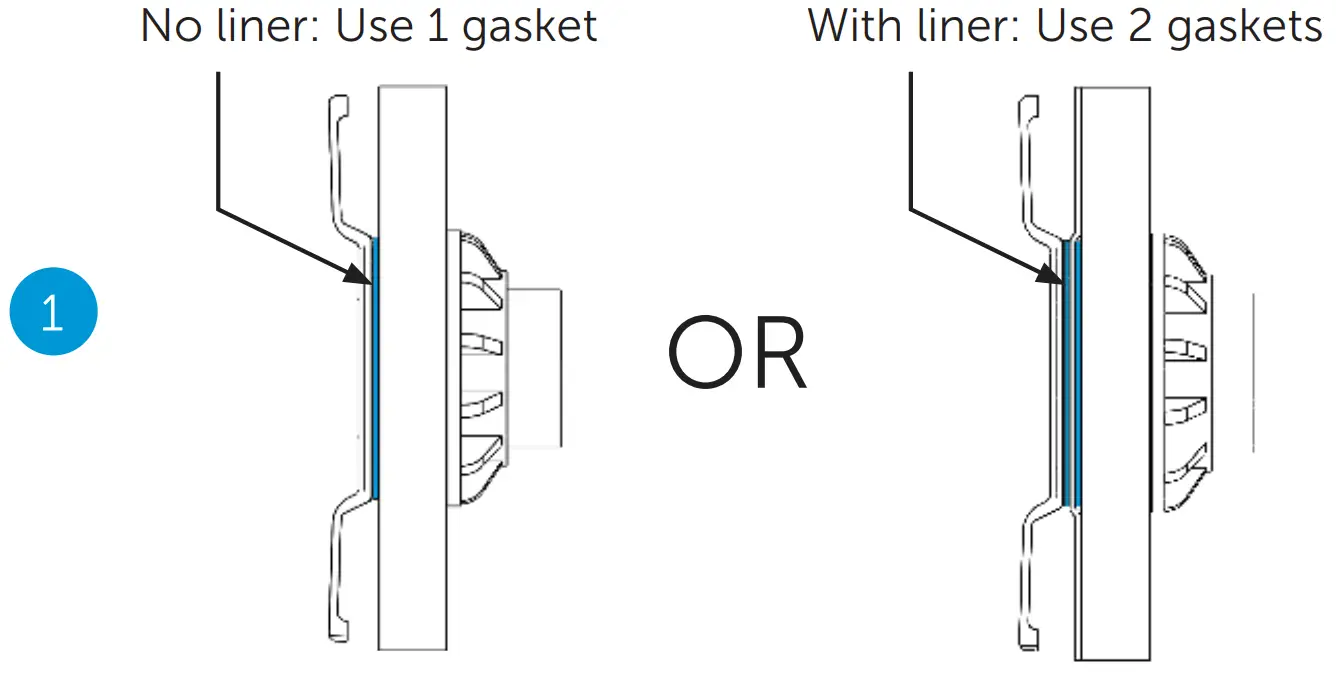

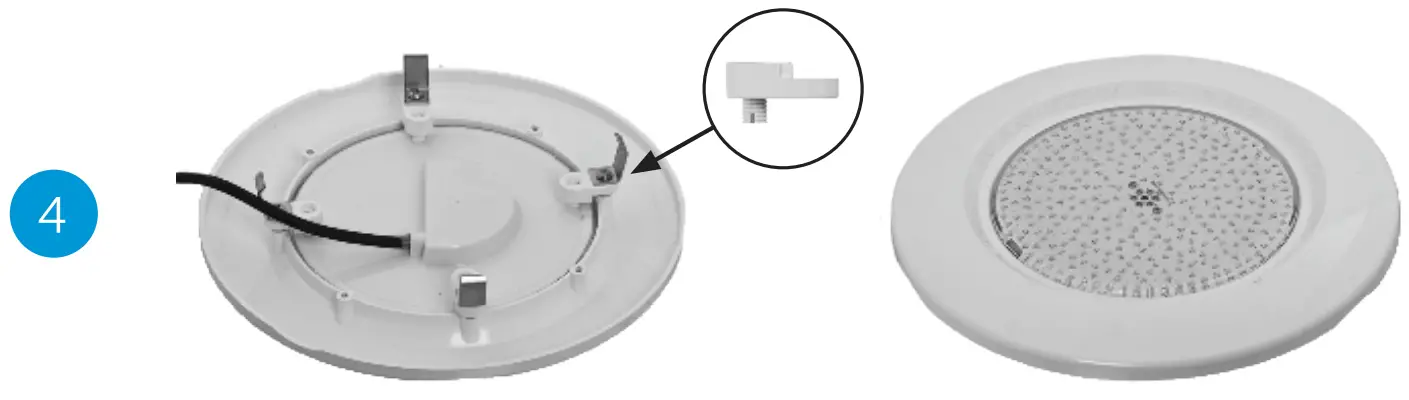

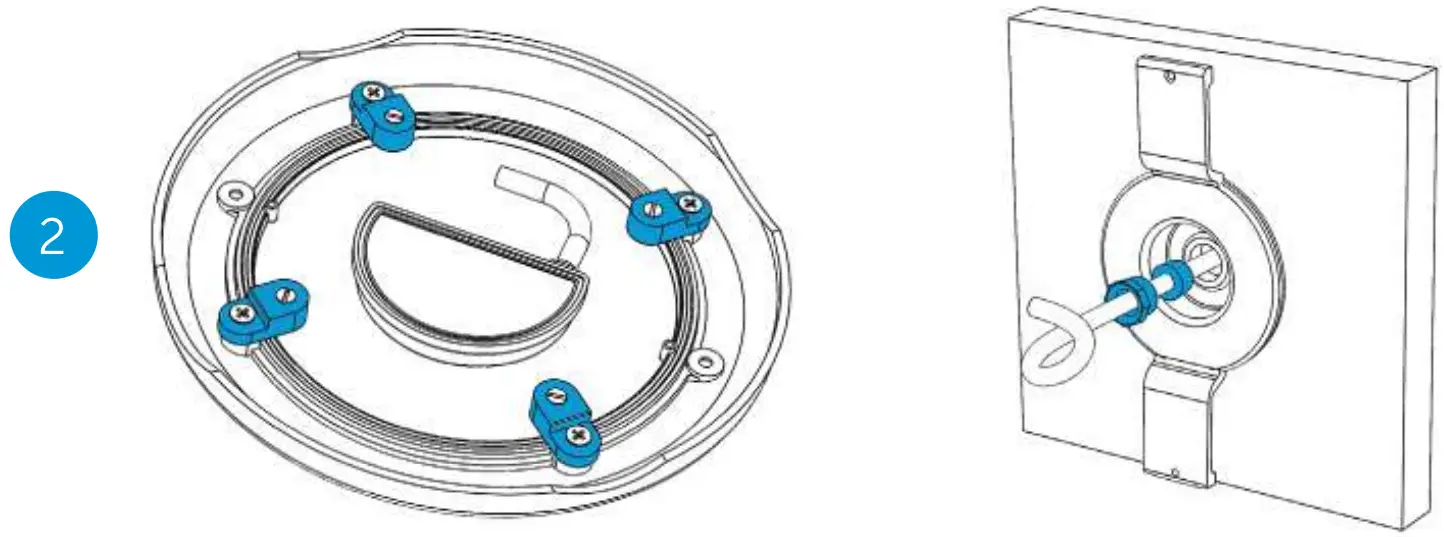

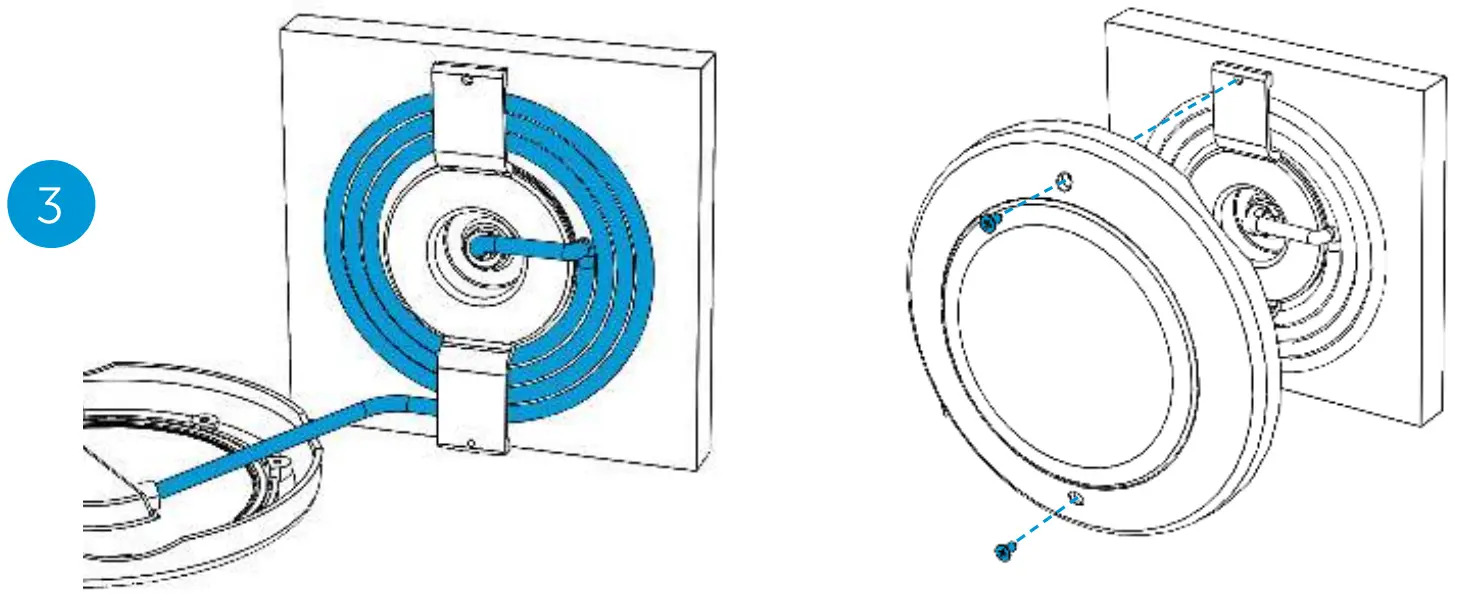

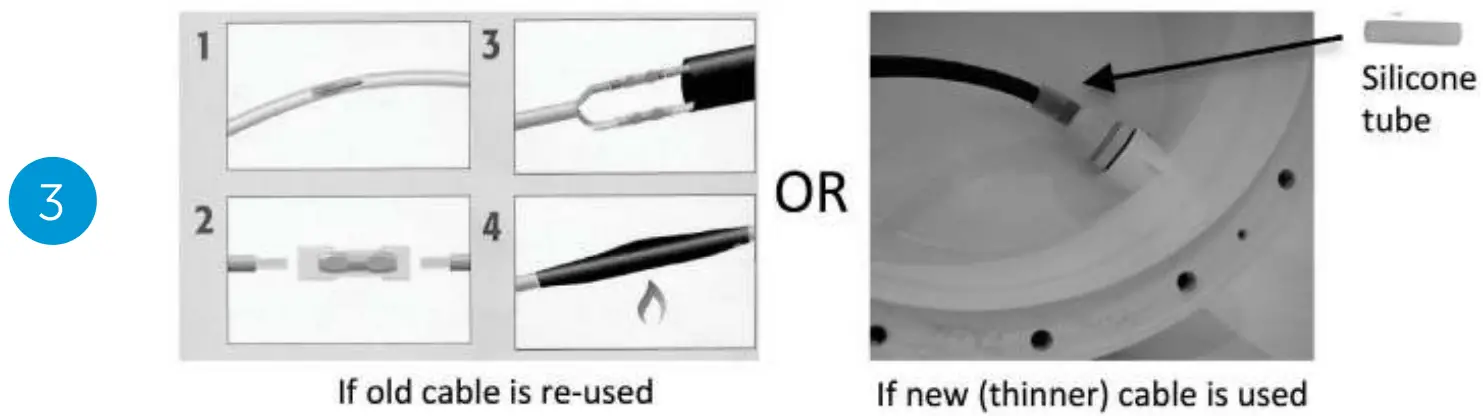

Installation instructions

Color programs (only for RGB lamps)

❶	SUN WHITE	warm white
❷	RED	fixed color red
❸	GREEN	fixed color green
❹	BLUE	fixed color blue
❺	GREEN-BLUE	fixed color green-blue
❻	RED-GREEN	fixed color red-green
❼	BLUE-RED	fixed color blue-red
❽	EVENING SEA	slow animation red-blue
❾	EVENING RIVER	slow animation red-green
❿	RIVIERA	slow animation green-blue
⓫	NEUTRAL WHITE	cold white
⓬	RAINBOW	slow animation blue-red-green
⓭	RIVER OF COLORS	program 12, followed by program 15
⓮	DISCO	fast animation
⓯	FOUR SEASONS	slow animation red-blue-green-violet
⓰	PARTY	fast animation

Operation

Synchronizing multiple lamps:

All lamps need to be connected to the same transformer
Turn the lamps ON for a few seconds
Turn them OFF for MINIMUM 12 seconds, then switch back ON
Change the color 2 times. Now they are synchronized

Changing colors:

Turn the lamps OFF and quickly back ON (max 10 sec OFF) Or use our optional remote controllers PL-REM(-60, -200).

Memorizing the last color:

Select the desired color
Turn the lamps OFF for MINIMUM 12 seconds
The chosen color has now been memorized

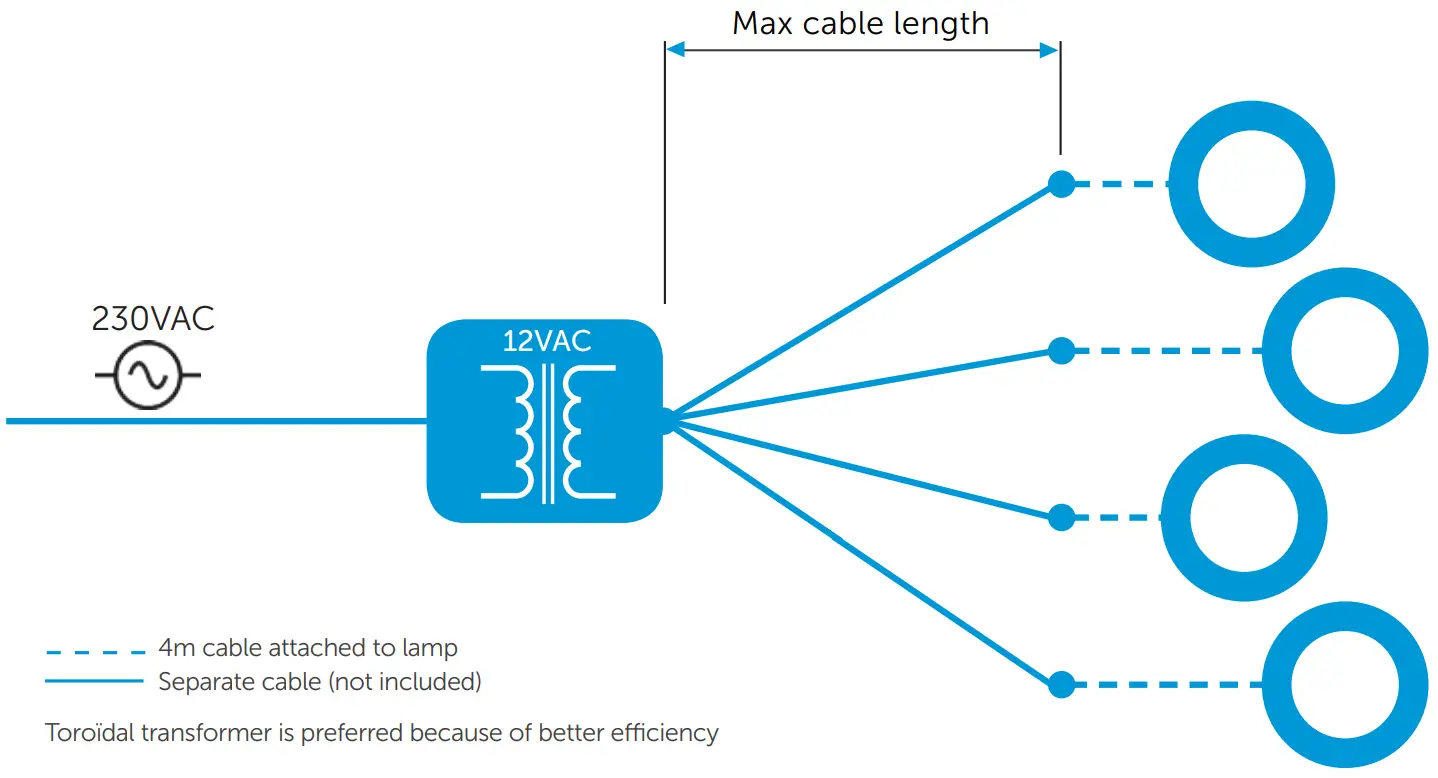

Wiring instructions Setup 1

Each lamp is connected to the transformer by a separate cable (Preferred for new installations)

MAX CABLE LENGTH BY CABLE SECTION				VA TRANSFORMER
LAMP TYPE 1,5 mm2	2,5 mm2	4,0 mm2	6,0 mm2	(12VAC) *
PLS300(B) 70m	120m	180m	200m	16
PLS400(B) 70m	120m	180m	200m	22
PLS600(B) 60m	100m	160m	200m	25
PLW300(B) 90m	150m	200m	200m	18
PLW400(B) 60m	100m	160m	200m	26
PLW600(B) 50m	85m	140m	200m	30

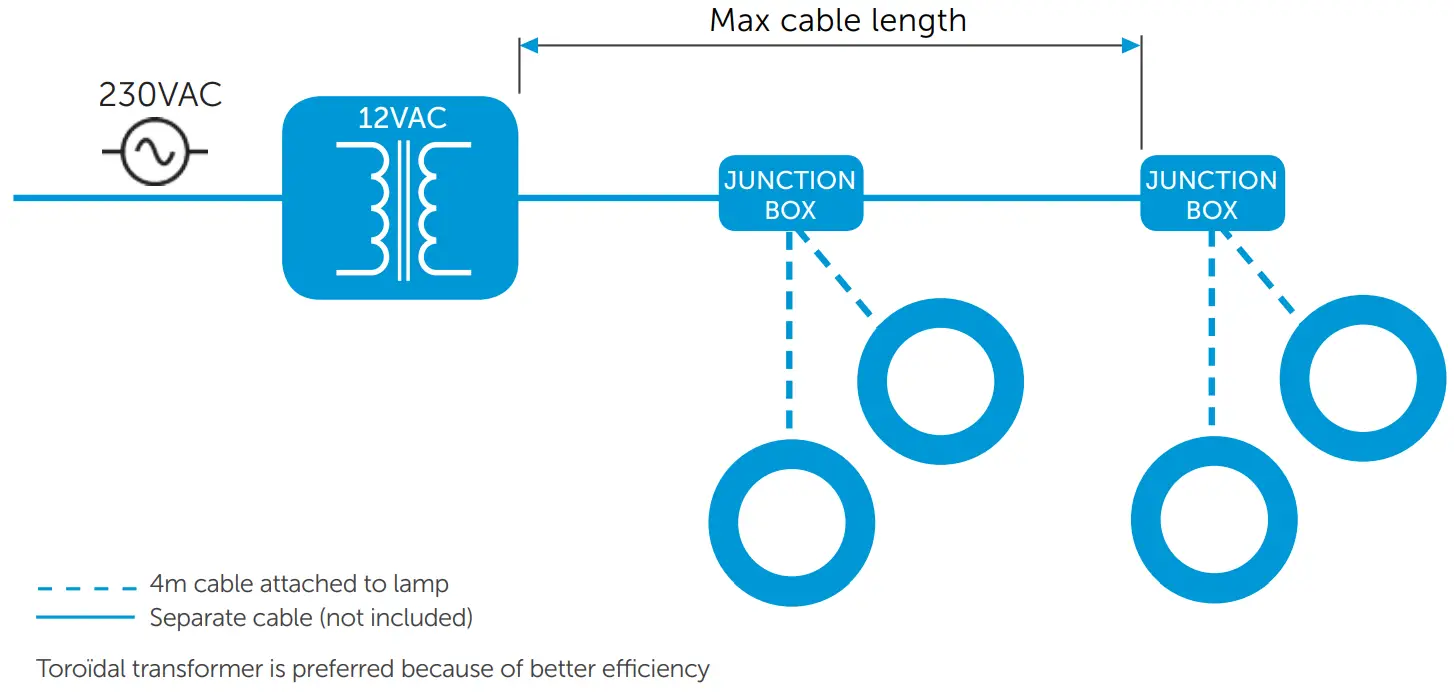

Wiring instructions Setup 2

All lamps are connected to the transformer via 1 cable

MAX CABLE LENGTH BY CABLE SECTION						VA TRANSFORMER (12VAC) *
LAMP TYPE	QTY LAMPS	2,5 mm2	4,0 mm2	6,0 mm2	10,0 mm2	VA TRANSFORMER (12VAC) *
PLS300(B) PLS400(B)	1	120m	180m	200m	200m	16
	2	60m	90m	140m	200m	32
	3	35m	60m	90m	150m	48
	4	25m	40m	65m	110m	64
PLS700(B) PLW400(B) PLS600(B)	1	100m	160m	200m	200m	25
	2	50m	80m	120m	200m	50
	3	30m	50m	80m	130m	75
	4	25m	40m	60m	100m	100
PLW300(B)	1	150m	200m	200m	200m	18
	2	75m	120m	180m	200m	36
	3	50m	80m	120m	200m	54
	4	35m	60m	90m	150m	72
PLW700(B) PLW600(B)	1	85m	140m	200m	200m	30
	2	40m	70m	100m	170m	60
	3	25m	45m	70m	110m	90
	4	20m	35m	50m	85m	120

Troubleshooting

PROBLEM

The Pool light is flickering or or lights up faint

SOLUTION

Check the output voltage at the transformer terminals. This voltage should be between 12VAC and 13VAC. Verify that the used transformer VA rating is sufficient for powering all connected lamps
Verify if the cables that are used to connect the lamps to the transformer are correctly dimensioned (see tables p. 8-9)
Check if there are no bad contacts or interruptions in the cables.

Several pool lights in the pool show different color programs
Make sure that all lamps are connected to the same 12VAC power line. Execute the synchronization procedure as explained on page 7

EC Declarations of Conformity

We, the undersigned,

Manufacturer: Propulsion Systems bvba
Address, City: Dooren 72, Merchtem BE-‐1785
Country: Belgium

Declaration the following apparatus:

Product name:	LED underwater Light
Model name:	Moonlight
Used as:	PLS300(B), PLS400(B), PLS700(B), PLW300(B), PLW400(B), PLW700(B) PLS600B, PLW600B

Product description:
White and color LED lightings for swimming pools and similar applications.
Conform with the essential requirements of the follow standards & directives:

CE directives

EU 1194/2012	ECO Design
EC 1907/2006	REACH
2011/65/EU	RoHS
2004/108/EC	Electromagnetic Compatibility (EMC)
2012/19/EU	WEEE waste electronic equipment

Conformity with the following harmonised norms:

EN60598-‐1	General requirements and tests
EN60598-‐2-‐18	Luminaire Part 2: Luminaires for swimming pools & similar applications
EN55015	Emission
EN61457	Immunity
EN61000-‐3-‐2/3	Harmonics
EN50419	WEEE marking
EN 50581:2012	RoHS2

I hereby declare that the equipment above named has been designed to comply with the relevant sections of above referenced specifications. The unit complies with all applicable Essential Requirements of the Directives.

Name: Marc Lamberts
Position: GM
Place: Brussegem, Belgium
Date: 11/10/2013

Propulsion Systems bvba
Dooren 72
1785 Merchtem, Belgium
Tel +32 2 461 02 53
Fax +32 2 706 59 60
www.propulsionsystems.be
[email protected]
