FLARE FIREPLACES Outdoor Vent Free Large Double Corner Fireplace

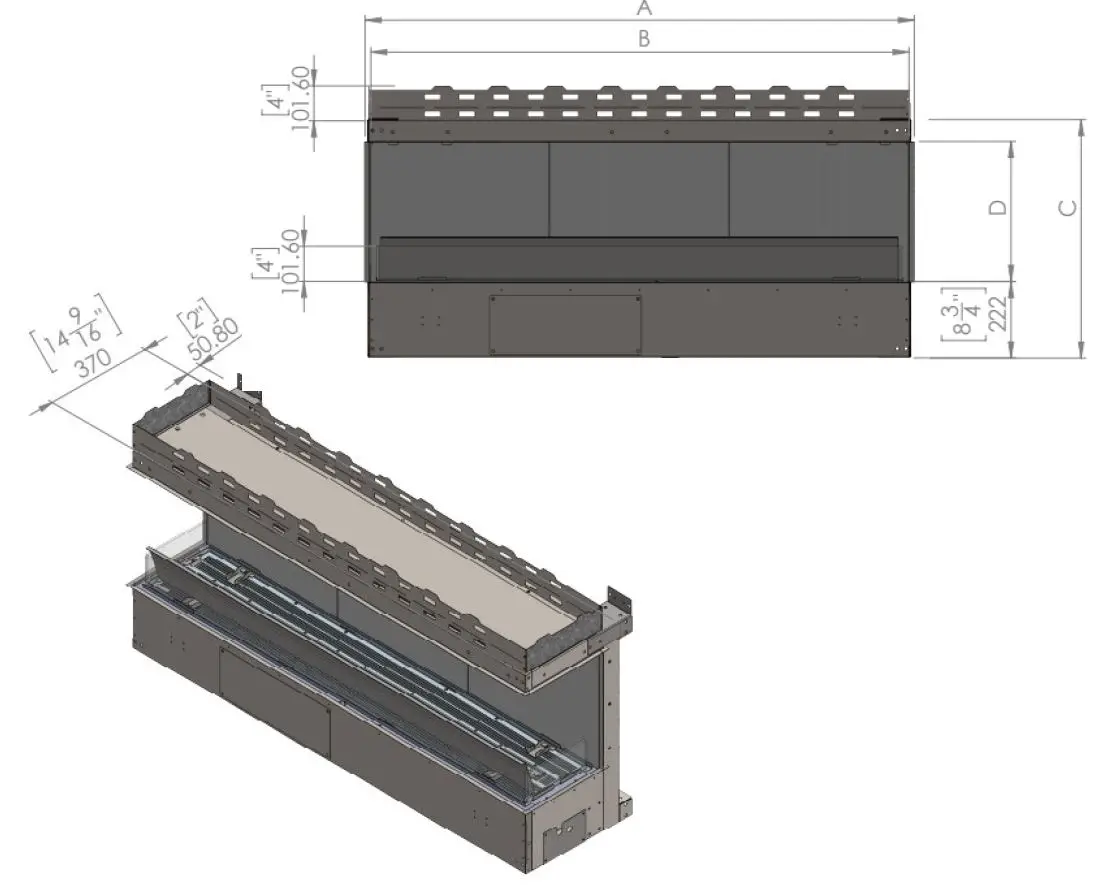

Unit Dimensions
| Model | 50 | 60 | 70 | 80 | 100 |
| A- Inch | 54 2/16 | 62 13/16 | 70 11/16 | 80 14/16 | 99 |
| B- Inch | 52 14/16 | 61 9/16 | 69 7/16 | 79 11/16 | 97 13/16 |
| C- Inch | 27 6/16 | 27 6/16 | 27 6/16 | 27 6/16 | 27 6/16 |
| D- Inch | 16 | 16 | 16 | 16 | 16 |

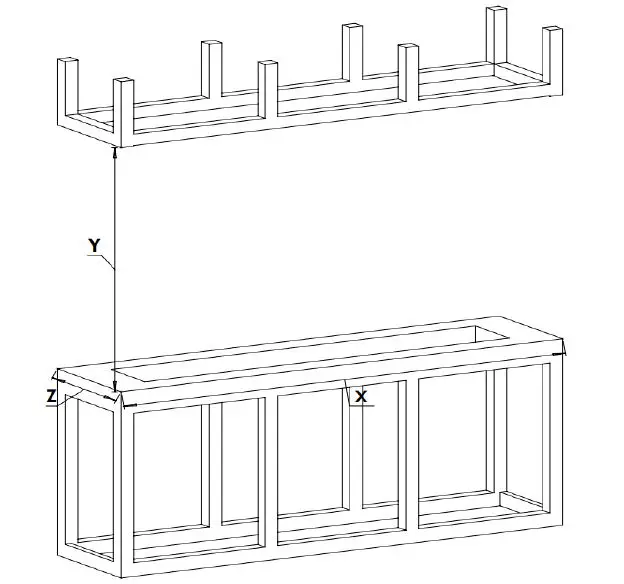

Cavity Dimensions
| X | Y | Z | ||
| 50 | Inch | 54 2/16 | 31 6/16 | 16 10/16 |
| mm | 1375 | 797 | 422 | |
| 60 | Inch | 62 13/16 | 31 6/16 | 16 10/16 |
| mm | 1595 | 797 | 422 | |
| 70 | Inch | 70 11/16 | 31 6/16 | 16 10/16 |
| mm | 1795 | 797 | 422 | |
| 80 | Inch | 80 14/16 | 31 6/16 | 16 10/16 |
| mm | 2054 | 797 | 422 | |
| 100 | Inch | 99 | 31 6/16 | 16 10/16 |
| mm | 2515 | 797 | 422 | |

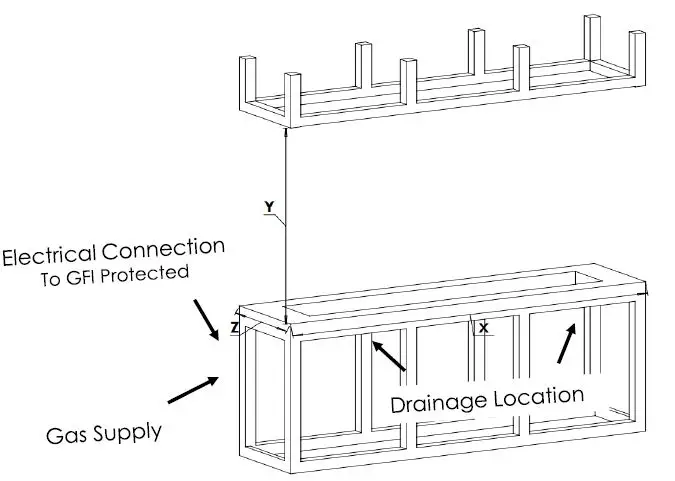

Appliance Considerations
Drainage
Flare Fireplaces Vent Free lines are outdoor rated using Stainless Steel, corrosion resistant materials. However, care should be taken to ensure rain and other moisture cannot collect between the unit and the mounting platform. Plan for drainage to run outside of the cavity away from other fixed buildings and objects.
Electrical Connection
- 110V AC (15 AMP dedicated recommended but not required) power source must be provided to run the fireplace. An electrical connection needs to be provided to the right of the unit and utilize a Ground Fault Circuit Interrupter (GFCI/GFI) outlet is required.
- Ensure a switch is installed to control power to an outlet for control over the fireplace.
Gas Supply
Gas should be run into the right side of the unit. Flex pipe will be provided within the unit, but hard piping should be done into the fireplace box.
Manual Gas Shut Off
Required on all outdoor unit installations. The manual Gas Shut off must be visible (after finishing) and remain accessible in the event of an emergency. Consult city,\ state and other local codes to confirm additional requirements as needed.
Clearance to Floor
Flare Ventless line must maintain box opening at least 11” above any combustible flooring. For fireplaces which are considering being mounted lower, flooring must be non-combustible material (i.e. stone, tile, cement, etc.)

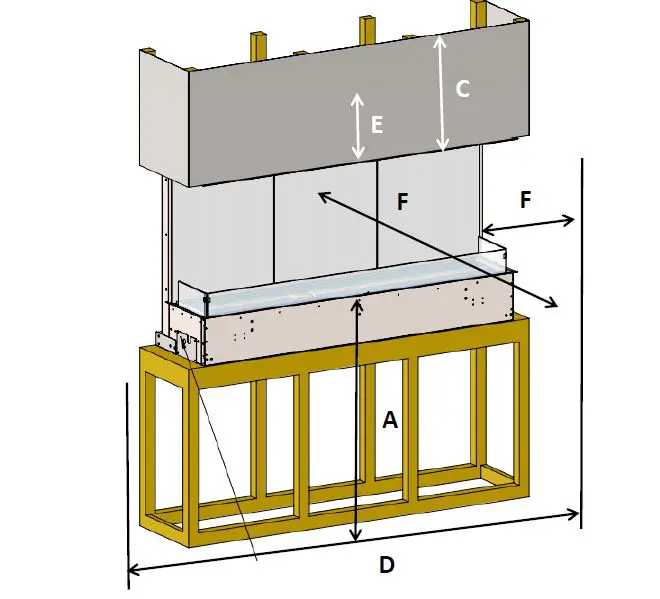

Finishing Fireplace
| Index | Description | Dimension from the fireplace opening |
| A | From the ground or another combustible surface | 11” |
| C | From Opening to Ceiling (minimum) | 36” from top opening |
| D | Alcove Width (minimum) | 36” +36” (side opening) |
| E | Non-Combustible Board above opening (side and front opening) | 8” |
| F | In front of the opening, short and long | 36” |
See Installation Manual for all clearances and requirements. Type-X is not allowed as a non-combustible board over appliance opening
