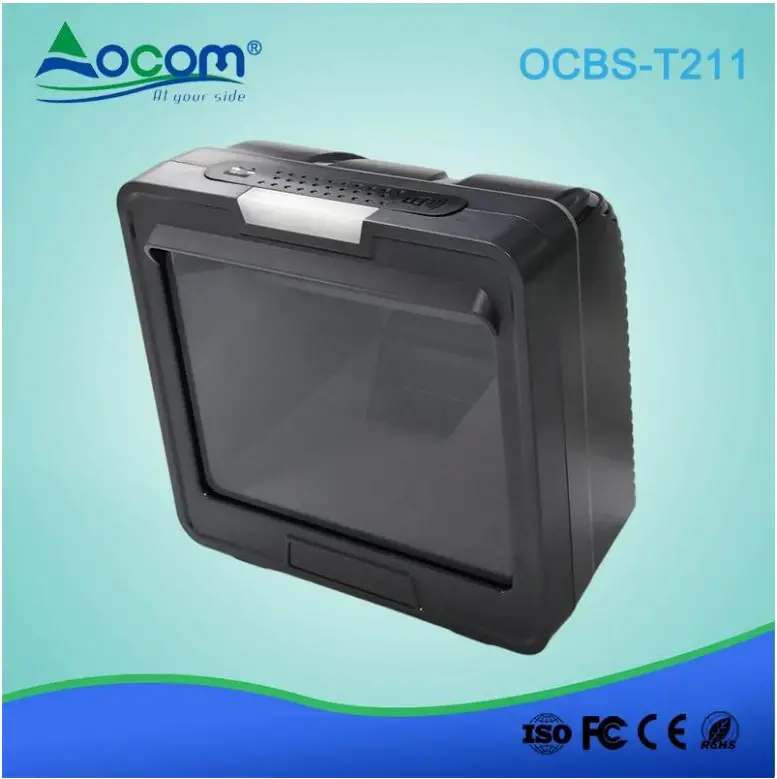

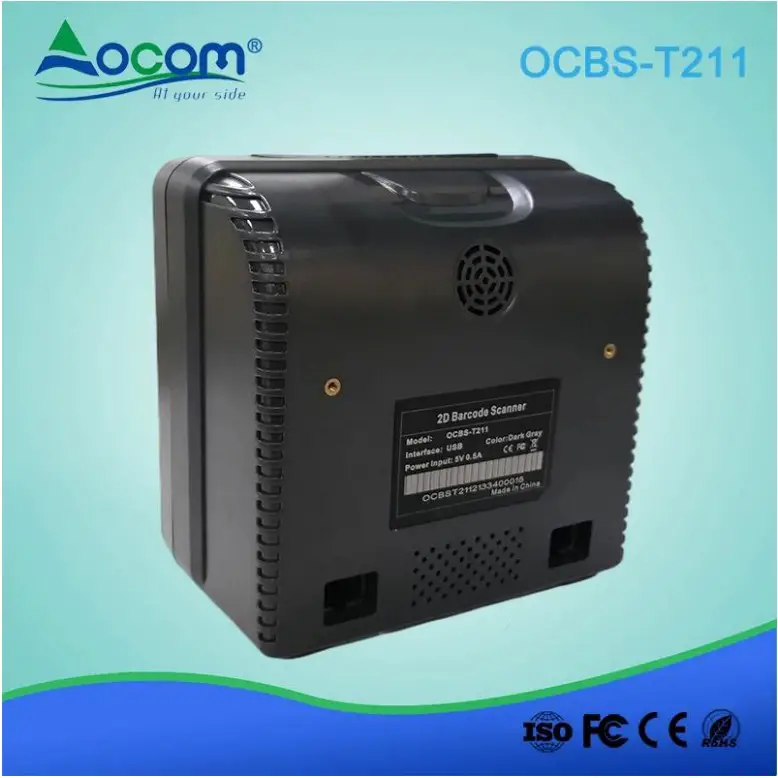

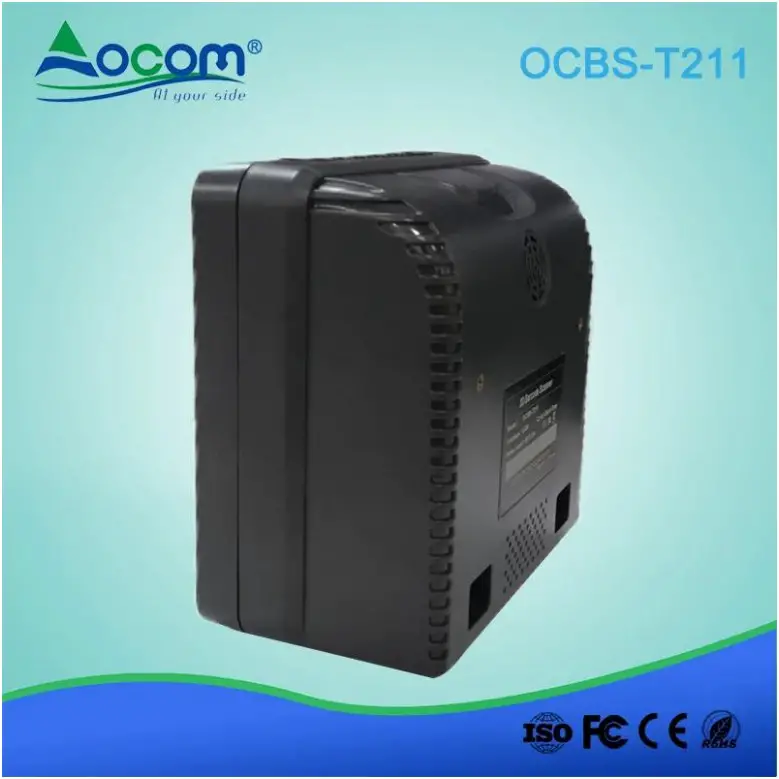

Image 2D Omnidirectional Barcode Scanner
(M/N:OCBS-T211)
Features:
1280*1024 Millions high resolution, super large window
Support high-density anti-white code
High-speed 2D imaging technology can high-density bar code and wide-width bar code
Can directly read the payment bar code on mobile devices
Especially suitable for high speed register bar code in retail industry
High-strength shell that can withstand 1.5 meters drop,IP52 seal Grade
Specification
| General | |
| Model | OCBS-T211 |
| Item | Omnidirectional 2D Desktop Barcode Scanner |
| Color | Black |
| Material | ABS+PC |
| IP Grade | IP52 |
| Interface | USB(RS232 can be customized) |
| Professor | 32-bit ARM MCU + DSP |
| Trigger Mode | Auto-Sensing |
| Prompt Mode | Buzzer, Indicator Lighted |
| Mirror code | Support |
| Invoice function | Support |
| Button | Switch sound frequency; Switch 1D Only or 1D & 2D mode |
| Power Supply | DC 5V 2A |
| Power Consumption | 1.71W0working0[0.87WIstandby[02.45WImaximum0 |
| Language Supported | English, German, French, Italian, Russian, Finnish, Norwegian,etc. |
| System Supported | Linux[Android1Windows XP07180100MAC |
| ESD Protection | 15KV air discharge |
| Shock Resistance | 1.5m free fall on concrete surface |
| Performance | |
| Sensor | Planar CMOS sensor 1280 * 1024 |
| Light Source | RED LED |
| Motion tolerance | 3.82m/sec |
| Bit error rate | 1/5000000 |
| Reading Mode | Image |
| Scanning Angel | Ro11360°0 Pitch45TYew45° |
| Print Contrast | 30% |
| Resolution | Code39 4mil |
| Scanning Depth | 5mil code39: 1 cm — 14 cm, 13mi1 UPC-A : 2 cm — 34 cm 20mi1 code39 : 1 cm — 35 cm,6.7mi1 PDF417 : 1 cm — 9 cm 10mil Data Matrix : 1 cm — 10 cm 15mi1 Data Matrix : 1 cm — 20 cm 1D Payment: 0 cm — 50 cm,2D Payment : 0 cm — 50 cm |
| Decoding ability | 1D:Interleaved 2 of 5 ,Standard 2 of 5 ,Marti 2 of 5 Code39-Regular ,Code39-Full ASCII ,Code32 Code93-Regular ,Code93-Full ASCII ,Code128 EAN/GSL/UCC-128 ,Coda bar ,MSI EAN/JAN-13 ,UPC-A ,EAN/JAN-8 Condell ,UPC-E0/E1 2D:MICRO QR ,Data Matrix ,QR AZTEC ,PDF417 |
| Physical | |
| Weight | Gross:1000g |
| Package | 200*183*154mm |
| 12 in 1 carton | 615*385*325mm/13.2kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%-80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%-90% No condensation |
