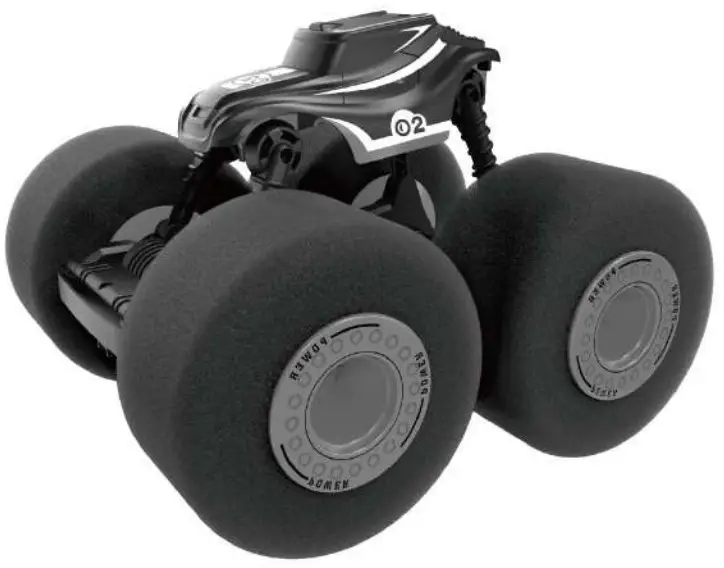

43232185 RC Stunt Bounce Car
Instruction Manual

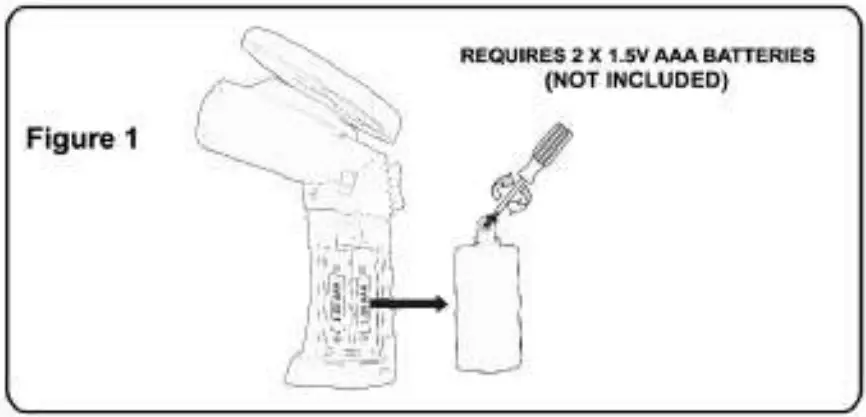

INSTALLING BATTERIES IN THE TRANSMITTER:
- Open the battery compartment.
- Insert 2 x 1.5V AAA batteries with correct + and – polarities.
- Close the cover.
INSTALLING THE VEHICLE BATTERY:
- Loosen the screw to open the battery cover.

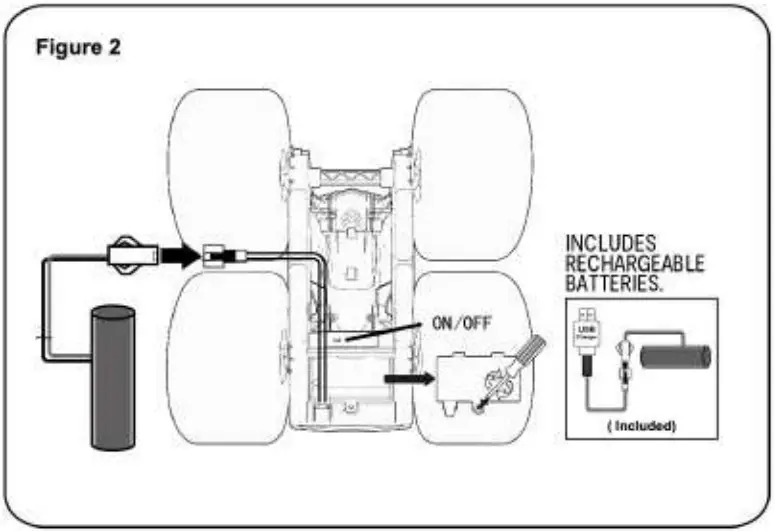

- As shown in Figure 2 , remove the battery cover, connect the rechargeable battery pack with connector and close the battery cover.

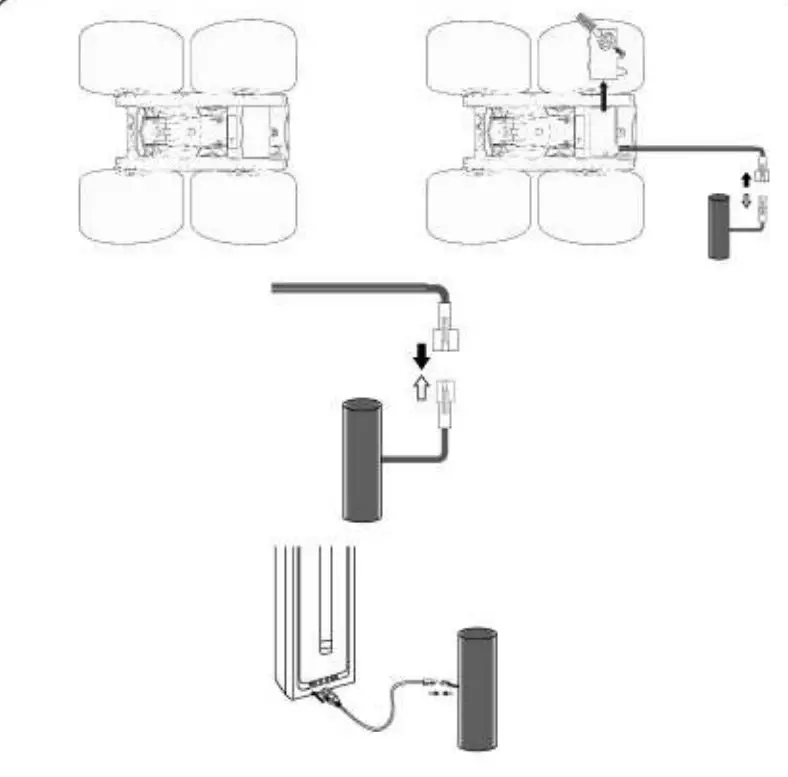

HOW TO CHARGE:
A. Loosen the screw to open battery cover.0
B. Separate the rechargeable battery pack from connector.
C. Connect the USB charging cable with rechargeable battery first. (The battery connector will only fit in one way, do not force the connectors together), then plug the USB charging cable into a USB port. The LED light on the USB charging cable will light up when charging.
D. The LED light extinguishes after it has finished charging. Disconnect the USB charging cable from the USB port and then disconnect the rechargeable battery with USB charging cable.
Attention: Do not charge battery immediately after each play. Let the battery cool down for a while.
LI-PO 500mAh 3.7 rechargeable battery
+USB charging cable (Included).

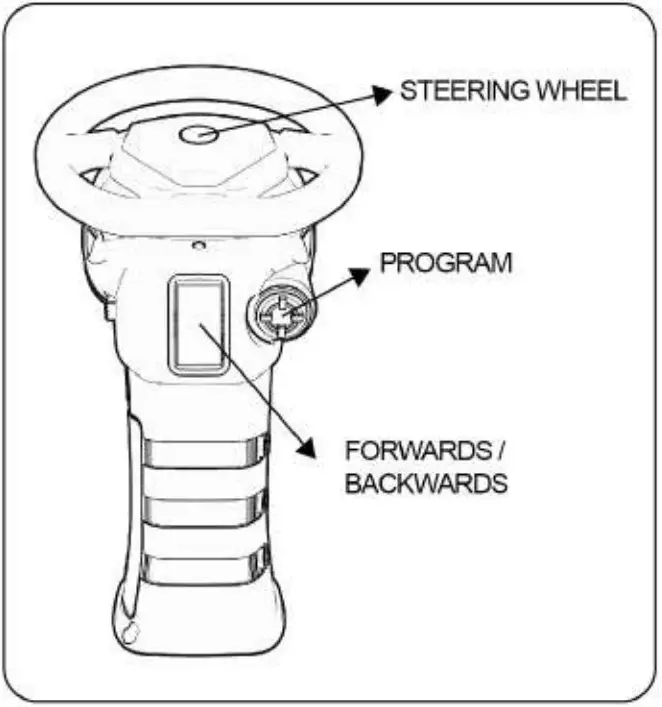

HOW TO USE:
- Turn on the vehicle first and then turn on the transmitter.
- Press the forwards/backwards button on the transmitter t o pair to the vehicle.
- When the vehicle is functioning, that means they are paired.
- If you have more than two vehicles, please pair one by one. When the second vehicle is pairing, please always keep the first vehicle and transmitter on.
- Please turn off both the vehicle and transmitter and re-start all pairing processes if you are changing to play with another 2.4GHZ transmitter.

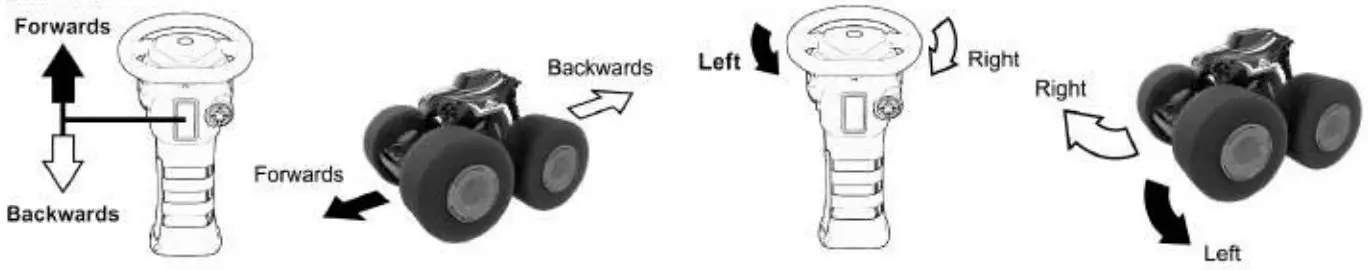

- How t o play:

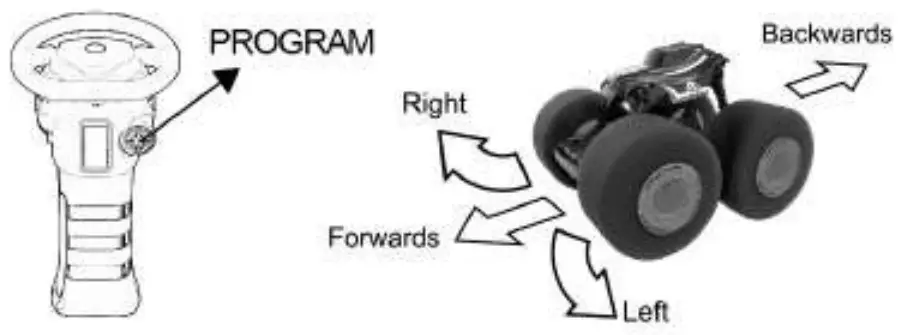

- How to program: Press the program button and your vehicle will enter program mode.
Once in program mode, you can press any buttons on the controller (forwards/backwards/turn left / turn right) to create a movement program. The vehicle can be programmed with up to 30 actions. Press the program button again t o have your vehicle carry out the movement program that you created.
WARNING: FOR THE PURPOSES OF RECHARGING THE BATTERY, ONLY USE THE DETACHABLE SUPPLY UNIT PROVIDED WITH THIS TOY. WARNING: THIS TOY PRODUCES FLASHES THAT MAY TRIGGER EPILEPSY IN SENSITISED INDIVIDUALS.
WARNING: CHOKING HAZARD-SMALL PARTS. NOT SUITABLE FOR CHILDREN UNDER 3 YRS.
WARNING: THE BATTERY CHARGER USED WITH THE ELECTRIC TOY SHALL BE REGULARLY EXAMINED FOR DAMAGE TO THE SUPPLY CORD, PLUG, ENCLOSURE OR OTHER PARTS, AND IN THE EVENT OF DAMAGE, IT SHALL NOT BE USED UNTIL THE DAMAGE HAS BEEN REPAIRED WARNING: THE TOY IS ONLY TO BE CONNECTED TO CLASS II EQUIPMENT BEARING THE SYMBOL.
WARNING: BATTERIES ARE TO BE INSERTED WITH THE CORRECT POLARITY (+ AND -). DO NOT MIX DIFFERENT TYPES OF BATTERIES OR NEW AND USED BATTERIES NON-RECHARGEABLE BATTERIES ARE NOT TO BE RECHARGEO RECHARGEABLE BATTERIES ARE ONLY TO BE CHARGED UNDER ADULT SUPERVISION. THE SUPPLY TERMINALS ARE NOT TO BE SHORT-CIRCUITED REMOVE BATTERIES FROM THE TOY WHEN NOT IN USE FOR AN EXTENDED TIME OR WHEN BATTERIES BECOME EXHAUSTED. BATTERY INSTALLATION BY AN ADULT IS REQUIRED. DISPOSE OF BATTERIES RESPONSIBLY DO NOT DISPOSE OF IN FIRE.
PERFORMANCE TIPS: OO NOT DRIVE THE VEHICLE THROUGH WATER.
PRODUCT MAY VARY SLIGHTLY FROM IMAGE SHOWN.
PLEASE KEEP PACKAGING FOR FUTURE REFERENCE.
READ THE INSTRUCTIONS BEFORE OPERATING THE PRODUCT.
THE INSTRUCTION SHEET MUST BE RETAINED SINCE IT CONTAINS IMPORTANT INFORMATION.
KEYCODE: 43232185
