SUNRICHER 0-10V BLE Fixture Integrated Sensor Controller
PRODUCT INFO
Parameters
| Input Output, 011-1 av | Control | Environment | Others | |||
| Power | Signal Current | Dimming Curve | Dimming Method | Operating temperature | Relative humidity | Size |
| 12-36VDC | Bluetooth Max. 20mA | Logarithmic | PWM | -20 °C-+50 °C | 8% to 80% | See dimensions |
FEATURES
- Bluetooth to 0-1 0V signal converter,Bluetooth® mesh network
- Built-in 20mA 0-10V signal output
- Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
- All devices on 0-1 0V line are broadcast controlled by mobile application
- Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
- In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
- Available with Magnetic reset (Touch the top part of sensor for 5 seconds)
- On-board antenna
- Waterproof grade: IP20
- 5 years warranty

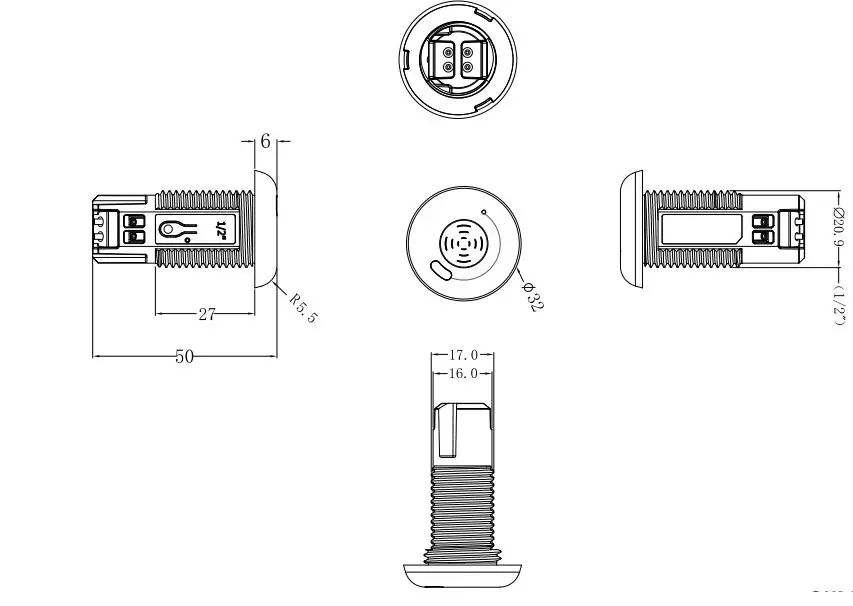

DIMENSION

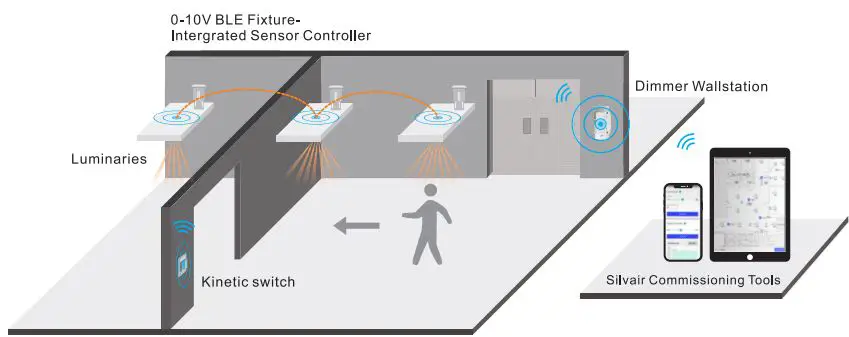

APPLICATION
SPECIFICATION
ENERGY SAVINGS
- Low/High-end trimming
- Daylight harvesting
- Occupancy/Vacancy detection
- Auto and advanced demand response programs
- Time-of-Day dimming schedule
- Energy monitoring
COMFORT & CONVENIENCE
- Advanced occupancy detections
- Light-level stability
- Configurable dim-and-linger occupancy
- Personalized setting profile
- Work with kinetic switch keypad and dimmer wallstation
- Multi-scenes control
SENSING
- Mounting height: 3m
- Recommended mounting height: 2.5m
- Detection area diameter: 1 [email protected]
ENVIRONMENT AND APPROBATION
- Operating temperature: -20 ° C to 55 ° C
- Agency approbations: CE/Ro HS/UL Com ming soon …
- Warranty: 5 years

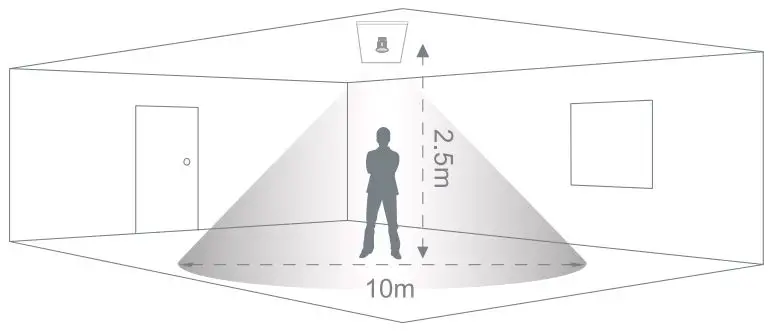

DETECTION PATTERN

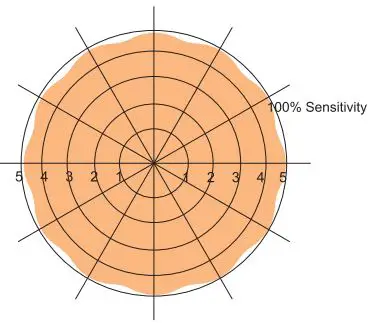

- Ceiling Pattern (Unit: m)
- Installation Height: 2.5m
- Sensitivity: highest
- Movement speed: 0.2-0.3m/S
- Wall Pattern (Unit: m)
- Installation Height: 2.5m
- Sensitivity: highest
- Movement speed: 0.2-0.3m/S
WARNING
- DO NOT install with power applied to device
- DO NOT expose the device to moisture
OPERATION
- Do wiring according to connection diagram
- Kindly refer to Silvair commissioning User Manual for further pairing

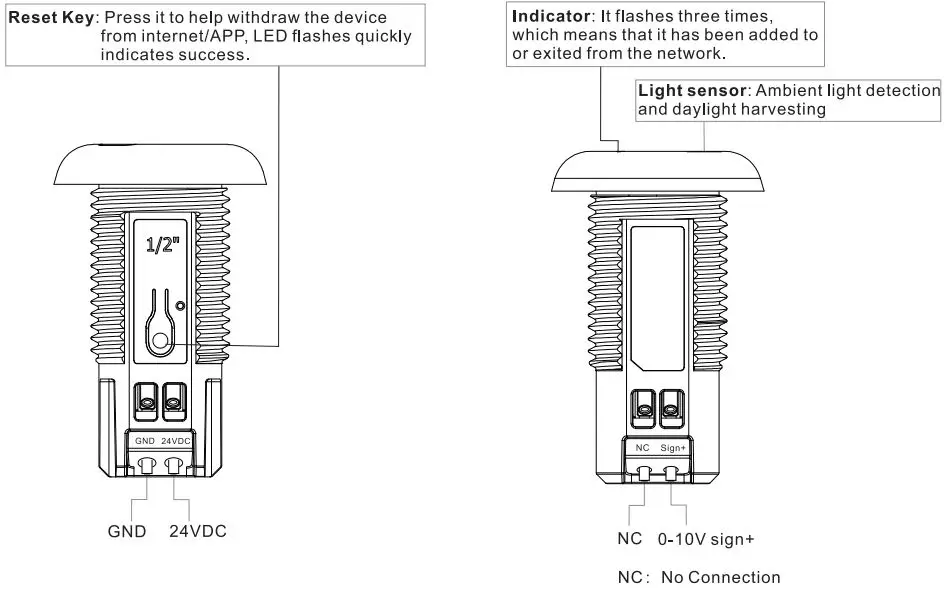

- Press and hold down the “Reset”button on the controller over 5 seconds until the indicator flashes , which means it has been reset.
- Available with Magnetic reset (Touch the top part of sensor for 5 seconds)

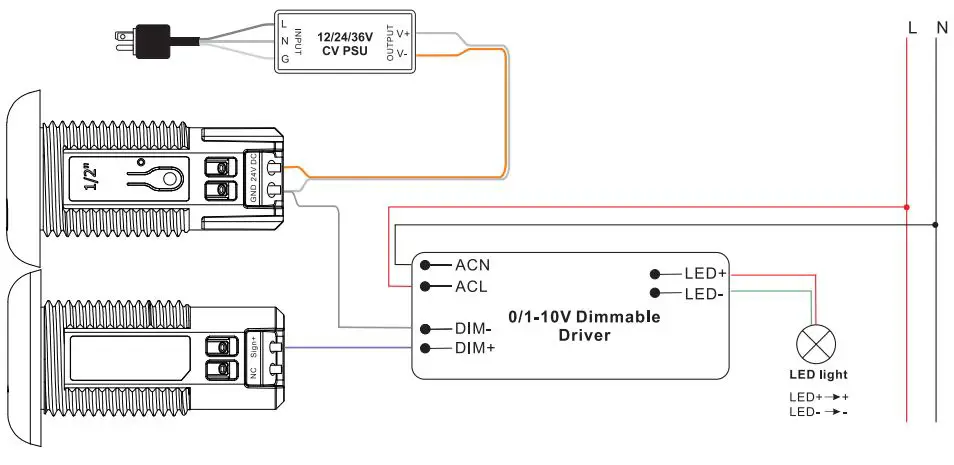

WIRING
Update log
| Date | Version | Update content | Update by |
| 2022-1-15 | V1.1 | Detection range | Romeo |
