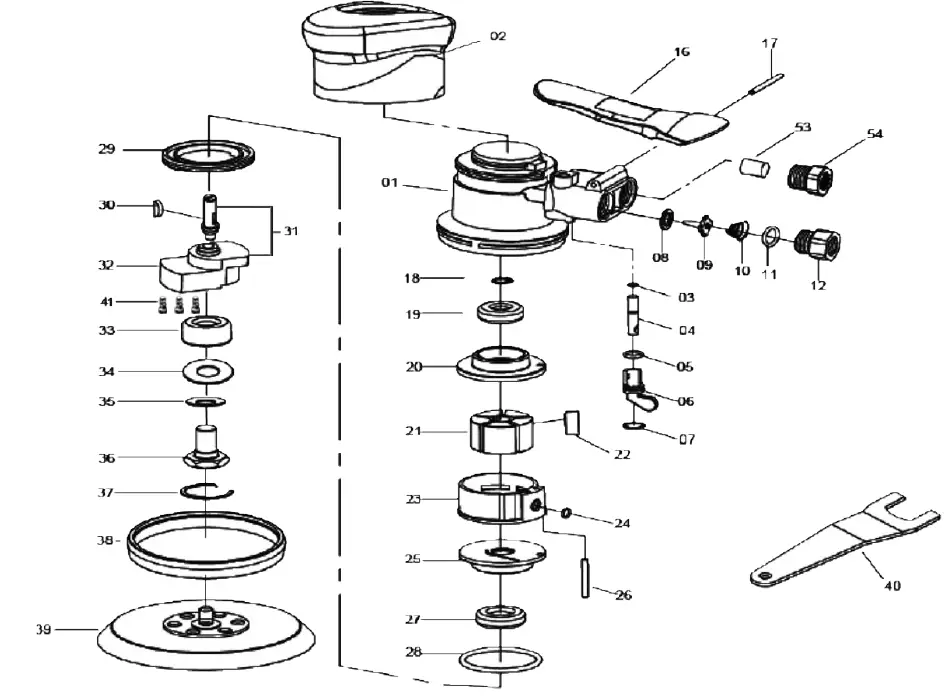

Taylor Pneumatic Tool Company T-7955 5 Inch HD Palm Grip DA Sander
DESCRIPTION
| REF # | PART # | DESCRIPTION | QTY |
| 1 | 795501 | HOUSING | 1 |
| 2 | 795502 | GRIP | 1 |
| 3 | 795503 | O-RING | 1 |
| 4 | 795504 | STEM | 1 |
| 5 | 795505 | O-RING | 1 |
| 6 | 795506 | CONTROL | 1 |
| 7 | 795507 | C-RING | 1 |
| 8 | 795508 | RETAINER | 1 |
| 9 | 795509 | VALVE | 1 |
| 10 | 795510 | SPRING | 1 |
| 11 | 795511 | O-RING | 1 |
| 12 | 795512 | AIR INLET | 1 |
| 16 | 795516 | LEVER | 1 |
| 17 | 795517 | PIN | 1 |
| 18 | 795518 | C-RING | 1 |
| 19 | 795519 | BEARING | 1 |
| 20 | 795520 | END PLATE | 1 |
| 21 | 795521 | ROTOR | 1 |
| 22 | 795522 | ROTOR BLADE (SET OF 5) | 1set |
| 23 | 795523 | CYLINDER | 1 |
| 24 | 795524 | O-RING | 1 |
| REF # | PART # | DESCRIPTION | QTY |
| 25 | 795525 | FRONT PLATE PIN BEARING O-RING LOCK-RING KEY SPINDLE / WITH BALANCER BEARING WASHER WASHER SHAFT C-RING HOUSING COVER 5” PAD 6” PAD SPANNER ALLEN SCREW (For 6″ Only) MUFFER EXHAUST COVER | 1 |
| 26 | 795526 | 1 | |
| 27 | 795527 | 1 | |
| 28 | 795528 | 1 | |
| 29 | 795529 | 1 | |
| 30 | 795530 | 1 | |
| 31 | 795531A | 1set | |
| 33 | 795533 | 1 | |
| 34 | 795534 | 1 | |
| 35 | 795535 | 1 | |
| 36 | 795536 | 1 | |
| 37 | 795537 | 1 | |
| 38 | 795538 | 1 | |
| 39A | T-7415 | 1 | |
| 39B | T-7416 | 1 | |
| 40 41 | 795540 795641 | 1 3 | |
| 53 | 795553 | 1 | |
| 54 | 795554 | 1 |
