7292-02 Sheet Palm Sander
Instruction Manual

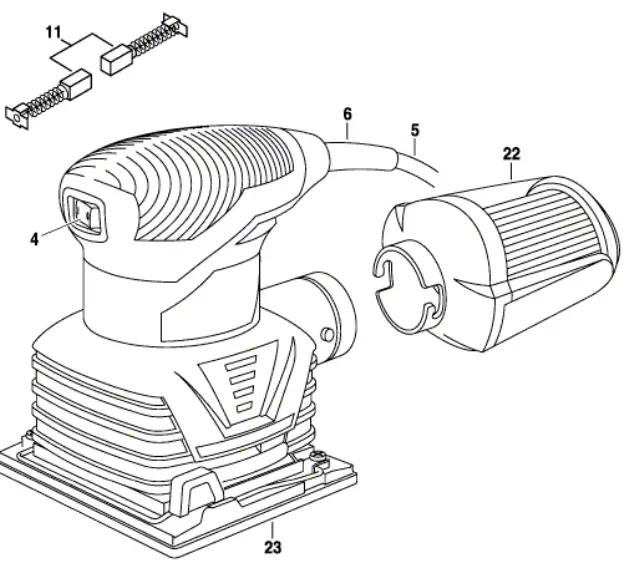

7292-02 Sheet Palm Sander
Product Description: Sheet Sander
Model Number: 7292-02
Body Number: 0560170001
Version: A
Issue Date: 2014/09/03
| No. | Product Model# | Part Number | Description | Qty |
| 4 | 7292-02 | 4870696014 | SWITCH | 1 |
| 11 | 7292-02 | 4960384007 | CARBON BRUSH | 2 |
| 5 | 7292-02 | 4810237011 | POWER LINE | 1 |
| 6 | 7292-02 | 3130253053 | POWER SLEEVE | 1 |
| 22 | 7292-02 | 2826622053 | DUST BOX | 1 |
| 23 | 7292-02 | 3130253054 | BASE PLATE | 1 |

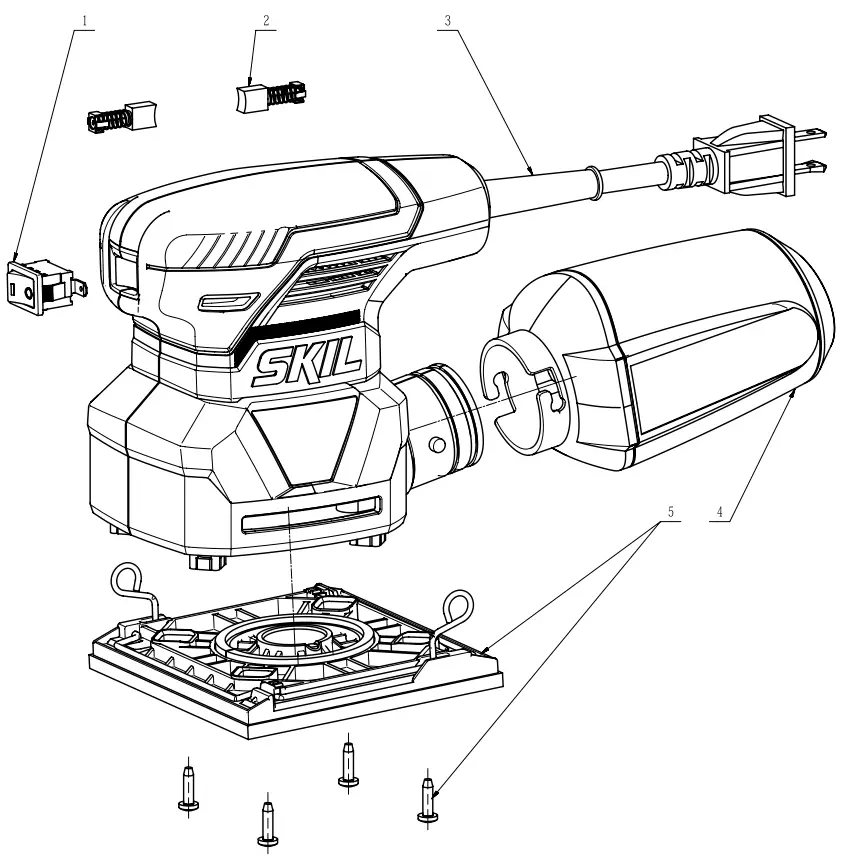

Product Description: Sheet Sander
Model Number: 7292-02
Service Item Number: F320127001501
Version: B
Issue Date: 2022/09/30
| No. | Product Model# | Part Number | Description | Qty |
| 1 | 7292-02 | 4870385005 | Rocker Switch | 1 |
| 2 | 7292-02 | 4960316003 | Carbon Brush | 2 |
| 3 | 7292-02 | 4810410001 | Power Cord Assembly | 1 |
| 4 | 7292-02 | 2829334001 | Dust Box Assembly | 1 |
| 5 | 7292-02 | 2829669001 | Base Plate Set | 1 |
