RGB WW Chandelier LED Bulb
Instruction Manual
Item no.014832
RGB/WW CHANDELIER LED BULB
OPERATING INSTRUCTIONS Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
SAFETY INSTRUCTIONS
- The product must not be connected to a dimmer circuit.
- The product can only be dimmed with the remote control.
- For indoor use only.
- The product must only be used in a dry room.
- The product must only be used with the supplied remote control.
- The product is only intended for decorative lighting and is not suitable for room lighting.
- For light sources that are a lot heavier than the light sources, they are replacing the greater weight can adversely affect the mechanical stability of some lights and fittings and can result in inferior contact and that the light source is less firmly attached.
SYMBOLS
| Read the instructions. |
 | Only dimmable with the remote control. |
 | Must only be used in a dry room. |
 | Approved in accordance with the relevant directives. |
 | Recycle end-of-life product in accordance with local regulations. |
TECHNICAL DATA
| Rated voltage | 230 V — 50 Hz |
| Rated current | 48 mA |
| Power consumption | 4.9 W |
| Socket | E14 |
| Luminous flux | 430 Im |
| Energy efficiency class | F |
| Life span | 25000 h |
| Max number of cycles on/off | 15,000 |
| Time for light source to reach 60% of brightness | < 1 s |
| Start time | < 0.5 s |
| Color temperature | 2700k+ RGB |
| Size | 107mm x Ø37 mm |
| Weight | 25 g |
| Ambient temperature | 40 to 40°C |
| Range remote control | – 3m |
| Dimmer function*, integrated | 5 stage |
| *Only with remote control |
DESCRIPTION
- Off
- On
- Adjusting the brightness (5 stages)
- 42 colours that change in the repeated cycle (manually)
- White light
- 15 colours that change immediately or gradually in an automatically repeated cycle

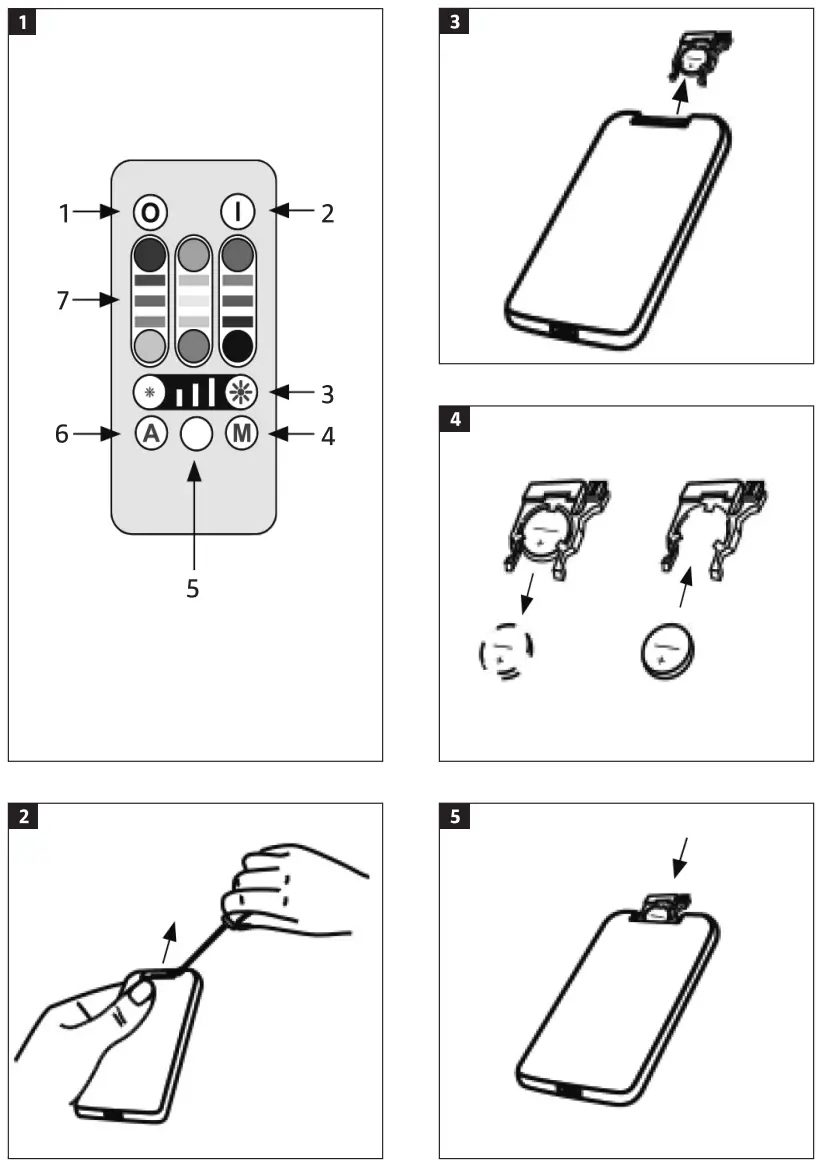

- Colour display FIG. 1
HOW TO USE
NOTE:
When the light source has been switched off it always starts in automatic colour-changing mode.
 | Button off/on. |
 | Dimmer function. Press the left button to reduce the brightness. Press the right button to increase the brightness. |
 | Manual control. Press the button to change colour manually. 15 colours that change gradually in a pre-programmed sequence. |
 | Button for cold white light. |
 | Automatic mode. Press the button to activate automatic colour changing with 15 colours that change immediately or gradually in automatically repeated cycle. |
 | Press the button opposite the same column to gradually change colour to the colour of the button that is pressed. |
 | Press a button to show the colour. |
MAINTENANCE
REPLACING THE BATTERY
FIG. 2-5
