014834 RGB Reflector Bulb LED
Instruction Manual
Important! Read the user instructions carefully before use. Save them for future reference.
(Translation of the original instructions),
Care for the environment!
Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes. For the latest version of operating instructions, see www.jula.com
SAFETY INSTRUCTIONS
- The product must not be connected to a dimmer circuit.
- The product can only be dimmed with the remote control.
- For indoor use only.
- The product must only be used in a dry room.
- The product must only be used with the supplied remote control.
- The product is only intended for decorative lighting and is not suitable for room lighting.
- For light sources that are a lot heavier than the light sources, they are replacing the greater weight can adversely affect the mechanical stability of some lights and fittings and can result in inferior contact and that the light source is less firmly attached.
SYMBOLS
 | Read the instructions. |
 | Only dimmable with the remote control. |
 | Must only be used in a dry room. |
 | Approved in accordance with the relevant directives. |
 | Recycle end-of-life products in accordance with local regulations. |
TECHNICAL DATA
| Rated voltage | 230 V50 Hz |
| Power consumption | 4.9W |
| Socket | GU10 |
| Luminous flux | 330 Im |
| Energy efficiency class | G |
| Life span | 25000 h |
| Max number of cycles on/off | 12 500 |
| Time for light source to reach 60% of brightness | < 1 s |
| Start time | < 0.5 s |
| Color temperature | 2700 K + RGB |
| Size | 53 mm x (50 mm |
| Ambient temperature | -40 to 40°€ |
| Range remote control | 3 m |
| Dimmer function, integrated | 5 stage |
*Only with remote control
DESCRIPTION
- Off
- On
- Adjusting the brightness (5 stages)
- 42 colours that change in a repeated cycle (manually)
- White light
- 75 colors that change immediately or gradually in an automatically repeated cycle
- Colour display

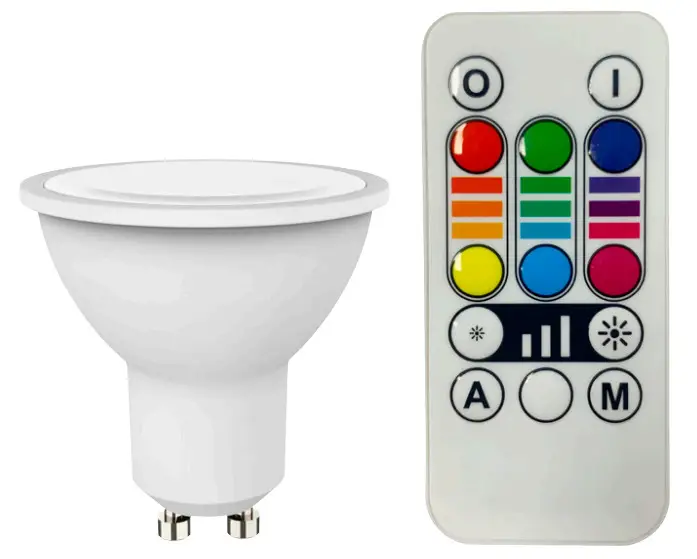

FIG. 1
HOW TO USE
NOTE:
When the light source has been switched off it always starts in automatic color-changing mode.
 | Button off/on. |
 | Dimmer function. Press the left button to reduce the brightness. Press the right button to increase the brightness. |
 | Manual control. Press the button to change the color manually. 15 colors that change gradually in a pre-programmed sequence. |
 | Button for cold white light. |
 | Automatic mode. Press the button to activate the automatic color changing with 15 colors that change immediately or gradually in an automatically repeated cycle. |
 | Press the button opposite the same column to gradually change color to the color of the button that is pressed. |
 | Press a button to show the color. |
JULA AB, BOX 363, SE-532 24 SKARA
2022-03-07
© Jula AB
