UC-2120
120W USB-C/A Ga N Charger
Ver: A
USER MANUAL
SWIT Electronics Co. ,Ltd.
UC-2120 120W USB C/A GaN Charger
Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference.
Warning
Keep in mind the following precautions to avoid fire or electric shock!
- Never expose the battery charger to rain or moisture.
- Never attempt to open the battery charger, please contact the local agent if have problems.
- Never use metal or other conductors to touch the inside of the battery charger.
- Please make sure the voltage range is fit for the battery charger.
Caution
- Keep the terminals clean and ensure the reliable connection.
- It is a normal phenomenon that the battery charger may become warm in use.
- Do not cover the cooling vent.
- Please do not cover the charger when it’s charging.
- The charger works between -10°C to 40°C. However, we recommend that use the charger between 0°C to 25°C to ensure highest efficiency.
Appearance

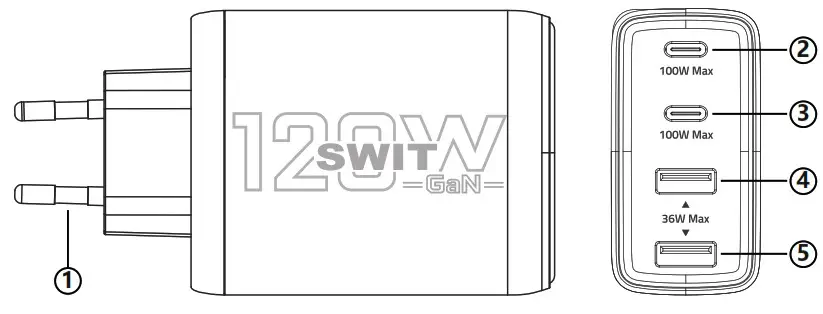

① Power plug: EU and UK standard for option
② USB Type C output 1, Max 100W
③ USB Type C output 2, Max 100W
④ USB Type A output 1, Max 36W
⑤ USB Type A output 2, Max 36W
Specifications
| Input voltage (Nominal) | AC 100-240V, 50/60Hz | |
| Input voltage (Range) | AC 90-264V | |
| Output Power | 120W Max | |
| USB-C only | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A | Max 100W |
| USB-A only | 15B-A: 4.5V/5A, 5V/3A, 9V/3A, 12V/3A, 20V/1.5A | Max 36W |
| USB-C + C | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A | Max 60W+60W |
| USB-A + A | USB-k 5V/3A | Max 15W in total |
| USB-C + A | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A USB-k 5V/3A, 9V/2A, 12V/1.5A | Max 100W+18W |
| USB-C + C + A | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A USB-A: 5V/3A, 9V/2A, 12V/1.5A | Max 45W+45W+18W |
| USB-C + A + A | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A USB-A: 5V/3A | Max 100W+15W |
| USB-C+C+A+A | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A USB-A: 5V/3A | Max 45W+45W+15W |
| Working Environment | Temperature -10°C to 40°C; Humidity 1095RH to 90% RH | |
| Storage Environment | Temperature -10°C to 85°C; Humidity 10%RH to 90% RH | |
| Dimension | 773mm x 60.5mm x 315mm | |
| Weight | 255g | |
