torqeedo logo

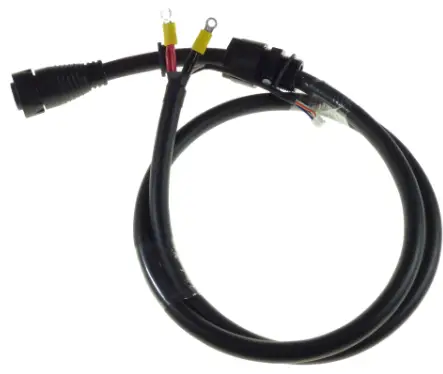

torqeedo I34 Power Cable Connectiontorqeedo I34 Power Cable Connection

Installation Drawing: 134

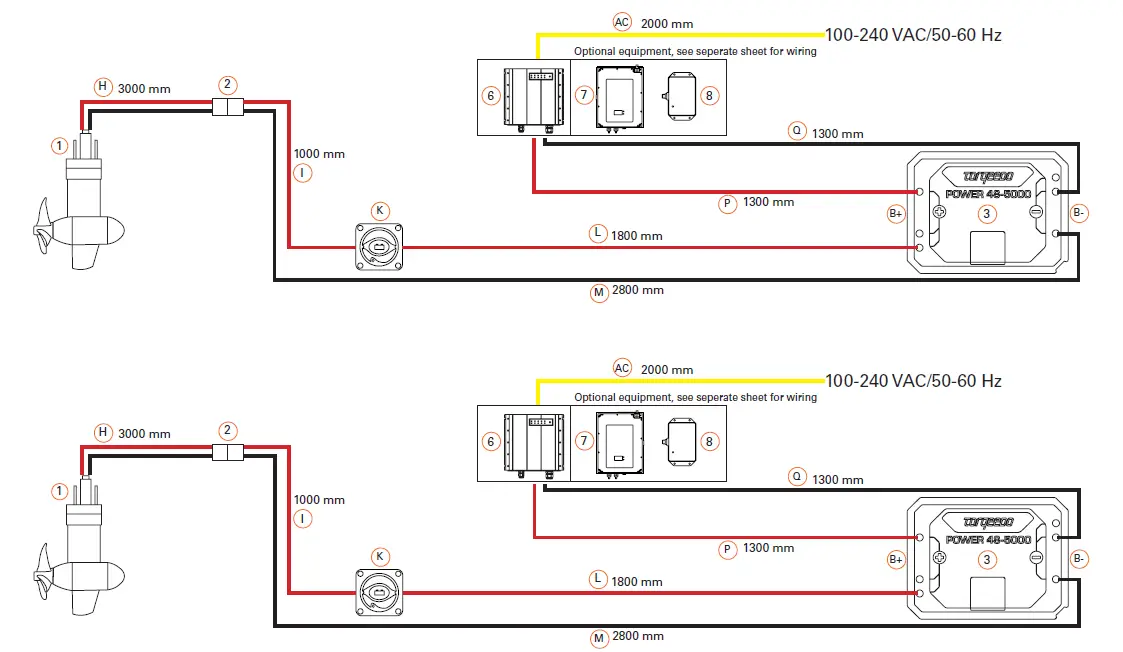

Power cable connectiontorqeedo I34 Power Cable Connection 1

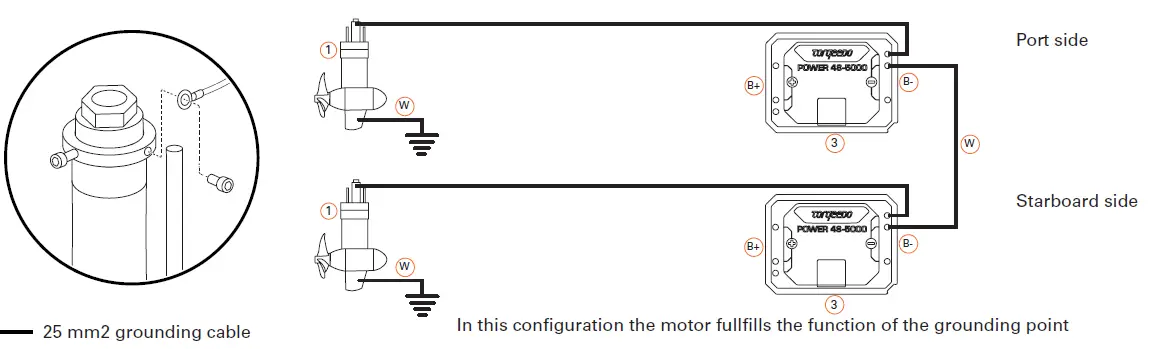

System ground connection

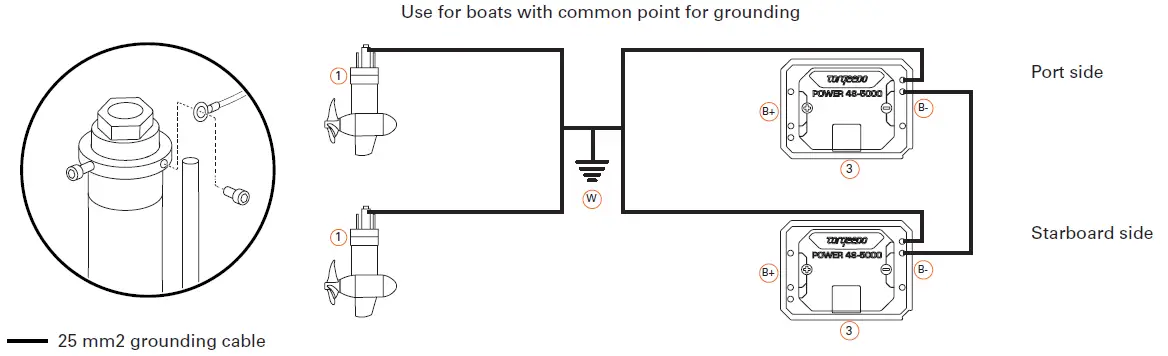

Use for boats without common point for groundingtorqeedo I34 Power Cable Connection 2torqeedo I34 Power Cable Connection 3

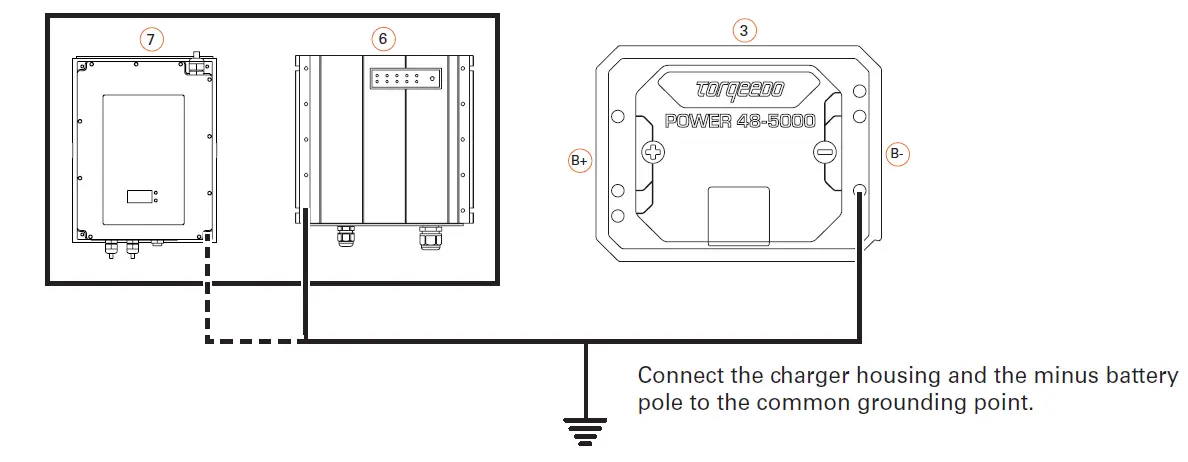

WARNING: In case the charger is permanently installed in the boat, the charger housing or its AC PE and battery minus pole must be connected to the common grounding point. The AC connection requires specialist knowledge and may only be carried out by qualified personnel. If necessary, have the planning and installation carried out by a specialist.

NOTE! To charge the batteries in the boat, a land connection in the boat with galvanic isolator or isolation transformer is required according to applicable national requirements (e.g. DIN EN ISO 13297, ABYC E-11).torqeedo I34 Power Cable Connection 4

Data cable connectiontorqeedo I34 Power Cable Connection 5

Bill of material/Legend/Information

Pos.Item numberNameRemarks Pos.Item numberNameRemarks
11269-00Cruise 6.0 FP TorqLink Optional equipment
H, I, K, L, M Cable set with battery switchSee picture for cable length
72212-00Fast charger Power 482900 W
2 Power connectormax. 175 A
P + DC charge cable2400 mm; Do not extend!
b Backbone TorqLink cable 8-pin5000 mm
Q – DC charge cable2400 mm; Do not extend!

B+ + Battery pole7,5 Nm
32104-00Power 48-5000Select TorqLink-Battery in throttle menu!
B- – Battery pole7,5 Nm
a T-Cable 8-pin900 mm/50 mm, Do not extend!
AC AC power cable1000 mm
not illus- trated + Battery pole adapter

– Battery pole adapter

Not needed for your configurationa T-Cable 8-pin900 mm/50 mm, Do not extend!

W System groundmin. 25 mm2, not included82218-00Solar charge controller for Power 48-5000For TorqLink system only!

Only as stand alone charger or in combination with 2212-00 Fast charger Power 48!


41952-00Throttle Topmount Twin P + Charge cable1500 mm
22000-00858GatewayDo not use for your configuration!Q – Charge cable1500 mm
U Gateway Power cable 1700 mm cableDo not use for your configuration!R + Input solar cable150 mm
S – Input solar cable150 mm
b Backbone TorqLink cable 8-pin5000 mm
a T-Cable 8-pin900 mm/50 mm, Do not extend!
17 Emergency switch with cable1000 mm
20 Key switch
g Cable for key switch 6-Pin to 8-pin1000 mm
14000-00877TorqLink Terminator TwinBus termination resistor
a T-Cable 8-pin900 mm/50 mm, Do not extend!

62213-00Charger Power 48650 W, for AC charging while running use Fast charger Power 48 2212-00;

Not compatible with solar charger 2218-00

P + DC charge cable1300 mm; Do not extend!
Q – DC charge cable1300 mm; Do not extend!
B+ + Battery pole7,5 Nm
B- – Battery pole7,5 Nm
AC AC power cable2000 mm
a T-Cable 8-pin900 mm/50 mm, Do not extend!

Connect the cruise motor and terminator to each end of the backbone. The TorqLink bus system requires a terminator (terminating resistor) at both ends of the backbone in order to function correctly. One of the terminators is located in the „Terminator Single“, „Terminator Twin“, „Throttle 1918-00“, „ Throttle 1976-00“ , the other is built into the cruise motor. Therefore, when installing, make sure that the components„Terminator“ and „Cruise motor“ are each connected to one end of the backbone. The connection position of the remaining components on the backbone can be freely selected.

Keep the following points in mind when planning:

  • An earthing point is required for your Torqeedo system. Take into account the connection and the cables required for this in your planning. The required cable cross-sections can be found in the section Tools, equipment and material.
  • First determine and plan the installation positions of all components.
  • Measure the required length of the TorqLink backbone.
  • Measure the lengths of all required stub lines (cable connection between component and TorqLink backbone).
  • When planning, please note that TorqLink drop cables must not be extended. If necessary, plan the TorqLink backbone so that the components can be connected through the TorqLink drop cable without an extension. If necessary, extend the TorqLink backbone to connect a component that is far away; you can find corresponding extensions in our accessories catalogue.
  • Cables must be fixed every 400 mm, plan attachment material. In places where fastening is not possible, a scuff guard must be fitted.
  • Openly laid cables (e.g. inflatable boat) must be protected with chafing protection, plan sufficient material.
  • When planning, please note not to bundle power cables with data or antenna cables (e.g. radios) for other loads.
  • Observe the minimum bending radius of the cables when planning.
  • If a second earthed onboard power system is available, ensure that both systems use a common earthing point.
  • Live parts must be fitted or installed with protection against accidental contact; the necessary installation space must be taken into account during the planning stage.
  • Always connect batteries as the last component to the system to avoid short circuits and voltage peaks.
  • Do not extend drop cables, extend backbone if necessary.
  • Protect plugs and contacts against contamination before installing them.
  • Do not pull at the cables.
  • Do not twist cables.
  • Do not install cables in permanently wet areas such as bilges.
  • Install cables free of chafing and not around sharp edges, if necessary, attach chafing protection.
  • Maintain bending limits.
  • Install plug connections free of tension and load. Observe the minimum bending radius when laying all cables:
    Torqeedo data cable8 x diameter
    Torqeedo power cable8 x diameter
    Earth cablesee cable manufacturer’s specifica- tions
    Other power cablessee cable manufacturer’s specifica- tions

Power cable connection

Port side

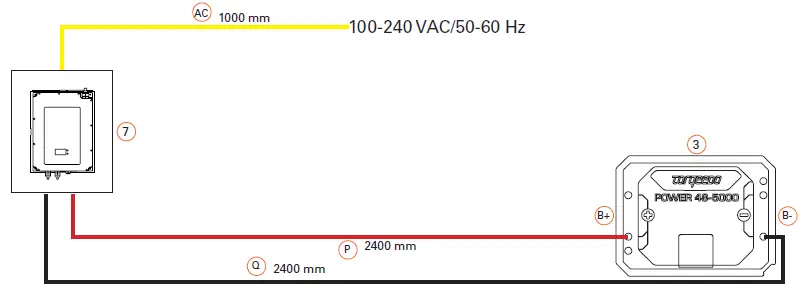

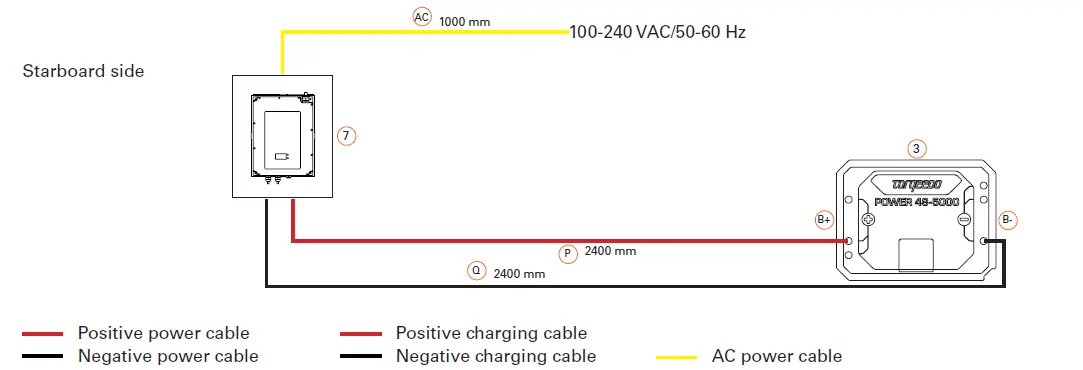

torqeedo I34 Power Cable Connection 6torqeedo I34 Power Cable Connection 7

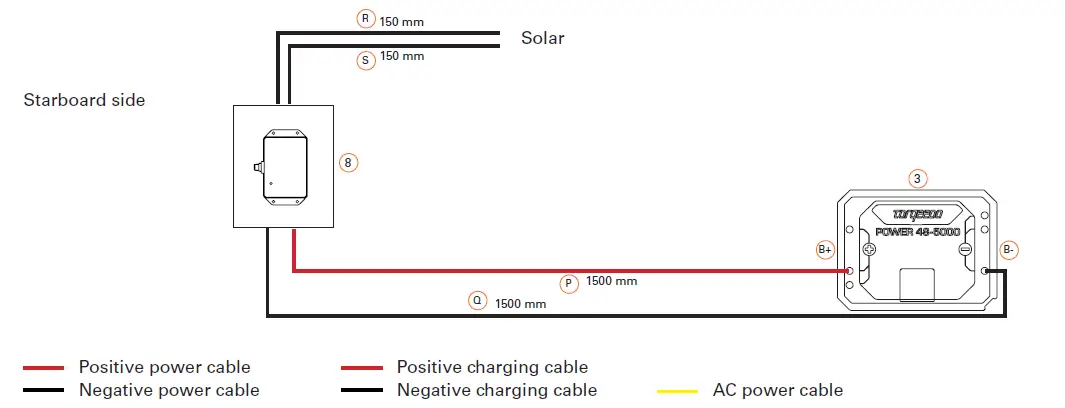

torqeedo I34 Power Cable Connection 8torqeedo I34 Power Cable Connection 9
