Schneider Electric LAD-311 Mounting Bracket Installation Guide

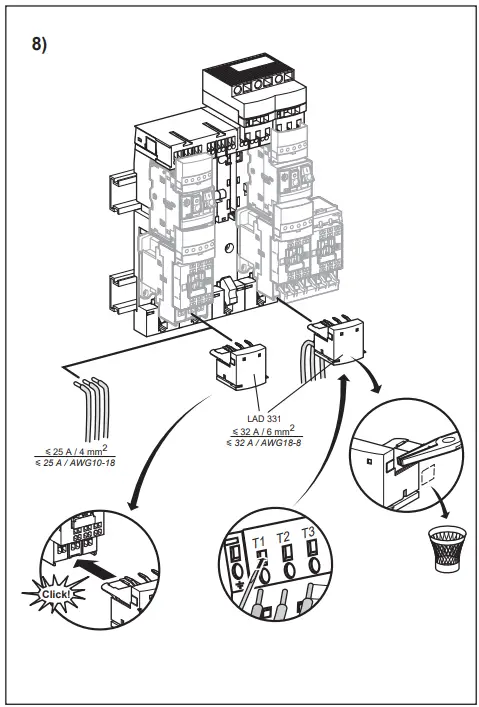

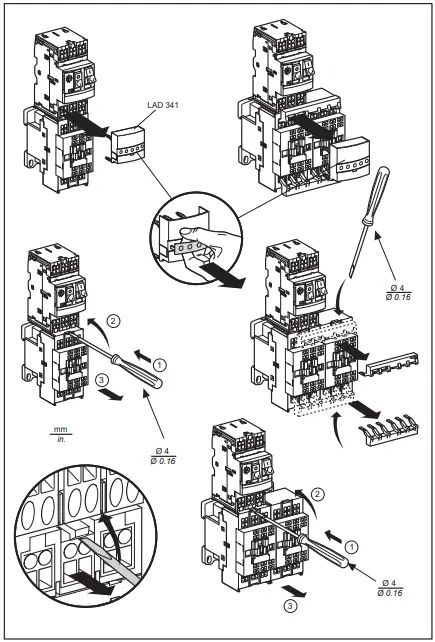

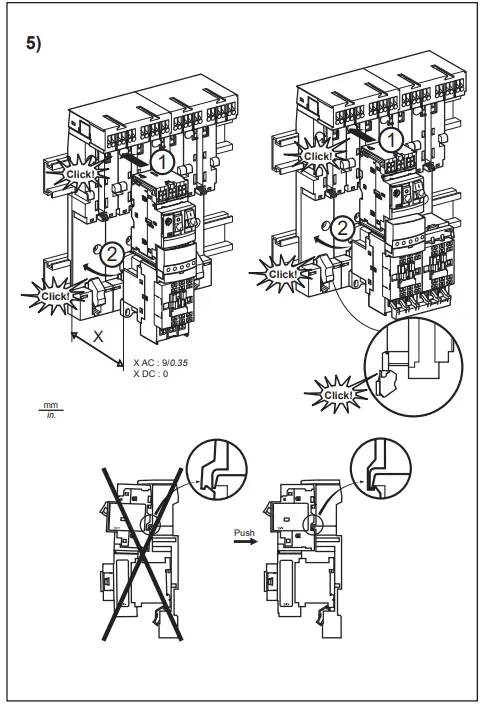

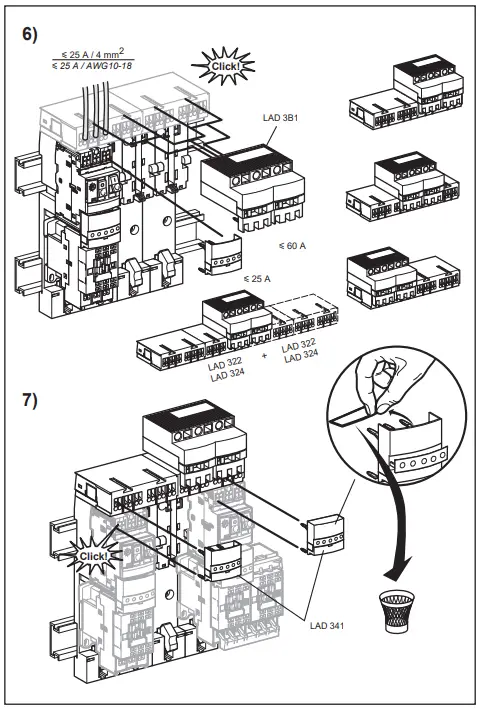

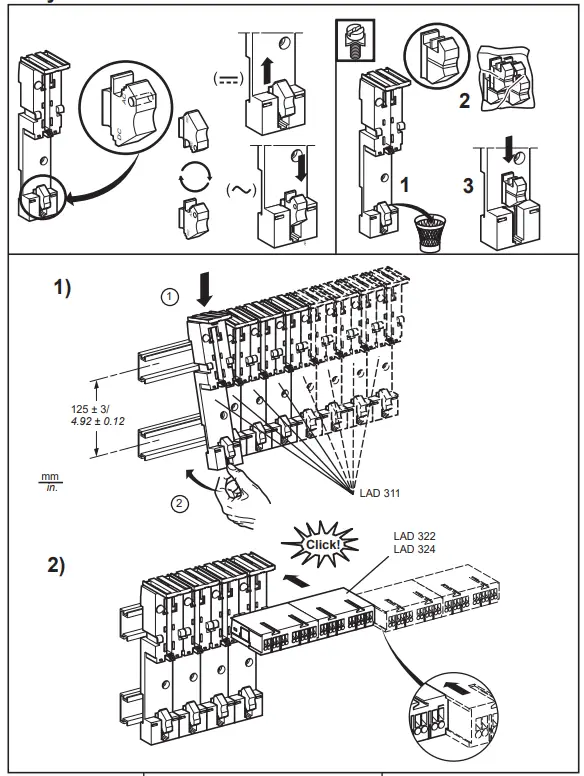

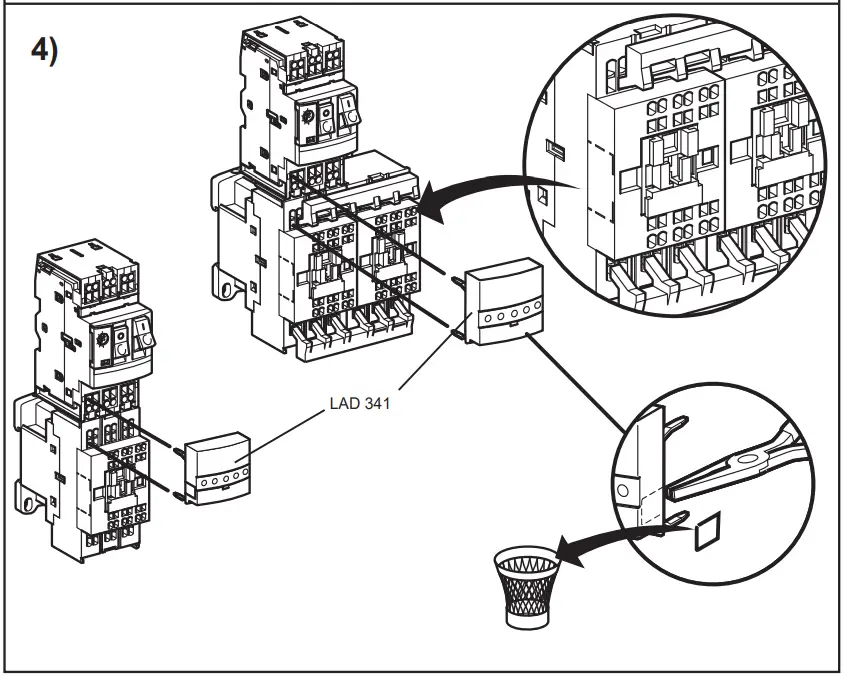

Installation Instruction
 P 400V |  |  | |
| KW | HP | GV2ME063 | LC1D093 |
| 0,37 | 0.5 | GV2ME073 | LC1D093  |
| 0,55 | 0.75 | GV2ME073 | LC1D093 |
| 0,75 | 1 | GV2ME083 | LC1D093 |
| 1,1 | 2 | GV2ME083 | LC1D093 |
| 2,2 | 3 | GV2ME103 | LC1D093 |
| 3 | 4 | GV2ME143 | LC1D093 |
| 4 | 5.5 | GV2ME143 | LC1D093 |
| 5,5 | 7.5 | GV2ME163 | LC1D123 |
| 7,5 | 10 | GV2ME203 | LC1D183 |
| 9 | 12 | GV2ME213 | LC1D25 |
| 11 | 15 | GV2ME223 | LC1D25 |
W9 1675442 0131 A08 06 – 2016 1/8
Schneider Electric Industries SAS
35, rue Joseph Monier 92506 Rueil Malmaison – Franc
