Surmountor N1615p Led Neon Flex Silicone Tube User Guide

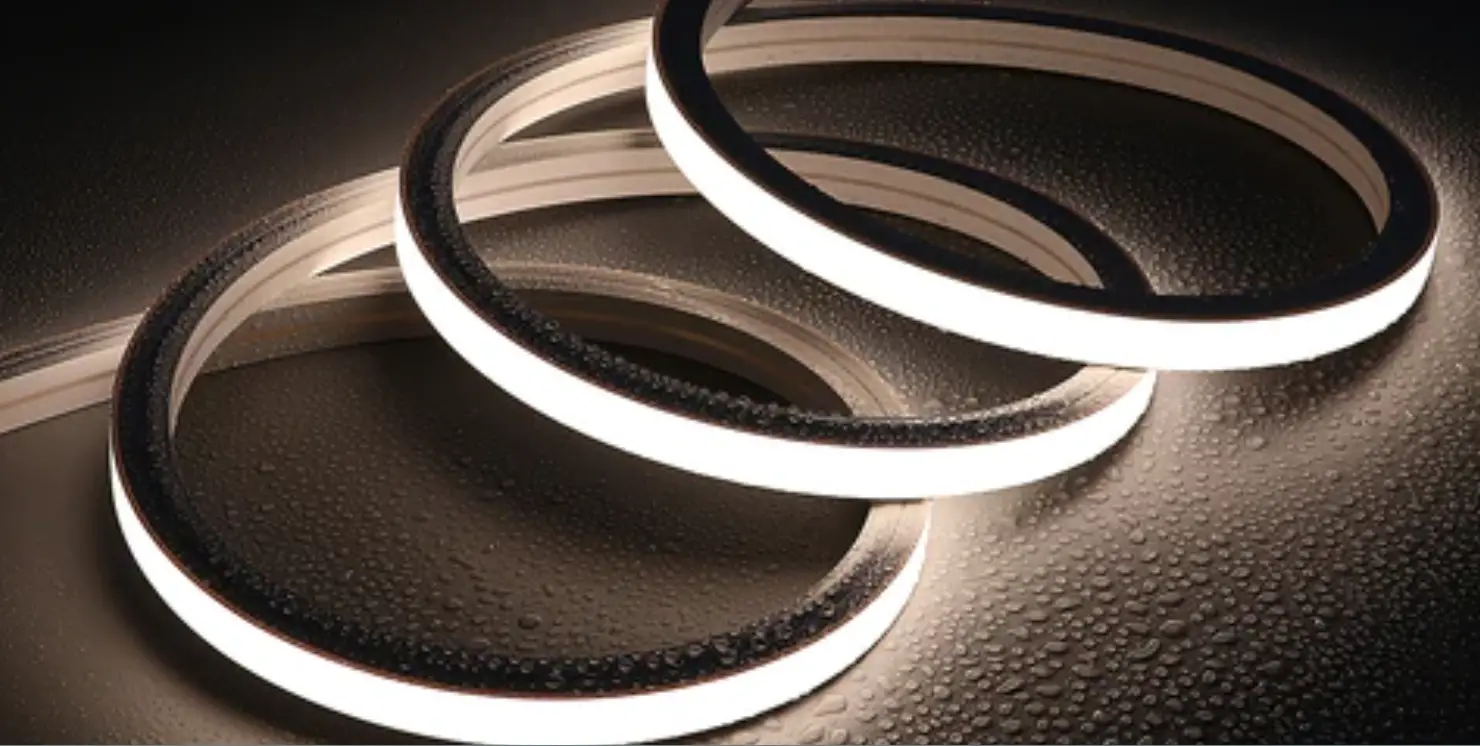

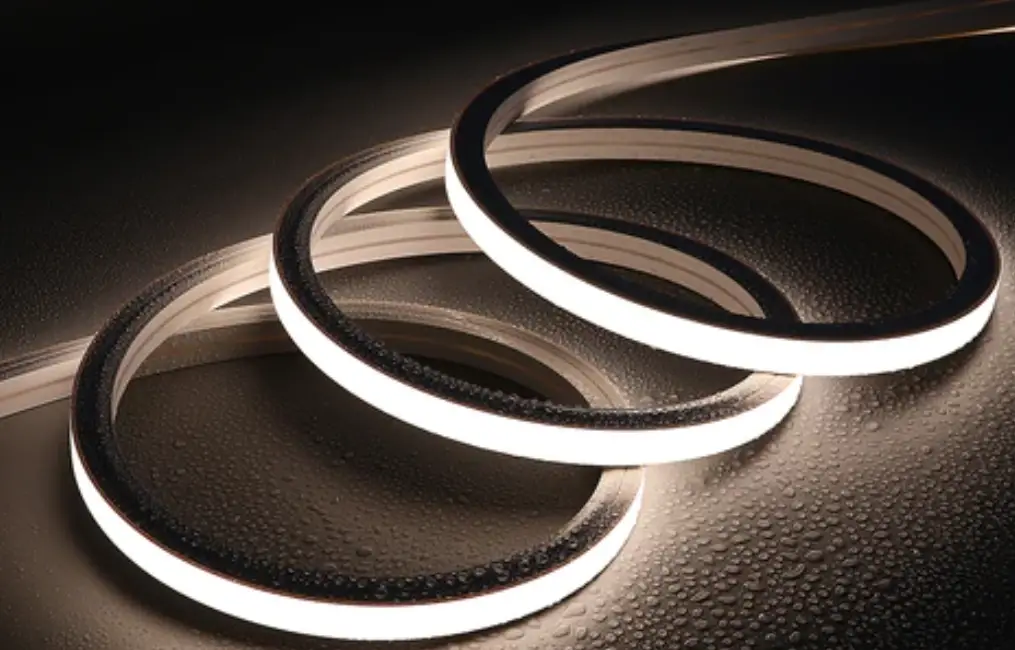

SurMountor N1615P LED Neon Flex Silicone Tube

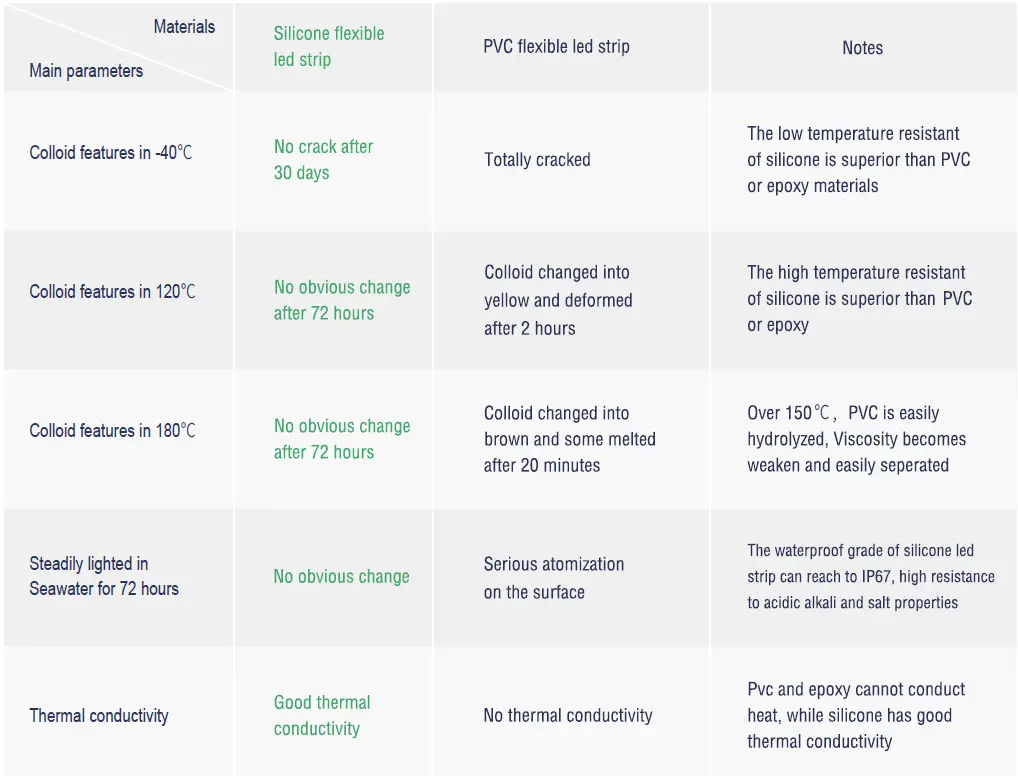

LED strip colloid specifications comparison

Product Features

•  Anti-yellowing and heat resisting silicone glue, chemical resistance acid and alkaline, available for extremely terrible outdoor environment.
•  Uniform and soft luminance, no light spot.
•  Super brightness large chip, golden wire welded and copper led holder for quicker heat dissipation, higher stability, longer life span.
•  Leadless SMT technique (RoHS certificated), smooth welding joint, firm connection of led and pcb.

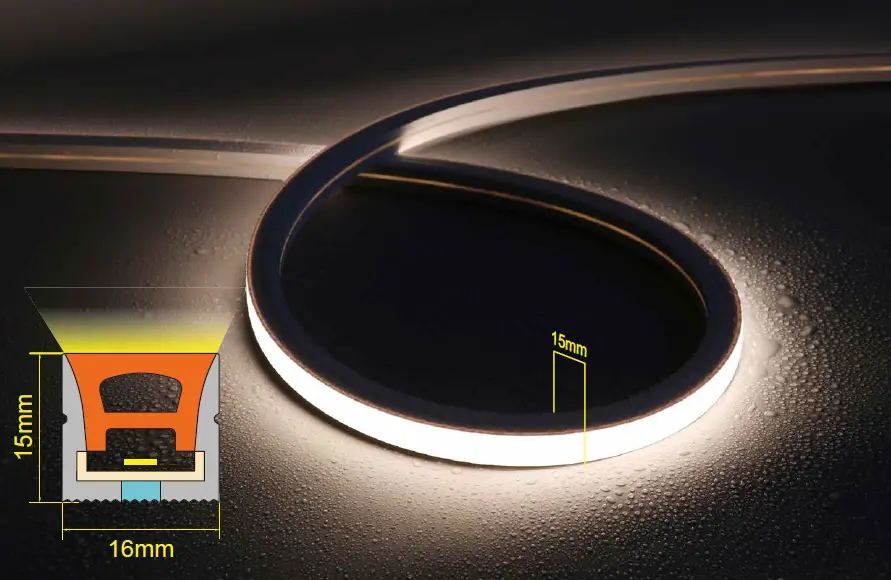

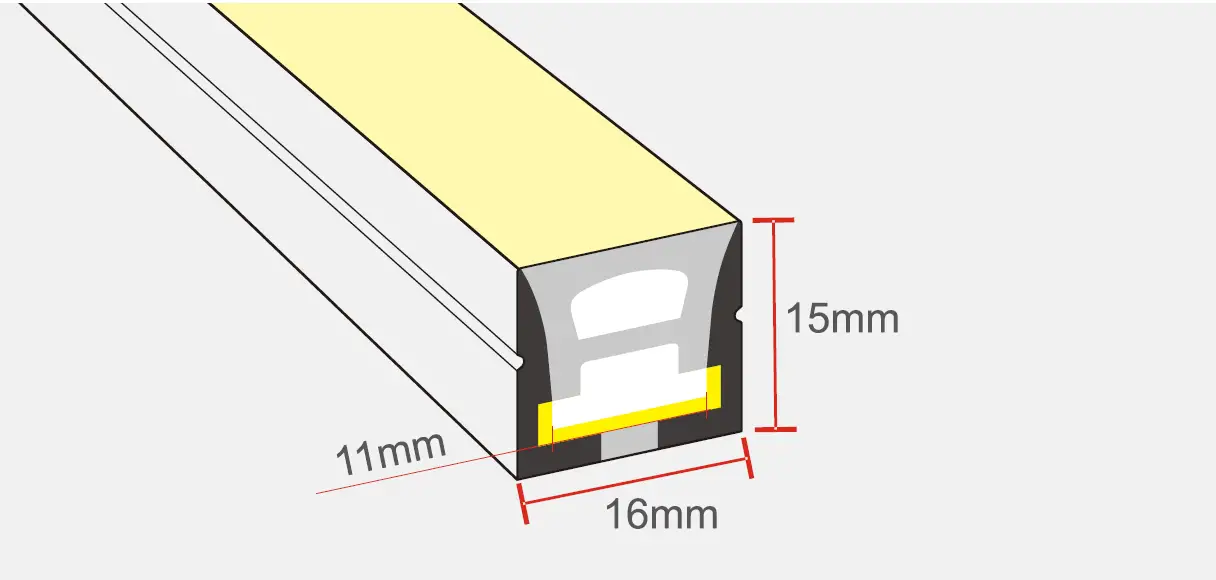

  Size (mm)	16*15
  PCB Limited (mm)	10
  IP Grade	IP67
  Working Temperature	–20	to	50°C
  N.W.(G/M)	275

Recommend Led Strip parameters

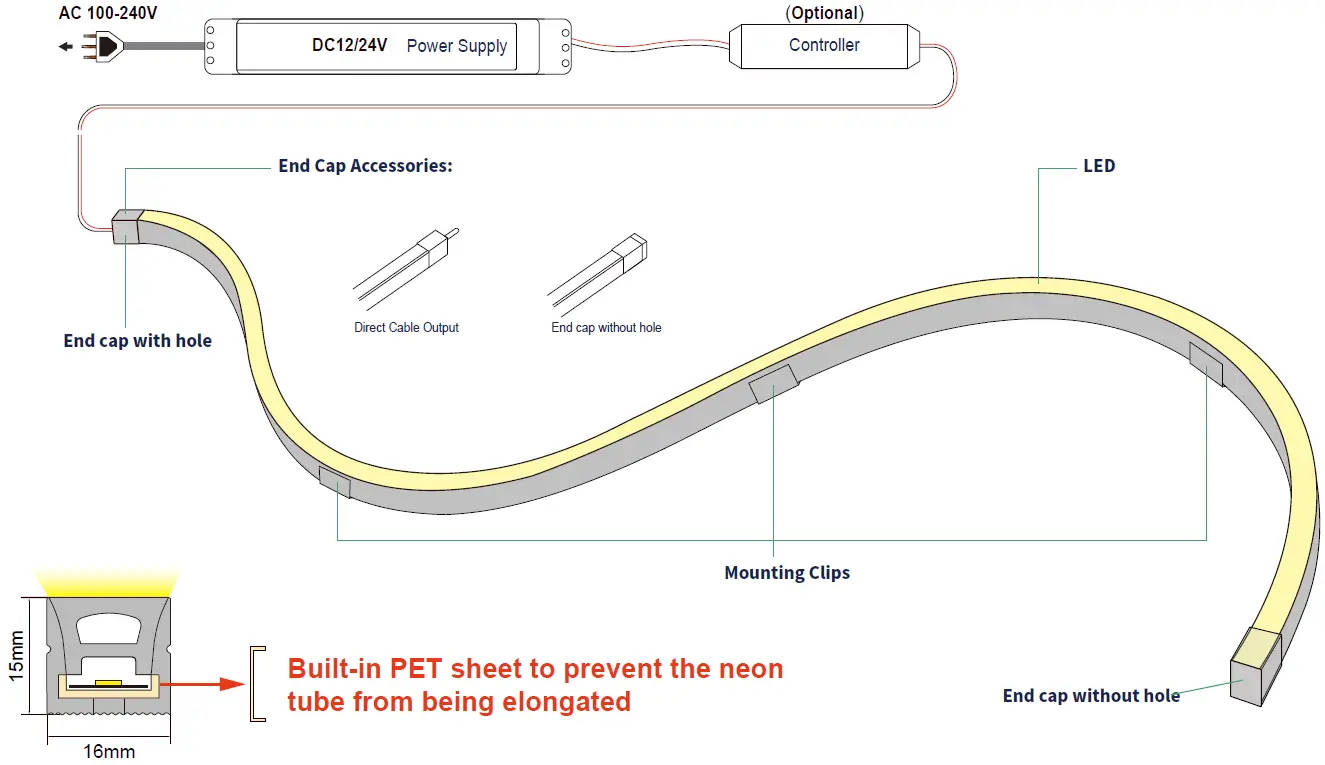

Product System Solutions

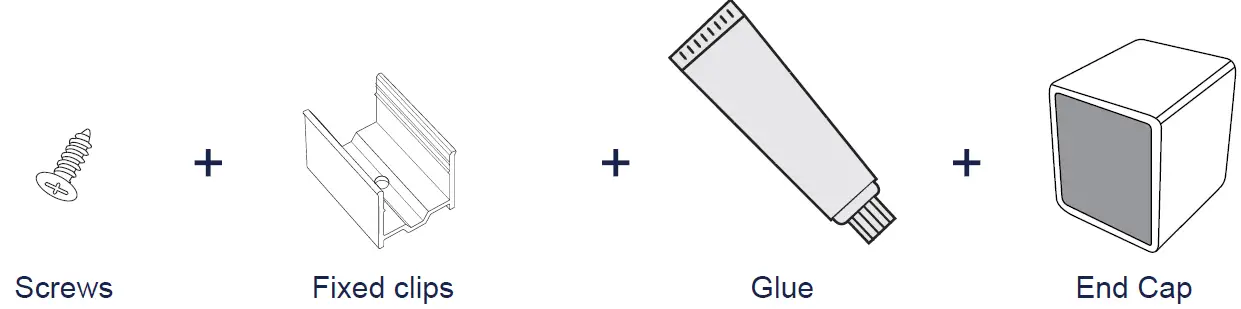

Installation Accessories

Installation of clip

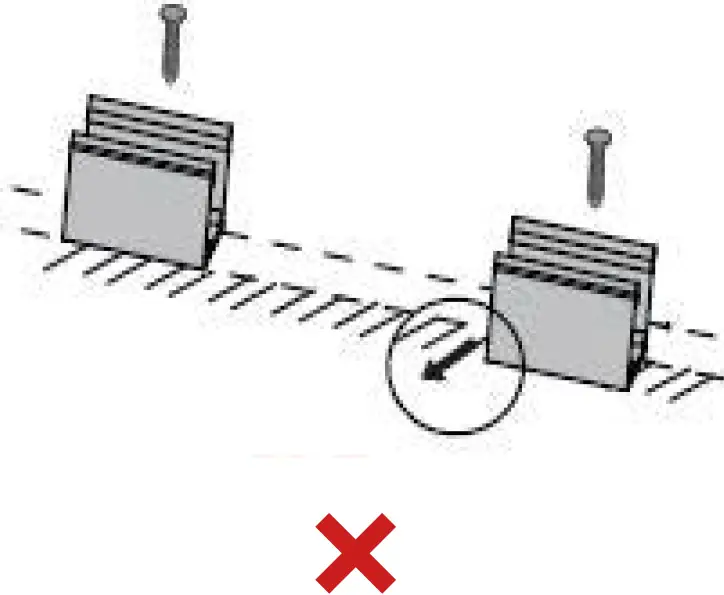

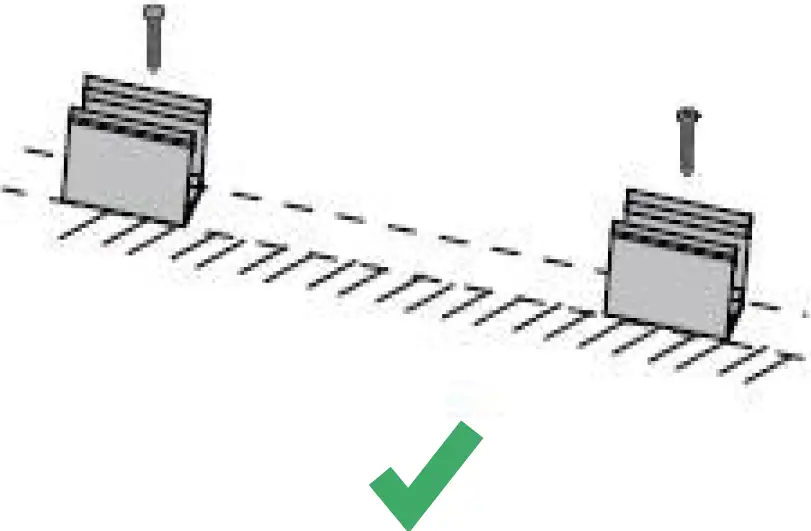

1. Use screws to fix the clips or carriers on the mounting position

• Cip. 3clips can be used for 1m


Installation of carrier

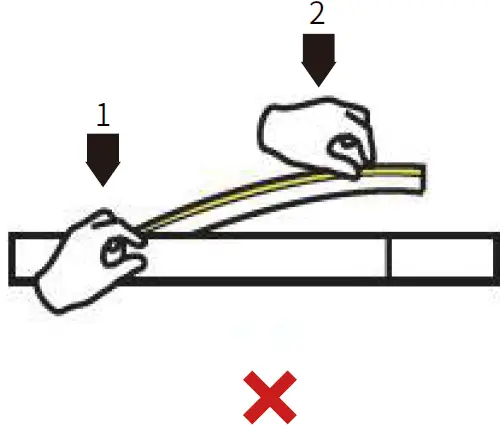

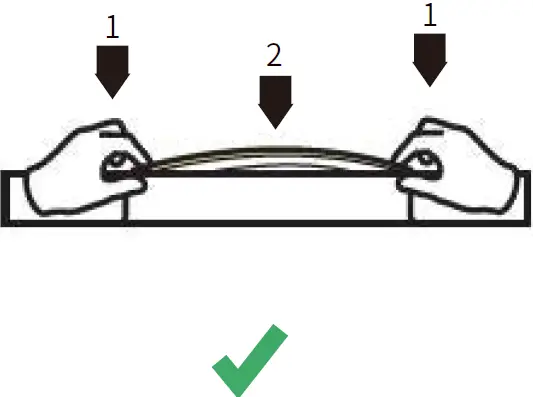

1. When installing the LED strip, install it from both ends at the same time, installation from one direction is prohibited.

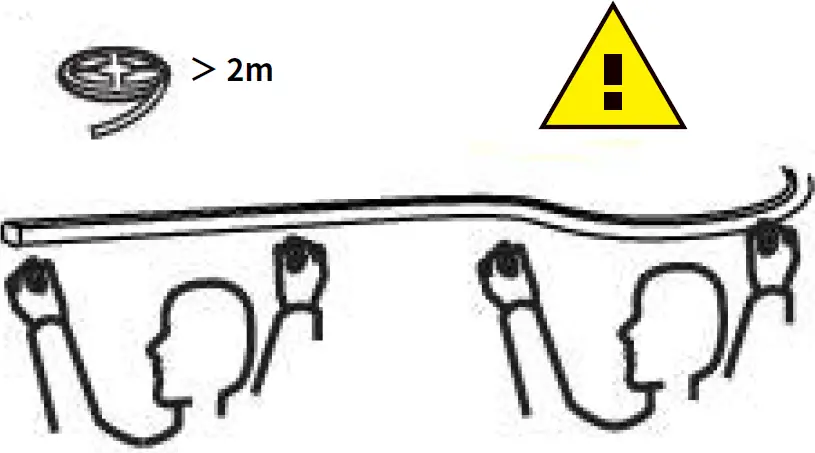

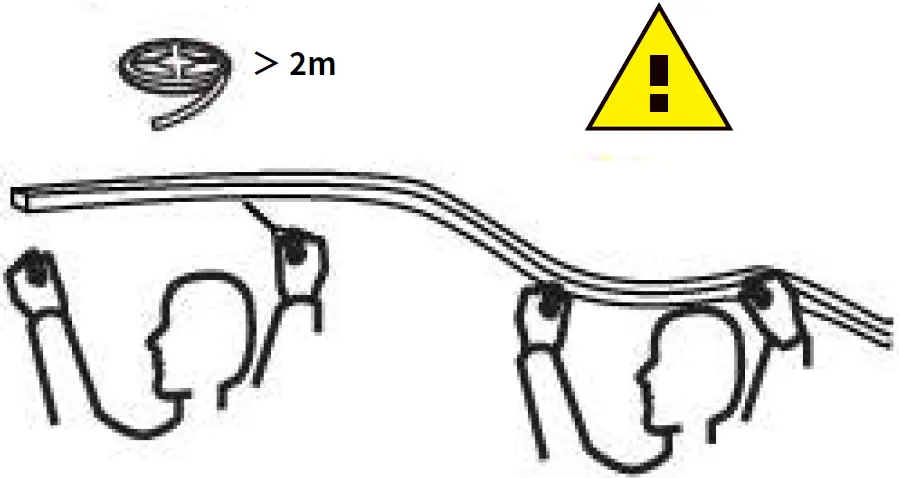

   • If the length of LED strip is over 2m, it is recommended to install by two persons.

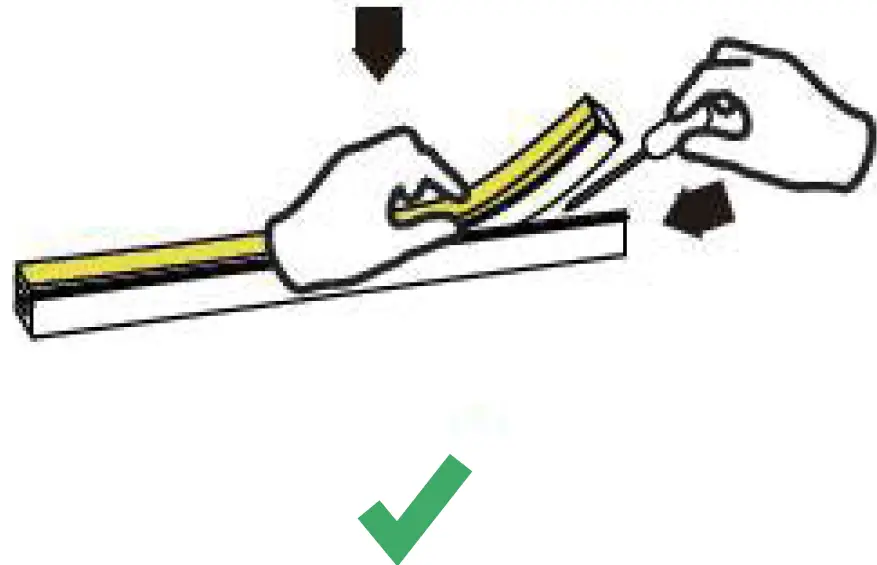

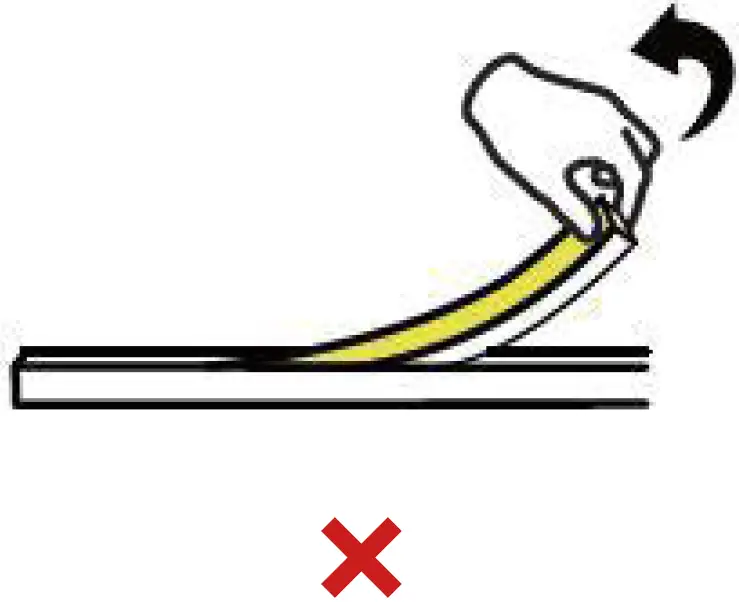

2. Use tool to disassemble carefully ,and do not pull the LED strip directly.

• lf the length of LED strip is over 2m, it is recommended to disassemble by two persons.

Cautions

• Please notice that the strips are not bendable to all directions. As the appropriate specific shape and degree, please follow the following instruction.
• LED strips are low voltage products, you must use the power supply (transformer). Please don’t connect the led strip directly to the AC 110V or AC 220V. Otherwise, it will burn out the LED strips and lead to safety (security) accidents.
•  Please read the specifications thoroughly before installation by professional staff to make sure the safe use.

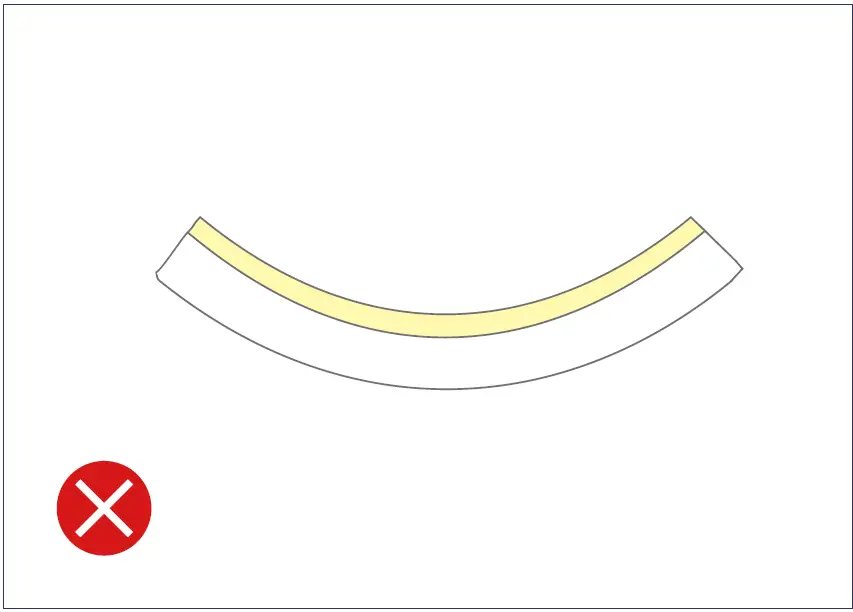

Wrong bending way

• Face to the side surface (as the picture shows). Do not bend downward to damage the strip.

• Face to the side surface (as the picture shows). Do not bend upward to damage the strip.

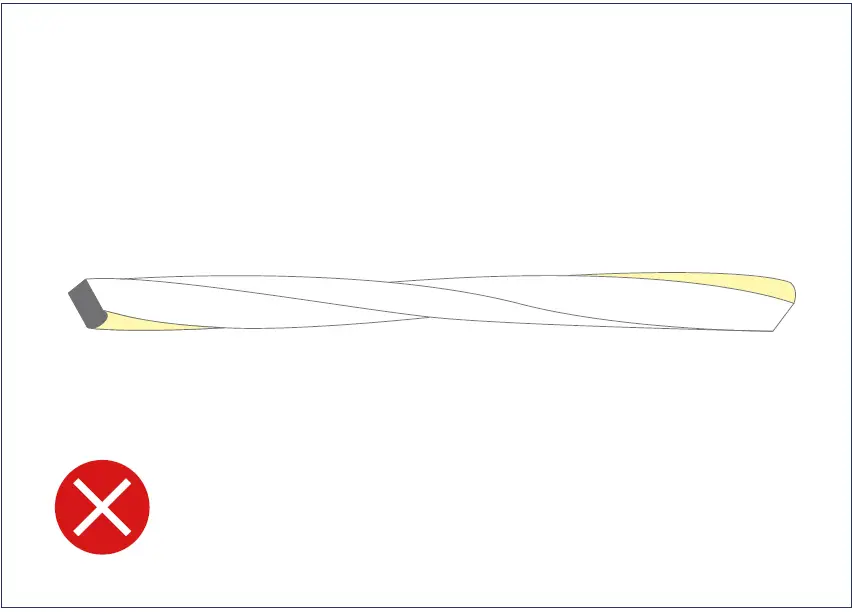

As the picture shows, please do not twist the strip, or it will be damaged.
Correct bending way

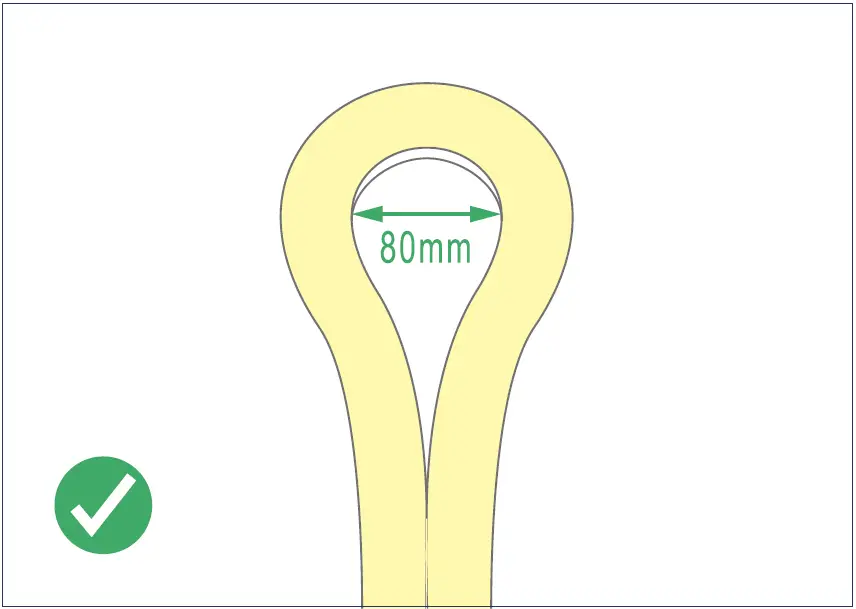

• Face to the light surface, fold the strip, the minimum bending diameter is 80mm.

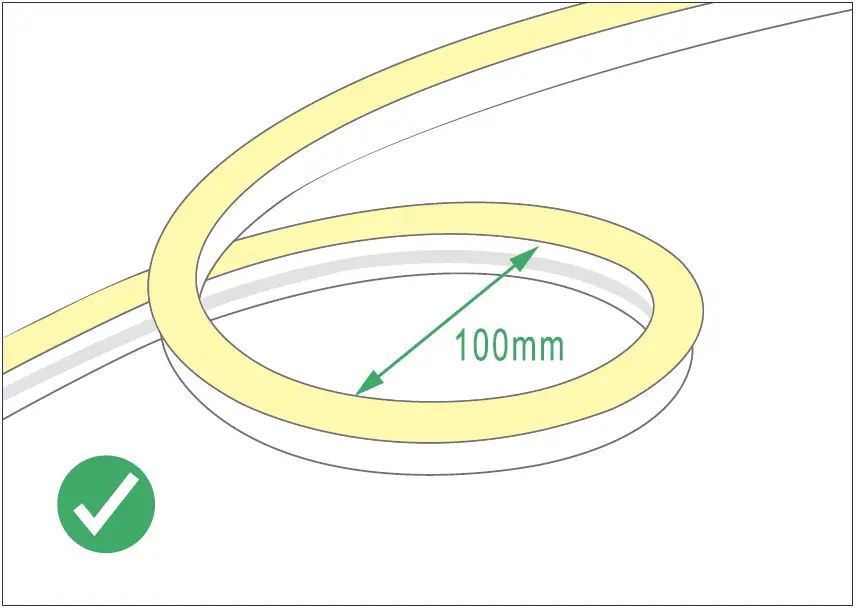

• Light surface upwards, the strip is bendable to right or left naturally, the minimum bending diameter is 100mm.

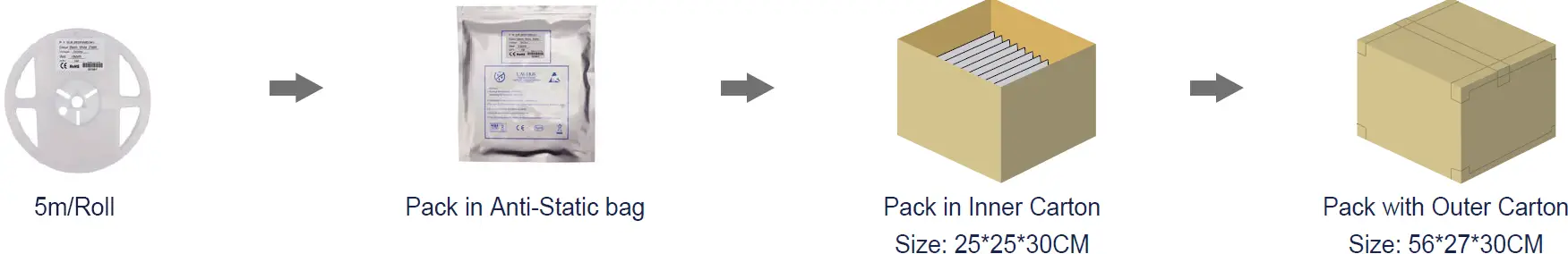

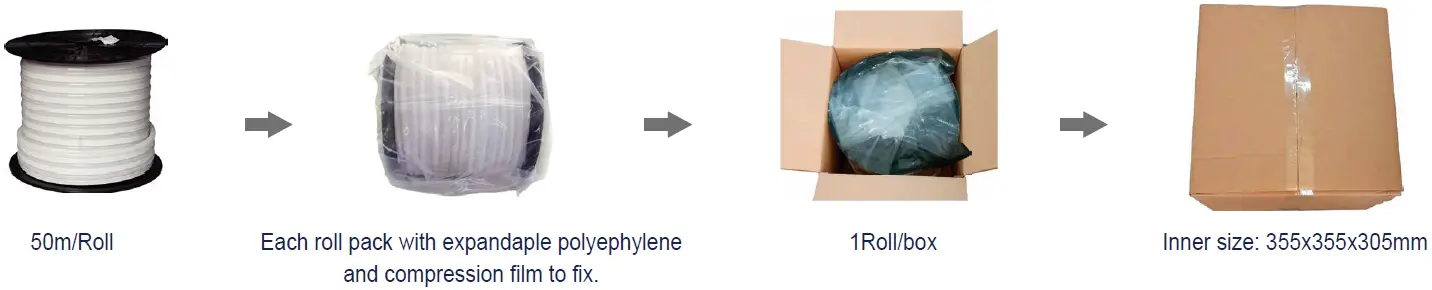

Package of Neon Strip (5M/Roll)Package of Silicone tube (50M/Roll)
