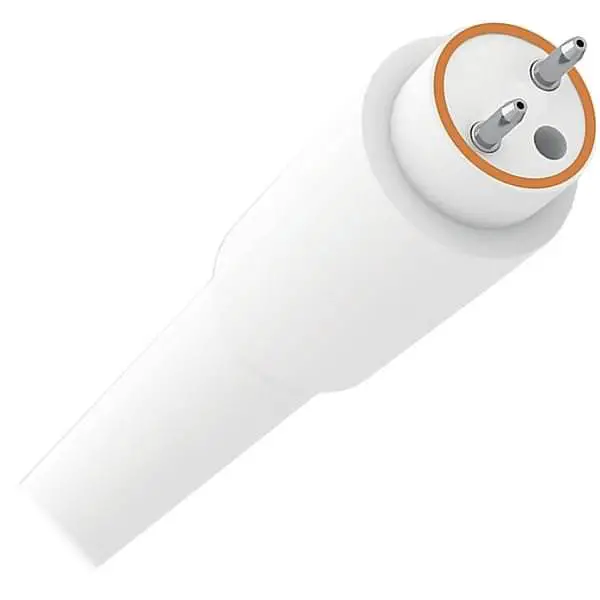

GREEN CREATIVE 98490 LED Straight T5 Tube User Guide
FEATURES
- Plug & Play – Easy to install
- Compatible with Instant Start/Program Start ballasts
- Compatible with 0-10V dimming ballasts
- Replaces 54W T5HO / 28W T5 4’ Fluorescent lamp
- Exceptional high efficacy up to 150LPW
- Opaque glass body reduces glare
- 270° extra wide light emitting area
- Suitable for use in enclosed fixture
- UL damp location
- Fixture operating temperature: -4°F to 95°F (-20°C to 35°C)
Lamp ambient temperature: -4°F to 113°F (-20°C to 45°C) - Rated lifetime (L70): 50,000hrs
- 5 years limited warranty
- Suitable for all indoor general lighting application
SPECIFICATIONS
| Product | Model | Equiv. | Input Voltage* | Wattage | Lumens | CCT | CRI | Efficacy (LPW) | Power Factor | THD | Beam Angle | Dim.* | Fixture Rating |
| 98490 | 15T5HE/4F/830/GL/DIR | 28W | 120-277V | 15 | 2200 | 3000K | 82 | 147 | 0.9 | <20% | 120° | Yes | Enclosed |
| 98491 | 15T5HE/4F/835/GL/DIR | 28W | 120-277V | 15 | 2200 | 3500K | 82 | 147 | 0.9 | <20% | 120° | Yes | Enclosed |
| 98492 | 15T5HE/4F/840/GL/DIR | 28W | 120-277V | 15 | 2250 | 4000K | 82 | 150 | 0.9 | <20% | 120° | Yes | Enclosed |
| 98494 | 24T5HO/4F/830/GL/DIR | 54W | 120-277V | 24 | 3450 | 3000K | 82 | 144 | 0.9 | <20% | 120° | Yes | Enclosed |
| 98495 | 24T5HO/4F/835/GL/DIR | 54W | 120-277V | 24 | 3450 | 3500K | 82 | 144 | 0.9 | <20% | 120° | Yes | Enclosed |
| 98496 | 24T5HO/4F/840/GL/DIR | 54W | 120-277V | 24 | 3500 | 4000K | 82 | 146 | 0.9 | <20% | 120° | Yes | Enclosed |
| 98497 | 24T5HO/4F/850/GL/DIR | 54W | 120-277V | 24 | 3500 | 5000K | 82 | 146 | 0.9 | <20% | 120° | Yes | Enclosed |
- Ballast Dependent. Please refer to www.greencreative.com for full ballast / dimmer compatibility list
BALLAST PERFORMANCE
| Bare Lamp Wattage | System Wattage | 3000K Lumens | 3500K Lumens | 4000K Lumens | 5000K Lumens |
| 15 | 17 | 2200 | 2200 | 2250 | – |
| 24 | 29 | 3450 | 3450 | 3500 | 3500 |
Testing Method: Above system power is half the total system power of a 2-tube installation using an Instant Start ballast. Power and lumen output will vary based on ballast and fixture type.
Above data is indicative only

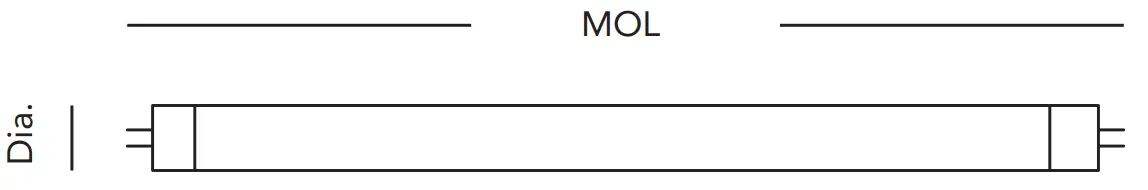

DIMENSION & WEIGHT
| Model | 15T5HE/4F/xxx/GL/DIR 24T5HO/4F/xxx/GL/DIR |
| Base | G5 |
| MOL | 45-3/4” |
| Dia. | 11/16” |
| Weight | 0.33lb |
Where xxx means 824-965 which indicates CRI and color temperature
