USER MANUAL FOR LED TUBES T5

General information.

• The unit consists of a plastic body with a diffusor and an on/off switch. The power supply is designed via the mains with a nominal 220v, 50 Hz.
• This unit is designed for domestic, office or manufacturing premises.

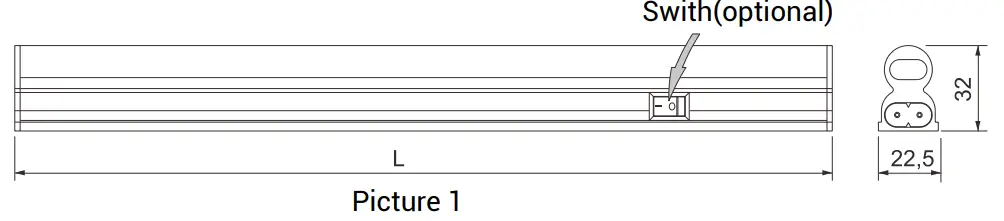

• Dimension shown as on Picture 1

Technical Specifications.

• Power supply 220-240V~50/60 Hz;
• LED type: SMD 2835 LED;
• Electric power protection class – – II;
• Ingress protection rate – IP20.

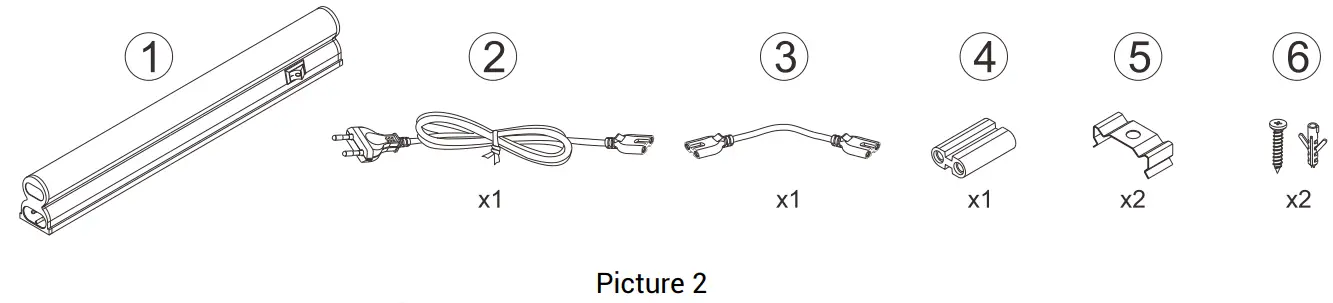

What is in the box.

1. The main LED unit – 1 piece.
2. Power supply cable 1м – 1 piece.
3. Connecting cable – (optional)*
4. Rigid connector 1 piece.
5. Metal clips 2 pieces.
6. Screws 2 pieces.
7. Operation Manual 1 piece.
8. Package box- 1 piece.

Installation and connecting the unit.

• Open the box and check its contents.

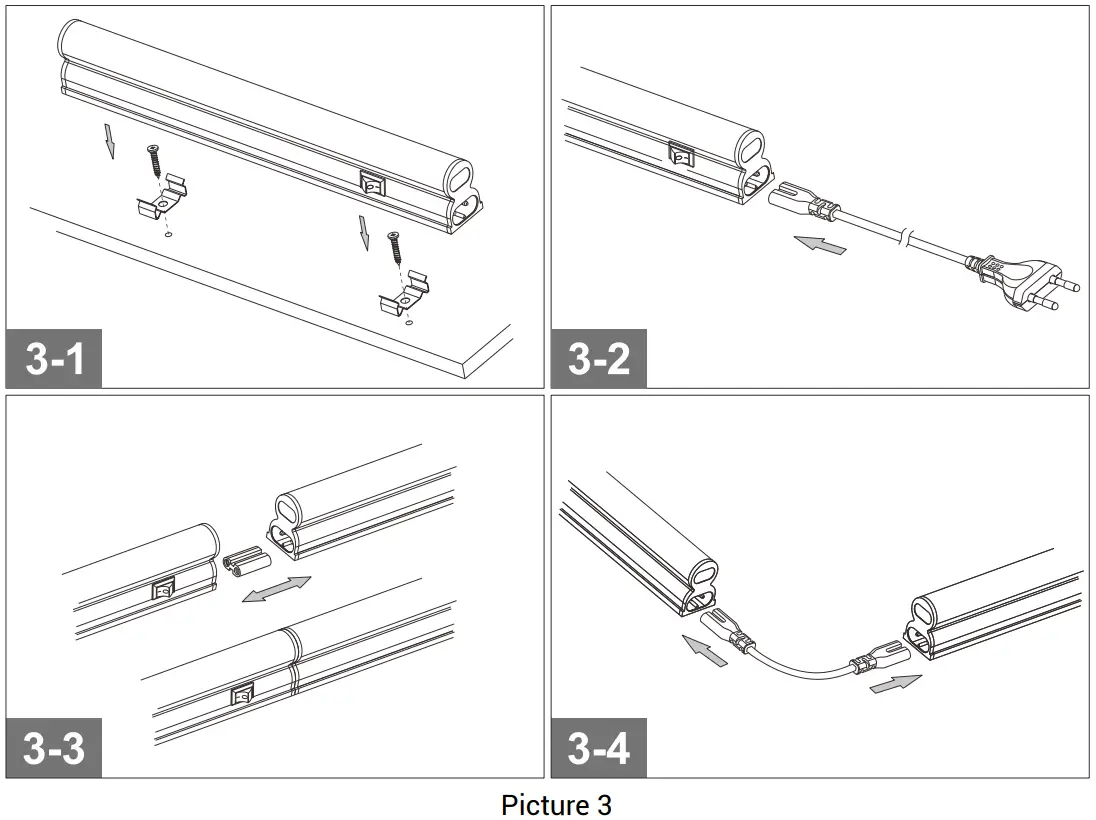

• Install the unit in the designated place using the metal clips as shown in pictures .3-1.
• Connect the power cable to the unit (Picture.3-2).
• Connect the power cable to the mains 220 V.
• Turn on the unit using the on/off switch which is on the body.
• If necessary you may connect a few units in line using the rigid connectors (picture 3-3) or the flexible connecting cable (Рicture. 3-4).
• ATTENTION! The maximum number of units connected in-line together is shown in the table above.

Safety Precautions.

• Installing the unit can only be undertaken by a qualified electrician. Serious injury/death or property damage may occur if otherwise.
• Installing or servicing the unit can only be undertaken when the power is completely cut off.
• Do not attempt to operate or service the unit if the body, plugin or cable are damaged..
• Ensure that the unit is not dropped or damaged by a physical force.
• In case the unit does not operate properly – stop using it immediately, disconnect it from the power supply and seek professional assistance.
• Never install or maintain the unit if you are not a qualified electrician. Serious injury/death or property damage may occur if otherwise

Recycling.

• The unit does not contain any valuable or toxic substances that require special recycling. Recycling is made via regular methods.

Transporting and storing.

• Any means of transport is allowed provided that the package is not exposed to the elements or damage risk.
• Store only unpacked indoors with natural ventilation with air temperature below 20 C up to +40°С and relative humidity not higher than 90 % (if no condense is formed).

Warranty.

• Warranty against manufacturing defect is 12 months from the purchase date.
• If any anomaly occurs – please contact your authorized dealer. You may be required to provide a valid proof of purchase and deliver the unit to a customer service point.

ATTENTION! Warranty does not cover:

• Damages made by mechanical force or use outside the normal design purposes;
• Any case in which damage has been caused by not following the operating manual.
• Any case in which the unit has been opened or tampered with by an unauthorized service agent.

* Sold separately – various lengths
