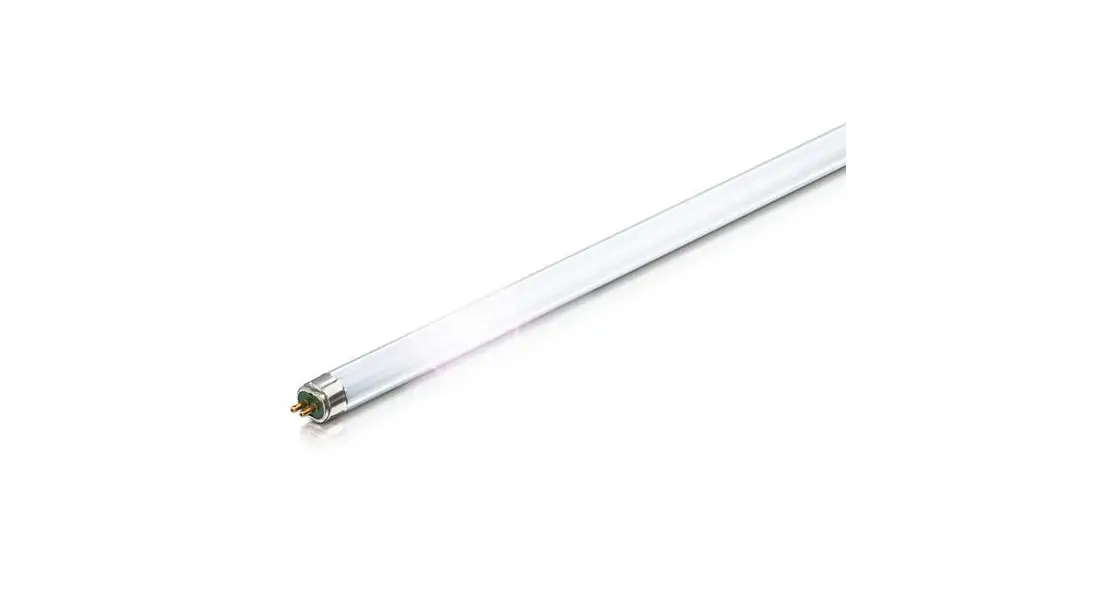

MASTER TL5 High Output Tube Light
MASTER TL5 High Output
MASTER TL5 HO 80W/865 1SL/40
This TL5 lamp (tube diameter 16 mm) offers high light output. The TL5 HO lamp is optimized for installations requiring high light output and offers excellent lumen maintenance and color rendering. Application areas vary from offices and industry to schools and retail environments.
Warnings and Safety
- A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
Product data
General information
| Cap base | G5 [ G5] |
| Life to 50% failures preheat (nom.) | 30000 h |
| Features | na [ Not Applicable] |
| System description | High Output (HO) |
| LSF preheat 2,000 hours rated | 99% |
| LSF preheat 4,000 hours rated | 99% |
| LSF preheat 6,000 hours rated | 99% |
| LSF preheat 8,000 hours rated | 99% |
| LSF preheat 16,000 hours rated | 97% |
| LSF preheat 20,000 hours rated | 84% |
| Sphere | |
| Light technical | 1% |
| Colour Code | 865 [ CCT of 6,500 K] |
| Luminous flux (nom.) | 6300 lm |
| Luminous flux (rated) (nom.) | 6300 lm |
| Colour designation | Cool Daylight |
| Luminous Efficacy (@ Max Lumen, Rated) (Nom) | 83 lm/W |
| Chromaticity coordinate X (nom.) | 0.313 |
| Chromaticity coordinate Y (nom.) | 0.337 |
| Correlated Colour Temperature (Nom) | 6500 K |
| Luminous efficacy (rated) (nom.) | 79 lm/W |
| Color rendering index (max.) | 85 |
| Colour-rendering index (min.) | 80 |
| Colour rendering index (nom.) | 82 |
| LLMF 2000 h Rated | 96% |
| LLMF 4000 h Rated | 95% |
| LLMF 6000 h Rated | 94% |
| LLMF 8000 h Rated | 93% |
| LLMF 12000 h Rated | 92% |
| LLMF 16000 h Rated | 91% |
| LLMF 20000 h Rated | 90% |
| Operating and electrical | |
| Power (Rated) (Nom) | 79.8 W |
| Lamp current (nom.) | 0.530 A |
| Temperature | |
| Design temperature (nom.) | 35 °C |
| Controls and dimming | |
| Dimmable | Yes |
| Mechanical and housing | |
| Cap-base information | Green Plate |
| Bulb shape | T5 [ 16 mm (T5)] |
| Approval and application | |
| Energy Efficiency Class | 1.2 mg |
| Mercury (Hg) content (nom.) | 80 kWh |
| Energy consumption kWh/1,000 hours | 423572 |

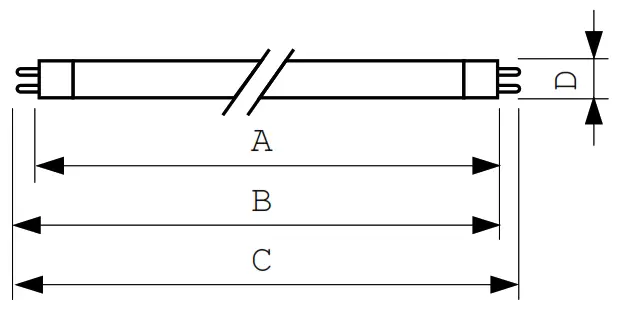

Dimensional drawing
MASTER TL5 HO 80W/865 SLV/40
Photometric data

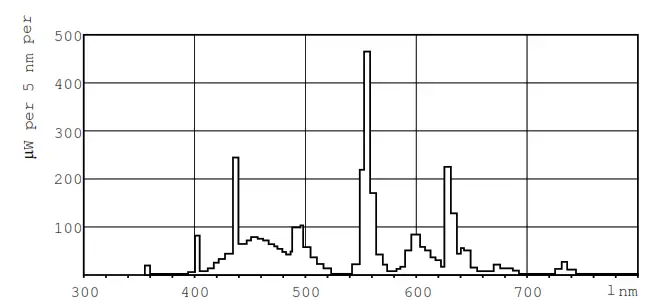

LDPB_TL5-HO8_865-Spectral power distribution B/W
| Product data | |
| Full product code | 871150071047555 |
| Order product name | MASTER TL5 HO 80W/865 SLV/40 |
| EAN/UPC – product | 8711500710475 |
| Order code | 71047555 |
| SAP numerator – quantity per pack | 100% |
| Calculated local code description B2B | MASTER TL5 HO 80W/865 SLV/40 |
| Numerator – packs per outer box | 40 |
| SAP material | 927929586557 |
| Net Weight (Piece) | 127.400 g |
| ILCOS code | FDH-80/65/1B-L/P-G5-16/1450 |
| Product | D (max) | A (max) | B (max) | B (min) | C (max) |
| MASTER TL5 HO | 17 mm | 1449.0 mm | 1456.1 mm | 1453.7 mm | 1463.2 mm |
| 80W/865 SLV/40 | |||||
Lightcolour /865
MASTER TL5 High Output
LDLE_TL5-HO8_0001-Life expectancy diagram

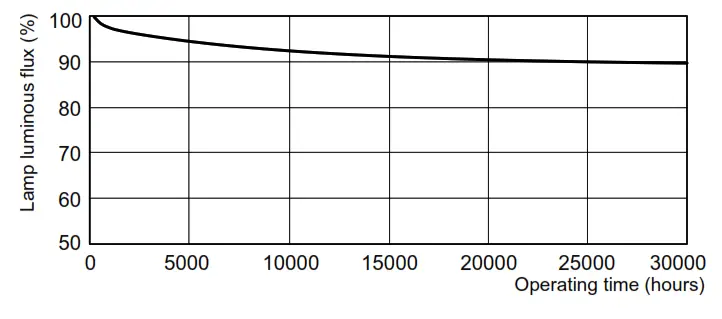

LDLM_TL5-HO8_0001-Lumen maintenance diagram

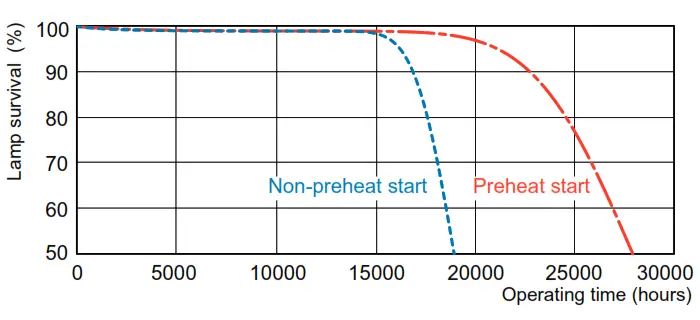

LDLE_TL5-HO8_0002-Life expectancy diagram
© 2022 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any
quotation or contract, unless otherwise agreed by Signify. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
www.lighting.philips.com
2022, September 11 – data subject to change
