LAMPEHUSET 45030-050-53 LED T5 Batten Tube Light
CAUTION
- Battens of different lengths can be connected to each other and work together but the maximum wattage must be lower than 114W

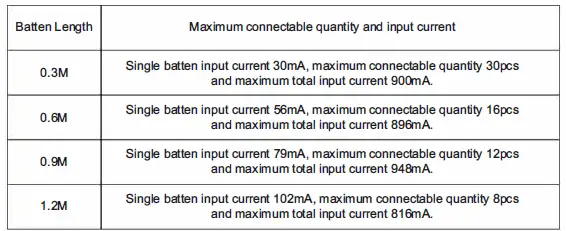

- Battens of the same length can be connected to each other and work together but the maximum connectable quantity and input current need to follow the table as below:
All the connections of the batten should not be a closed loop. Diameter of cable: 0.75 mm
Pre-Installation
PLANNING THE INSTALLATION
Read all instructions before assembly and installation. Before starting the installation of the fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.

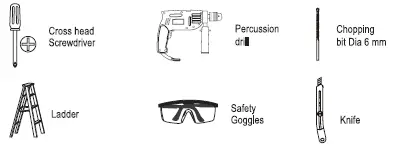

TOOLS REQUIRED
Installation

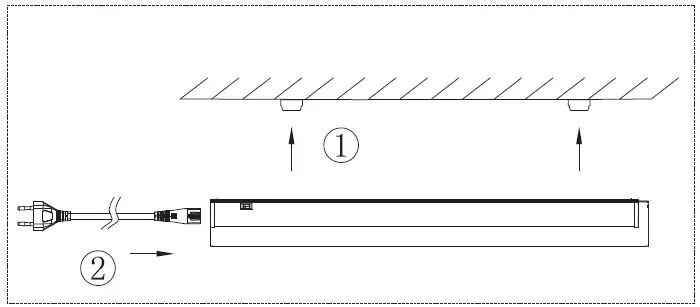

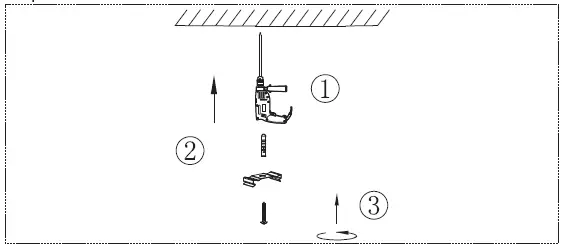

Step 1.
Step 2.
Extension usage
If want to extend, remove the cap and connect with the other T5 with the connector
Option 1:
Option 2:

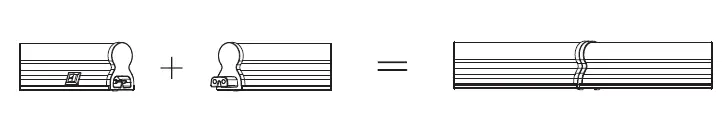

Connect two T5 battens together, different length combination is possible

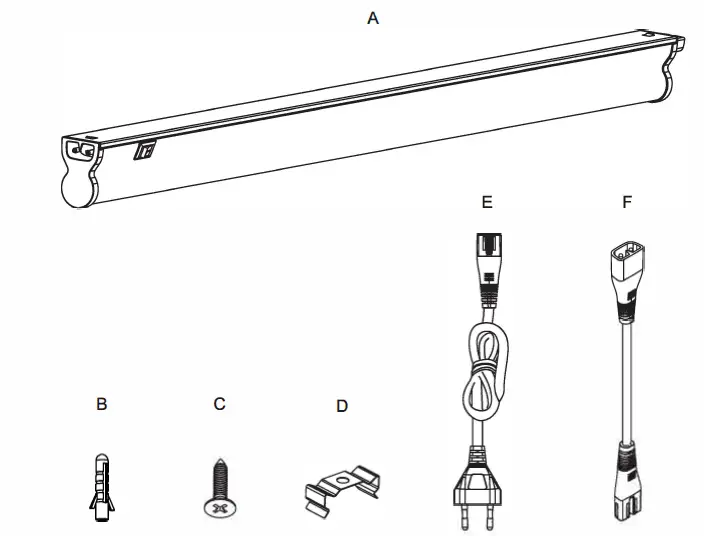

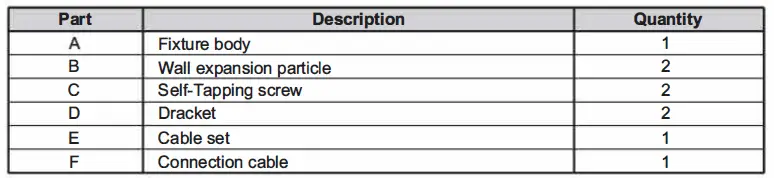

Package contents
(parts are not to scale):

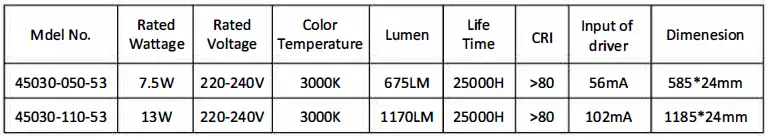

Parameters
Care and Cleaning
EXTERIOR MAINTENANCE
- To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the surface of the fixture.
- Do not use any cleaners with chemicals, solvents, or harsh abrasives. Use only dry soft cloth to dust or wipe carefully.
