V-tac 80133970 T8 Led Tubes Instruction Manual (+ PDF)

80133970 T8 LED Tubes
Instruction ManualSTARTER FOR LED TUBES
DUMMY STARTER INCLUDED

Contents hide

1 TECHNICAL DATA

2 INTRODUCTION & WARRANTY

3 WARNINGS!

4 New Fitting Installation

5 Documents / Resources

5.1 References

6 Related Posts

TECHNICAL DATA

Model	VT-061	VT-121	VT-151	VT-062	VT-122	VT-152
Watts	9	18	20	8.	17.	24
Lumens	850	1850	2100	850	1850	3000
CRI	>80	>80	>80	>80	>80	>80
DF	>0.5	>0.7	>0.7	>0.5	>0.7	>0.7
BeamAngle	160°	160°	160°	160°	160°	160°
Body Type	Plastic	Plastic	Plastic	Plastic	Plastic	Plastic
Holder	G13	G13	G13	G13	G13	G13
Long Life	25,000 Hours	25,000 Hours	25,000 Hours	25,000 Hours	25,000 Hours	25,000 Hours
On/Off Cycles	>15000	>15000	>15000	>15000	>15000	>15000

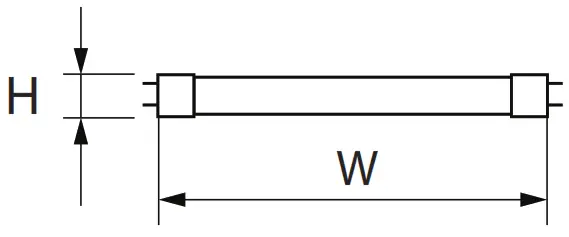

Dimension	600 x 28mm	1200 x 28mm	1500 x 28mm	600 x 28mm	1200 x 28mm	1500 x 28mm
Input Power	AC:220-240V,50Hz	AC:220-240V,50Hz	AC:220-240V,50Hz	AC:220-240V,50Hz	AC:220-240V,50Hz	AC:220-240V,50Hz

	This marking indicates that this product should not be disposed of with other household wastes.
	LED Lamps suitable for 50Hz operation
	LED Lamps to be used in dry conditions or in a luminaire that provides protection
	Caution, risk of electric shock.
	LED Tubes are NOT suitable for dimming
	LED Tubes not suitable for emergency operations
	LED replacement starter (Included in the packaging)

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only. The LED tube can be used in hotels, offices, factories, conference rooms, meeting rooms, commercial complexes, residential buildings, schools, colleges, universities, hospitals, etc.

WARNINGS!

Installation should only be done by a certified electrician
Operation environment temperature: from -20°C to +45°C
Do not use DC electricity
Do not modify the fitting to be used with the LED Tube.
V-TAC LED Tubes are NOT designed to be used in emergency operations.
Do NOT use with electronic ballasts. V-TAC LED tubes are not compatible with electronic ballast circuit. In order to use the electronic ballast fitting you must ensure to remove the electronic ballast from the fitting and rewire the circuit as per new fitting installation as shown below. Ensure the installation and wiring is carried out by certified electrician.

PACKING:

LED Tube (1PC)
Instruction Manual (1PC)
Dummy Starer (1PC)

New Fitting Installation

Installation should only be done by a certified electrician
Switch Off the power.

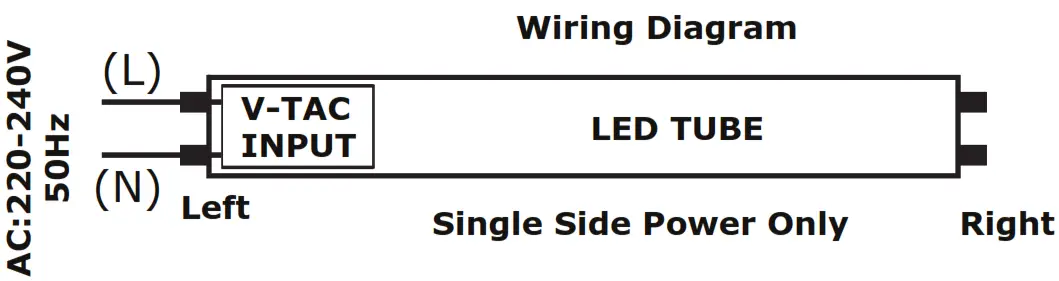

Ensure the wiring diagram is followed as highlighted.
Insert V-TAC LED Tube.
Switch On the power to test the light.

Installation & Replacement of Fluorescent Lamp(Single Magnetic Ballast Ciruit)

Installation should only be done by a certified electrician.

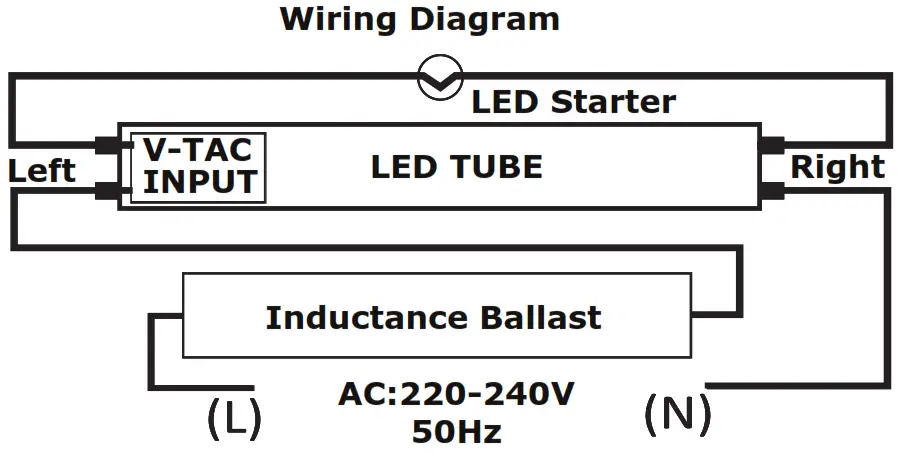

Please refer to the wiring diagram for replacing fluorescent tube on a single magnetic ballast circuit with V-TAC LED Tube.

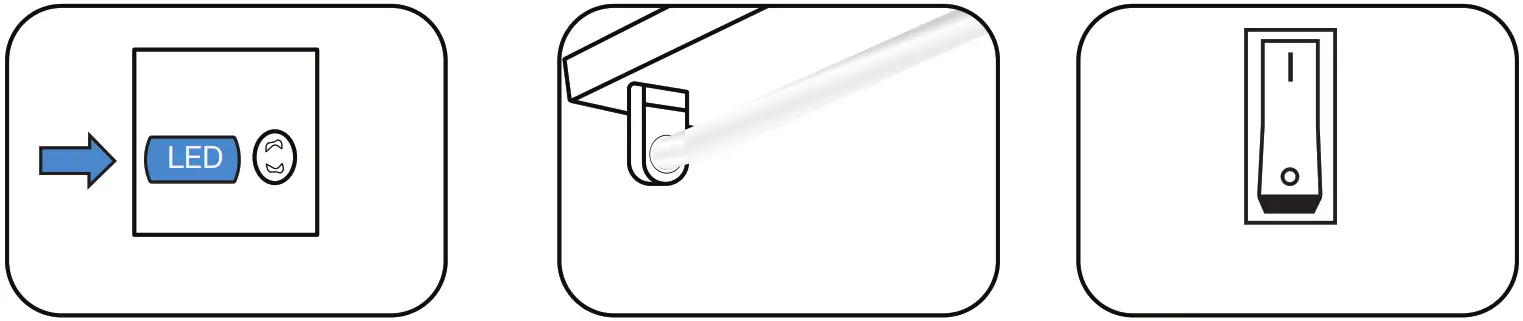

1. Switch off the power	2. Remove the existing ﬂuorescent lamp	3. Remove the existing ﬂuorescent starter

4. Insert LED T8 starter	5. Insert V-TAC LED Tube	6. Switch ON the power
