Systemq See765 5mp Eyeball 2.8mm Built In Mic User Guide

SystemQ SEE765 5MP Eyeball 2.8mm Built In Mic

INSTRUCTION

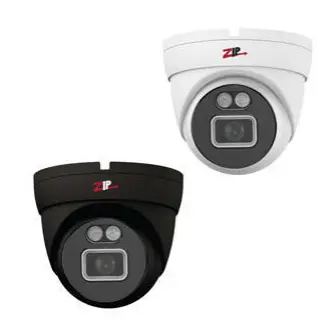

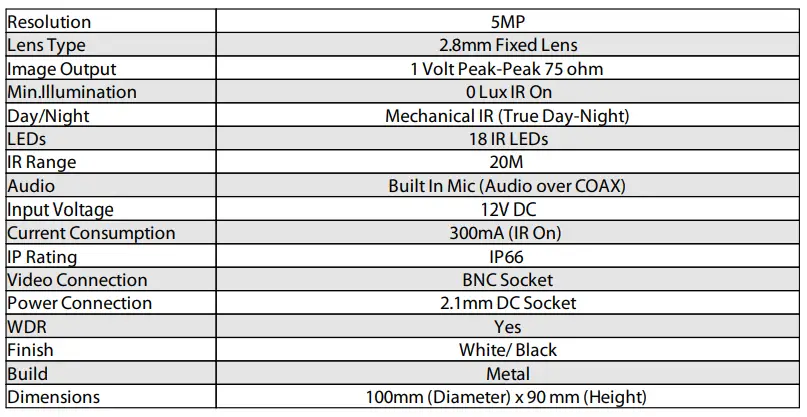

The all new Audio over Coax TVI eyeball cameras, ideal for use outdoors and they look great indoors too. The SEE765 is a great compact piece of equipment that can be subtly added to your property. The wide angle 2.8mm lens means that you still get a good view of the area even from a compact camera.

A built in microphone means you can see and hear what’s happening, recording the audio & video on your ZIP SUPA-S DVR for the best possible CCTV evidence. *Audio over COAX only Compatible with selected ZIP Recorders. See full manual for how to enable and compatible models.

Powering the camera

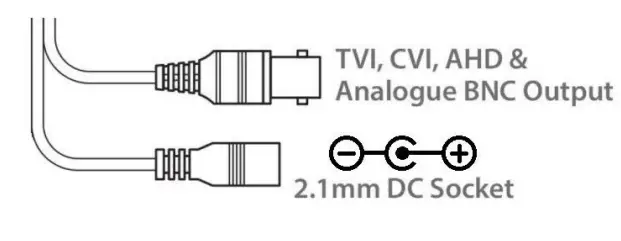

The camera has a 2.1mm socket which requires 12V DC and the current consumption is 300mA, so use a regulated power supply rated at 500mA or above. The camera is polarity sensitive so connections must be correctly made.

The camera has a standard BNC connector for the 4-in-1 video output. As default the output is set to HD-TVI 5MP which will work with the ZipSupa and ZipXtreme DVRs, however the output can be changed to AHD, CVI or CVBS if required.

OSD Camera Menu

Via an DVR with a monitor & mouse direct to access the Cameras menu via coalition:-

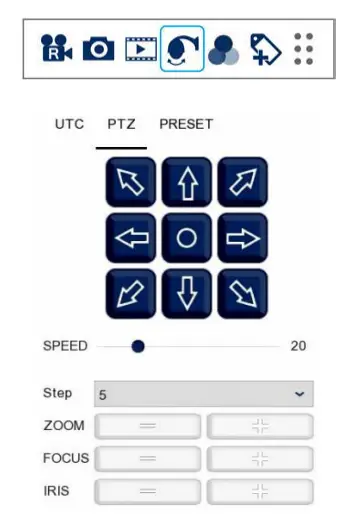

1.  Click on the image in Live view
2.  Click on the PTZ button at the bottom of the screen
3.  Click on the IRIS + / centre button to display the menu

• Use the directional arrows to move up and down through the menu.
• Use the directional arrows left and right to change the option.
• Use IRIS + to select and enter that menu option.
